Alder Lake N AK5/AK61/AK62/ AK7

Features:

HDMI, DP, VGA triple display outputs,
Optional 2/4 Intel with POE functionality ® I350 Gigabit Network Interface Expansion
Optional 4-way light source extension
Optional 8-channel optoelectronic isolation digital input, 8-channel optoelectronic isolation digital output expansion
Optional PCIe x4/PCI expansion
Supports WiFi/4G wireless expansion
Built in USB 2.0 Type-A for easy installation of dongles
Supports desktop, wall mounted, and DIN rails
12-28V DC power supply

Remote management
Condition monitoring
Remote operation and maintenance
Safety Control

Product Description

The APQ E-Smart IPC flagship product, the AK Series Magazine-style Smart Controller, adopts a 1+1+1 configuration—namely, the main unit + main magazine + auxiliary magazine + software magazine. This setup across 3 platforms and 9 types of magazines achieves over 72+ function combinations, meeting various application needs such as vision, motion control, robotics, and digitalization with the flexibility of changing a magazine to satisfy a specific application, thereby reducing maintenance costs for customers through device self-operation.

The AK Series represents APQ’s commitment to creating a trustworthy and industry-leading controller that Chinese consumers can rely on. Unique in the robotics field, the AK controller spans ARM, X86, and MCU platforms, integrating chassis domain control and autonomous driving domain control. It stands as the best choice for an industry domain control platform.

As a vision controller, the AK achieves an exceptionally high cost-performance ratio in the 2-4 camera sector. It is also the prime choice for soft PLC applications and the best platform choice for deep integration of motion control cards and IOs.

INTRODUCTION

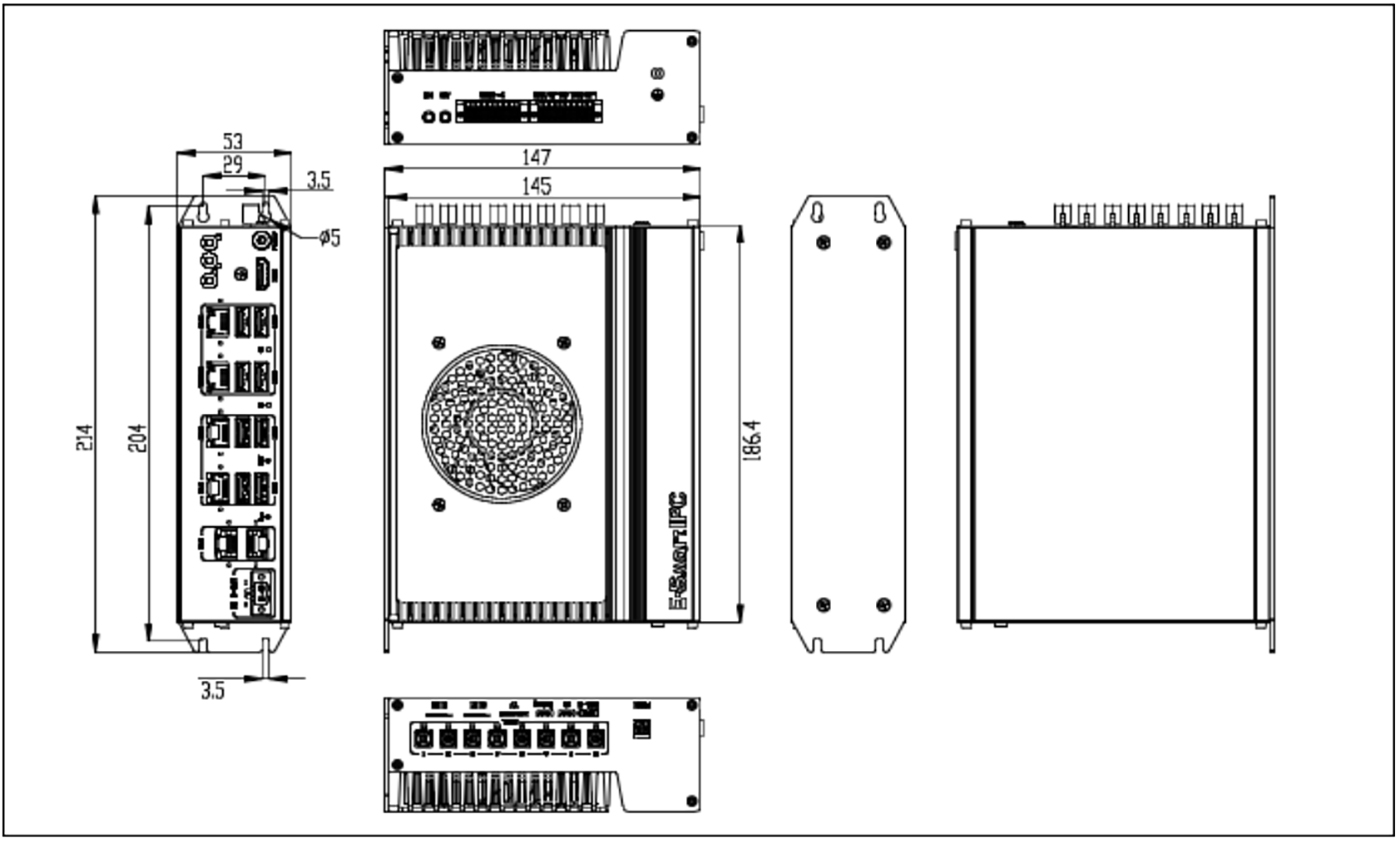

Engineering Drawing

File Download

AK5xxx

AK61xx

AK62xx

AK7170

AK1J19A3

AK5xxx

Model		AK5xxx	AK5xxx-1A/1B	AK5xxx-2A	AK5xxx-3A
CPU	CPU	Intel^® Alder Lake-N Series Processor
	TDP	12/15W
	Chipset	SOC
BIOS	BIOS	AMI UEFI BIOS
Memory	Socket	1 * DDR4 SO-DIMM Slot, up to 3200MHz
	Max Capacity	16GB
Graphics	Controller	Intel^® UHD Graphics
Ethernet	Controller	2 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps)	2 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i350 GbE LAN Chip (10/100/1000 Mbps)	2 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps)	2 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps)
Storage	M.2	1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)
	PCIe/PCI	N/A	N/A	1 * PCIe x4	1 * PCI
Front I/O	USB	4 * USB3.0 (Type-A)2 * USB2.0 (Type-A)
	Serial	2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)
	Display	1 * HDMI: max resolution up to 40962304 @ 24Hz 1 DP: max resolution up to 40962160 @ 60Hz 1 VGA: max resolution up to 1920*1200 @ 60Hz
	LAN/POE	2 * RJ45	2 * RJ45 AK5xxx-1A: 2 * RJ45, Intel^® i350-AM2, optional POE module, 802.3at/af, total 60W AK5xxx-1B: 4 * RJ45, Intel^® i350-AM4, optional POE module, 802.3at/af, total 60W	2 * RJ45	2 * RJ45
	Light Source	N/A	4 * Light Source Output (24V, Max. 1A per channel, PWM control)	N/A	N/A
	GPIO	N/A	1 * 16bits DIO (8xDI, optical isolation; 8xDO, optical isolation)	N/A	N/A
	Power	1 * DC Power Input	1 * DC Power Input	1 * DC Power Input	1 * DC Power Input
	SIM	1 * Nano SIM Card slot (Mini PCIe module provide functional support)
	Button	1 * Power Button + Power LED 1 * PS_ON Connector
Bottom I/O	Switch	1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
	Button	1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery)
	PCIe/PCI	N/A	N/A	1 * PCIe x4	1 * PCI
Power Supply	Type	DC
	Power Input Voltage	12 ~ 28VDC Note：When using the light source, 24V input must be used.
	Connector	1 * 4Pin Power Input Connector (P= 5.08mm)
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
	Linux	Linux
Watchdog	Output	System Reset
	Interval	Programmable via Software from 1 to 255 sec
Mechanical	Enclosure Material	Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC
	Dimensions	53mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)
	Mounting	Wall mounted, DIN, Desktop
Environment	Heat Dissipation System	Passive Heat Dissipation
	Operating Temperature	-20~60℃ (Industrial SSD)
	Storage Temperature	-40~80℃ (Industrial SSD)
	Relative Humidity	5 to 90% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (30G, half sine, 11ms)

AK61xx

Model		AK61xxA2
CPU	CPU	Intel^® 11^th Generation Core™ i3/i5/i7 Mobile -U Processor
CPU	Chipset	SoC
BIOS	BIOS	AMI UEFI BIOS
Memory	Socket	1 * DDR4 SO-DIMM Slot, up to 3200MHz
Memory	Max Capacity	32GB
Graphics	Controller	Intel^® UHD Graphics/Intel^® Iris® Xe Graphics (Dependent on CPU)
Ethernet	Controller	1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i219-LM GbE LAN Chip (10/100/1000 Mbps)
Storage	M.2	1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280)
Expansin	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot) 1 * Mini PCIe (USB 2.0, PCIe x1 Gen2 is optional)
Expansin	Optional Cabinet	1E
Front I/O	USB	4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A)
	Serial	2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)
	Display	1 * HDMI: max resolution up to 40962304 @ 24Hz 1 DP: max resolution up to 40962160 @ 60Hz 1 VGA: max resolution up to 1920*1200 @ 60Hz
	LAN	2 * RJ45
	Power	1 * DC Power Input
	SIM	1 * Nano SIM Card slot (Mini PCIe module provide functional support)
	Button	1 * Power Button + Power LED 1 * PS_ON Connector
Bottom I/O	Switch	1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
Bottom I/O	Button	1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery)
Power Supply	Type	DC
	Power Input Voltage	12 ~ 28VDC Note：When using the light source, 24V input must be used.
	Connector	1 * 4Pin Power Input Connector (P= 5.08mm)
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable via Software from 1 to 255 sec
Mechanical	Enclosure Material	Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC
	Dimensions	53mm(L) * 145mm(W) * 186.4mm(H)
	Mounting	Wall mounted, DIN, Desktop
Environment	Heat Dissipation System	Passive Heat Dissipation
	Operating Temperature	-20~60℃ (Industrial SSD)
	Storage Temperature	-40~80℃ (Industrial SSD)
	Relative Humidity	5 to 90% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (30G, half sine, 11ms)

AK62xx

Model		AK62xx	AK62xx-1A/1B	AK62xx-2A	AK62xx-3A
CPU	CPU	Intel^® 12^th Generation Core^TM i3/i5/i7 Mobile -P CPU
	TDP	28W
	Chipset	SOC
BIOS	BIOS	AMI UEFI BIOS
Memory	Socket	2 * DDR5 SO-DIMM Slot, Dual Channel up to 5200MHz
Memory	Max Capacity	64GB, Single Max. 32GB
Ethernet	Controller	1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)	1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i219-LM/V GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i350 GbE LAN Chip (10/100/1000 Mbps)	1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)	1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage	M.2	1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280)	1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280) 1 * M.2 Key-M (SATA3.0, 2280)	1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280)	1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280)
Expansion Slots	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0) 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)
Expansion Slots	PCIe/PCI	N/A	N/A	1 * PCIe x4	1 * PCI
Front I/O	USB	6 * USB3.0 (Type-A)
	Serial	2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)
	Display	1 * HDMI: max resolution up to 40962304 @ 24Hz 1 DP: max resolution up to 40962160 @ 60Hz 1 VGA: max resolution up to 1920*1200 @ 60Hz
	LAN/POE	2 * RJ45	2 * RJ45 AK62xx-1A: 2 * RJ45, Intel^® i350-AM2, optional POE module, 802.3at/af, total 60W AK62xx-1B: 4 * RJ45, Intel^® i350-AM4, optional POE module, 802.3at/af, total 60W	2 * RJ45	2 * RJ45
	Light Source	N/A	4 * Light Source Output (24V, Max. 1A per channel, PWM control)	N/A	N/A
	GPIO	N/A	1 * 16bits DIO (8xDI, optical isolation; 8xDO, optical isolation)	N/A	N/A
	Power	1 * DC Power Input	1 * DC Power Input	1 * DC Power Input	1 * DC Power Input
	SIM	1 * Nano SIM Card slot (Mini PCIe module provide functional support)
	Button	1 * Power Button + Power LED 1 * PS_ON Connector
Bottom I/O	Switch	1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
	Button	1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery)
	PCIe/PCI	N/A	N/A	1 * PCIe x4	1 * PCI
Power Supply	Power Input Voltage	12 ~ 28VDC Note：When using the light source, 24V input must be used.
OS Support	Windows	Windows 10/11
OS Support	Linux	Linux
Mechanical	Dimensions	53mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)
Environment	Operating Temperature	-20~60℃ (Industrial SSD)
	Storage Temperature	-40~80℃ (Industrial SSD)
	Relative Humidity	5 to 90% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (30G, half sine, 11ms)

AK7170

Model		AK7170	AK7170-1A/1B	AK7170-2A	AK7170-3A
CPU	CPU	Intel^® 6~9^th Generation Core^TM i3/i5/i7 Desktop Processor
	TDP	65W
	Socket	LGA1151
Chipset	Chipset	Intel^®Q170
BIOS	BIOS	AMI UEFI BIOS
Memory	Socket	2 * SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz
	Max Capacity	32GB, Single Max. 16GB
Ethernet	Controller	1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)	1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i219-LM/V GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i350 GbE LAN Chip (10/100/1000 Mbps)	1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)	1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage	M.2	1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2280)	1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD auto detect, 2280) 1 * M.2 Key-M (SATA3.0, 2280)	1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2280)	1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2280)
Expansin Slots	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0) 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)
	PCIe/PCI	N/A	N/A	1 * PCIe x4	1 * PCI
Front I/O	USB	6 * USB3.0 (Type-A)
	Serial	2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)
	Display	1 * HDMI: max resolution up to 40962304 @ 24Hz 1 DP: max resolution up to 40962160 @ 60Hz 1 VGA: max resolution up to 1920*1200 @ 60Hz (Optional)
	LAN/POE	2 * RJ45	2 * RJ45 AK7170-1A: 2 * RJ45, Intel^® i350-AM2, optional POE module, 802.3at/af, total 60W AK7170-1B: 4 * RJ45, Intel^® i350-AM4, optional POE module, 802.3at/af, total 60W	2 * RJ45	2 * RJ45
	Light Source	N/A	4 * Light Source Output (24V, Max. 1A per channel, PWM control)	N/A	N/A
	GPIO	N/A	1 * 16bits DIO (8xDI, optical isolation; 8xDO, optical isolation)	N/A	N/A
	Power	1 * DC Power Input	1 * DC Power Input	1 * DC Power Input	1 * DC Power Input
	SIM	1 * Nano SIM Card slot (Mini PCIe module provide functional support)
	Button	1 * Power Button + Power LED 1 * PS_ON Connector
Bottom I/O	Switch	1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
	Button	1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery)
	PCIe/PCI	N/A	N/A	1 * PCIe x4 slot	1 * PCI slot
Power Supply	Type	DC
	Power Input Voltage	12 ~ 28VDC Note：When using the light source, 24V input must be used.
	Connector	1 * 4Pin Power Input Connector (P= 5.08mm)
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	6/7th Core™: Windows 7/10/11 8/9th Core™: Windows 10/11
	Linux	Linux
Mechanical	Dimensions	53mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)
Environment	Operating Temperature	-20~60℃ (Industrial SSD)
	Storage Temperature	-40~80℃ (Industrial SSD)
	Relative Humidity	5 to 90% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (30G, half sine, 11ms)

AK1J19A3

Model		AK1J19A3
CPU	CPU	Intel^® Celeron^® Processor J1900
	Base Frequency	2.0 GHz
	Maximum Turbo Frequency	2.4 GHz
	Cache	2MB
	Cores/Threads	4/4
	Chipset	SOC
	BIOS	AMI UEFI BIOS
Memory	Socket	1 * DDR3L SO-DIMM slot, 1333MHz frequency
Memory	Maximum Capacity	8GB
Display	Graphics Chipset	Intel^® UHD Graphics
Network	Network Chipset	3 * Intel^® i210-AT network chips (10/100/1000 Mbps)
Storage	M.2	1 * M.2 Key-M (Support SATA2.0 protocol, 2280)
Expansion	Mini PCIe	1 * Mini PCIe (supports PCIe x1 + USB 2.0 + 1 * SATA 2.0 signals, with SIM card slot)
Expansion	Optional Module	1A (16 * optically isolated DI + 16 * optically isolated DO + 4 * RS232/RS485 + 2 * CAN)^①
Front I/O	USB	1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A)
	Ethernet	3 * RJ45 interfaces
	Display	1 * HDMI interface (supports up to 1920*1200 @ 60Hz)
	Switch	1 * Power button (with power indicator light)1 * External power switch interface
Left-Side I/O	Switch	1 * AT/ATX toggle switch (for enabling/disabling auto power-on)
	Buttons	1 * Reset button (press for 0.2-1 second to restart; long press for 3 seconds to clear CMOS)1 * System recovery button
	SIM	1 * Nano SIM card slot (function supported via Mini PCIe)
Right-Side I/O	Power	1 * Power input interface (12~28V, 2P, P=5.08mm)
Right-Side I/O	Serial Ports	2 * RS232/485 (COM1/2, P=2.5mm, RS485 does not support optical isolation or lightning protection)^①
Power Supply	Type	DC
	Input Voltage	12~28V
	Socket	1 * 2-pin power input socket (P=5.08mm)
	RTC Battery	CR2032 button cell
System Support	Windows	Windows 7/10
System Support	Linux	Linux
Watch Dog	Output	System Reboot
Watch Dog	Interval	Programmable, 1~255 seconds
Structure	Chassis Material	Heatsink: Aluminum alloyTop/bottom plates: Galvanized steel Baseplate: Galvanized steel
	Dimensions	139mm (L) * 95.5mm (W) * 43mm (H)
	Installation Options	Wall-mounted, rail-mounted, desktop
Environment	Cooling System	Fanless passive cooling
	Operating Temperature	-20~60℃ (with industrial SSD)
	Storage Temperature	-40~80℃ (with industrial SSD)
	Humidity	5 to 90% RH (non-condensing)
	Vibration Resistance	IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis，使用SSD)
	Shock Resistance	IEC 60068-2-27 (30G, half sine, 11ms，使用SSD)

Note ①: When the 1A expansion module is selected, COM1/2 cannot be used.
