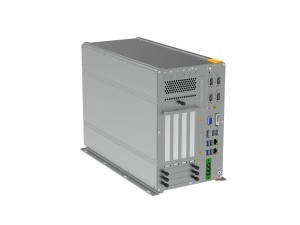

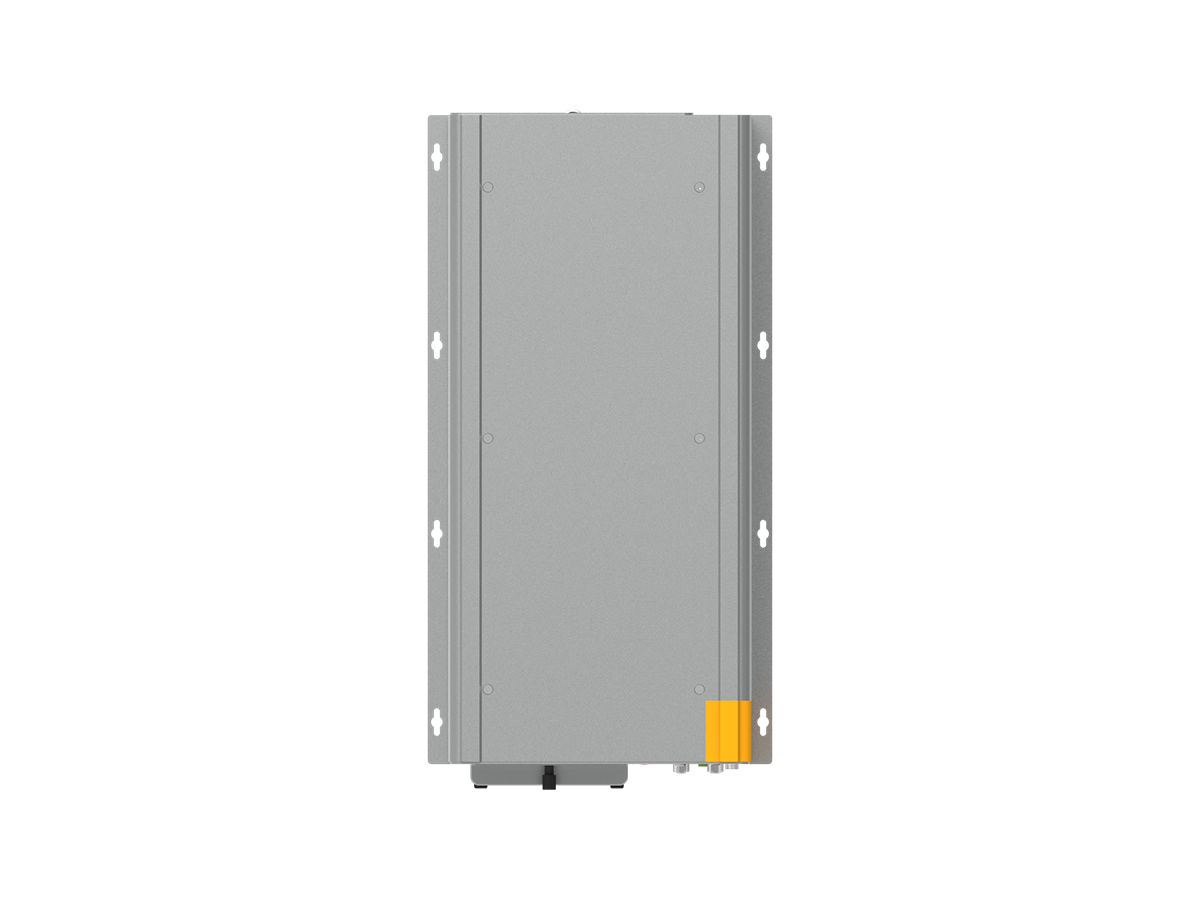

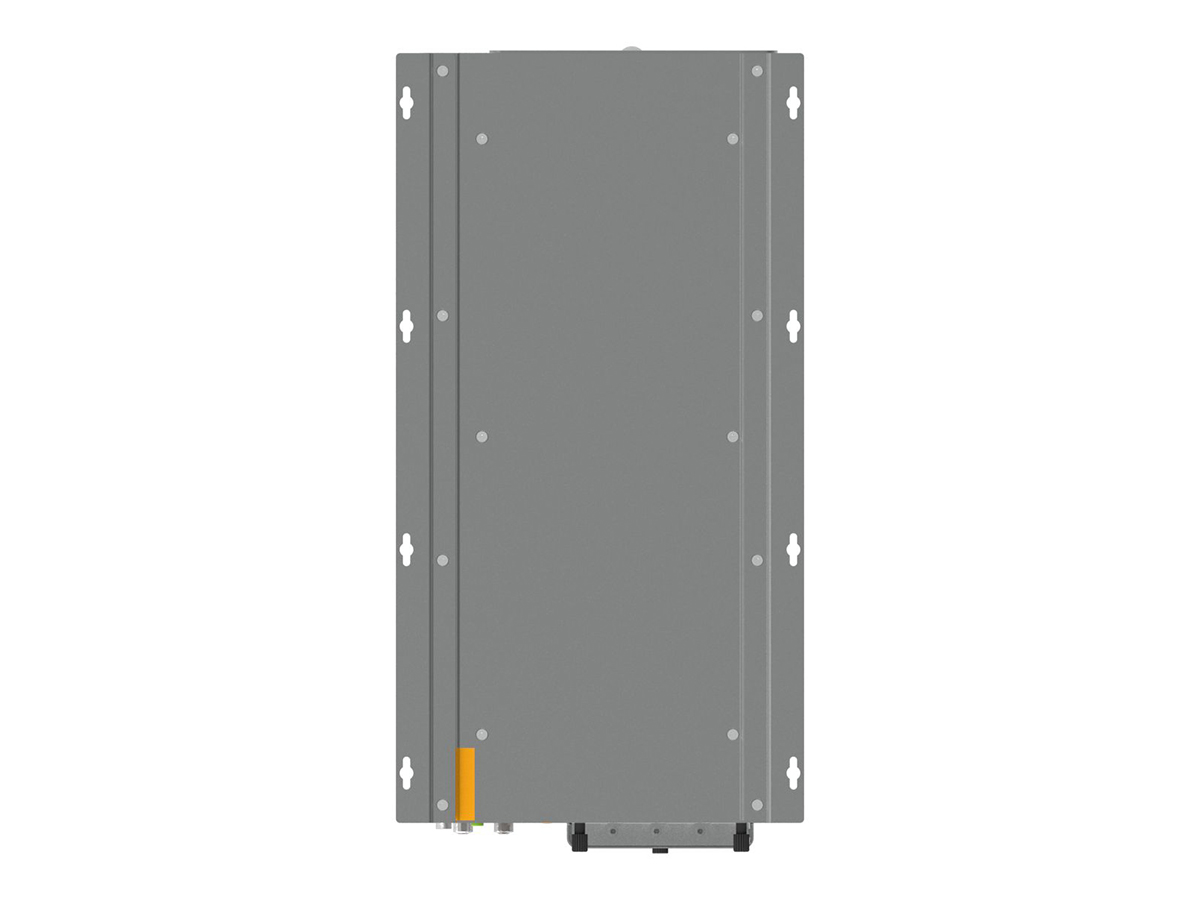

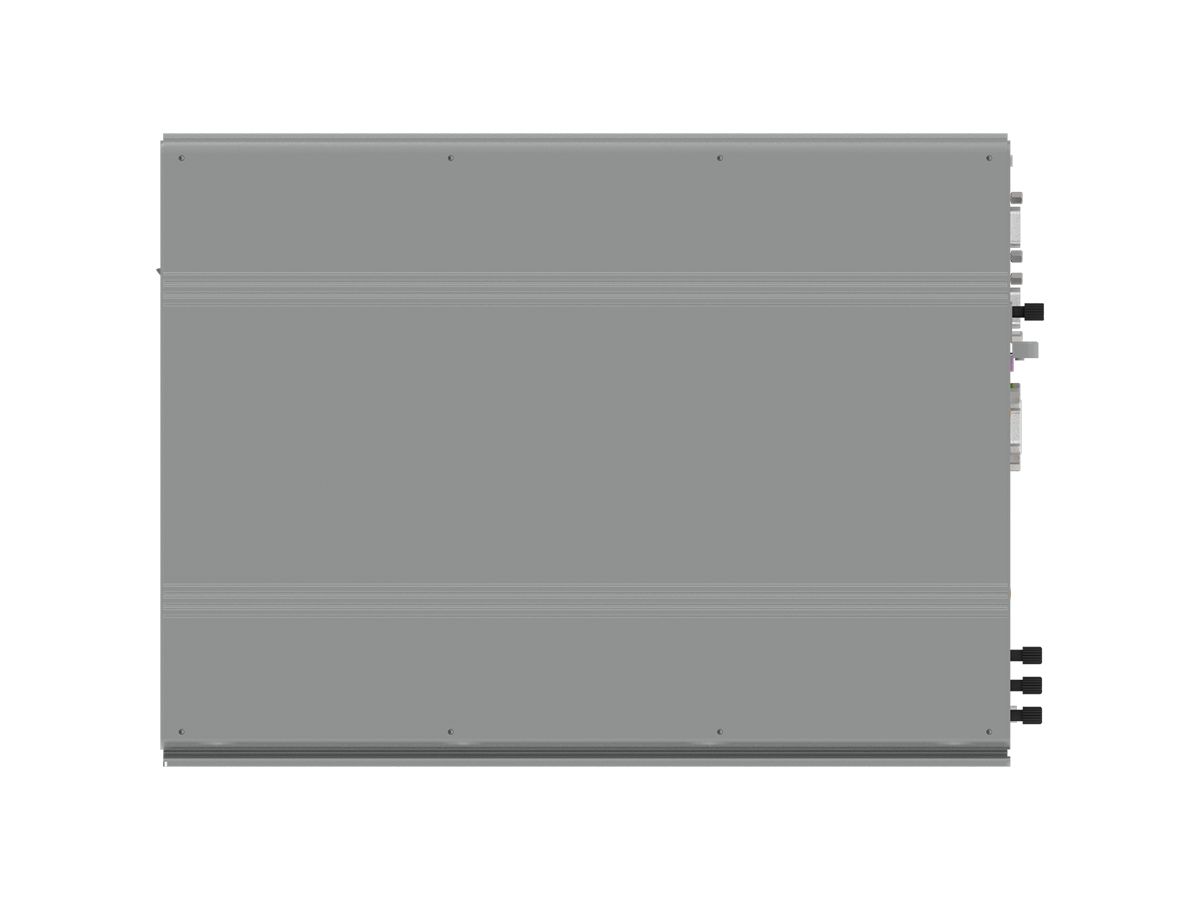

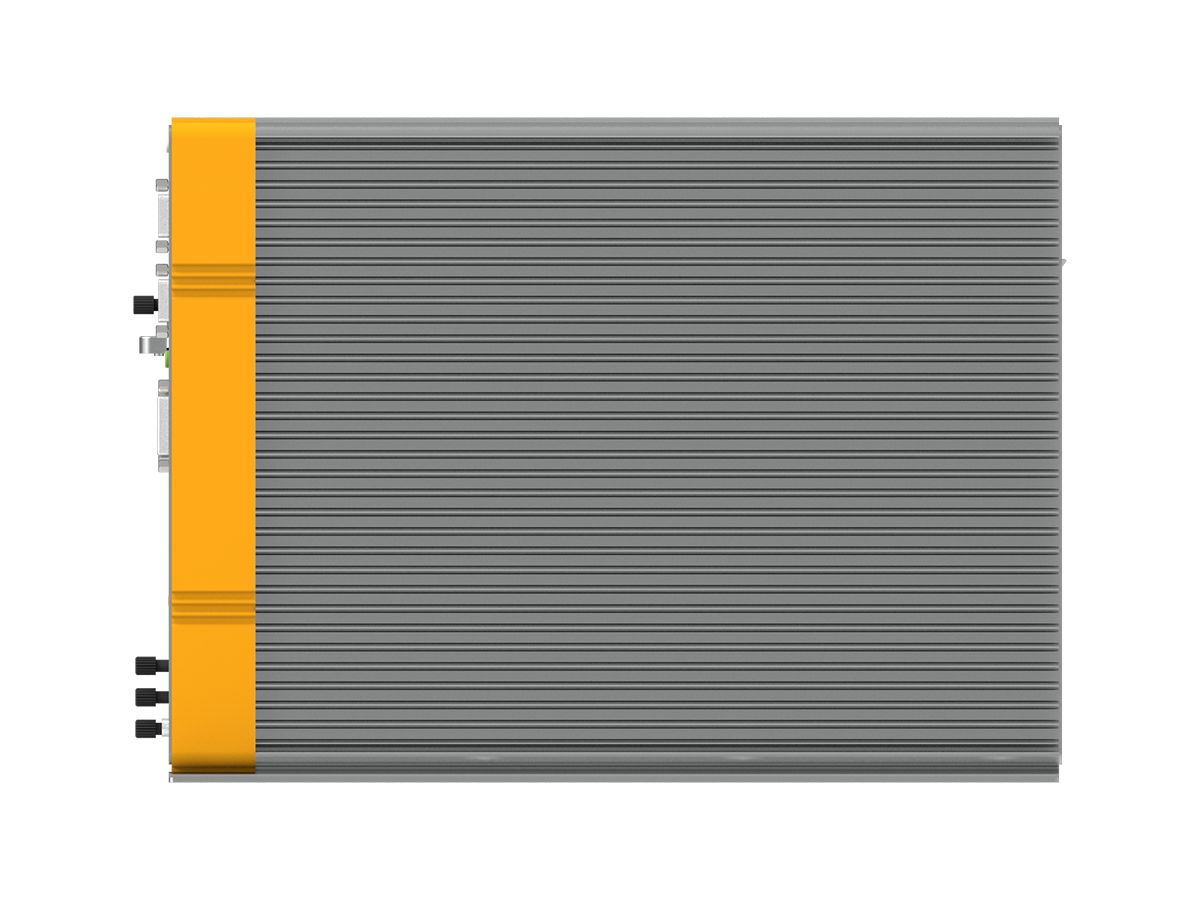

The APQ E7 Pro Series combines the strengths of the E7 Pro-Q670 and E7 Pro-Q170 platforms, offering advanced solutions for edge computing and vehicle-road collaboration systems. The E7 Pro-Q670 platform is engineered for high-performance edge computing applications, featuring Intel® LGA1700 12th/13th generation processors. This platform is ideal for handling complex AI algorithms and processing large volumes of data efficiently, supported by a robust set of expansion interfaces such as PCIe, mini PCIe, and M.2 slots for customizable application needs. Its fanless passive cooling design ensures quiet operation and reliable performance over extended periods, making it suitable for demanding edge computing environments.
On the other hand, the E7 Pro-Q170 platform is specifically designed for vehicle-road collaboration, utilizing Intel® LGA1511 6th to 9th generation processors alongside the Intel® Q170 chipset to offer exceptional computational power for real-time data processing and decision-making in modern transportation systems. With its comprehensive communication capabilities, including multiple high-speed network interfaces and serial ports, the E7 Pro-Q170 facilitates seamless connectivity with a wide range of devices. Additionally, its capability to expand wireless functionality, including 4G/5G, WIFI, and Bluetooth, allows for remote monitoring and management, enhancing the efficiency of intelligent traffic management and autonomous driving applications. Together, the E7 Pro Series platforms provide a versatile and powerful foundation for a wide array of industrial applications, demonstrating APQ’s commitment to innovation and quality in the industrial PC market.
|
Model |
E7 Pro |
|
|
CPU |
CPU | Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 65W | |
| Socket | LGA1151 | |
| Chipset | Q170 | |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2133MHz |
| Max Capacity | 64GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel® HD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
SATA | 3 * 2.5" SATA, Quick release hard disk bays (T≤7mm) ), Support RAID 0, 1, 5 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe Slot | Support PCIe module card(1*PCIe x 16+1*PCIe x4/1*PCIe x16+3*PCI/2*PCIe x8+2*PCI)PS:Expansion Card length limited 320mm,TDP limited 450W |
| aDoor/MXM | 2* APQ MXM /aDoor Bus (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | |
| Mini PCIe | 1 * Mini PCIe (PCIe2.0 x1 + USB 2.0, with 1*Nano SIM Card slot) | |
| M.2 | 1 * M.2 Key-B (PCIe2.0 x1 + USB3.0, with 1 * SIM Card, 3042/3052 ) | |
|

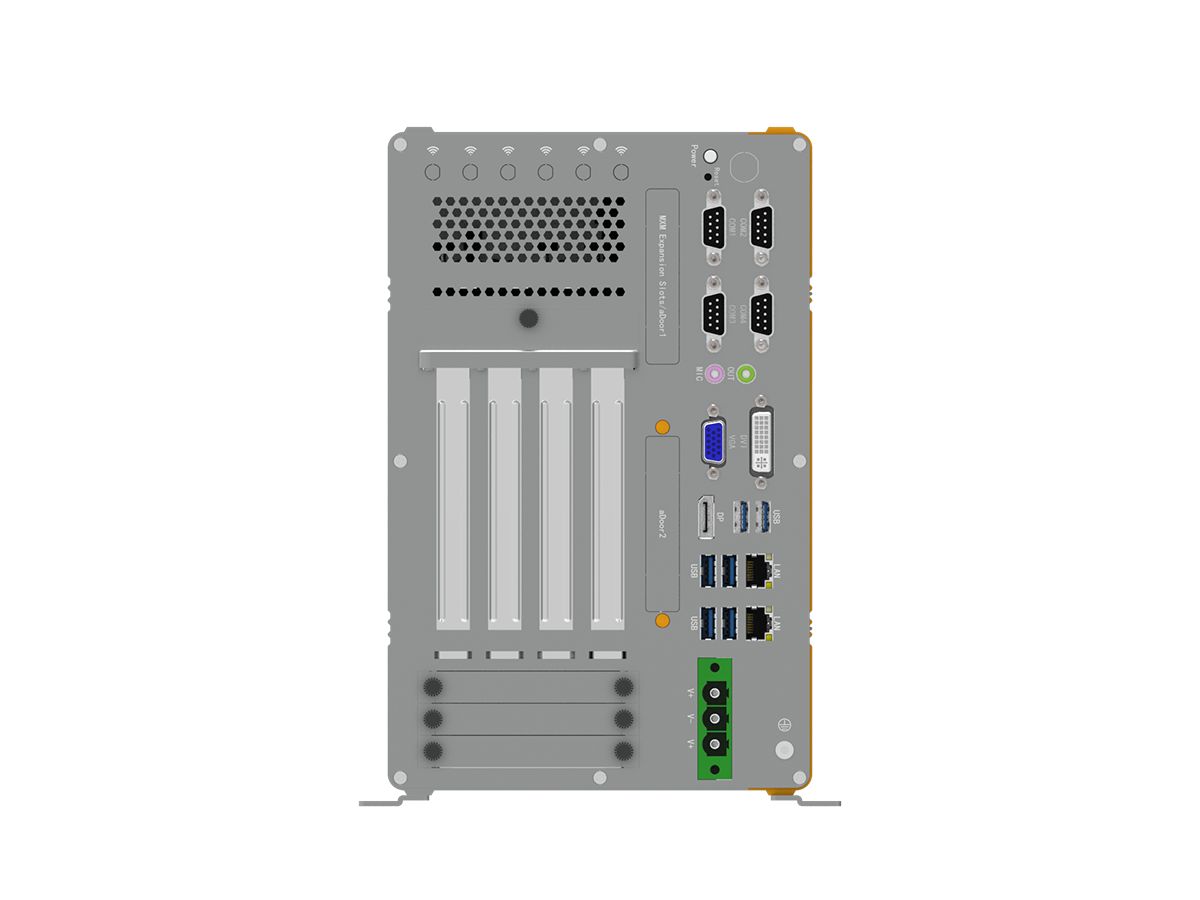

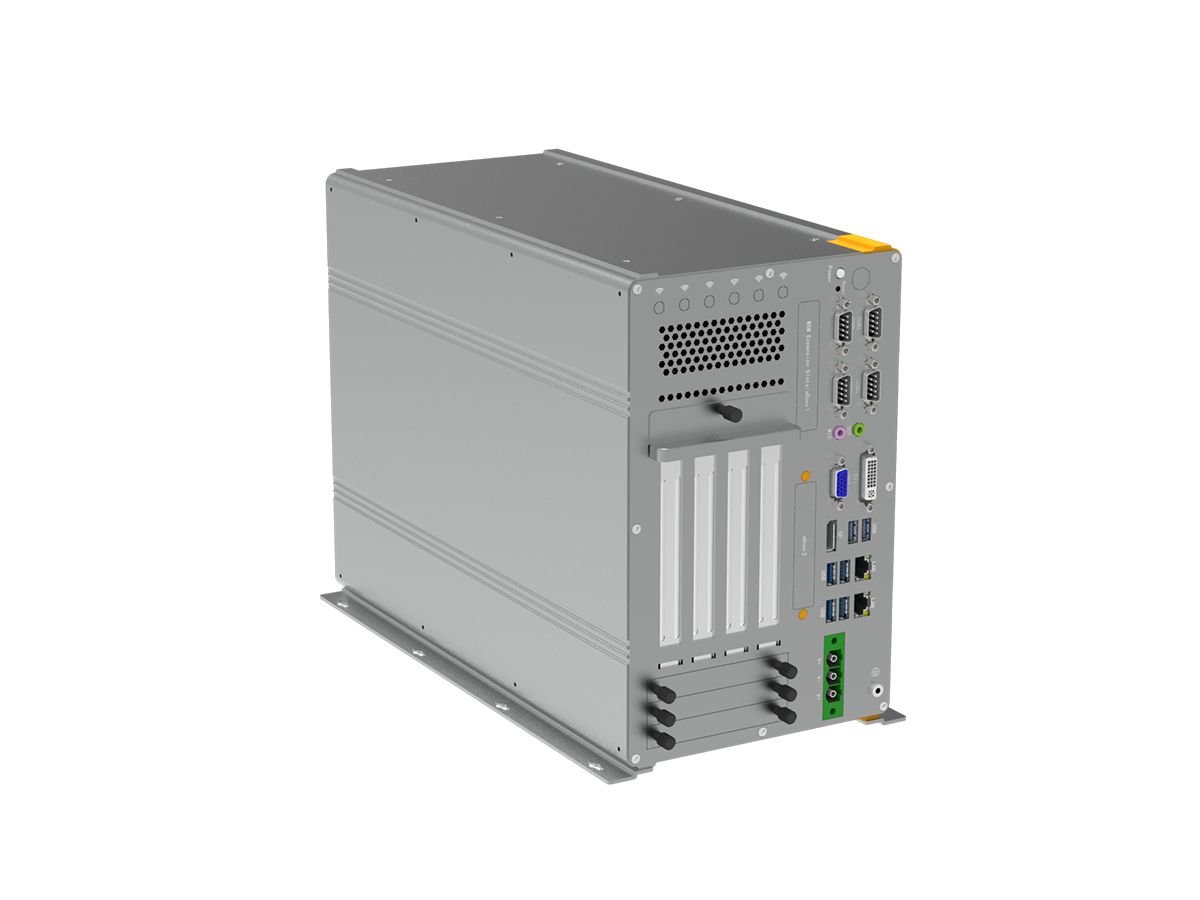

Front I/O |
Ethernet | 2 * RJ45 |
| USB | 6 * USB3.0 (Type-A, 5Gbps) | |
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz |
|
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M) | |
| Button | 1 * Power Button + Power LED1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) | |
|
Rear I/O |
Antenna | 6 * Antenna hole |
|
Internal I/O |
USB | 2 * USB2.0(wafer, Internal I/O) |
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | |
| TFront Panel | 1 * TFPanel (3 * USB 2.0 + FPANEL, wafer) | |
| Front Panel | 1 * Front Panel (wafer) | |
| Speaker | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | |
| Serial | 2 * RS232 (COM5/6, wafer, 8x2pin, PHD2.0) | |
| GPIO | 1 * 16bit GPIO (wafer) | |
| LPC | 1 * LPC (wafer) | |
| SATA | 3 * SATA3.0 7P Connector | |
| SATA Power | 3 * SATA Power (SATA_PWR1/2/3, wafer) | |
| SIM | 2 * Nano SIM | |
| FAN | 2 * SYS FAN (wafer) | |
|
Power Supply |
Type | DC, AT/ATX |
| Power Input Voltage | 18~62VDC， P=600/800/1000W | |
| Connector | 1 * 3Pin Connector, P=10.16 | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | 6/7th Core™: Windows 7/10/118/9th Core™: Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminium, Box: SGCC |
| Dimensions | 363mm(L) * 270mm(W) * 169mm(H) | |
| Weight | Net:10.48 kg, Total:11.38 kg(Include packaging) | |
| Mounting | VESA, Wallmount,Desk mounting | |
|
Environment |

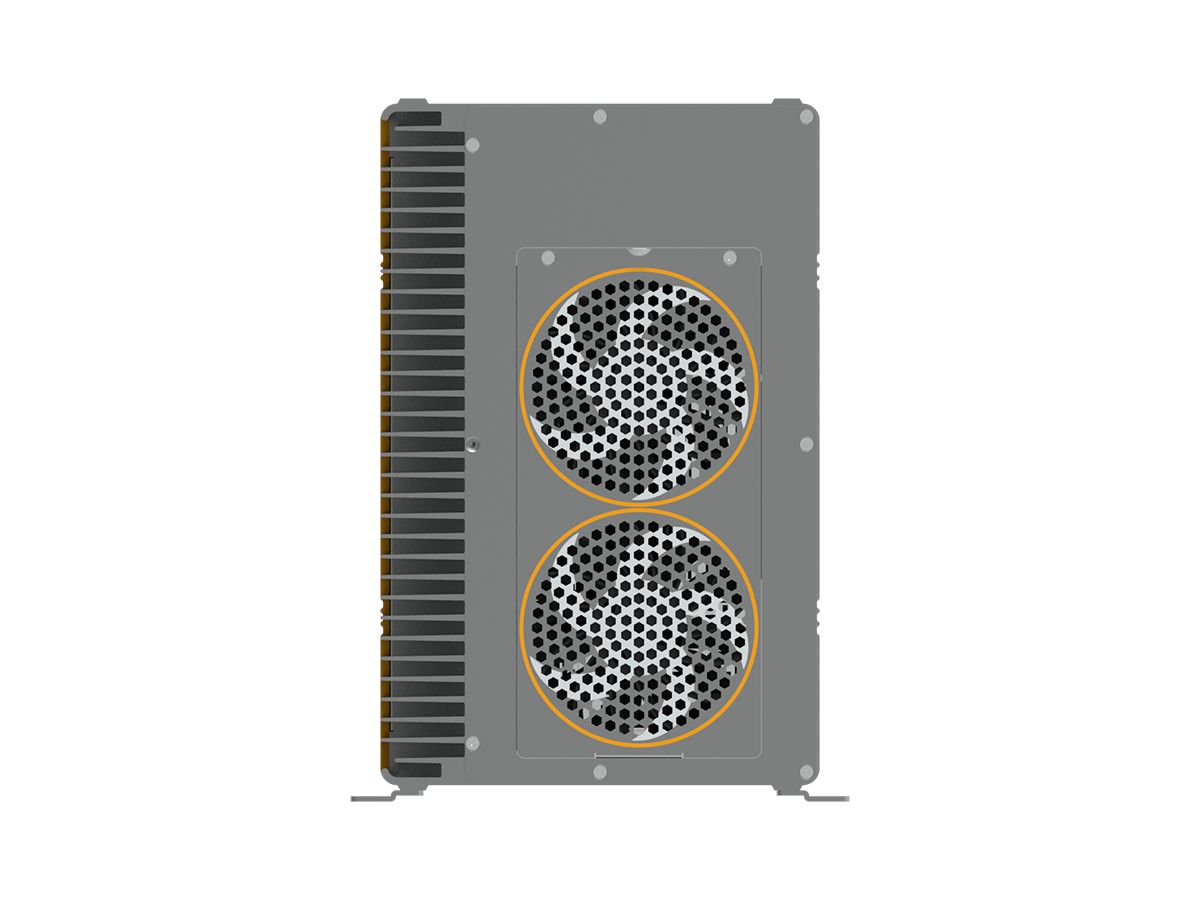

Heat Dissipation System | Fanless(CPU)2*9cm PWM FAN(Internal) |
| Operating Temperature | -20~60℃ (SSD or M.2 Storage) | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
| Certification | CCC, CE/FCC, RoHS | |
|
Model |
E7 Pro |
|
|
CPU |
CPU | Intel® 12th /13th Gen Core/Pentium/Celeron desktop processor |
| TDP | 65W | |
| Socket | LGA1700 | |
| Chipset | Q670 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| Max Capacity | 64GB,Single Max. 32GB | |
|
Graphics |
Controller | Intel® UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45) |
|
Storage |
SATA | 3 * SATA3.0, Quick release hard disk bays (T≤7mm) , Support RAID 0, 1, 5 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe Slot | Support PCIe module card(1*PCIe x 16+1*PCIe x4/1*PCIe x16+3*PCI/2*PCIe x8+2*PCI)PS:Expansion Card length limited 320mm,TDP limited 450W |
| aDoor | aDoor1 for expansion serial function( ex:COM /CAN)aDoor2 for expansion APQ aDoor expansion module AR series | |
| Mini PCIe | 1 * Mini PCI-E Slot (PCIe x1+USB,Wifi/3G/4G supported, with 1 * Nano SIM Card Slot)1 * Mini PCI-E Slot (PCIe x1+USB,Wifi/3G/4G supported, with 1 * Nano SIM Card Slot) | |
| M.2 | 1 * M.2 Key-E slot(PCIe+USB, Wifi+BT,2230) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB3.2 Gen 2x1 (Type-A, 10Gbps)6 * USB3.2 Gen 1x1 (Type-A, 5Gbps) | |
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160@30Hz1 * DP1.4a: max resolution up to 4096*2160@60Hz | |
| Audio | Realtek ALC269Q-VB6 5.1 Channel HDA Codec 1 * Line-Out + MIC 3.5mm Jack | |
| Serial | 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes,BIOS Switch)2 * RS232 (COM3/4, DB9/M, Full Lanes) | |
| Button | 1 * Power Button/LED1 * AT/ATX Button
1 * OS Recover Button 1 * System Reset Button |
|
|
Rear I/O |
Antenna | 6 * Antenna hole |
|
Internal I/O |
USB | 6 * USB2.0(wafer, Internal I/O) |
| LCD | 1 * LVDS (wafer): LVDS Resolution up to 1920*1200@60Hz | |
| Front Panel | 1 * FPanel (FPANEL, PWR+RST+LED,wafer,5 x 2pin,P=2.0) | |
| Audio | 1 * Audio (Header, 5x2pin, 2.54mm)1 * Speaker (2W 8Ω, wafer, 4x1pin, PH2.0) | |
| Serial | 2 * RS232 (COM5/6, wafer, 8x2pin, PHD2.0) | |
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer, 10x2pin, PHD2.0) | |
| LPC | 1 * LPC (wafer, 8x2Pin, PHD2.0) | |
| SATA | 3 * SATA3.0 7P Connector, up to 600MB/s | |
| SATA Power | 3 * SATA Power (wafer, 4x1Pin, PH2.0) | |
| SIM | 2 * Nano SIM | |
| FAN | 2 * SYS FAN (4x1Pin, KF2510-4A) | |
|
Power Supply |
Type | DC, AT/ATX |
| Power Input Voltage | 18~62VDC，P=600/800/1000W | |
| Connector | 1 * 3Pin Connector, P=10.16 | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminium, Box: SGCC |
| Dimensions | 363mm(L) * 270mm(W) * 169mm(H) | |
| Weight | Net:10.48 kg, Total:11.38 kg(Include packaging) | |
| Mounting | VESA, Wallmount,Desk mounting | |
|
Environment |
Heat Dissipation System | Fanless(CPU)2*9cm PWM FAN(Internal) |
| Operating Temperature | -20~60℃ (SSD or M.2 Storage) | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
