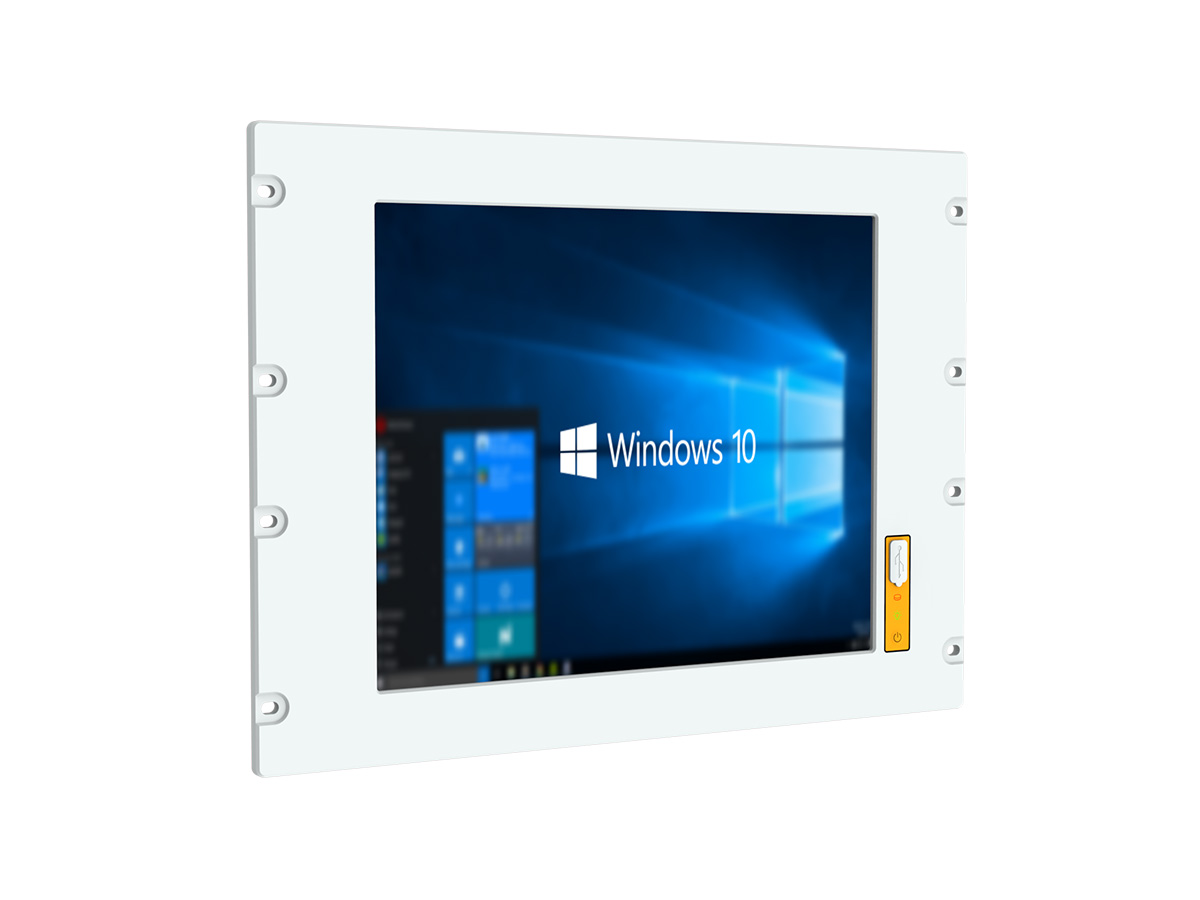

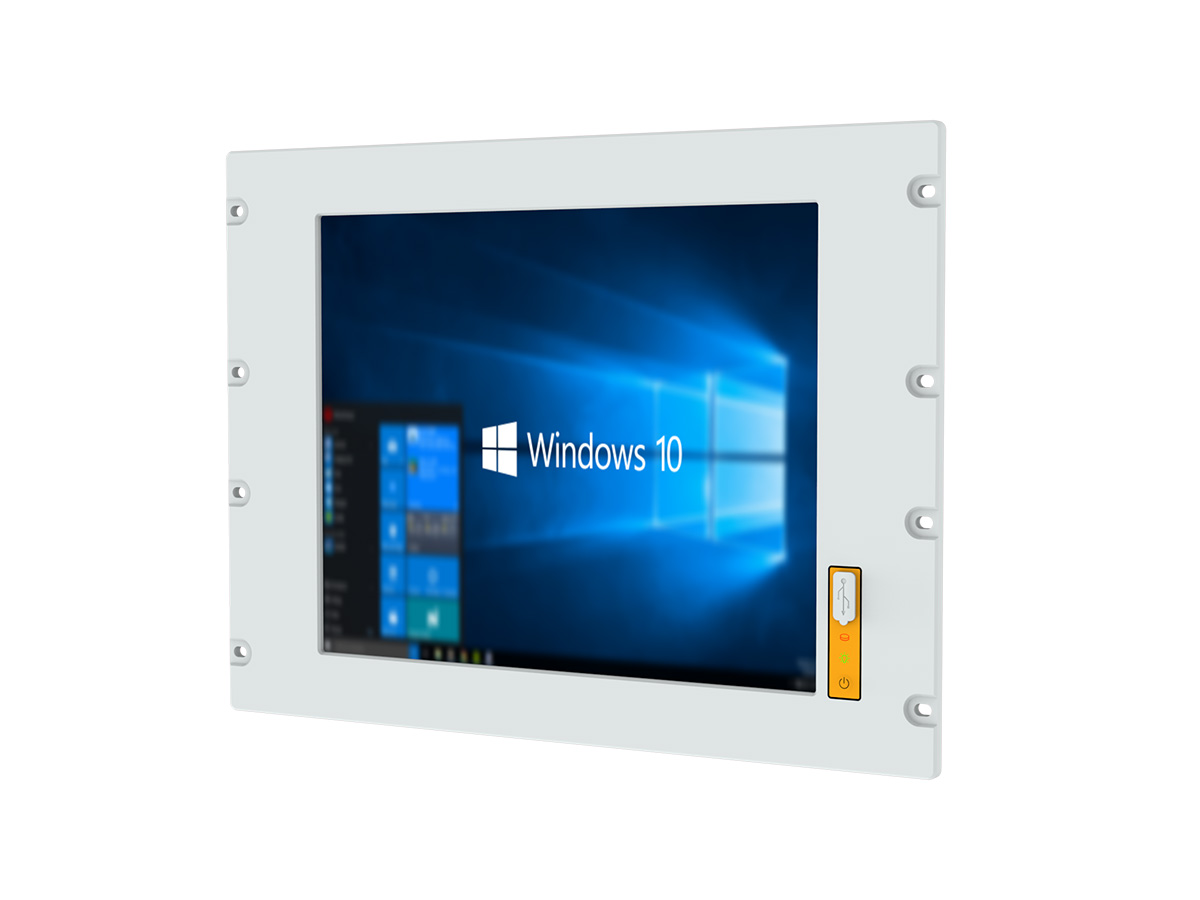

The APQ Industrial Display G Series with resistive touchscreen is specifically designed for industrial environments. This industrial display employs a high-temperature five-wire resistive screen, capable of withstanding the high-temperature conditions commonly found in industrial settings, offering exceptional stability and reliability. Its standard rack-mount design allows for seamless integration with cabinets, facilitating easy installation and use. The display’s front panel incorporates a USB Type-A and signal status indicator lights, making data transfer and status monitoring convenient for users. Additionally, the front panel meets IP65 design standards, offering a high level of protection and the ability to withstand harsh environmental conditions. Furthermore, the APQ G Series displays feature a modular design, with options for 17 inches and 19 inches, allowing users to select according to their specific needs. The entire series is crafted using an aluminum alloy die-cast molding design, making the display sturdy yet lightweight and suitable for use in industrial environments. Powered by 12~28V DC wide voltage, it boasts low power consumption, energy-saving, and environmental benefits.
In summary, the APQ Industrial Display G Series with resistive touchscreen is a fully-featured, high-performance display product suitable for various industrial settings.
| General | Touch | ||

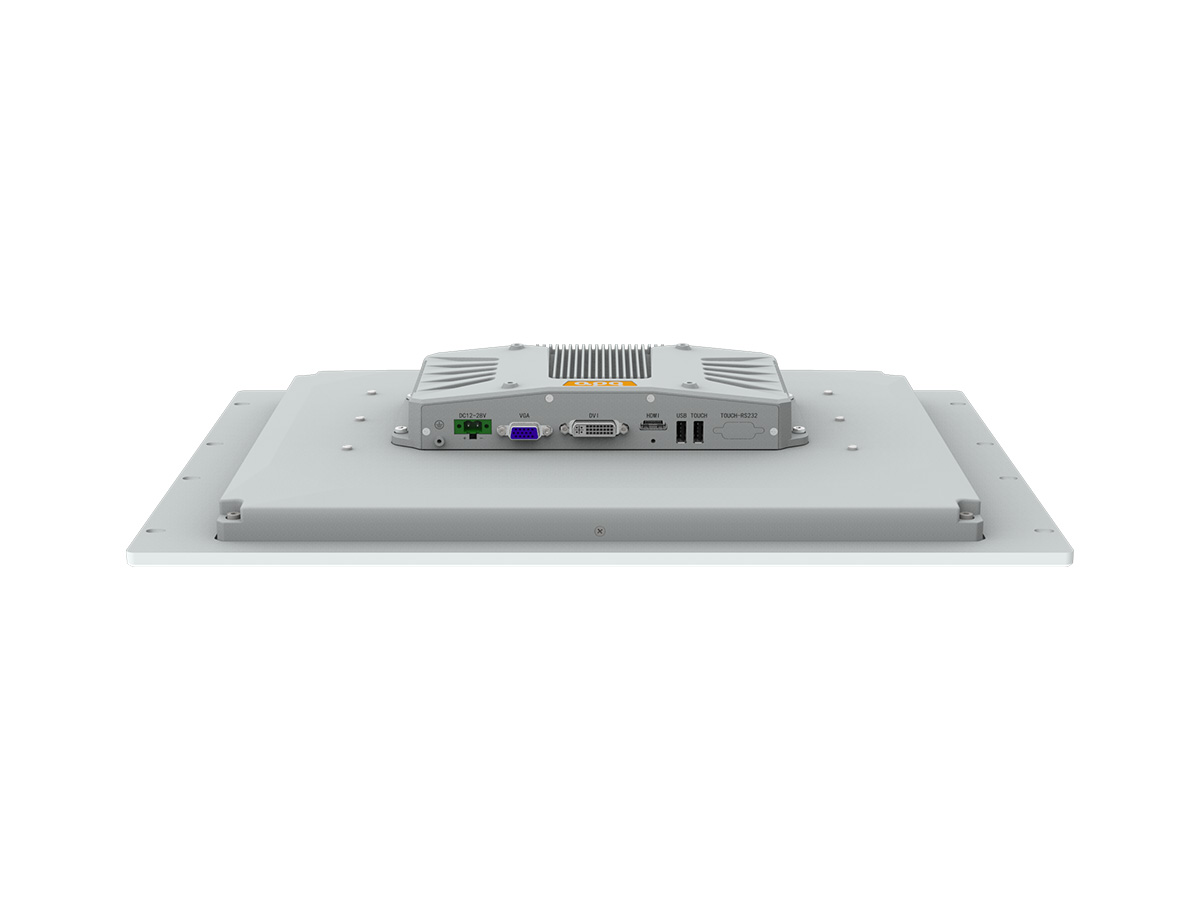

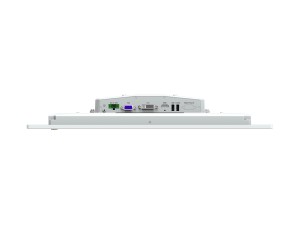

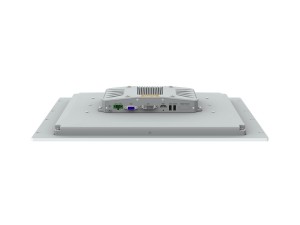

| ● I/0 Ports | HDMI, DVI-D, VGA, USB for touch, USB for front panel | ● Touch Type | Five-wire analog resistive |
| ● Power Input | 2Pin 5.08 phoenix jack (12~28V) | ● Controller | USB signal |
| ● Enclosure | Panel: Die cast magnesium alloy, Cover: SGCC | ● Input | Finger/Touch pen |

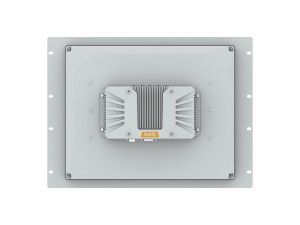

| ● Mount Option | Rack-mount, VESA, embedded | ● Light Transmission | ≥78% |
| ● Relative Humidity | 10 to 95% RH (non-condensing) | ● Hardness | ≥3H |
| ● Vibration During Operation | IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ● Click lifetime | 100gf, 10 million times |
| ● Shock During Operation | IEC 60068-2-27 (15G, half sine, 11ms) | ● Stroke lifetime | 100gf, 1 million times |
| ● Response time | ≤15ms | ||
| Model | G170RF | G190RF |
| Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 |
| Luminance | 250 cd/m2 | 250 cd/m2 |
| Aspect Ratio | 5:4 | 5:4 |
| Viewing Angle | 85/85/80/80 | 89/89/89/89 |
| Max. Color | 16.7M | 16.7M |
| Backlight Lifetime | 30,000 hrs | 30,000 hrs |
| Contrast Ratio | 1000:1 | 1000:1 |
| Operating Temperature | 0~50℃ | 0~50℃ |
| Storage Temperature | -20~60℃ | -20~60℃ |
| Weight | Net:5.2 Kg, Total:8.2 Kg | Net:6.6 Kg, Total:9.8 Kg |

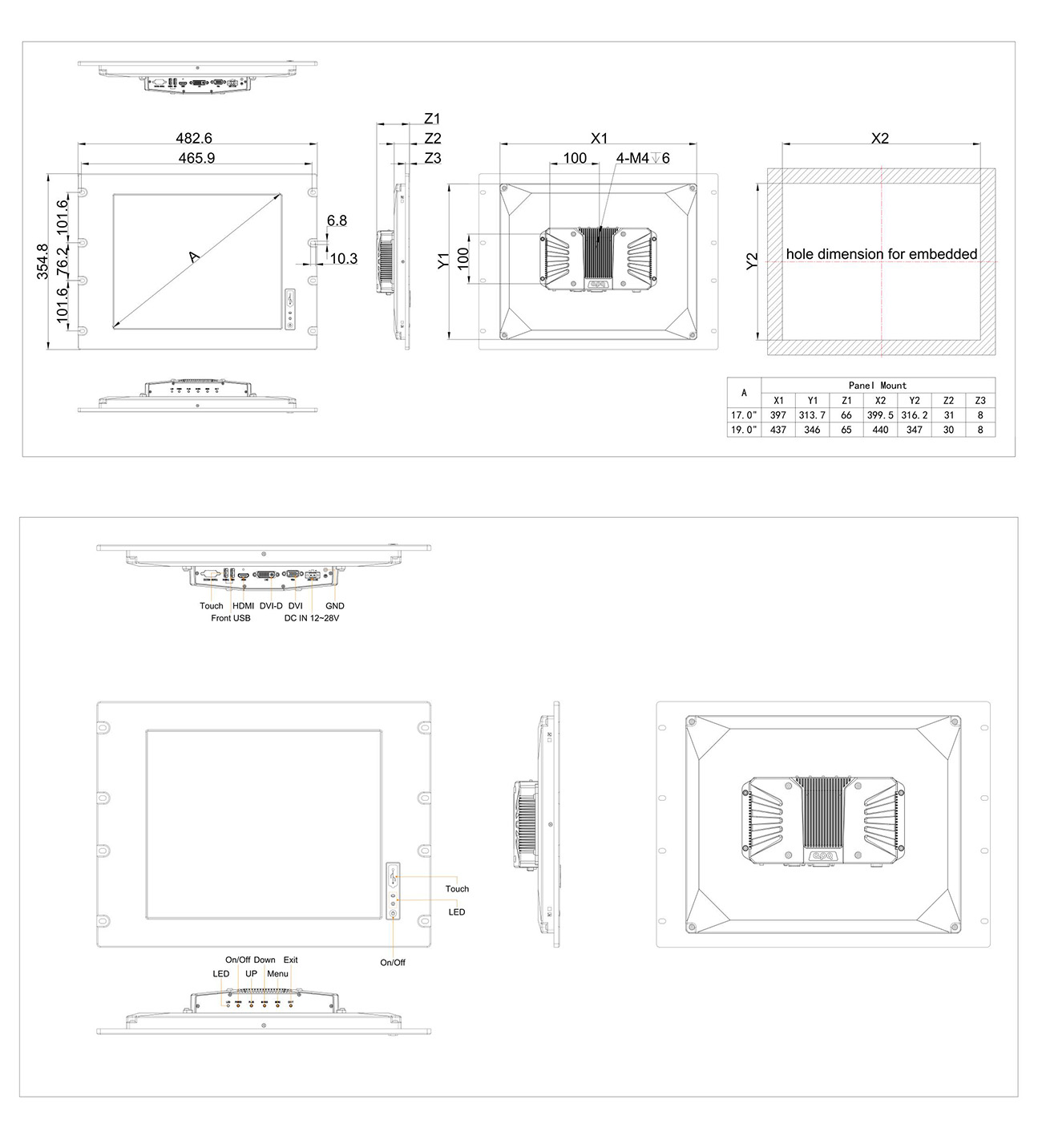

| Dimensions(L*W*H) | 482.6mm * 354.8mm * 66mm | 482.6mm * 354.8mm * 65mm |
