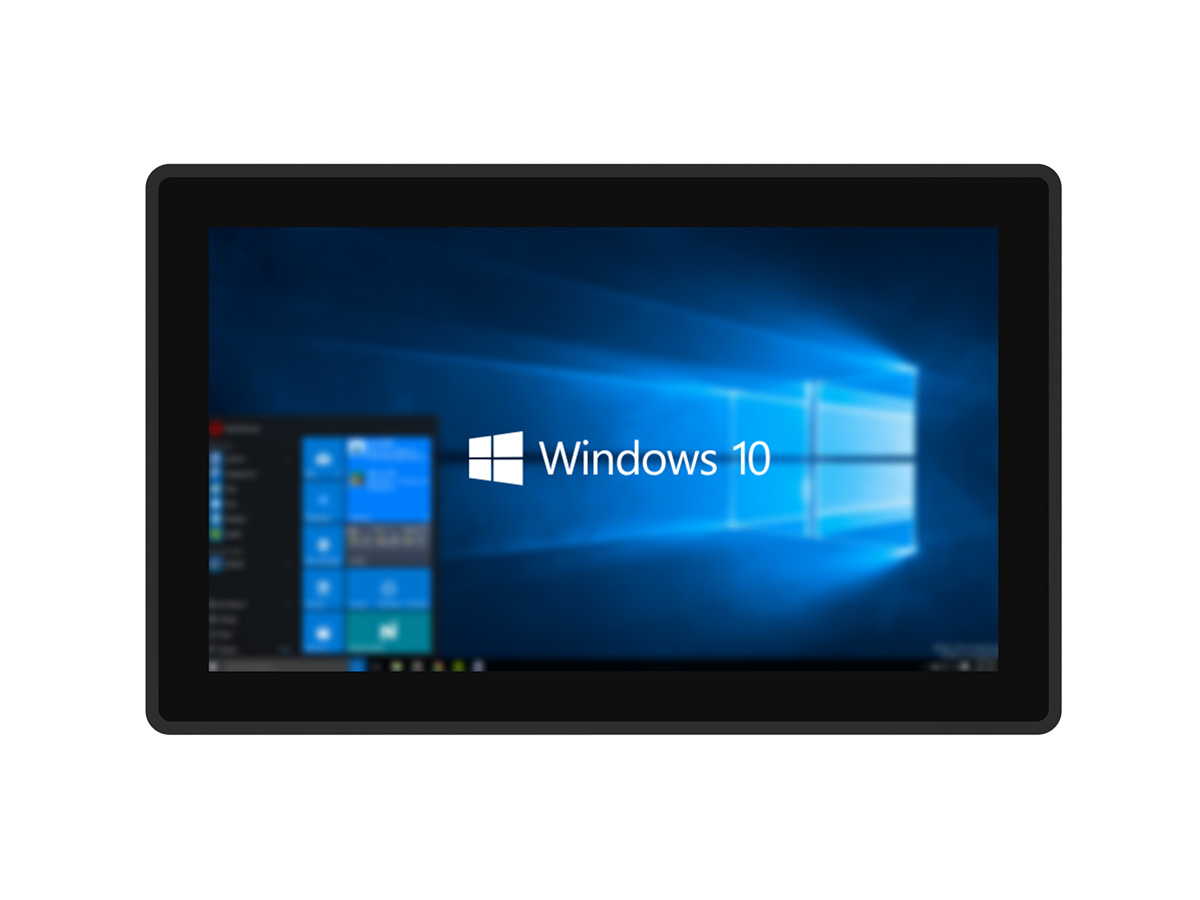

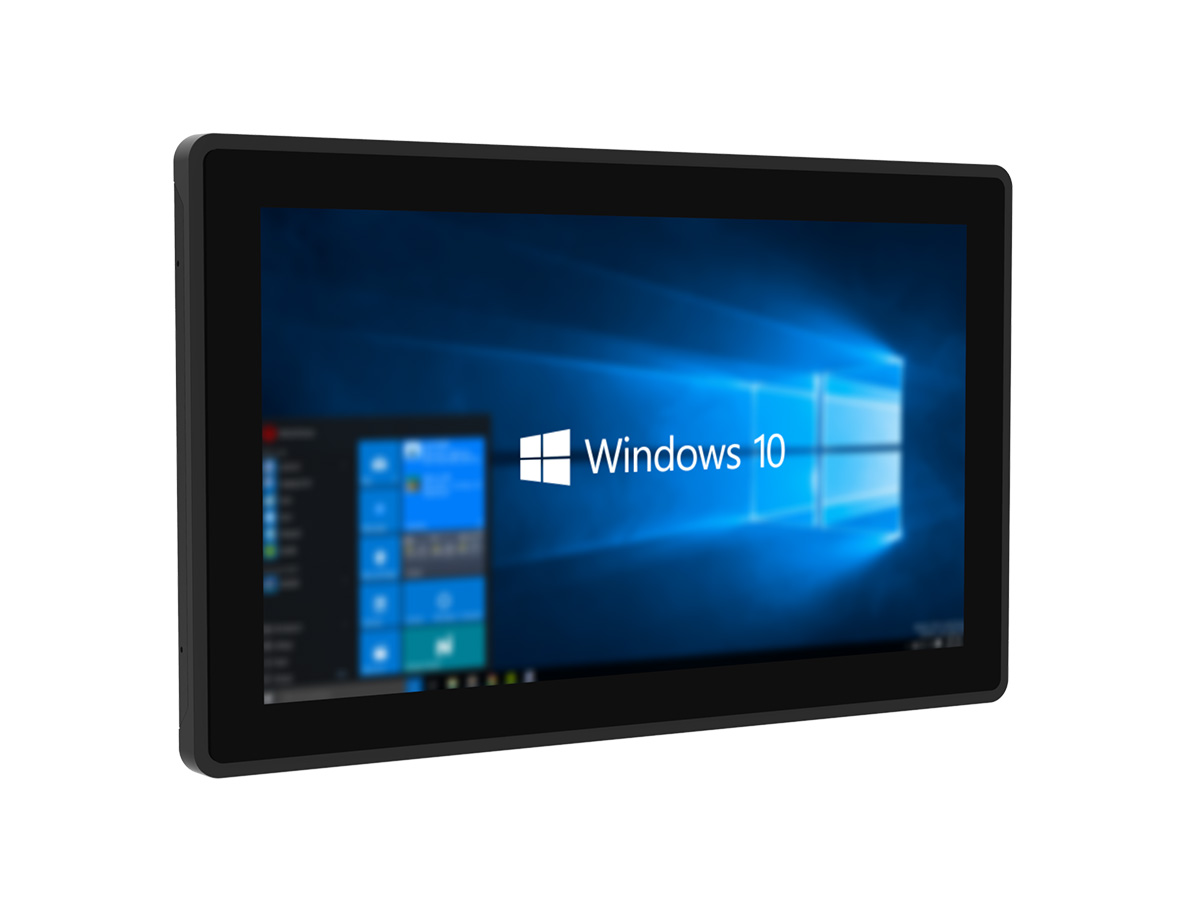

The APQ Industrial Display H Series capacitive touchscreen represents a remarkable new generation of touch displays, offering a variety of sizes from 10.1 inches to 27 inches to meet diverse application needs. It features a sleek, all-in-one flat appearance design, high-quality LED low-power backlight LCD, and the industry’s highly compatible MSTAR display driver chip, ensuring outstanding image performance and stable reliability. The EETI touch solution enhances the accuracy and speed of touch response. This industrial display uses a 10-point tempered glass surface capacitive touchscreen/tempered glass, achieving a smooth, flat, bezel-less sealed design while also providing oil resistance, dustproof and waterproof effects, conforming to the high protection level of IP65. This design not only enhances product durability but also allows it to function normally in various harsh environments.

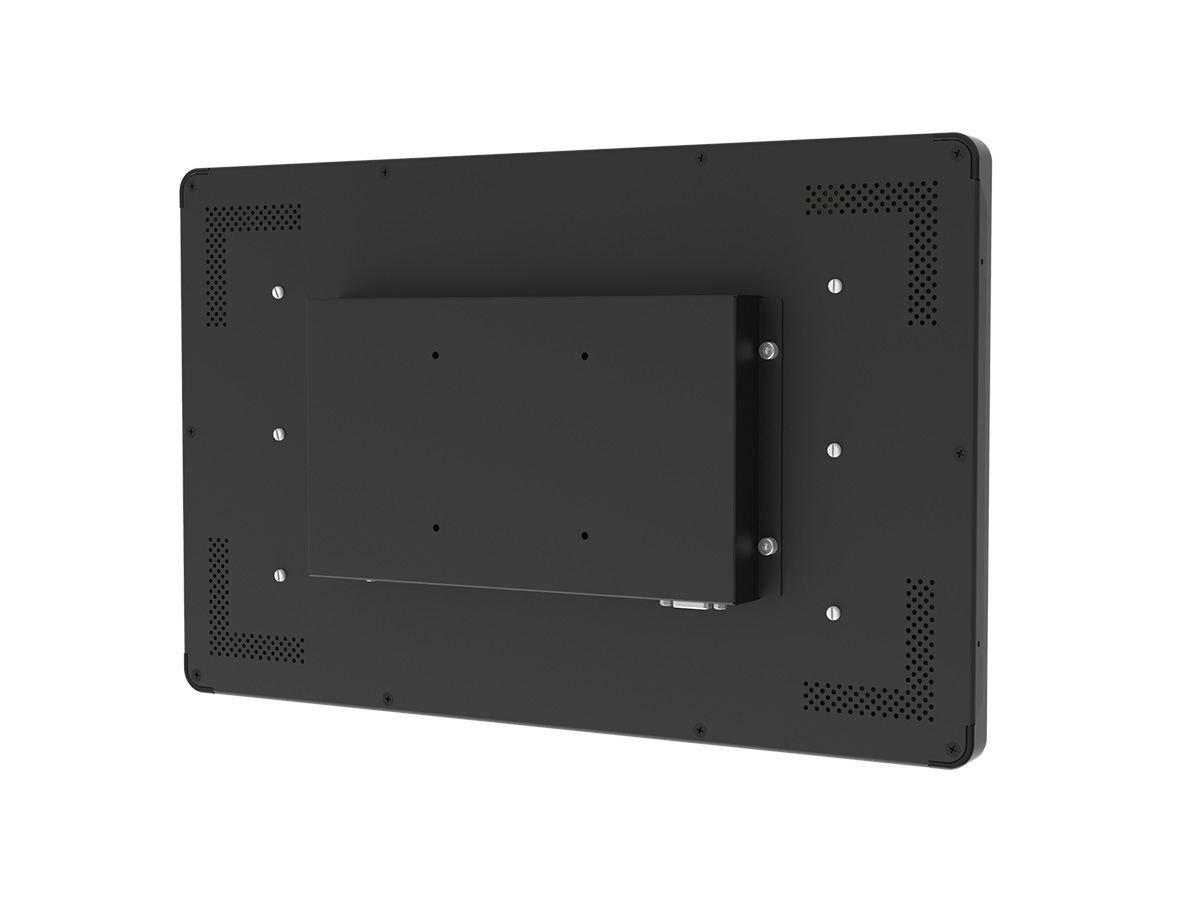

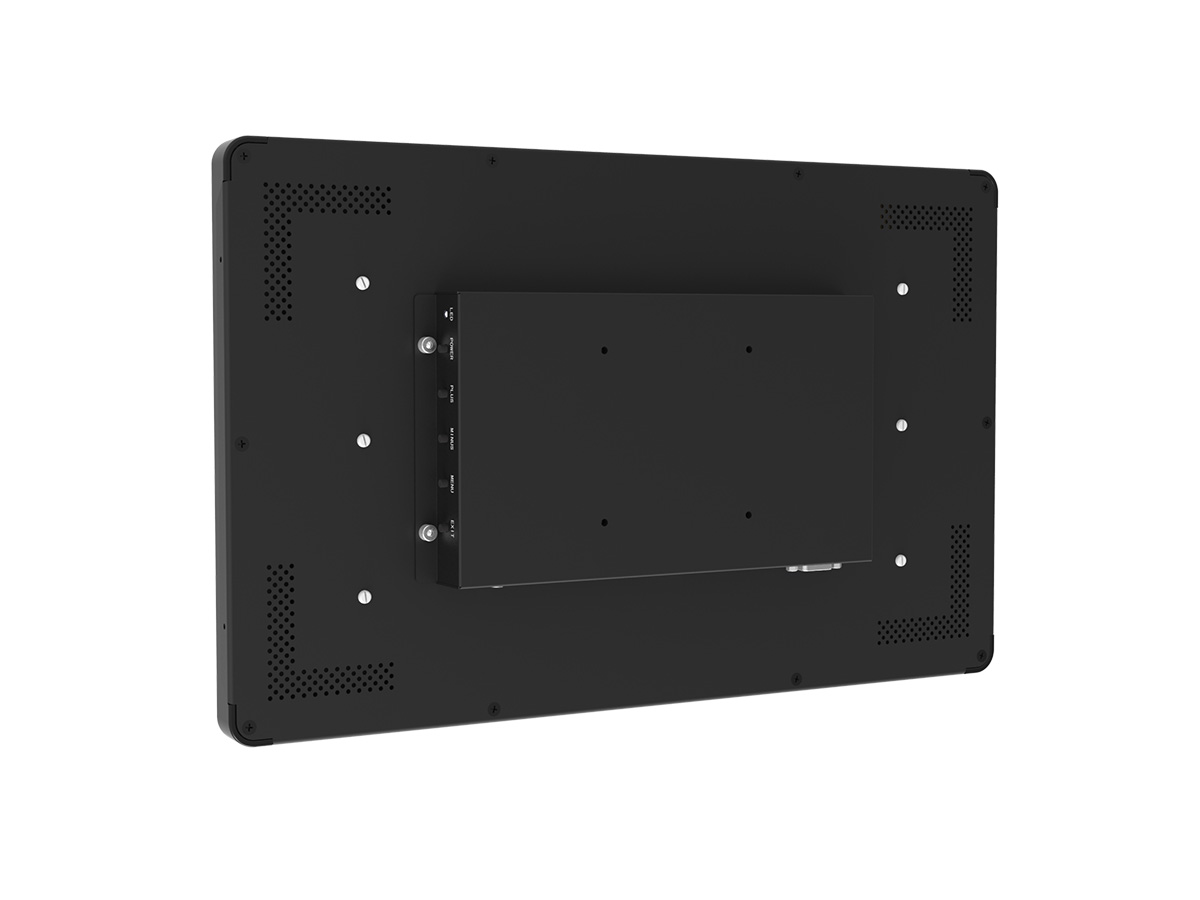

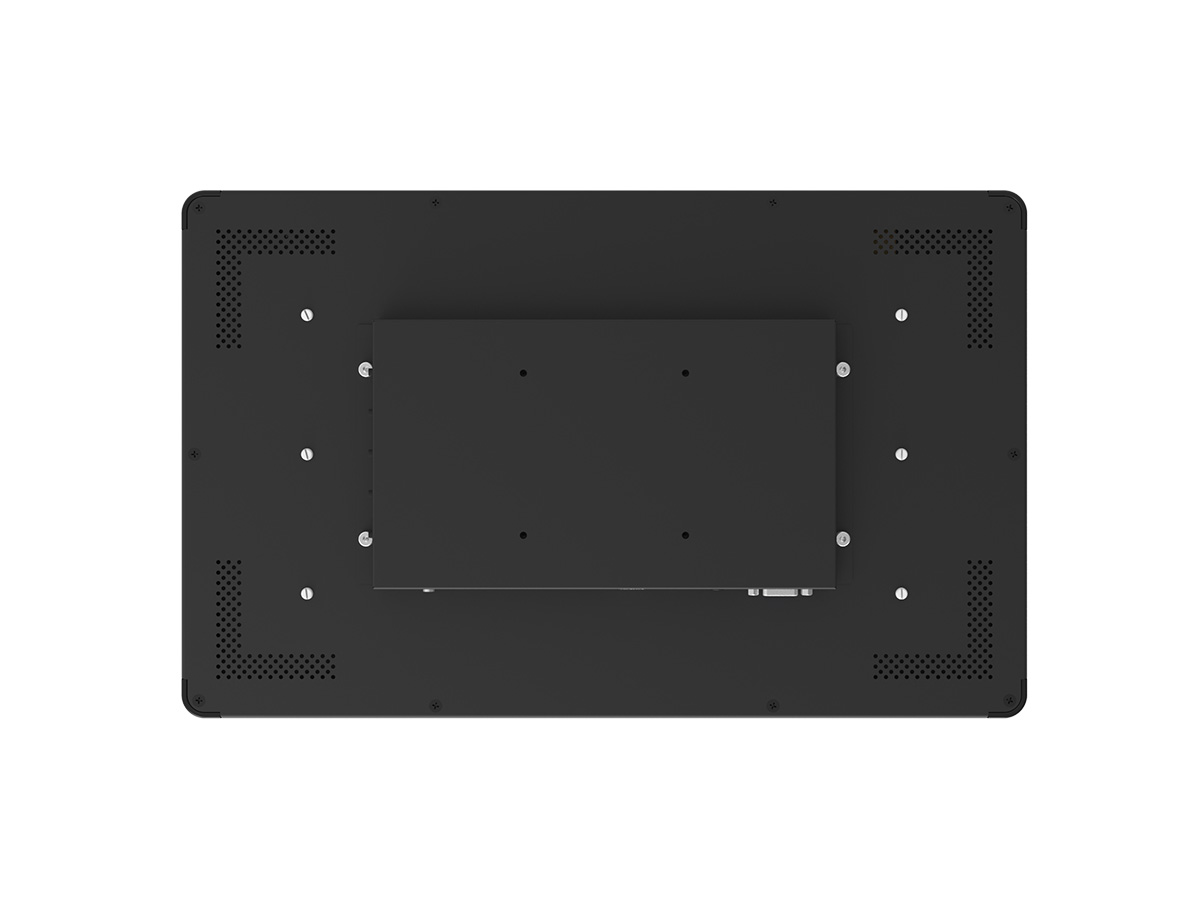

Furthermore, the APQ H Series displays support dual video signal inputs (analog and digital), facilitating connections to various devices and signal sources. The series’ high-resolution design offers clear and delicate display effects. The front panel is designed to IP65 standards, providing a high level of protection against harsh environmental impacts. In terms of mounting options, this series supports embedded, VESA, and open-frame installations, offering flexibility for use in self-service machines, entertainment venues, retail, and industrial automation workshops among various application scenarios.
| General | Touch | ||
| ● I/0 | HDMI, VGA,DVI, USB for touch, Optional RS232 touch | ● Touch Type | Projected Capacitive Touch |
| ● Power Input | 2Pin 5.08 Phoenix jack (12~28V) | ● Controller | USB signal |
| ● Enclosure | SGCC & Plastics | ● Input | Finger/Capacitive Touch Pen |
| ● Color | Black | ● Light Transmission | ≥85% |
| ● Mount Option | VESA, Wall Mount, Embedded | ● Hardness | ≥6H |
| ● Relative Humidity | 10 to 90% RH (non-condensing) | ● Response time | ≤25ms |
|
Model |
H101CL |
H116CL |
H133CL |
H150CL |
|
Display Size |
10.1" TFT LCD |
11.6" TFT LCD |
13.3" TFT LCD |
15.0" TFT LCD |
|
Max.Resolution |
1280 x 800 |
1920 x 1080 |
1920 x 1080 |
1024 x 768 |
|
Aspect Ratio |
16:10 |
16:9 |
16:9 |
4:3 |
|
Viewing Angle |
85/85/85/85 |
89/89/89/89 |
85/85/85/85 |
89/89/89/89 |
|
Luminance |
350 cd/m2 |
220 cd/m2 |
300 cd/m2 |
350 cd/m2 |
|
Contrast Ratio |
800:1 |
800:1 |
800:1 |
1000:1 |
|
Backlight Lifetime |
25,000 hrs |
15,000 hrs |
15,000 hrs |
50,000 hrs |
|
Operating Temperature |
0~50°C |
0~50°C |
0~50°C |
0~50°C |
|
Storage Temperature |
-20~60°C |
-20~60°C |
-20~60°C |
-20~60°C |
|

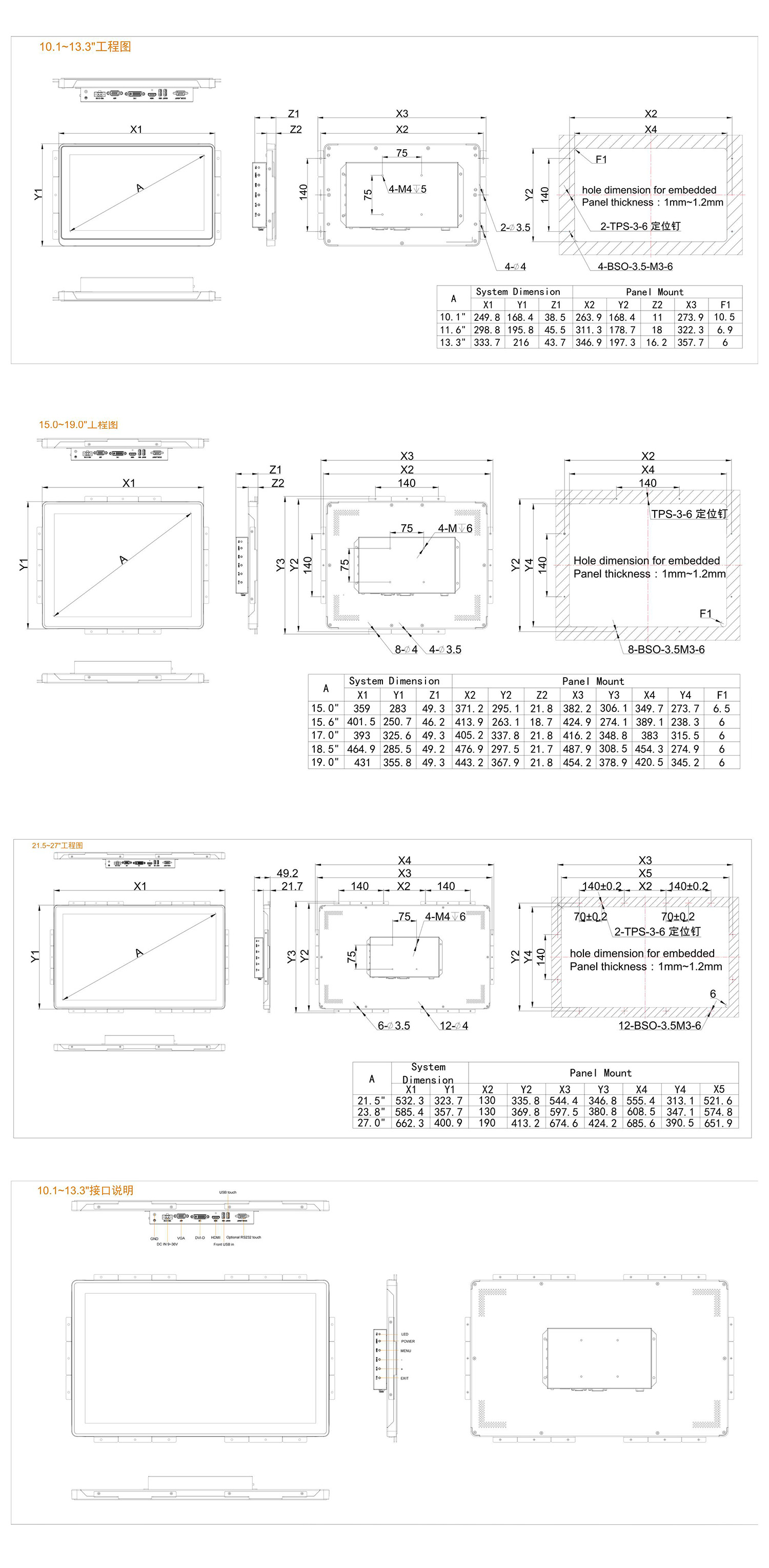

Dimensions(L*W*H) |
249.8mm * 168.4mm * 34mm |
298.1mm * 195.1mm * 40.9mm |
333.7mm * 216mm * 39.4mm |
359mm * 283mm * 44.8mm |
|
Weight |
Net: 1.5kg |
Net: 1.9kg |
Net: 2.15kg |
Net: 3.3kg |
| Model | H156CL | H170CL | H185CL | H190CL |
| Display Size | 15.6" TFT LCD | 17.0" TFT LCD | 18.5" TFT LCD | 19.0" TFT LCD |
| Max.Resolution | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1280 x 1024 |
| Aspect Ratio | 16:9 | 5:4 | 16:9 | 5:4 |
| Viewing Angle | 85/85/85/85 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 |
| Luminance | 220 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 |
| Contrast Ratio | 800:1 | 1000:1 | 1000:1 | 1000:1 |
| Backlight Lifetime | 50,000 hrs | 50,000 hrs | 30,000 hrs | 30,000 hrs |
| Operating Temperature | 0~50°C | 0~50°C | 0~50°C | 0~50°C |
| Storage Temperature | -20~60°C | -20~60°C | -20~60°C | -20~60°C |
| Dimensions(L*W*H) | 401.5mm * 250.7mm * 41.7mm | 393mm * 325.6mm * 44.8mm | 464.9mm * 285.5mm * 44.7mm | 431mm * 355.8mm * 44.8mm |
| Weight | Net: 3.4kg | Net: 4.3kg | Net: 4.7 kg | Net: 5.2kg |
| Model | H215CL | H238CL | H270CL |
| Display Size | 21.5" TFT LCD | 23.8" TFT LCD | 27.0" TFT LCD |
| Max.Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Luminance | 250 cd/m2 | 250 cd/m2 | 300 cd/m2 |
| Contrast Ratio | 1000:1 | 1000:1 | 3000:1 |
| Backlight Lifetime | 30,000 hrs | 30,000 hrs | 30,000 hrs |
| Operating Temperature | 0~50°C | 0~50°C | 0~50°C |
| Storage Temperature | -20~60°C | -20~60°C | -20~60°C |
| Dimensions(L*W*H) | 532.3mm * 323.7mm * 44.7mm | 585.4mm * 357.7mm * 44.7mm | 662.3mm * 400.9mm * 44.8mm |
| Weight | Net: 5.9kg | Net: 7kg | Net: 8.1kg |
