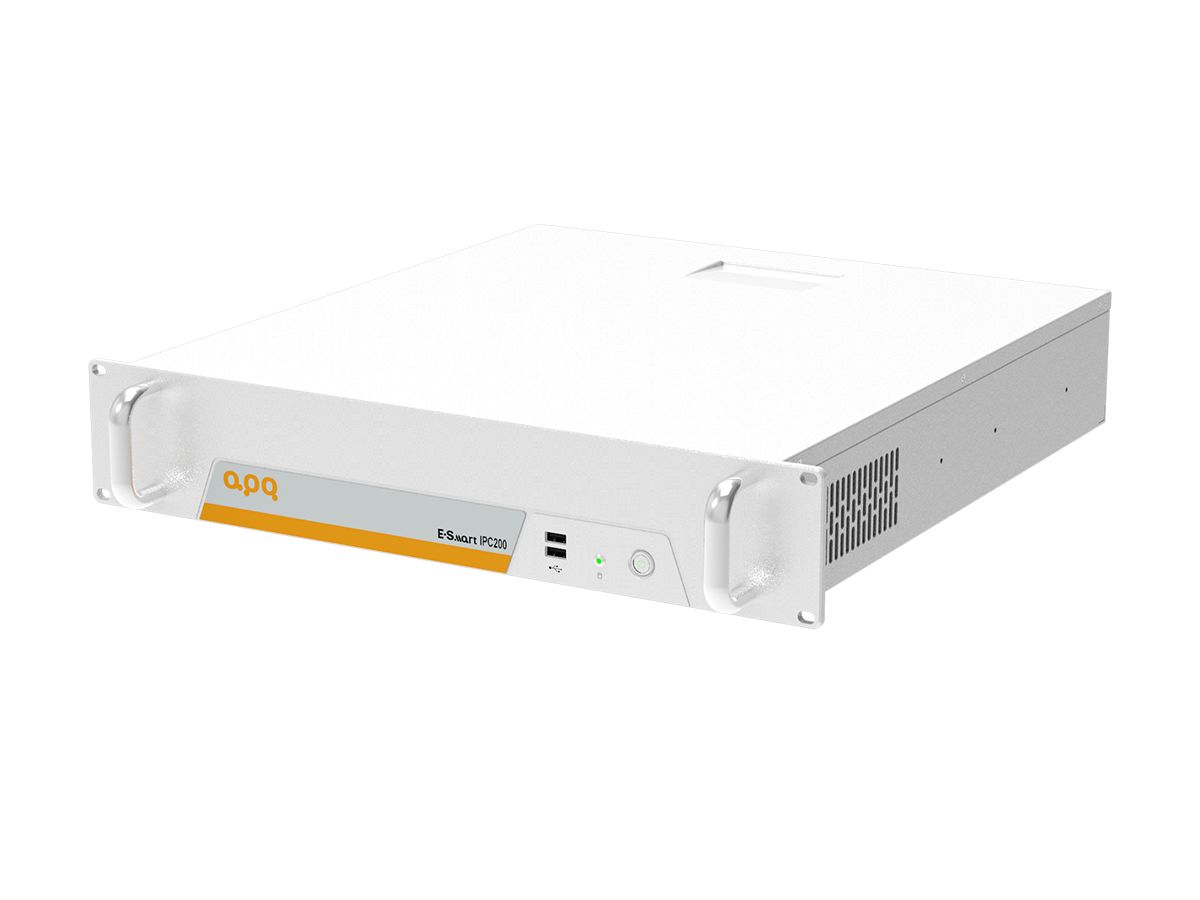

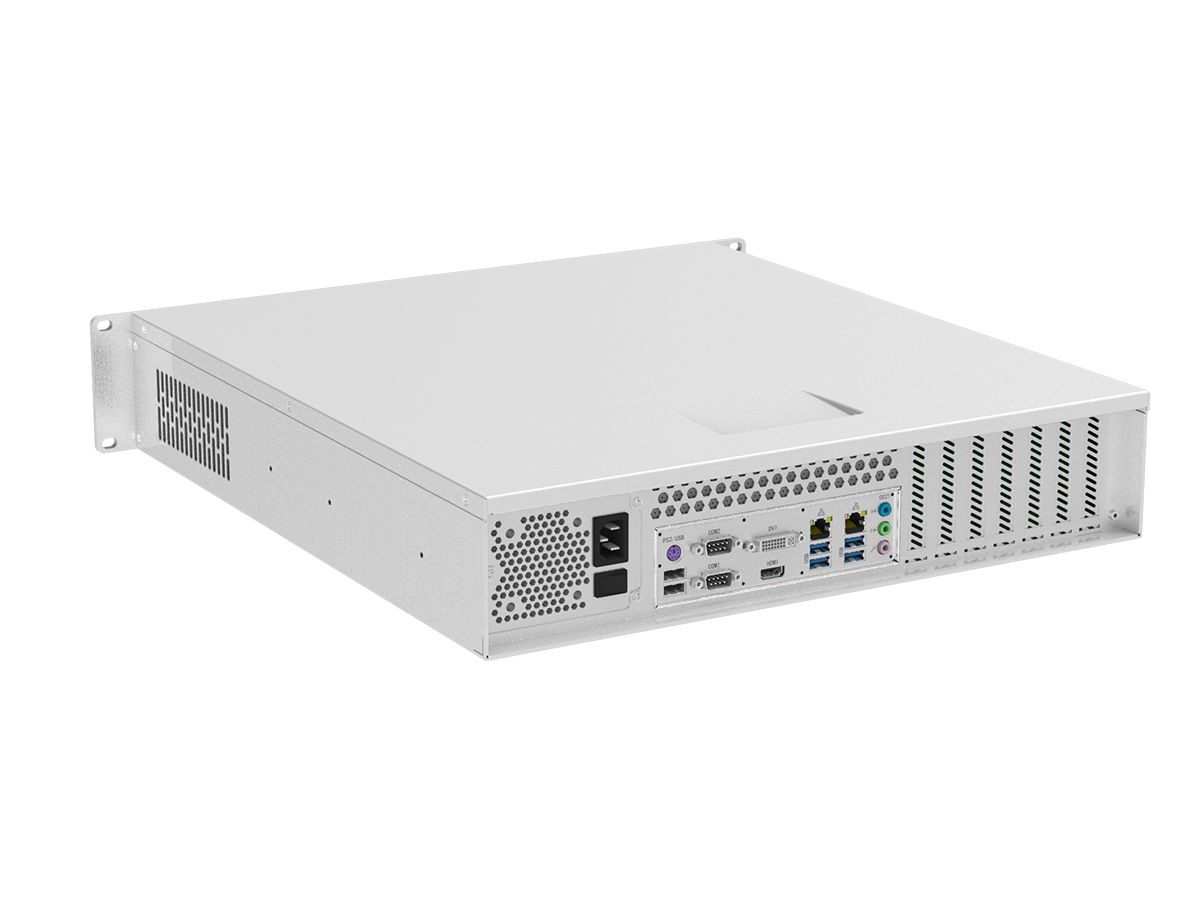

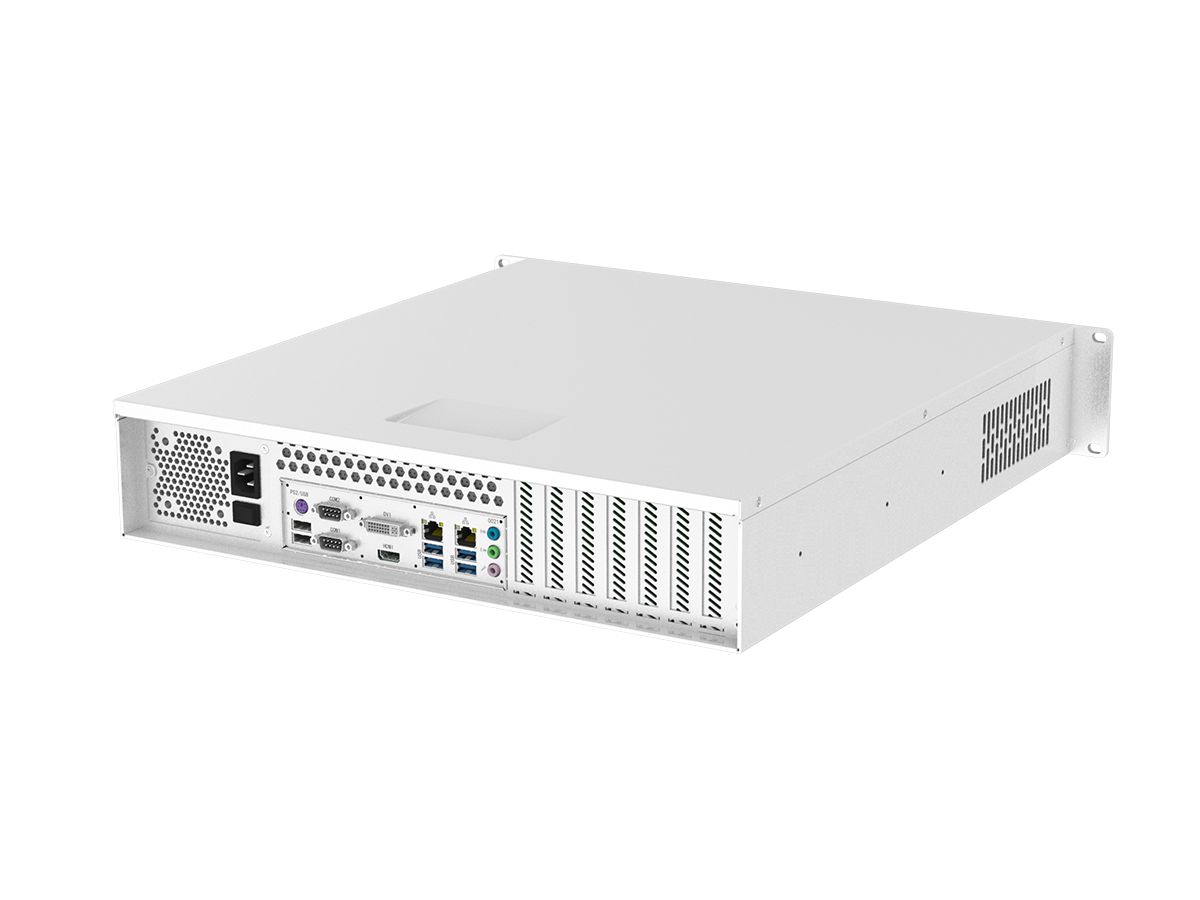

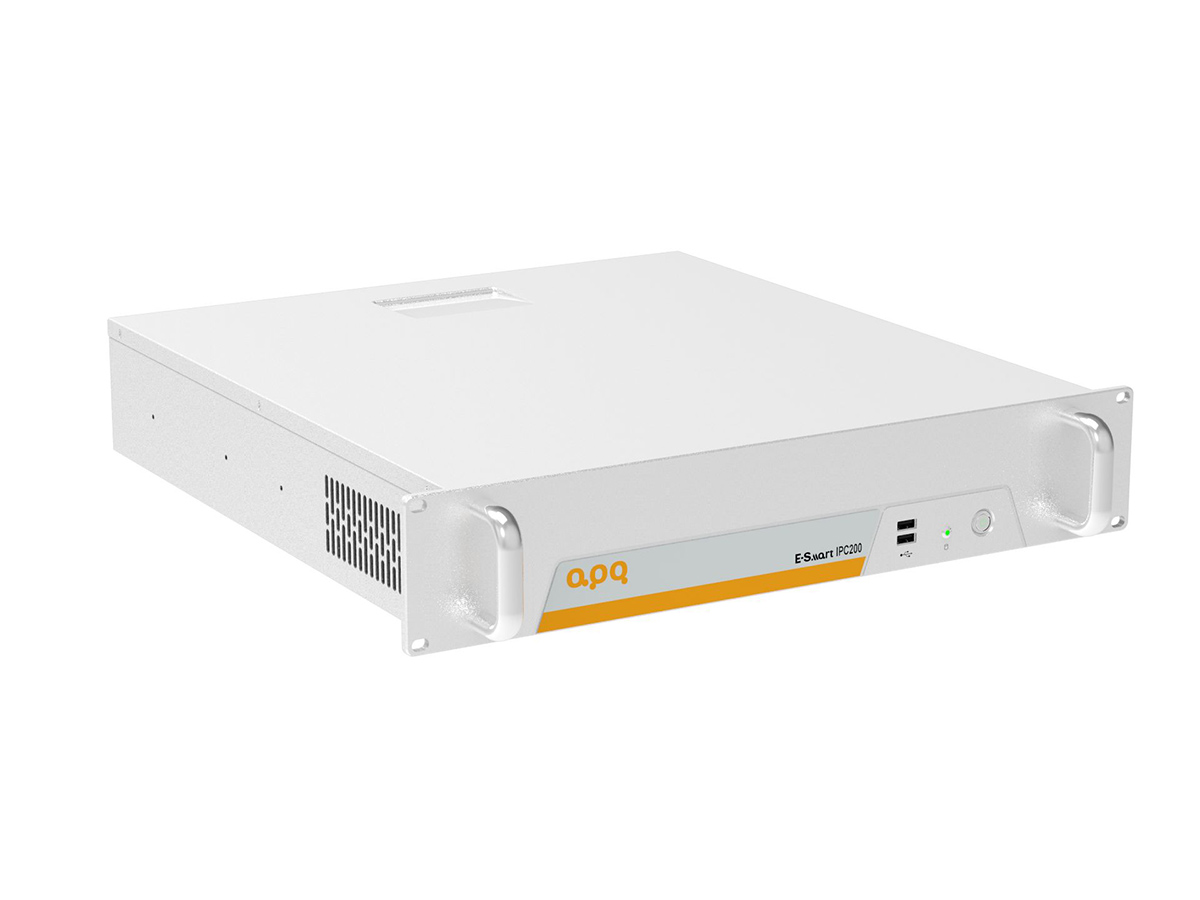

IPC200 2U Shelving Industrial Computer

Features:

Supports Intel® 4th/5th Generation Core/Pentium/Celeron Desktop CPU
Full mold-forming, standard 19-inch 2U rack-mount chassis
Fits standard ATX motherboards, supports standard 2U power supplies
Supports up to 7 half-height card slots to meet various industry application needs
User-friendly design with front-mounted system fans for tool-free maintenance
Options for up to four 3.5-inch anti-vibration and shock-resistant hard drive slots
Front panel USB, power switch design, and power and storage status indicators for easier system maintenance

Remote management
Condition monitoring
Remote operation and maintenance
Safety Control

PRODUCT DESCRIPTION

The IPC-200 is an industry-standard 2U rack-mount chassis designed for sites and rack-mount systems with height restrictions, offering a cost-effective industrial-grade chassis solution with a complete selection of backplanes, power supplies, and storage devices. It utilizes the mainstream ATX specification, featuring standard dimensions, high reliability, and rich I/O options (multiple serial ports, USBs, and displays), supporting up to 7 expansion slots. This range accommodates solutions from low-power architectures to multi-core CPU selections. The entire series is compatible with Intel Core 4th to 13th generation desktop processors. APQ’s IPC-200 2U rack-mount chassis is the ideal choice for industrial sites.

INTRODUCTION

Engineering Drawing

File Download

H81

H31C

Q470

Q670

H81

Model	IPC200-H31C
Processor System	CPU	Support Intel^® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	65W
	Chipset	H310C
Memory	Socket	2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2666MHz
Memory	Capacity	64GB, Single Max. 32GB
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)
Ethernet	Controller	1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45)
Storage	SATA	3 * SATA3.0 7P Connector
Storage	M.2	1 * M.2 Key-M (SATA SSD, SATA 3.0, 2242/2260/2280)
Expansion Slots	PCIe	1 * PCIe x16 slot (Gen 3, x16 signal)
	PCIe	1 * PCIe x4 slot (Gen 2, x4 signal, Default, co-lay with Mini PCIe)
	PCI	5 * PCI slot
	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0 (Opt., co-lay with PCIe x4 slot), with 1 * SIM Card)
Front I/O	Ethernet	2 * RJ45
	USB	4 * USB3.2 Gen 1x1 (Type-A)
	USB	2 * USB2.0 (Type-A)
	PS/2	1 * PS/2 (Keyboard & Mouse)
	Display	1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
	Display	1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz
	Audio	3 * 3.5mm Jack (Line-out + Line-in + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
Power Supply	Power Input Voltage	AC power supply, voltage and frequency shall be based on the 2U FLEX power supply provided
OS Support	Windows	6/7th Core™: Windows 7/10/11
	Windows	8/9th Core™: Windows 10/11
	Linux	Linux
Mechanical	Dimensions	482.6mm(L) * 464.5mm(W) * 88.1mm(H)
Environment	Operating Temperature	0 ~ 50℃
	Storage Temperature	-20 ~ 70℃
	Relative Humidity	10 to 95% RH (non-condensing)

H31C

Model	IPC200-H31C
Processor System	CPU	Support Intel^® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	65W
	Socket	LGA1151
	Chipset	H310C
	BIOS	AMI 256 Mbit SPI
Memory	Socket	2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2666MHz
Memory	Capacity	64GB, Single Max. 32GB
Graphics	Controller	Intel® UHD Graphics
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)
Ethernet	Controller	1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45)
Storage	SATA	3 * SATA3.0 7P Connector
Storage	M.2	1 * M.2 Key-M (SATA SSD, SATA 3.0, 2242/2260/2280)
Expansion Slots	PCIe	1 * PCIe x16 slot (Gen 3, x16 signal)
	PCIe	1 * PCIe x4 slot (Gen 2, x4 signal, Default, co-lay with Mini PCIe)
	PCI	5 * PCI slot
	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0 (Opt., co-lay with PCIe x4 slot), with 1 * SIM Card)
Front I/O	Ethernet	2 * RJ45
	USB	4 * USB3.2 Gen 1x1 (Type-A)
	USB	2 * USB2.0 (Type-A)
	PS/2	1 * PS/2 (Keyboard & Mouse)
	Display	1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
	Display	1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz
	Audio	3 * 3.5mm Jack (Line-out + Line-in + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
Rear I/O	USB	2 * USB2.0 (Type-A)
	Button	1 * Power Button
	LED	1 * Power status LED
	LED	1 * Hard drive status LED
Internal I/O	USB	1 * USB2.0 (Vertical TYEP-A)
	COM	4 * RS232 (COM3/4/5/6, Header, Full Lanes)
	Display	1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)
	Display	1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header)
	Audio	1 * Front Audio (Line-Out + MIC, Header)
	Audio	1 * Speaker (3W (per channel) into a 4Ω Loads, wafer)
	GPIO	1 * 16 bits DIO (8DI and 8DO, wafer)
	SATA	3 * SATA 7P Connector
	LPT	1 * LPT (Header)
	FAN	2 * SYS FAN (Header)
	FAN	1 * CPU FAN (Header)
Power Supply	Type	2U FLEX
	Power Input Voltage	AC power supply, voltage and frequency shall be based on the 2U FLEX power supply provided
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	6/7th Core™: Windows 7/10/11
	Windows	8/9th Core™: Windows 10/11
	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	SGCC+AL6061
	Dimensions	482.6mm(L) * 464.5mm(W) * 88.1mm(H)
	Mounting	Rack-mounted/Desktop
Environment	Operating Temperature	0 ~ 50℃
	Storage Temperature	-20 ~ 70℃
	Relative Humidity	10 to 95% RH (non-condensing)

Q470

<table border="0" cellspacing="0">
<tbody>
<tr>
<td valign="center" width="13.9800%">
Model
</td>
<td colspan="2" valign="center" width="86.0200%">
IPC200-Q470
</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;" rowspan="3">
Processor System
</td>
<td valign="center" width="18.0200%">CPU</td>
<td valign="center" width="68.0000%">Support Intel® 10/11th Generation Core / Pentium/ Celeron Desktop CPU</td>
</tr>
<tr>
<td valign="center" width="18.0200%">TDP</td>
<td valign="center" nowrap="nowrap" width="68.0000%">125W</td>
</tr>
<tr>
<td valign="center" width="18.0200%">Chipset</td>
<td valign="center" width="68.0000%">Q470</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;" rowspan="2">
Memory
</td>
<td valign="center" width="18.0200%">Socket</td>
<td valign="center" width="68.0000%">4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz</td>
</tr>
<tr>
<td valign="center" width="18.0200%">Capacity</td>
<td valign="center" width="68.0000%">128GB, Single Max. 32GB</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;" rowspan="2">
Ethernet
</td>
<td rowspan="2" valign="center" width="18.0200%">Controller</td>
<td valign="center" width="68.0000%">1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)</td>
</tr>
<tr>
<td valign="center" width="68.0000%">1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45)</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;" rowspan="2">
Storage
</td>
<td valign="center" width="18.0200%">SATA</td>
<td valign="center" width="68.0000%">4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10</td>
</tr>
<tr>
<td valign="center" width="18.0200%">M.2</td>
<td valign="center" width="68.0000%">1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;" rowspan="4">
Expansion Slots
</td>
<td rowspan="2" valign="center" width="18.0200%">PCIe</td>
<td valign="center" width="68.0000%">2 * PCIe x16 slot (Gen 3, x16 /NA signal or Gen 3, x8 /x8 signal)</td>
</tr>
<tr>
<td valign="center" width="68.0000%">3 * PCIe x4 slot (Gen 3, x4 signal)</td>
</tr>
<tr>
<td valign="center" width="18.0200%">PCI</td>
<td valign="center" width="68.0000%">2 * PCI slot</td>
</tr>
<tr>
<td valign="center" width="18.0200%">Mini PCIe</td>
<td valign="center" width="68.0000%">1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;" rowspan="8">
Front I/O
</td>
<td valign="center" width="18.0200%">Ethernet</td>
<td valign="center" width="68.0000%">2 * RJ45</td>
</tr>
<tr>
<td rowspan="3" valign="center" width="18.0200%">USB</td>
<td valign="center" width="68.0000%">2 * USB3.2 Gen 2x1 (Type-A)</td>
</tr>
<tr>
<td valign="center" width="68.0000%">4 * USB3.2 Gen 1x1 (Type-A)</td>
</tr>
<tr>
<td valign="center" width="68.0000%">2 * USB2.0 (Type-A)</td>
</tr>
<tr>
<td rowspan="2" valign="center" width="18.0200%">Display</td>
<td valign="center" width="68.0000%">1 * DP1.4: max resolution up to 3840*2160 @ 60Hz</td>
</tr>
<tr>
<td valign="center" width="68.0000%">1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz</td>
</tr>
<tr>
<td valign="center" width="18.0200%">Audio</td>
<td valign="center" width="68.0000%">3 * 3.5mm Jack (Line-out + Line-in + MIC)</td>
</tr>
<tr>
<td valign="center" width="18.0200%">Serial</td>
<td valign="center" width="68.0000%">2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;">
Power Supply
</td>
<td valign="center" width="18.0200%">Power Input Voltage</td>
<td valign="center" width="68.0000%">AC power supply, voltage and frequency shall be based on the 2U power supply provided</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;" rowspan="2">
OS Support
</td>
<td valign="center" width="18.0200%">Windows</td>
<td valign="center" width="68.0000%">Windows 10/11</td>
</tr>
<tr>
<td valign="center" width="18.0200%">Linux</td>
<td valign="center" width="68.0000%">Linux</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;">
Mechanical
</td>
<td valign="center" width="18.0200%">Dimensions</td>
<td valign="center" width="68.0000%">482.6mm(L) * 475.7mm(W) * 88.1mm(H)</td>
</tr>
<tr>
<td style="background-color: #fbe0b7;" rowspan="3">
Environment
</td>
<td valign="center" width="18.0200%">Operating Temperature</td>
<td valign="center" width="68.0000%">0 ~ 50℃</td>
</tr>
<tr>
<td valign="center" width="18.0200%">Storage Temperature</td>
<td valign="center" width="68.0000%">-20 ~ 70℃</td>
</tr>
<tr>
<td valign="center" width="18.0200%">Relative Humidity</td>
<td valign="center" width="68.0000%">10 to 95% RH (non-condensing)</td>
</tr>
</tbody>
</table>

Q670

Model	IPC200-Q670
Processor System	CPU	Support Intel^® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	125W
	Socket	LGA1700
	Chipset	Q670
	BIOS	AMI 256 Mbit SPI
Memory	Socket	4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Memory	Capacity	128GB, Single Max. 32GB
Graphics	Controller	Intel® UHD Graphics
Ethernet	Controller	1 * Intel i225-V/LM 2.5GbE LAN Chip (10/100/1000/2500 Mbps, RJ45)
Ethernet	Controller	1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45)
Storage	SATA	4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10
Storage	M.2	1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots	PCIe	2 * PCIe x16 slot (Gen 5, x16 /NA signal or Gen 4, x8 /x8 signal)
		1 * PCIe x8 slot (Gen 4, x4 signal)
		2 * PCIe x4 slot (Gen 4, x4 signal)
		1 * PCIe x4 slot (Gen 3, x4 signal)
	PCI	1 * PCI slot
	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)
	M.2	1 * M.2 Key-B (USB3.2 Gen 1x1 (co-lay with usb header, default), with 1 * SIM Card, 3042/3052)
Front I/O	Ethernet	2 * RJ45
	USB	4 * USB3.2 Gen 2x1 (Type-A)
	USB	4 * USB3.2 Gen 1x1 (Type-A)
	Display	1 * DP1.4: max resolution up to 3840*2160 @ 60Hz
	Display	1 * HDMI2.0: max resolution up to 3840*2160 @ 30Hz
	Audio	3 * 3.5mm Jack (Line-out + Line-in + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
Rear I/O	USB	2 * USB2.0 (Type-A)
	Button	1 * Power Button
	LED	1 * Power status LED
	LED	1 * Hard drive status LED
Internal I/O	USB	1 * USB3.2 Gen 1x1 (Vertical TYEP-A)
	USB	2 * USB2.0 (One of four shares a signal with the M.2 Key-B, optional, Header)
	COM	4 * RS232 (COM3/4/5/6, Header, Full Lanes)
	Display	1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)
	Display	1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header)
	Audio	1 * Front Audio (Line-Out + MIC, Header)
	Audio	1 * Speaker (3W (per channel) into a 4Ω Loads, wafer)
	GPIO	1 * 16 bits DIO (8DI and 8DO, wafer)
	SATA	4 * SATA 7P Connector
	LPT	1 * LPT (Header)
	PS/2	1 * PS/2 (wafer)
	SMBus	1 * SMBus (wafer)
	FAN	2 * SYS FAN (Header)
	FAN	1 * CPU FAN (Header)
Power Supply	Type	2U FLEX
	Power Input Voltage	AC power supply, voltage and frequency shall be based on the 2U power supply provided
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	SGCC+AL6061
	Dimensions	482.6mm(L) * 475.7mm(W) * 88.1mm(H)
	Mounting	Rack-mounted/Desktop
Environment	Operating Temperature	0 ~ 50℃
	Storage Temperature	-20 ~ 70℃
	Relative Humidity	10 to 95% RH (non-condensing)

IPC400-H81

PH170CL-E7L-20240106 (6) IPC200-H81_SpecSheet_APQ

IPC400-H31C

IPC200-H31C

IPC400-Q470

IPC200-Q470_SpecSheet_APQ

IPC400-Q670

IPC200-Q670_SpecSheet_APQ

IPC200-H81_SpecSheet_APQ

DOWNLOAD
IPC200-H31C_SpecSheet_APQ

DOWNLOAD
IPC200-Q470_SpecSheet_APQ

DOWNLOAD
IPC200-Q670_SpecSheet_APQ

DOWNLOAD

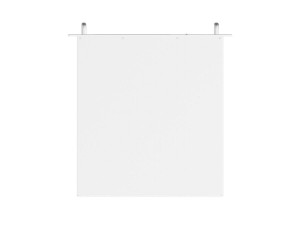

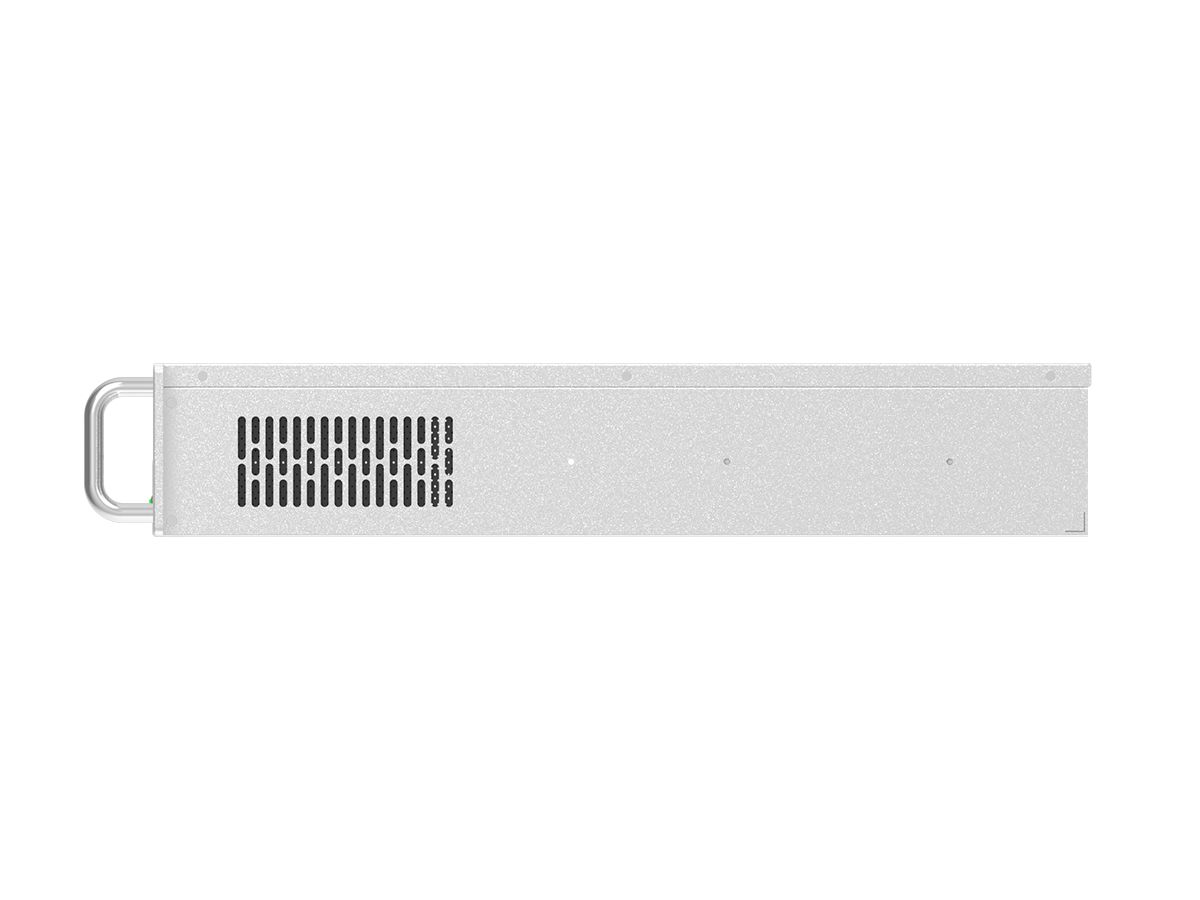

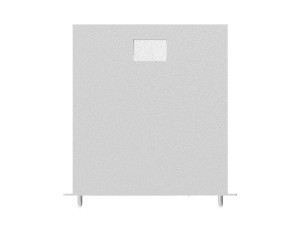

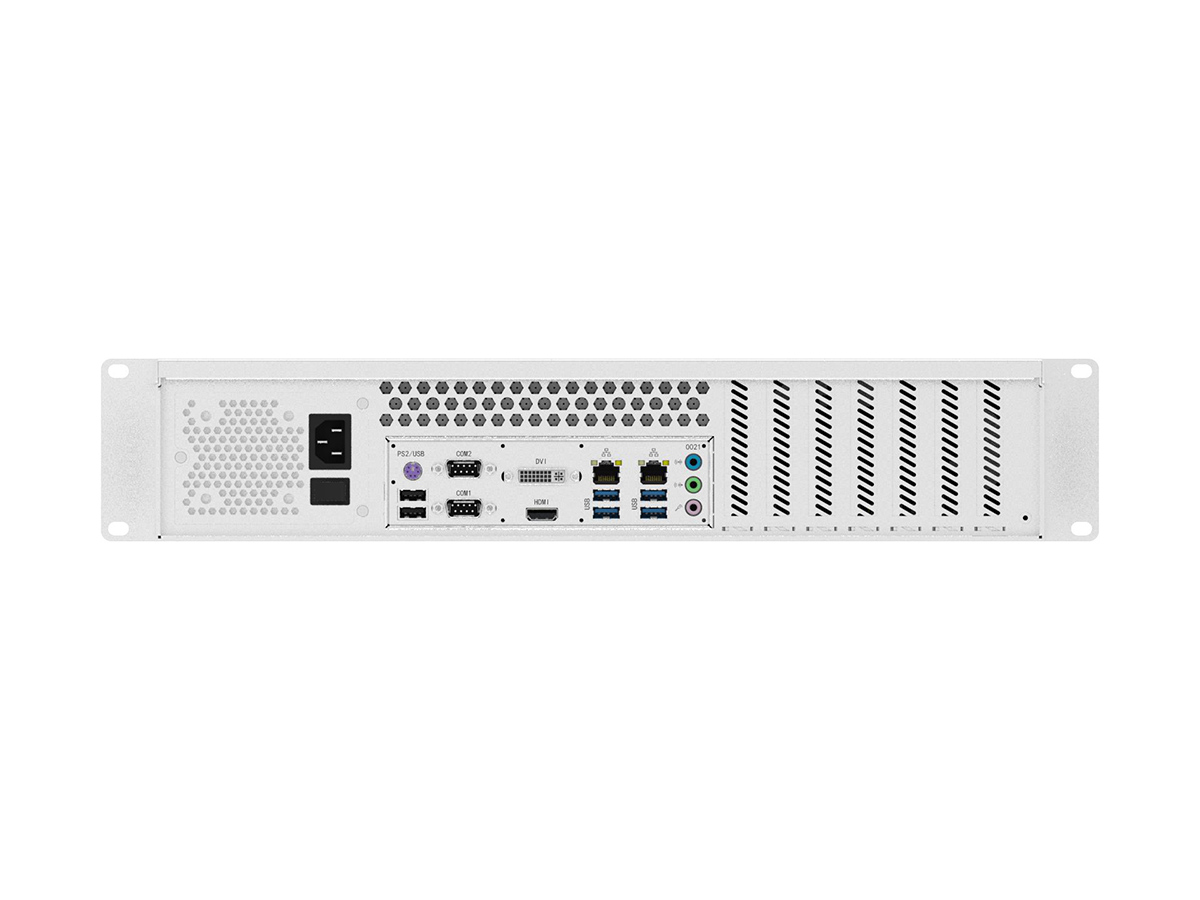

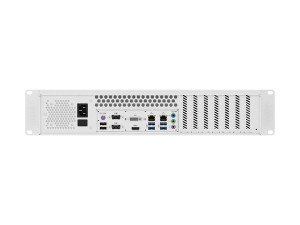

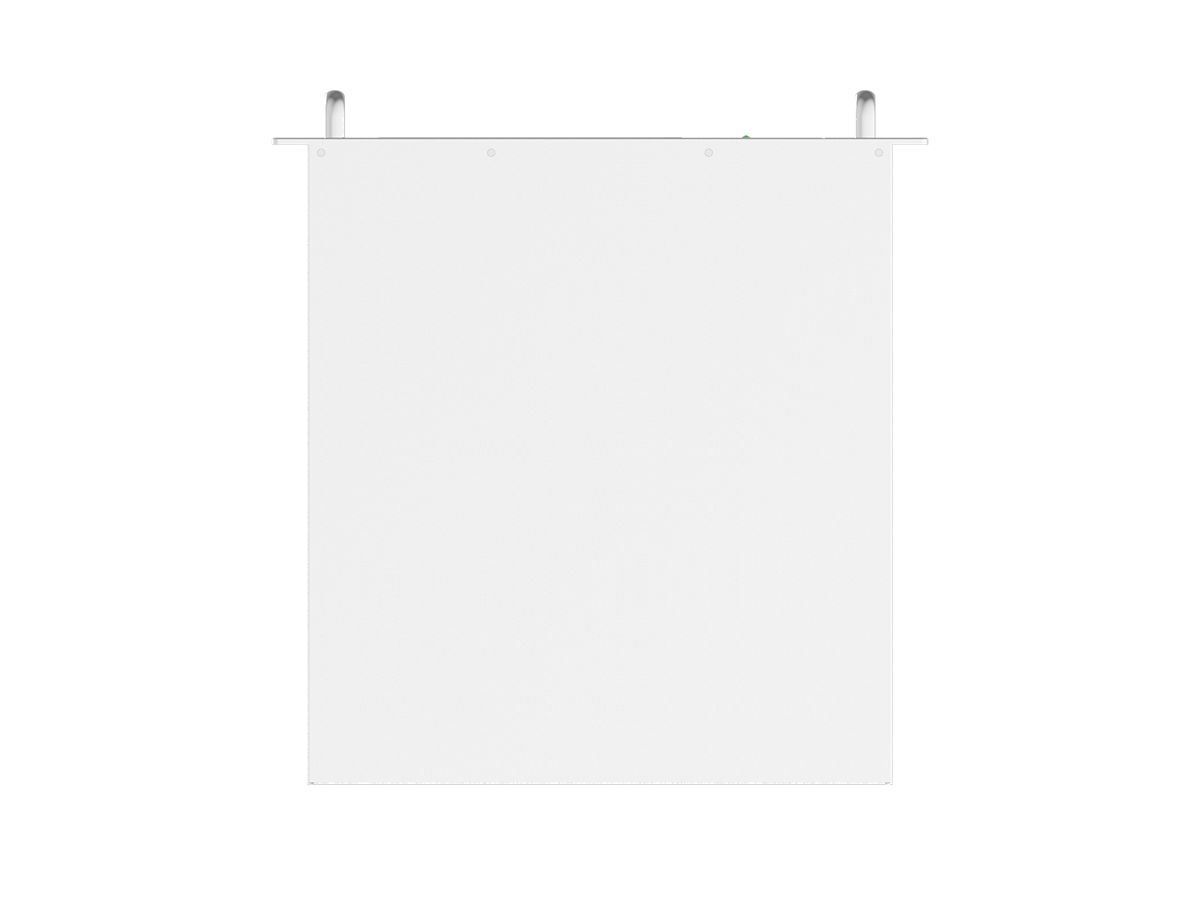

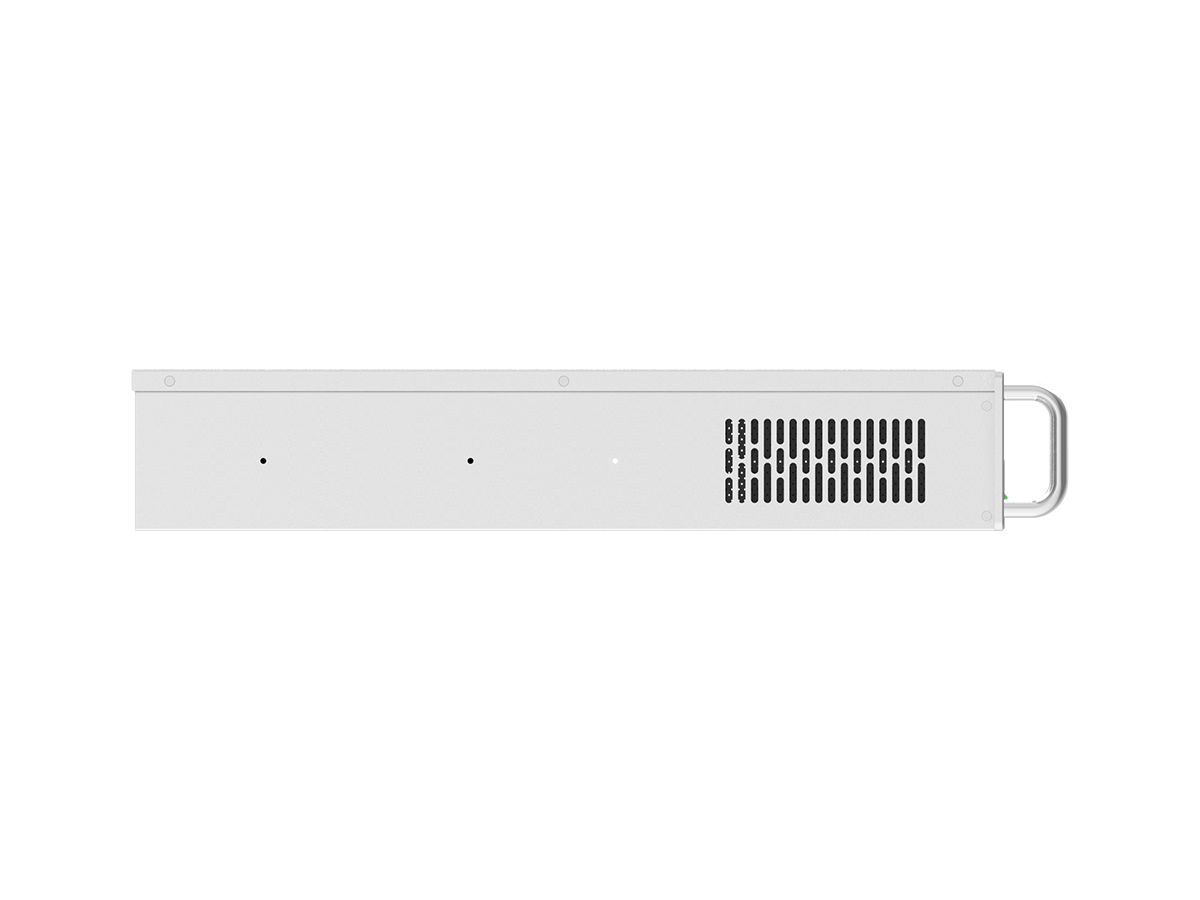

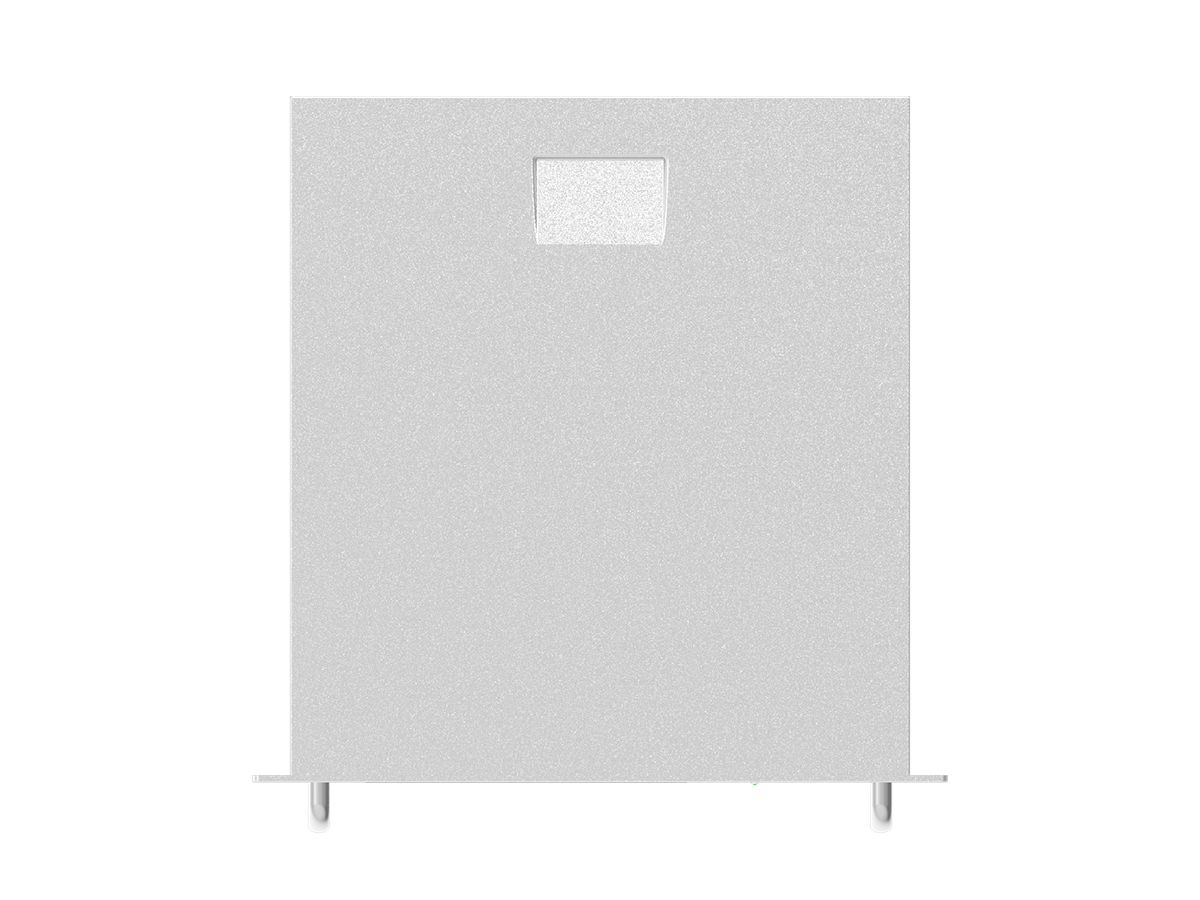

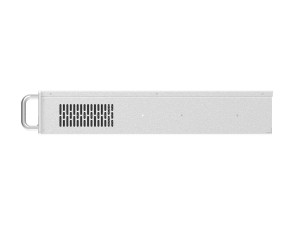

2U rack-mount chassis

Anti-vibration hard drive slots

ATX motherboard compatibility

Intel 4th/5th Gen CPU support

Multi-core CPU support

OBTAIN SAMPLES

Effective, safe and reliable. Our equipment guarantees the right solution for any requirement. Benefit from our industry expertise and generate added value - every day.

Click For Inquiry Click more
