IPC330 Series Wall Mounted Chassis
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT USPRODUCT DESCRIPTION

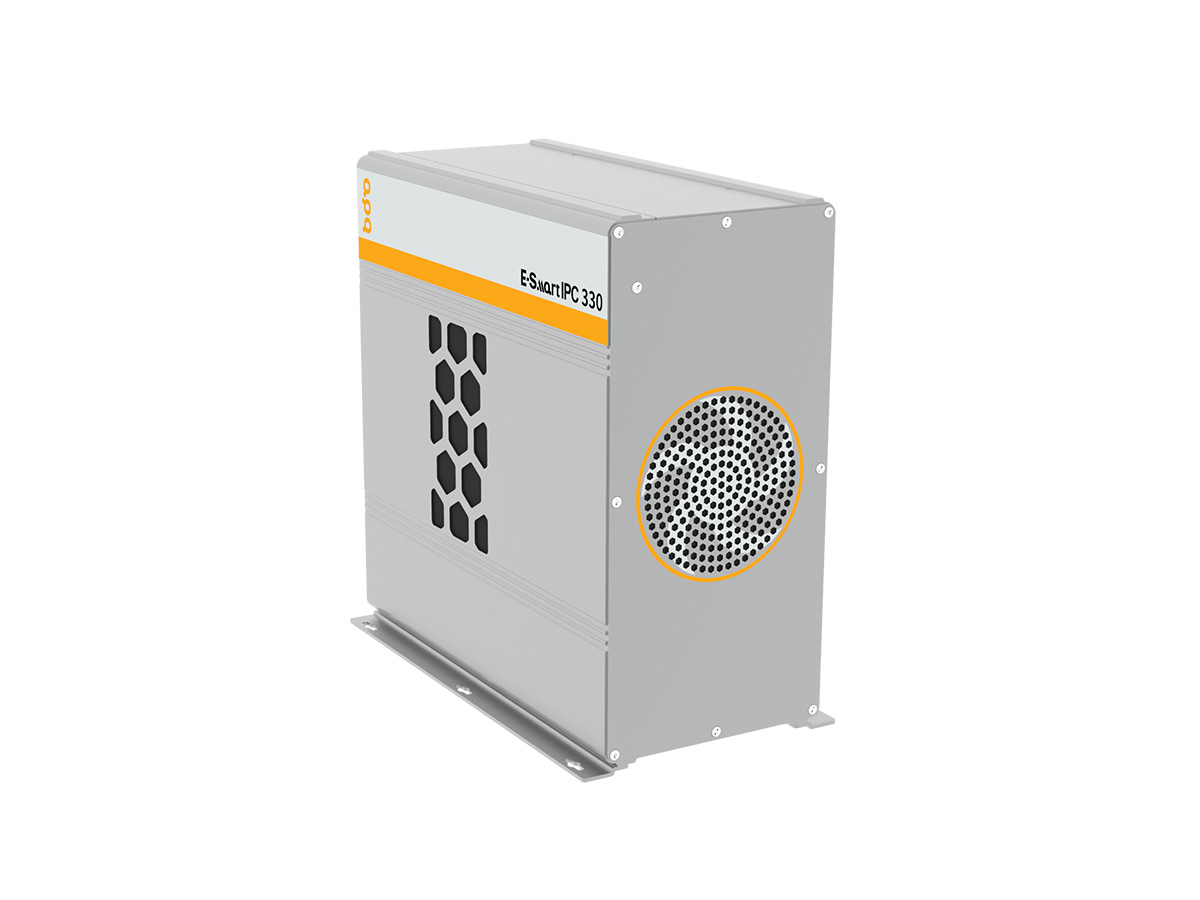

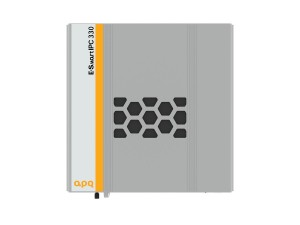

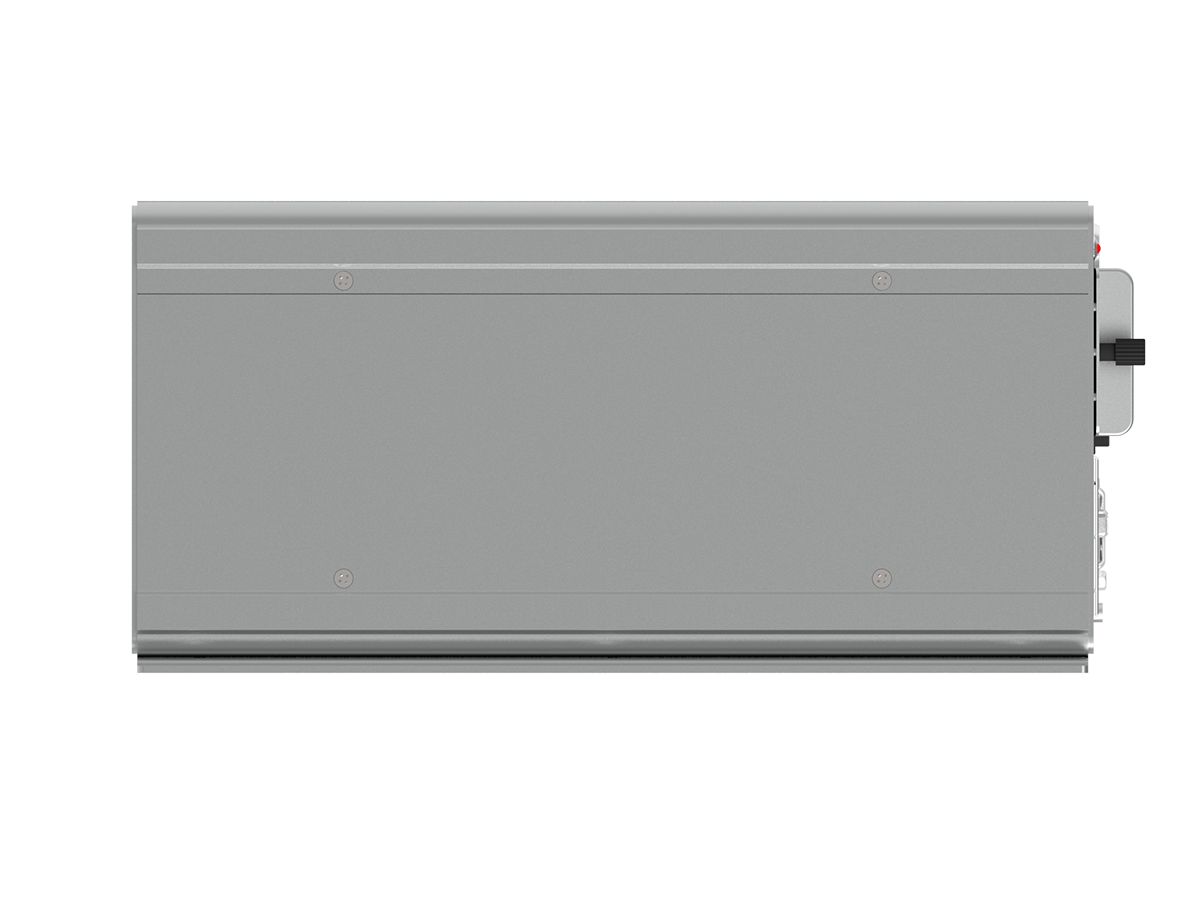

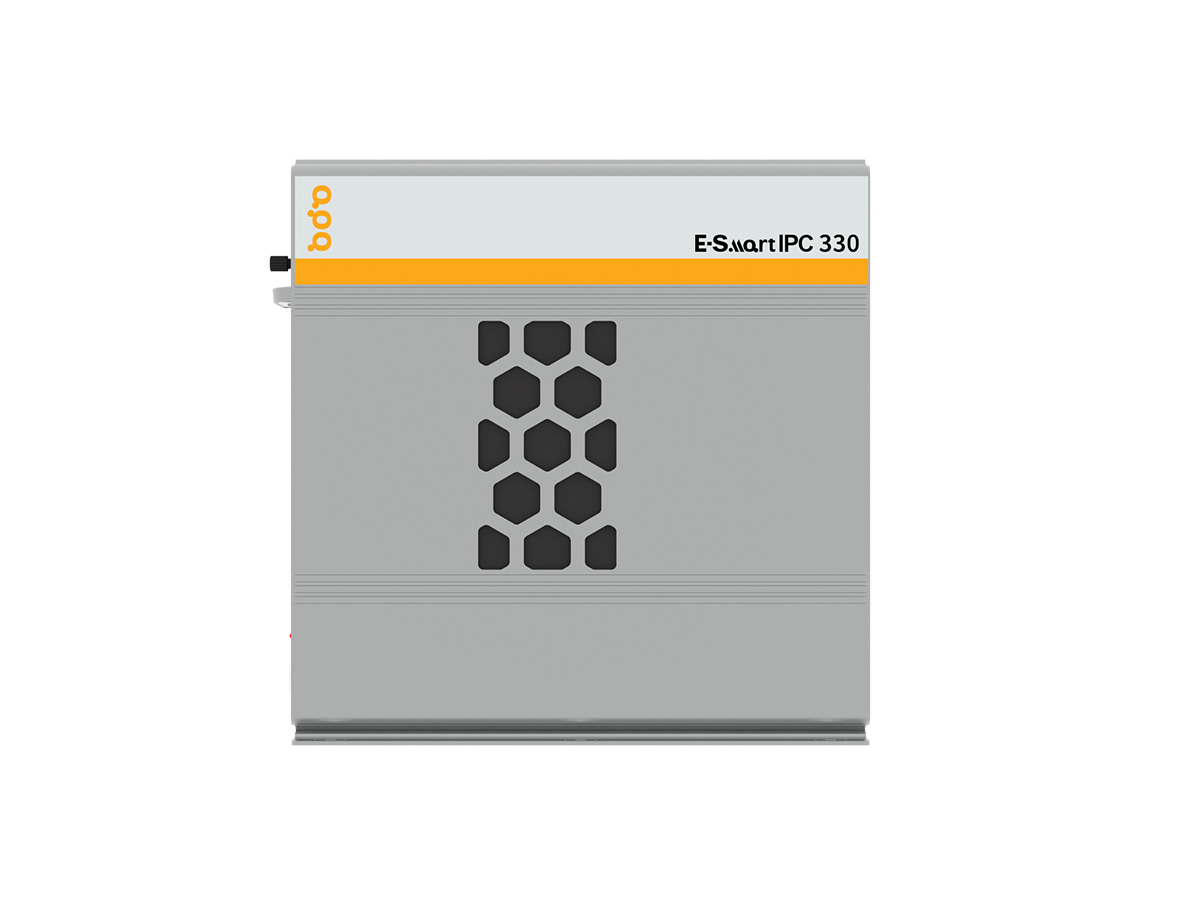

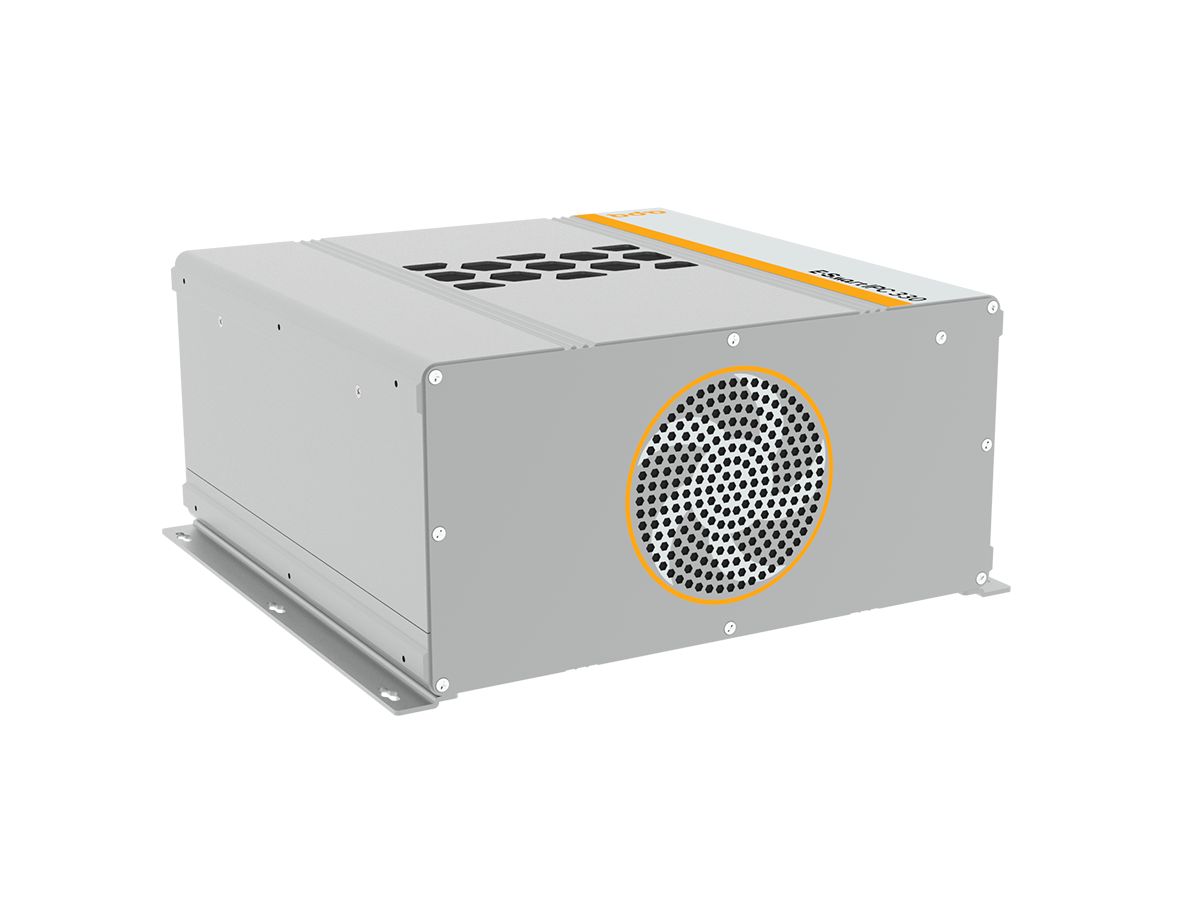

The APQ wall-mounted chassis IPC330D, made from aluminum alloy mold forming, is durable and offers excellent heat dissipation. It supports Intel® 4th to 9th Generation Desktop CPUs, ensuring robust computing power, with a standard ITX motherboard installation slot and supports a standard 1U power supply to meet stable power supply needs. The IPC330D industrial chassis can support 2 PCI or 1 PCIe X16 expansion, facilitating various expansions and upgrades. It comes with a default configuration of one 2.5-inch 7mm shock and impact-resistant hard drive bay, ensuring storage devices function normally in harsh environments. Additionally, the front panel features a power switch and indicators for power and storage status, allowing users to easily understand the system status and simplifying the maintenance process. Moreover, it supports multi-directional wall-mounted and desktop installations, adapting to the needs of different application scenarios.
In summary, the APQ wall-mounted chassis IPC330D is an industrial chassis suitable for various industries, offering excellent performance, expandability, and ease of use. Whether for industrial control, automation equipment, or other application fields, the IPC330D provides stable and reliable support for your business.
|
Model |
IPC330D |
|
|
Processor System |
SBC form factor | Supports motherboards with 6.7" × 6.7" and below sizes |
| PSU Type | 1U FLEX | |
| Driver Bays | 1 * 2.5" drive bays (Optionally add 1 * 2.5" drive bays） | |
| CD-ROM Bays | NA | |

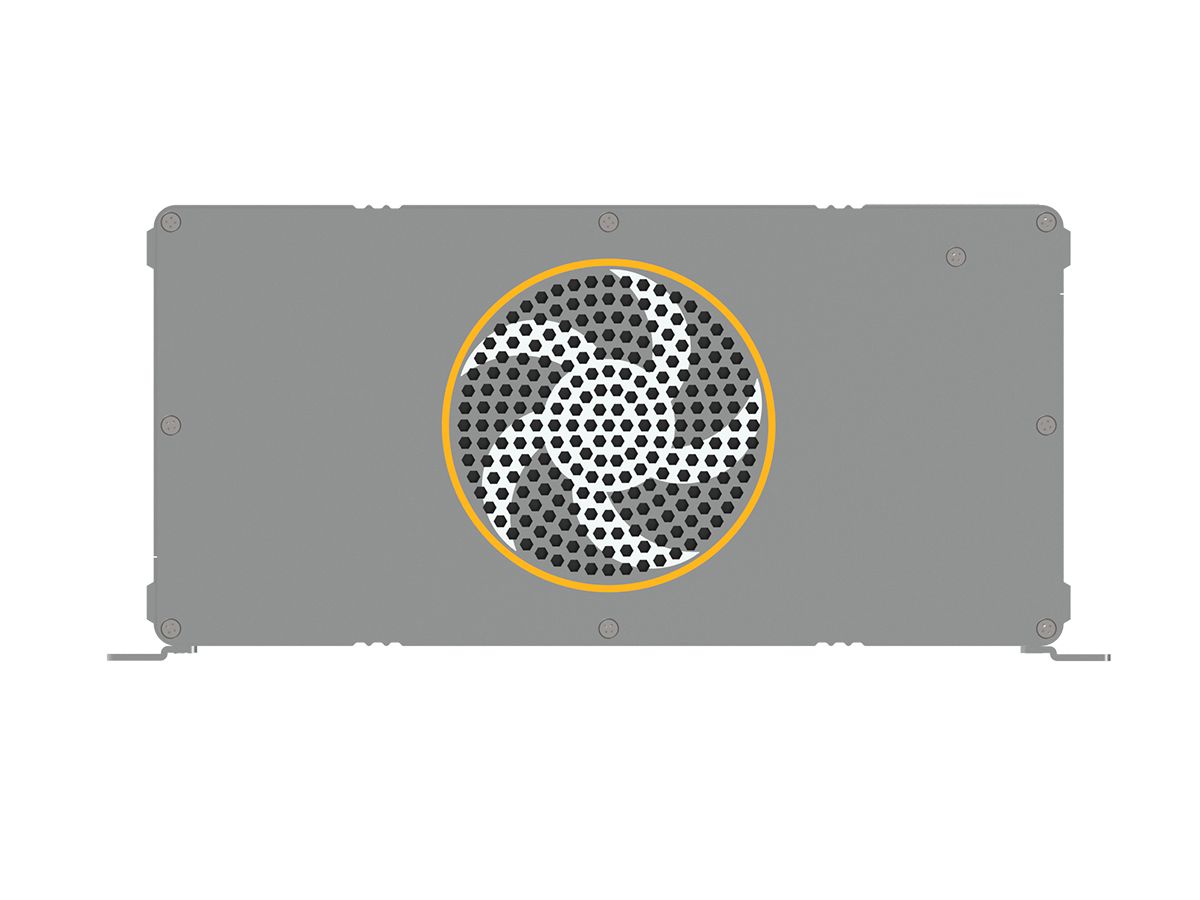

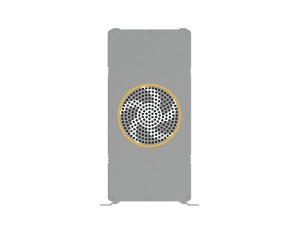

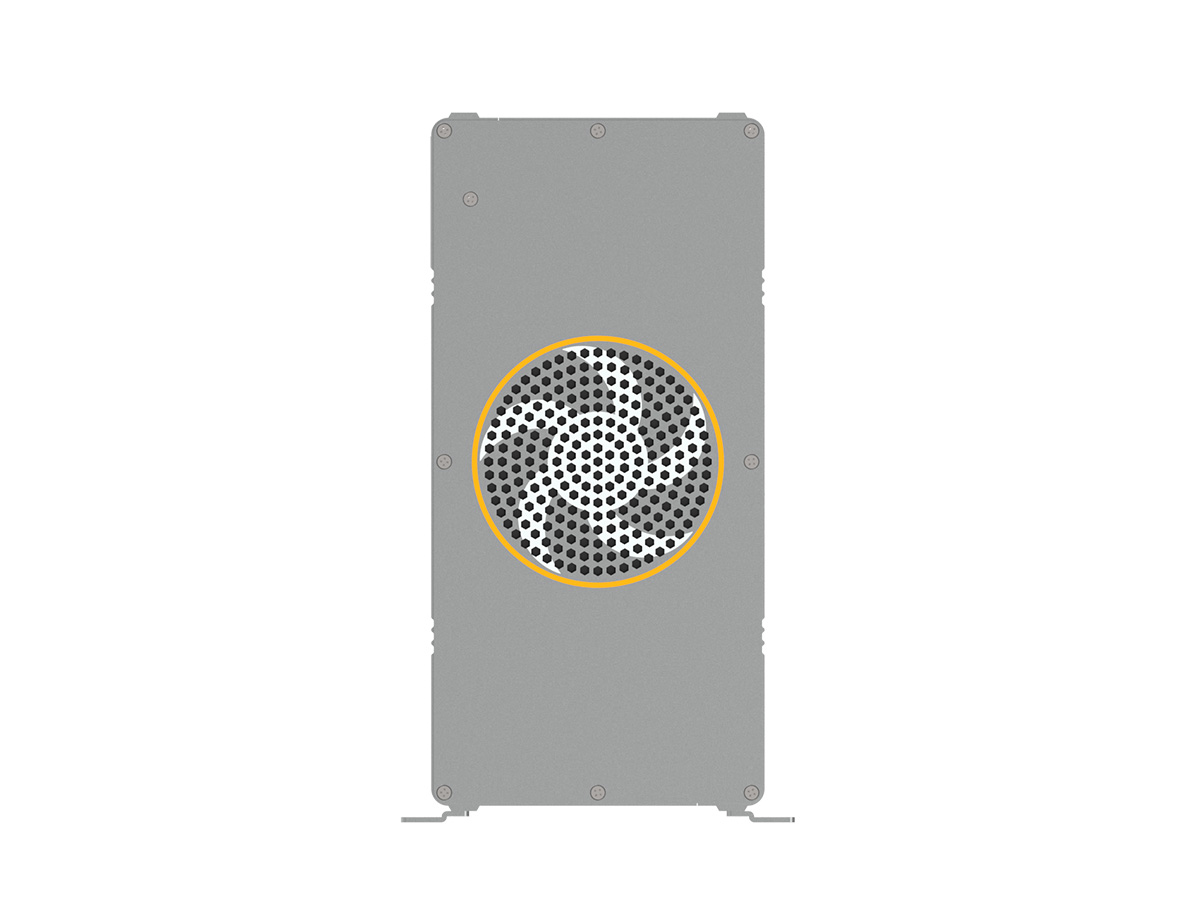

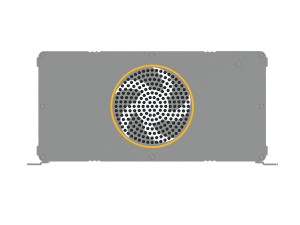

| Cooling Fans | 1 * PWM Smart FAN (9225, Rear I/O) | |
| USB | NA | |

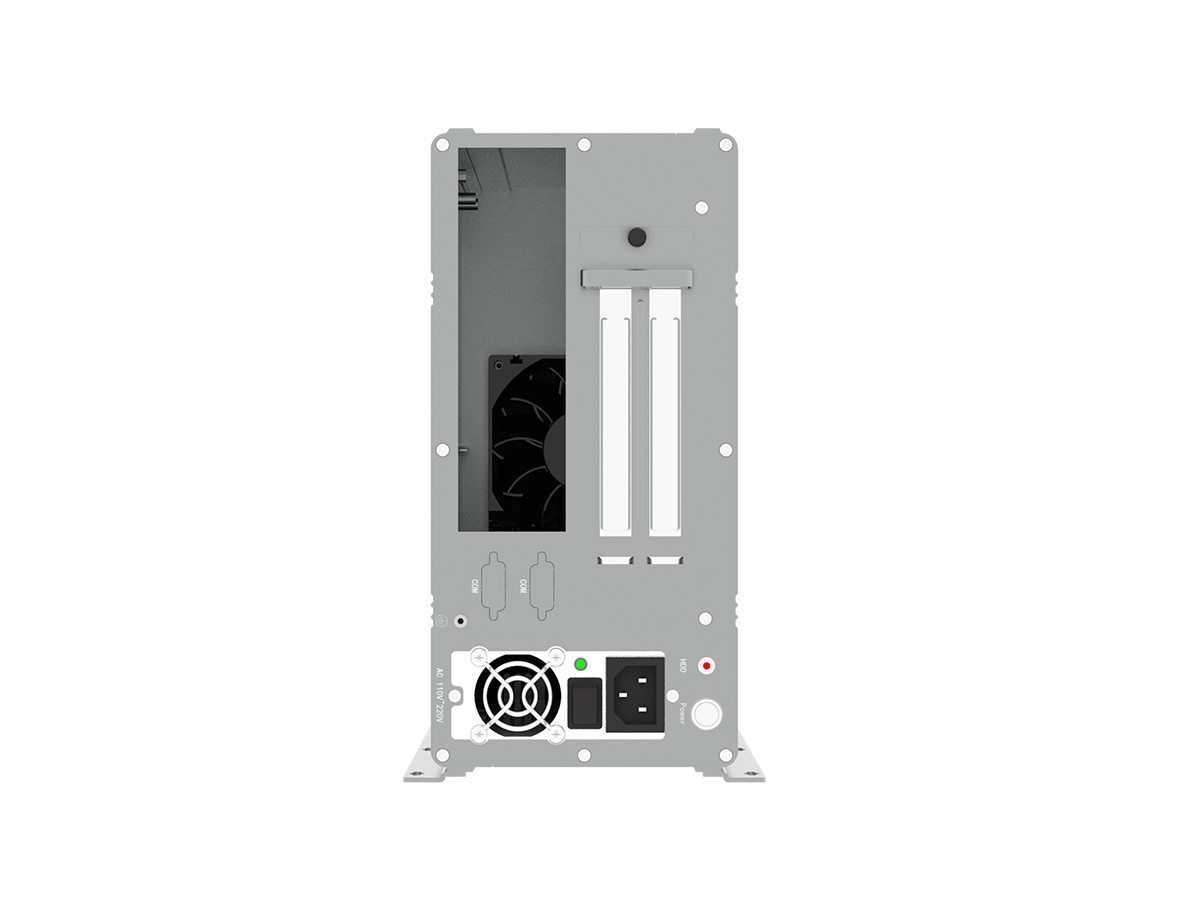

| Expansions Slots | 2 * PCI/1 * PCIE full-height expansion slots | |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED
1 * Hard drive status LED |
|
| Optional | 2* DB9 for expansion optioal (Front I/O) | |
|
Mechanical |
Enclosure Material | SGCC+AI6061 |
| Surface technology | Anodization+ Baking varnish | |
| Color | Steel gray | |

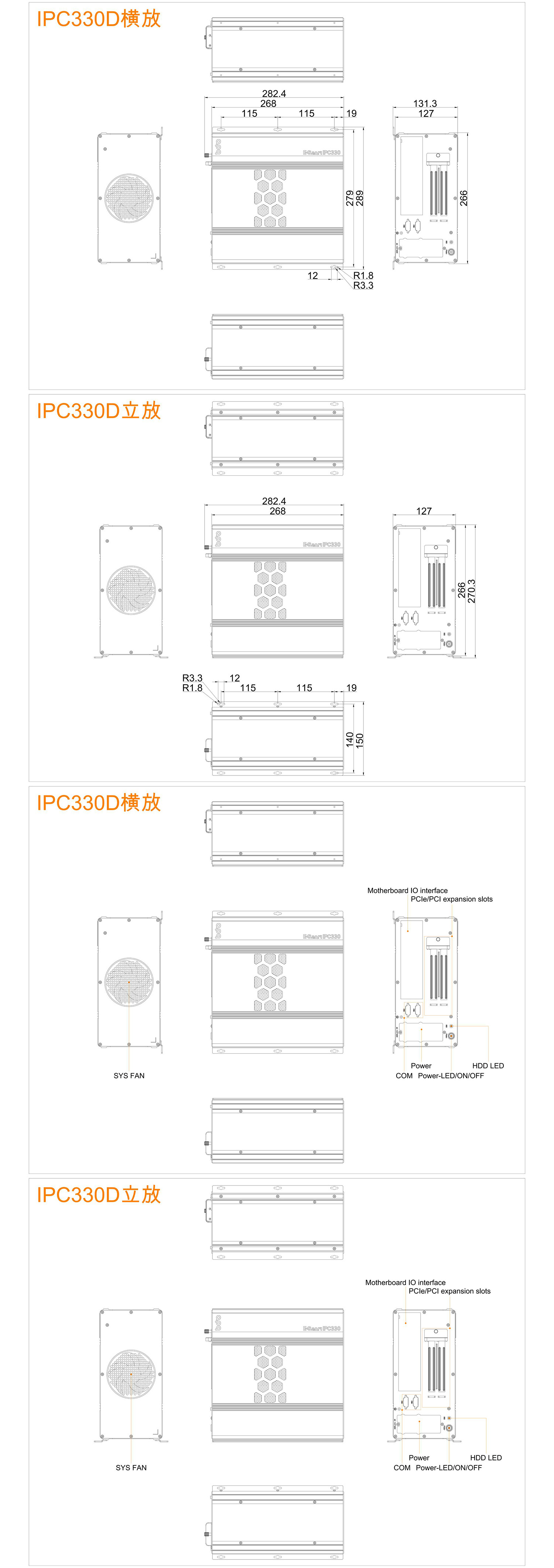

| Dimensions (W x D x H) | 266mm * 127mm * 268mm | |
| Weight (Net.) | 4.8 kg | |
| Mounting | Wall mounted, Desktop | |
|
Environment |
Operating Temperature | -20 ~ 60℃ |
| Storage Temperature | -20 ~ 75℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
