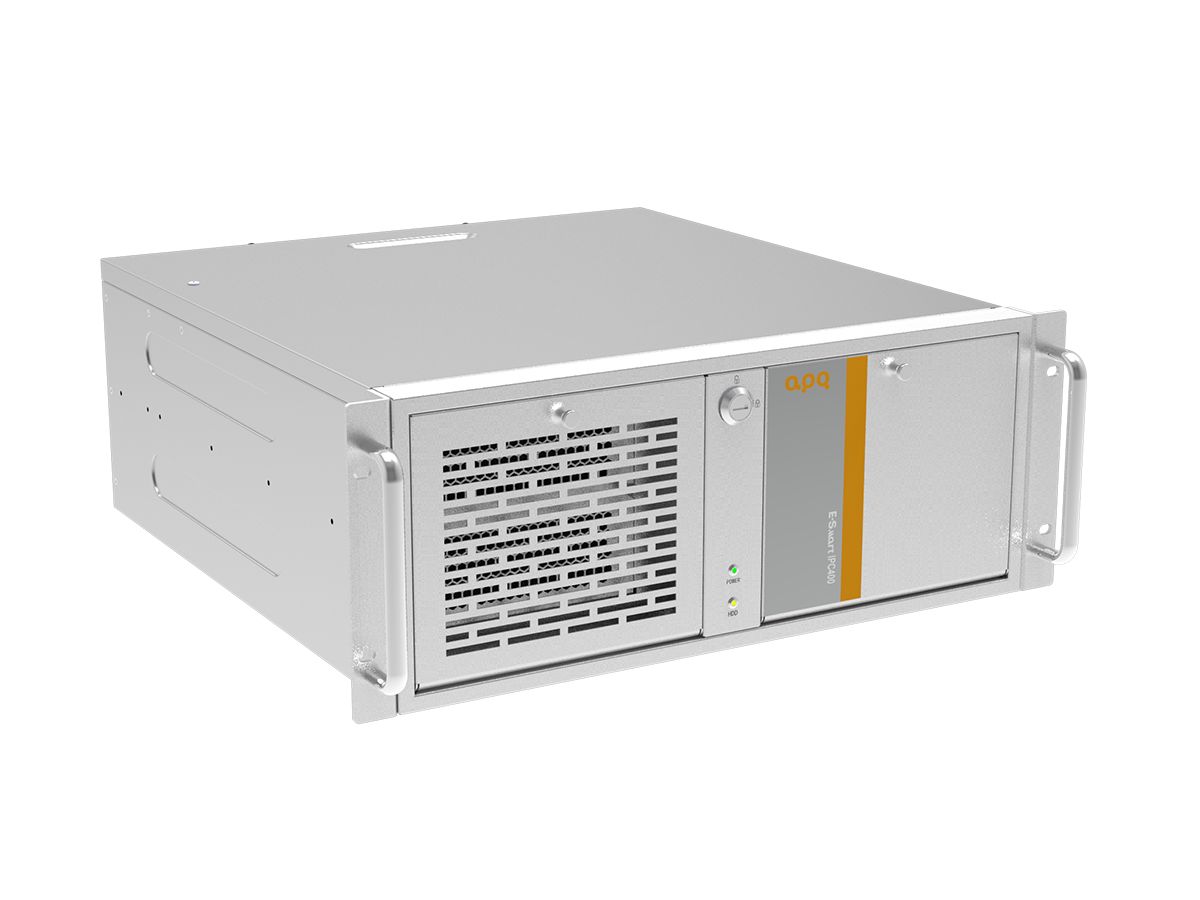

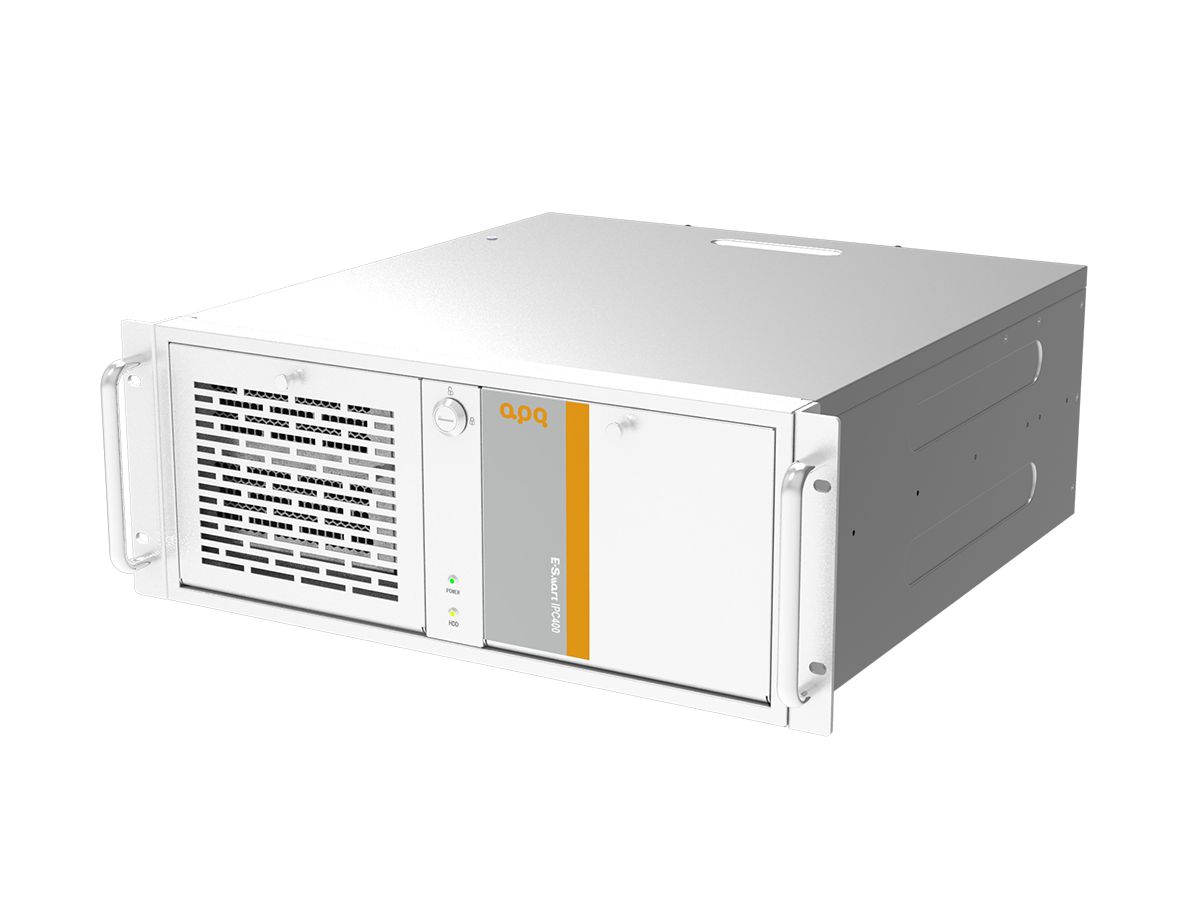

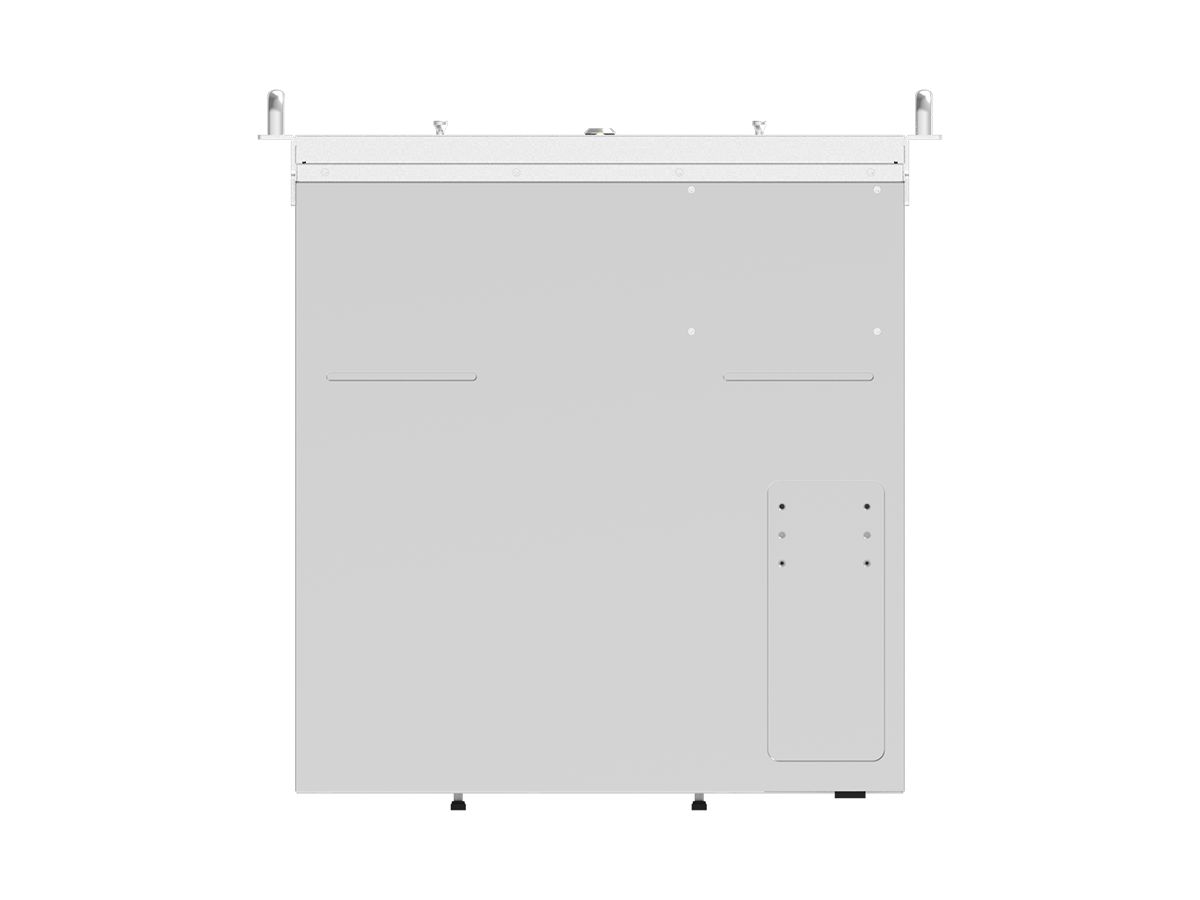

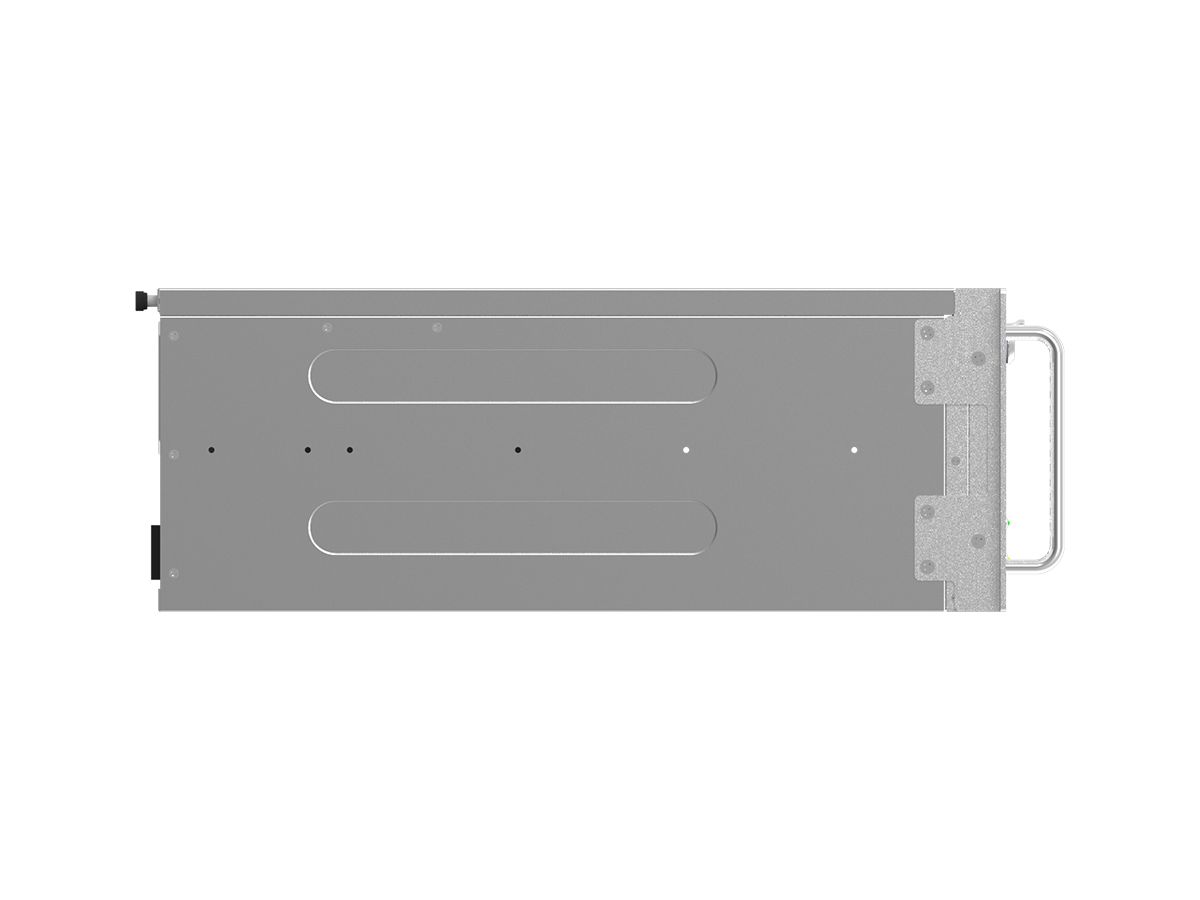

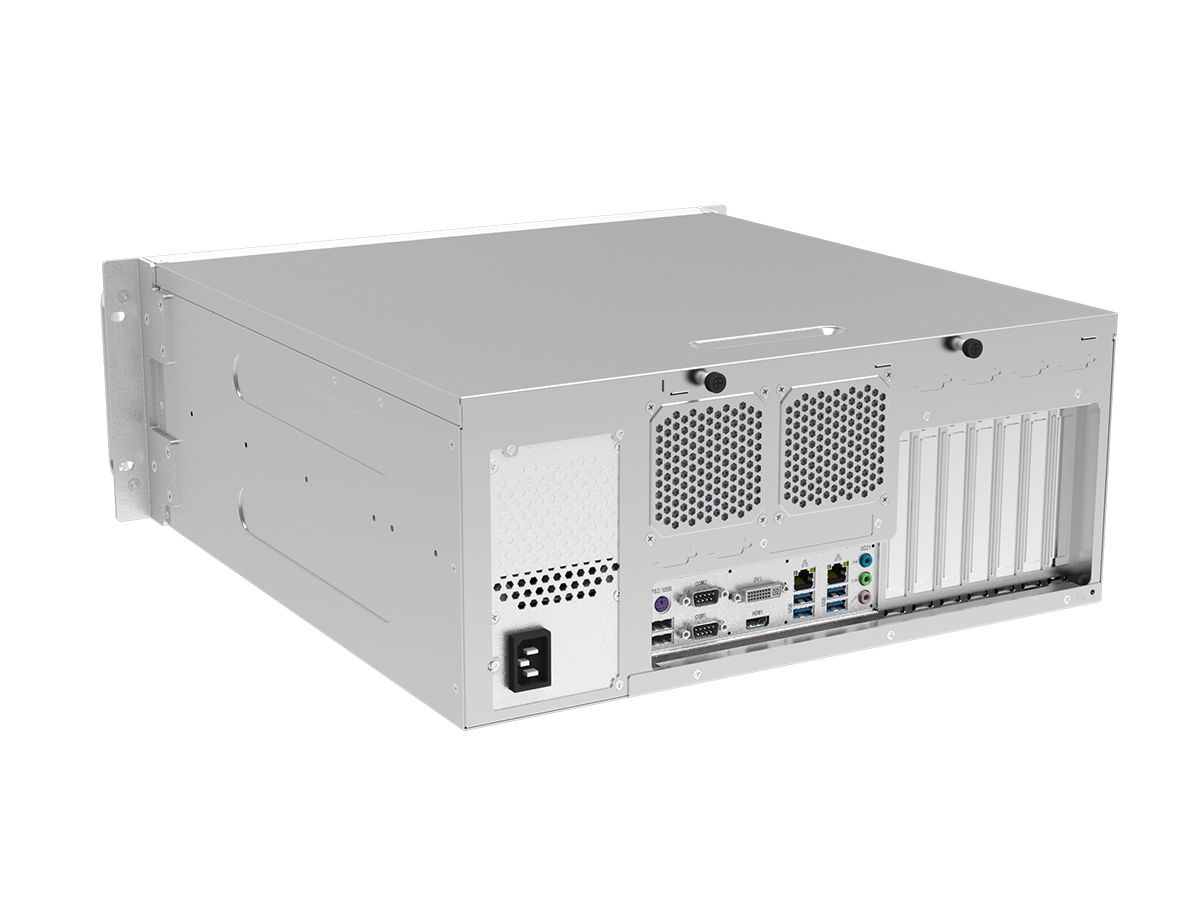

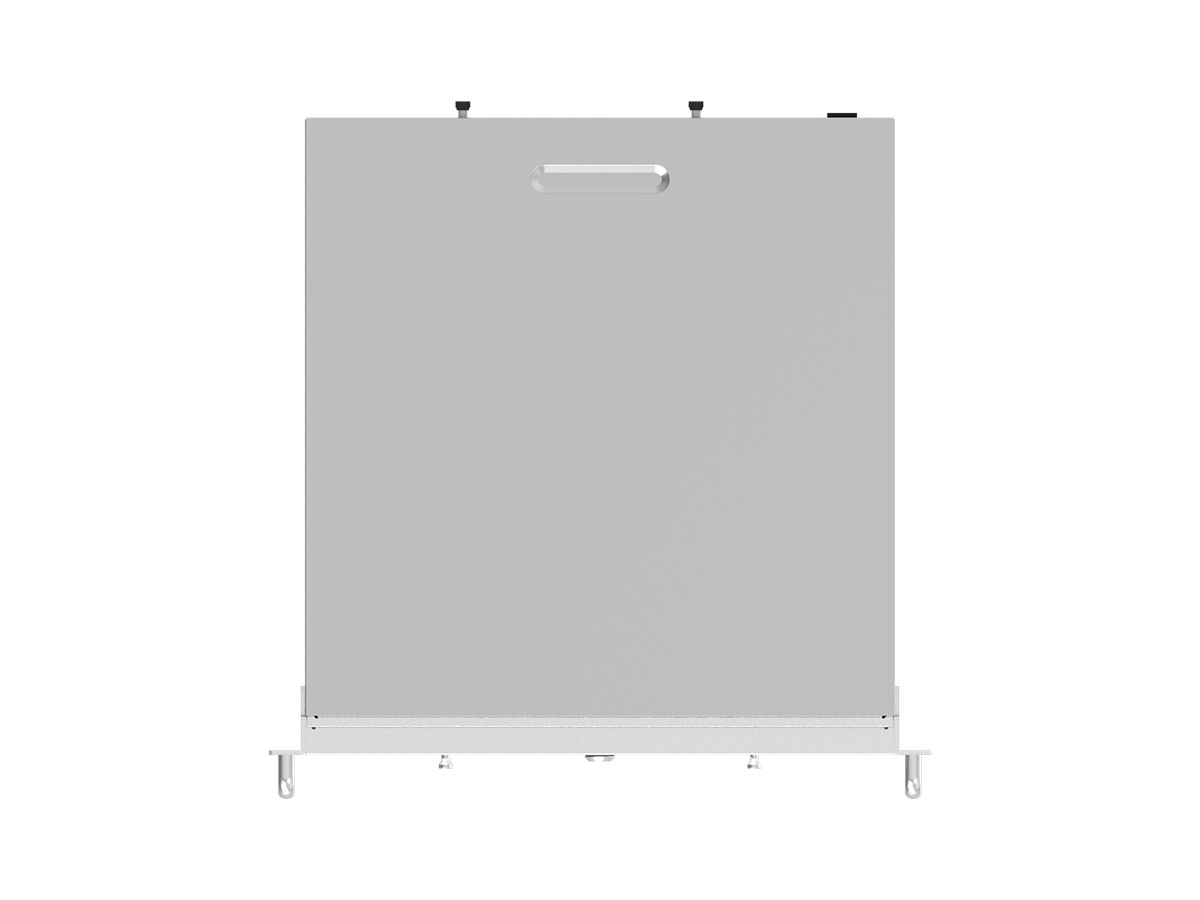

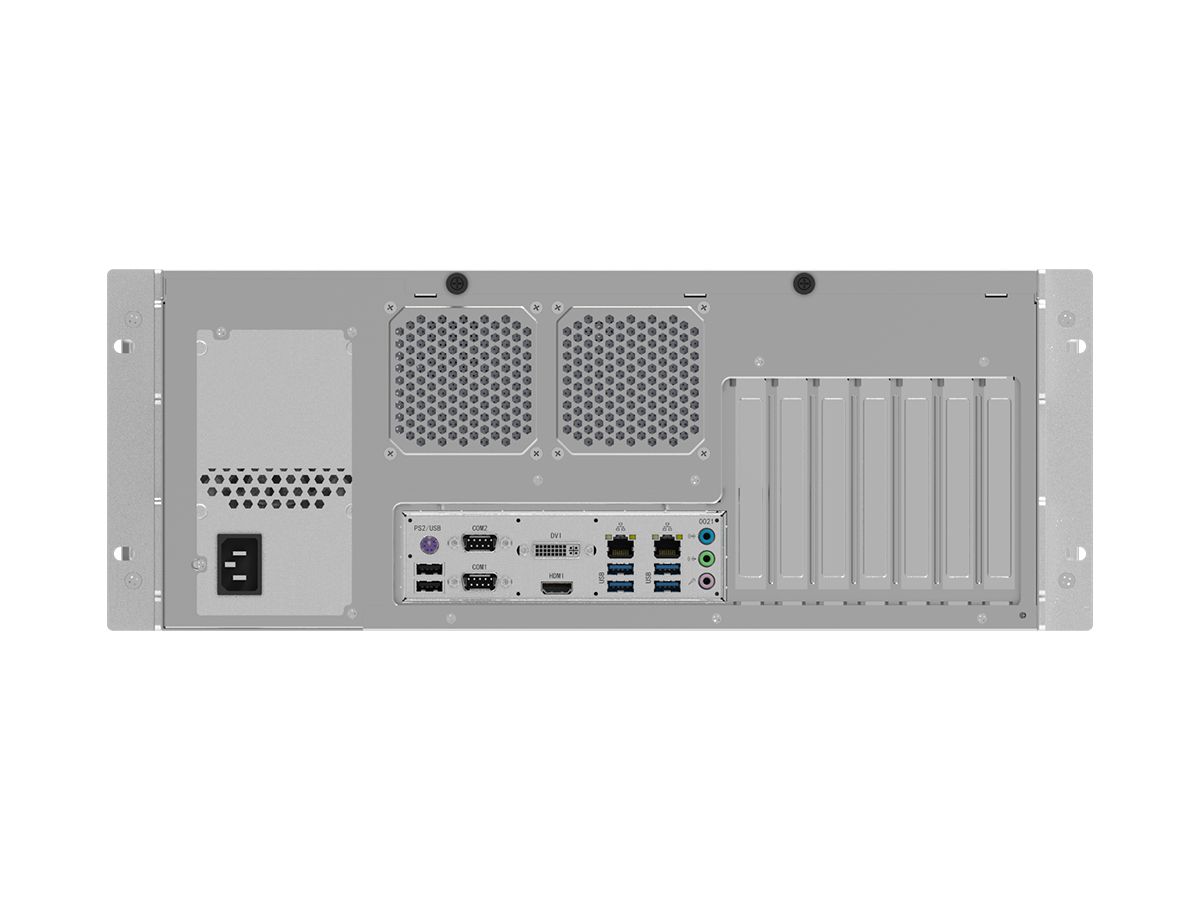

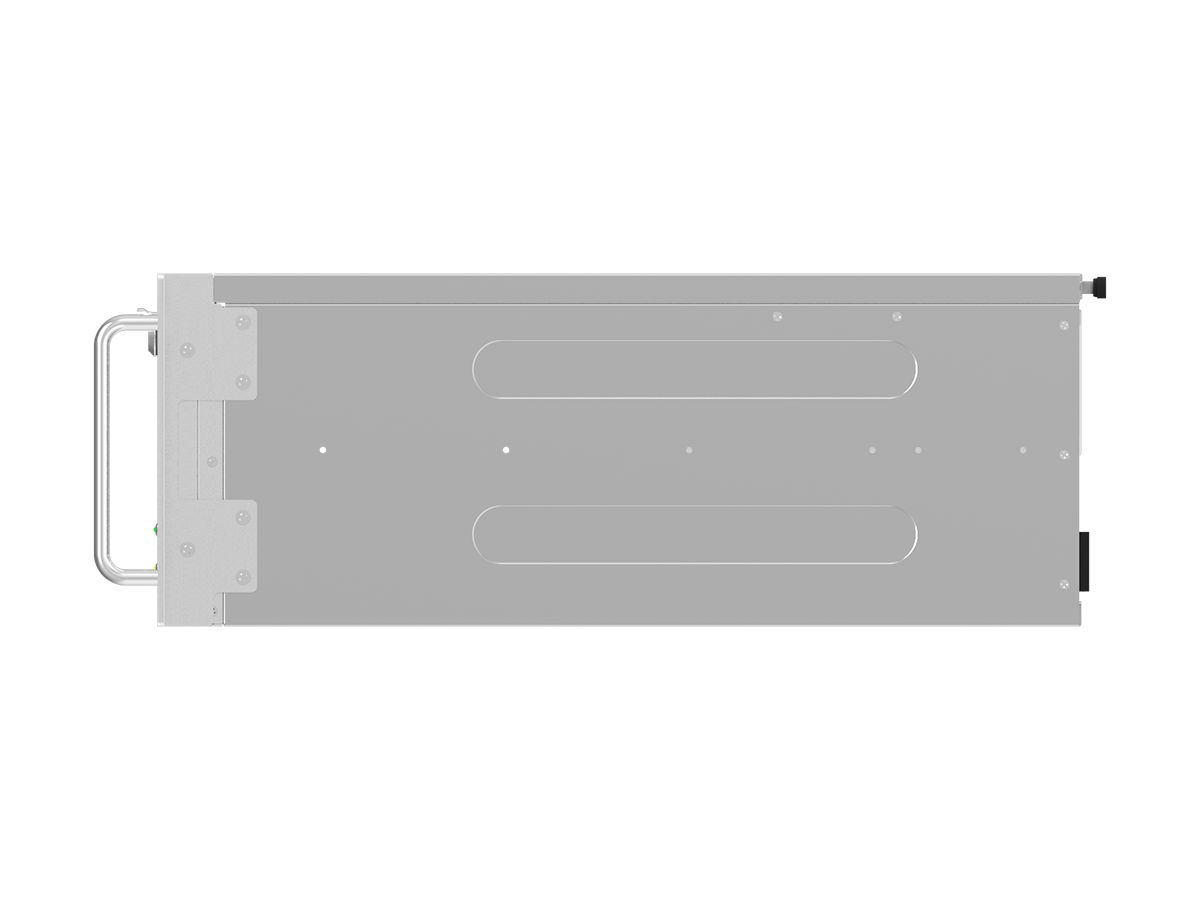

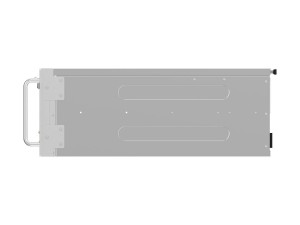

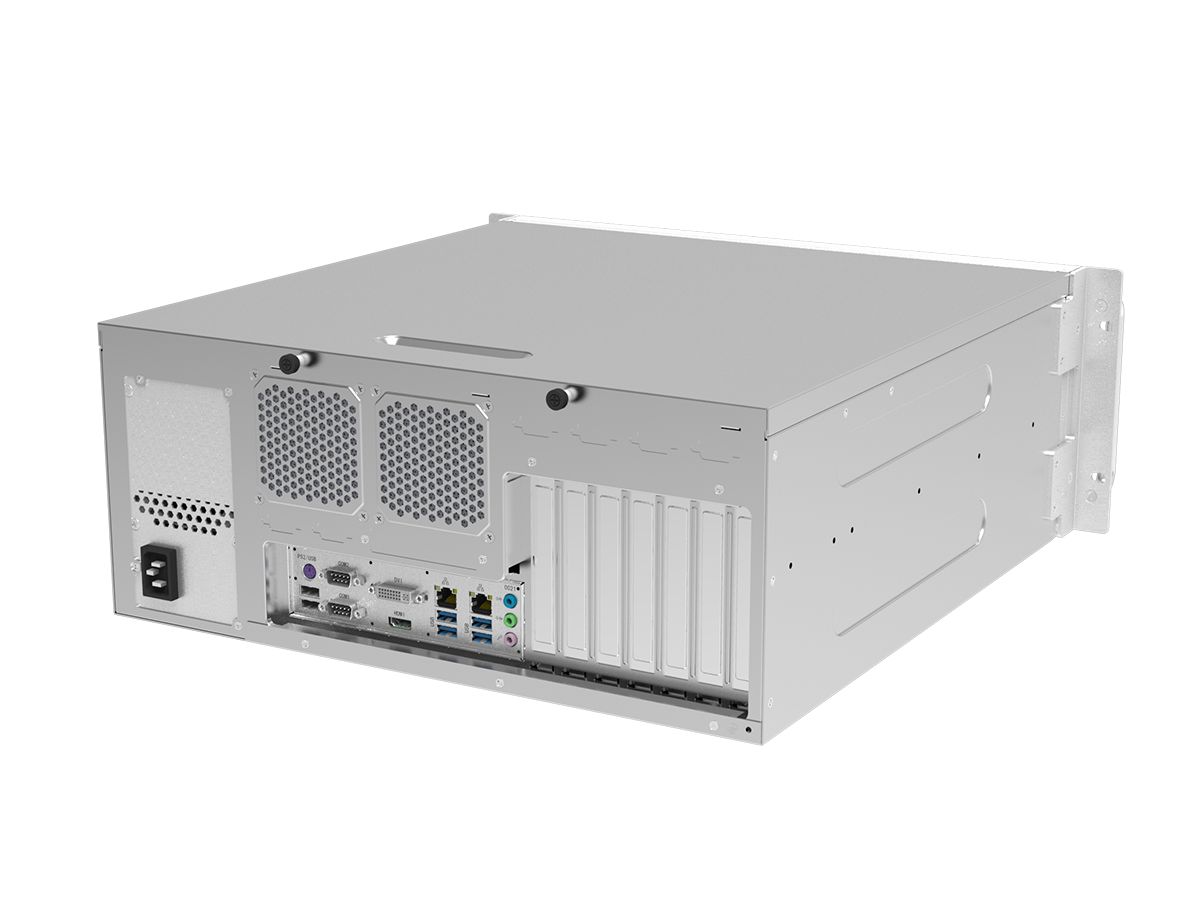

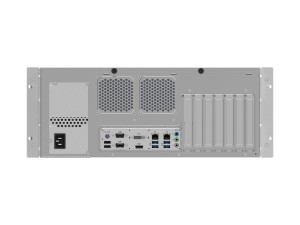

IPC400 4U Shelving Industrial Computer

Features:

Supports Intel® 4th and 5th Generation Core/Pentium/Celeron Desktop CPUs
Full set of mold forming, standard 19-inch 4U rack-mount chassis
Installs standard ATX motherboards, supports standard 4U power supplies
Supports up to 7 full-height card slots for expansion, meeting the application needs of multiple industries
User-friendly design, tool-free maintenance of front-mounted system fans
Thoughtfully designed tool-free PCIe expansion card holder with higher shock resistance
Up to 8 optional 3.5-inch shock-resistant hard drive bays
Optional 2 5.25-inch optical drive bays
Front panel USB, power switch design, power and storage status indicators for easier system maintenance
Supports unauthorized opening alarm, lockable front door to prevent unauthorized access

Remote management
Condition monitoring
Remote operation and maintenance
Safety Control

PRODUCT DESCRIPTION

The IPC-400 is an industry-standard 4U rack-mount chassis suitable for various wall-mounted and rack-mount systems, offering a cost-effective industrial-grade chassis solution with a complete selection of backplanes, power supplies, and storage devices. Utilizing the mainstream ATX specification, it features standard dimensions, high reliability, and rich I/O options (multiple serial ports, USBs, and displays), supporting up to 7 expansion slots. This range accommodates solutions from low-power architectures to multi-core CPU selections. The entire series is compatible with Intel Core 4th to 13th generation desktop processors. APQ’s IPC-400 4U rack-mount chassis is the ideal choice for both wall-mounted and rack-mount systems.

INTRODUCTION

Engineering Drawing

File Download

H81

H31C

Q470

Q670

H81

Model	IPC400-H81
Processor System	CPU	Support Intel^® 4/5th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	95W
	Chipset	H81
Memory	Socket	2 * Non-ECC U-DIMM Slot, Dual Channel DDR3 up to 1600MHz
Memory	Capacity	16GB, Single Max. 8GB
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45)
Storage	SATA	1 * SATA3.0 7P Connector2 * SATA2.0 7P Connector
Storage	M.2	1 * M.2 Key-M (SATA SSD, SATA 3.0, 2242/2260/2280)
Expansion Slots	PCIe	1 * PCIe x16 slot (Gen 3, x16 signal)1 * PCIe x4 slot (Gen 2, x2 signal, Default, co-lay with Mini PCIe)1 * PCIe x1 slot (Gen 2, x1 signal)
	PCI	4 * PCI slot
	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0 (Opt., co-lay with PCIe x4 slot), with 1 * SIM Card)
Front I/O	Ethernet	2 * RJ45
	USB	2 * USB3.0 (Type-A)4 * USB2.0 (Type-A)
	PS/2	1 * PS/2 (Keyboard & Mouse)
	Display	1 * DVI-D: max resolution up to 19201200 @ 60Hz 1 HDMI1.4: max resolution up to 4096*2160 @ 24Hz
	Audio	3 * 3.5mm Jack (Line-out + Line-in + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
Power Supply	Power Input Voltage	AC power supply, voltage and frequency shall be based on the ATX power supply provided
OS Support	Windows	Windows 7/10/11
OS Support	Linux	Linux
Mechanical	Dimensions	482.6mm(L) * 464.5mm(W) * 177mm(H)
Environment	Operating Temperature	0 ~ 50℃
	Storage Temperature	-20 ~ 70℃
	Relative Humidity	10 to 95% RH (non-condensing)

H31C

Model	IPC400-H31C
Processor System	CPU	Support Intel^® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	65W
	Socket	LGA1151
	Chipset	H310C
	BIOS	AMI 256 Mbit SPI
Memory	Socket	2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2666MHz
Memory	Capacity	64GB, Single Max. 32GB
Graphics	Controller	Intel® HD Graphics
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45)
Storage	SATA	3 * SATA3.0 7P Connector
Storage	M.2	1 * M.2 Key-M (SATA SSD, SATA 3.0, 2242/2260/2280)
Expansion Slots	PCIe	1 * PCIe x16 slot (Gen 3, x16 signal)1 * PCIe x4 slot (Gen 2, x4 signal, Default, co-lay with Mini PCIe)
	PCI	5 * PCI slot
	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0 (Opt., co-lay with PCIe x4 slot), with 1 * SIM Card)
Front I/O	Ethernet	2 * RJ45
	USB	4 * USB3.2 Gen 1x1 (Type-A)2 * USB2.0 (Type-A)
	PS/2	1 * PS/2 (Keyboard & Mouse)
	Display	1 * DVI-D: max resolution up to 19201200 @ 60Hz 1 HDMI1.4: max resolution up to 3840*2160 @ 30Hz
	Audio	3 * 3.5mm Jack (Line-out + Line-in + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
Rear I/O	USB	2 * USB2.0 (Type-A)
	Button	1 * Power Button
	LED	1 * Power status LED1 * Hard drive status LED
Internal I/O	USB	1 * USB2.0 (Vertical TYEP-A)
	COM	4 * RS232 (COM3/4/5/6, Header, Full Lanes)
	Display	1 * VGA: max resolution up to 19201200 @ 60Hz (wafer)1 eDP: max resolution up to 1920*1200 @ 60Hz (Header)
	Audio	1 * Front Audio (Line-Out + MIC, Header)1 * Speaker (3W (per channel) into a 4Ω Loads, wafer)
	GPIO	1 * 16 bits DIO (8DI and 8DO, wafer)
	SATA	3 * SATA 7P Connector
	LPT	1 * LPT (Header)
	FAN	2 * SYS FAN (Header)1 * CPU FAN (Header)
Power Supply	Type	ATX
	Power Input Voltage	AC power supply, voltage and frequency shall be based on the ATX power supply provided
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	6/7^th Core™: Windows 7/10/118/9^th Core™: Windows 10/11
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	SGCC
	Dimensions	482.6mm(L) * 464.5mm(W) * 177mm(H)
	Mounting	Shelf mounted installation
Environment	Heat Dissipation System	PWM fan cooling
	Operating Temperature	0 ~ 50℃
	Storage Temperature	-20 ~ 70℃
	Relative Humidity	10 to 95% RH (non-condensing)

Q470

Model	IPC400-Q470
Processor System	CPU	Support Intel^® 10/11th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	125W
	Chipset	Q470
Memory	Socket	4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz
Memory	Capacity	128GB, Single Max. 32GB
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45)
Storage	SATA	4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10
Storage	M.2	1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots	PCIe	2 * PCIe x16 slot (Gen 3, x16 /NA signal or Gen 3, x8 /x8 signal)3 * PCIe x4 slot (Gen 3, x4 signal)
	PCI	2 * PCI slot
	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)
Front I/O	Ethernet	2 * RJ45
	USB	2 * USB3.2 Gen 2x1 (Type-A)4 * USB3.2 Gen 1x1 (Type-A)2 * USB2.0 (Type-A)
	Display	1 * DP1.4: max resolution up to 38402160 @ 60Hz 1 HDMI1.4: max resolution up to 3840*2160 @ 30Hz
	Audio	3 * 3.5mm Jack (Line-out + Line-in + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
Power Supply	Type	ATX
	Power Input Voltage	AC power supply, voltage and frequency shall be based on the ATX power supply provided
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
OS Support	Linux	Linux
Mechanical	Dimensions	482.6mm(L) * 464.5mm(W) * 177mm(H)
Environment	Operating Temperature	0 ~ 50℃
	Storage Temperature	-20 ~ 70℃
	Relative Humidity	10 to 95% RH (non-condensing)

Q670

Model	IPC400-Q670
Processor System	CPU	Support Intel^® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	125W
	Chipset	Q670
Memory	Socket	4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Memory	Capacity	128GB, Single Max. 32GB
Ethernet	Controller	1 * Intel i225-V/LM 2.5GbE LAN Chip (10/100/1000/2500 Mbps, RJ45)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45)
Storage	SATA	4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10
Storage	M.2	1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots	PCIe	2 * PCIe x16 slot (Gen 5, x16 /NA signal or Gen 4, x8 /x8 signal)1 * PCIe x8 slot (Gen 4, x4 signal)2 * PCIe x4 slot (Gen 4, x4 signal) 1 * PCIe x4 slot (Gen 3, x4 signal)
	PCI	1 * PCI slot
	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)
	M.2	1 * M.2 Key-B (USB3.2 Gen 1x1 (co-lay with usb header, default), with 1 * SIM Card, 3042/3052)
Front I/O	Ethernet	2 * RJ45
	USB	4 * USB3.2 Gen 2x1 (Type-A)4 * USB3.2 Gen 1x1 (Type-A)
	Display	1 * DP1.4: max resolution up to 38402160 @ 60Hz 1 HDMI2.0: max resolution up to 3840*2160 @ 30Hz
	Audio	3 * 3.5mm Jack (Line-out + Line-in + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
Power Supply	Power Input Voltage	AC power supply, voltage and frequency shall be based on the ATX power supply provided
OS Support	Windows	Windows 10/11
OS Support	Linux	Linux
Mechanical	Dimensions	482.6mm(L) * 464.5mm(W) * 177mm(H)
Environment	Operating Temperature	0 ~ 50℃
	Storage Temperature	-20 ~ 70℃
	Relative Humidity	10 to 95% RH (non-condensing)
