CONTACT USPRODUCT DESCRIPTION

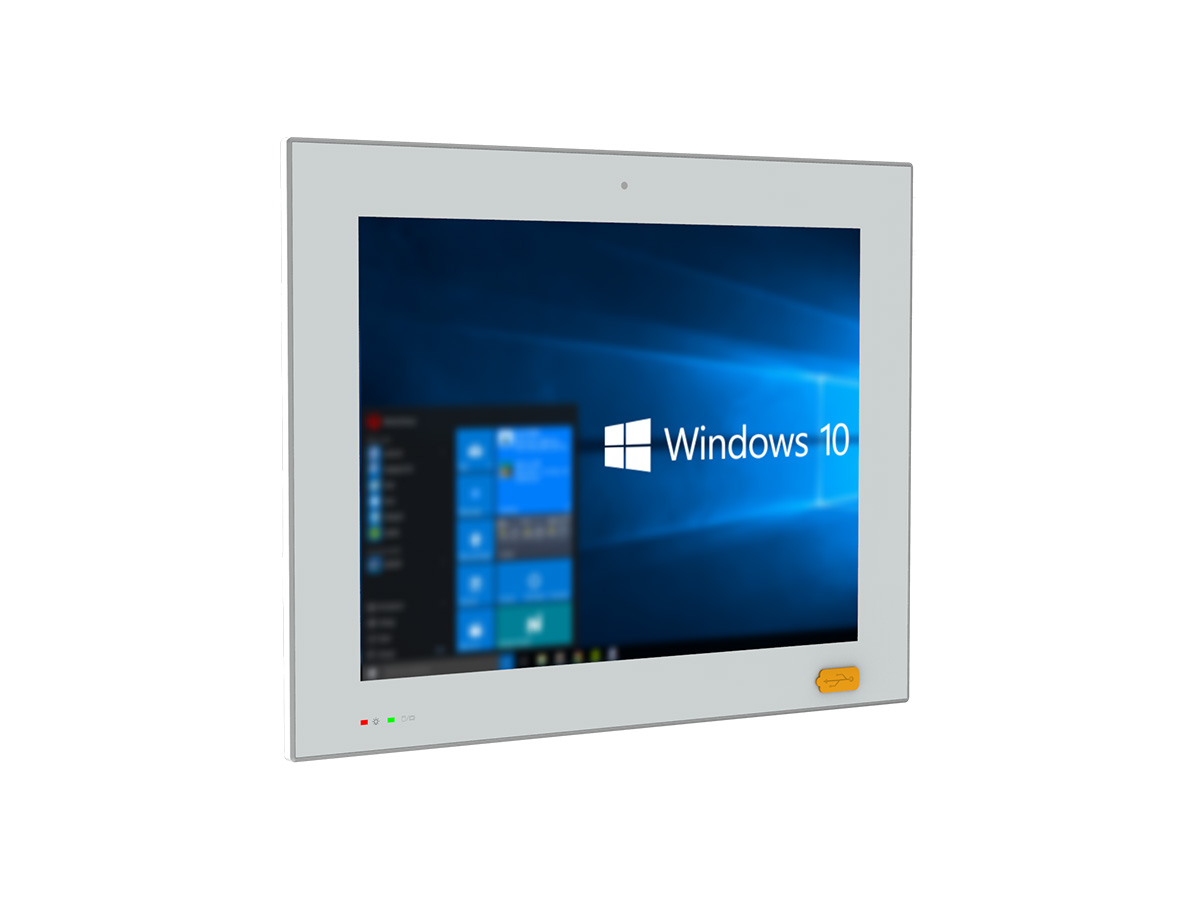

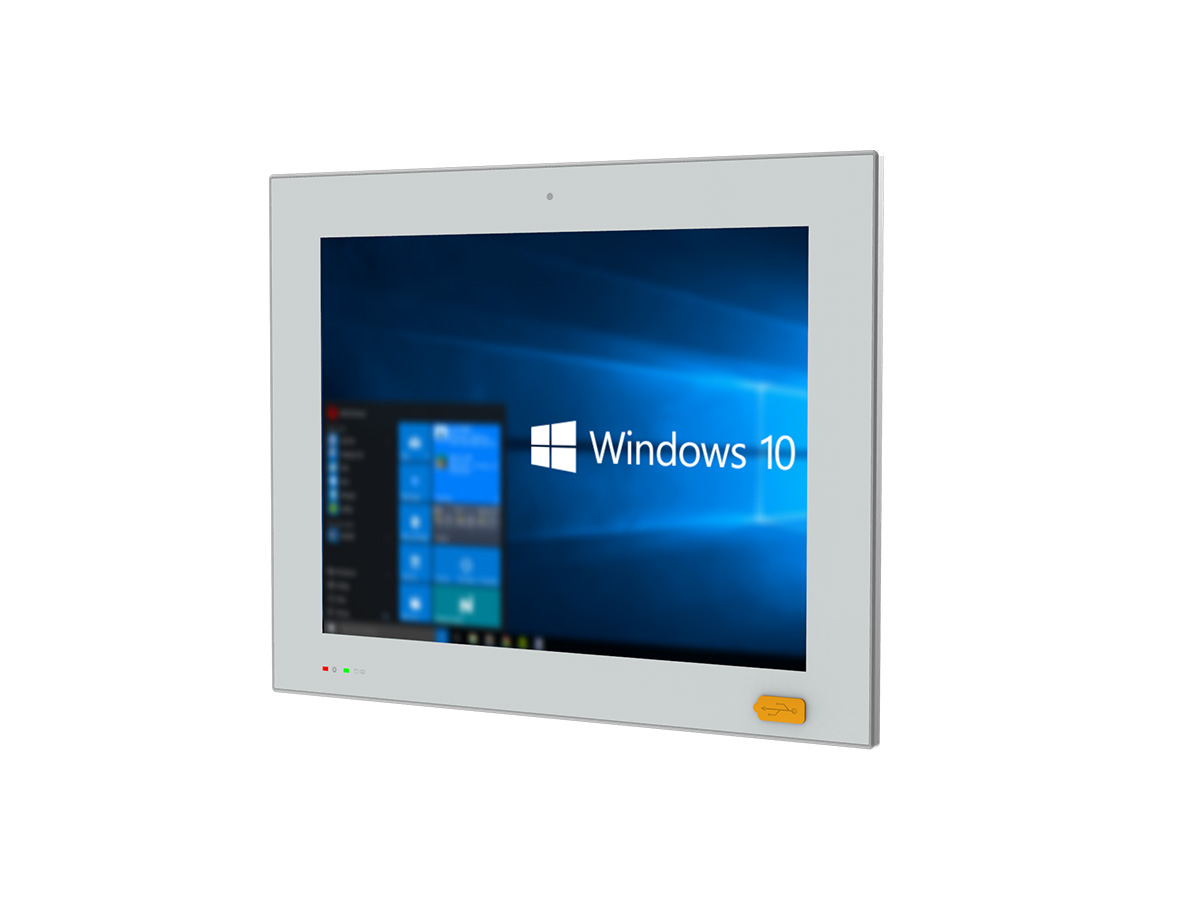

The APQ full-screen capacitive touchscreen industrial display L series is a powerful and high-performance industrial display product. This series of displays adopts a full-screen design, with the entire series featuring an aluminum alloy die-cast molding, making it sturdy yet lightweight and suitable for industrial environments. The front panel meets IP65 requirements, offering a high protection level capable of withstanding harsh environments.

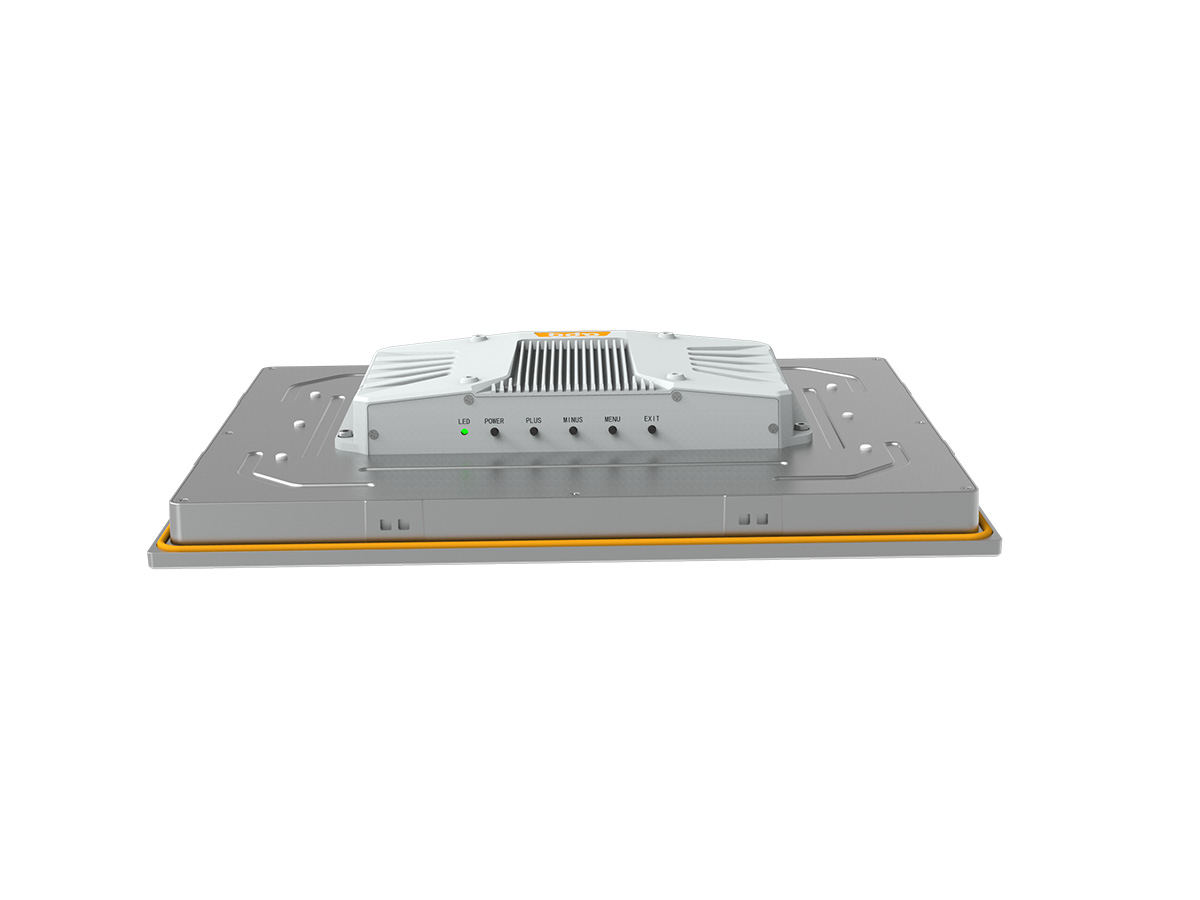

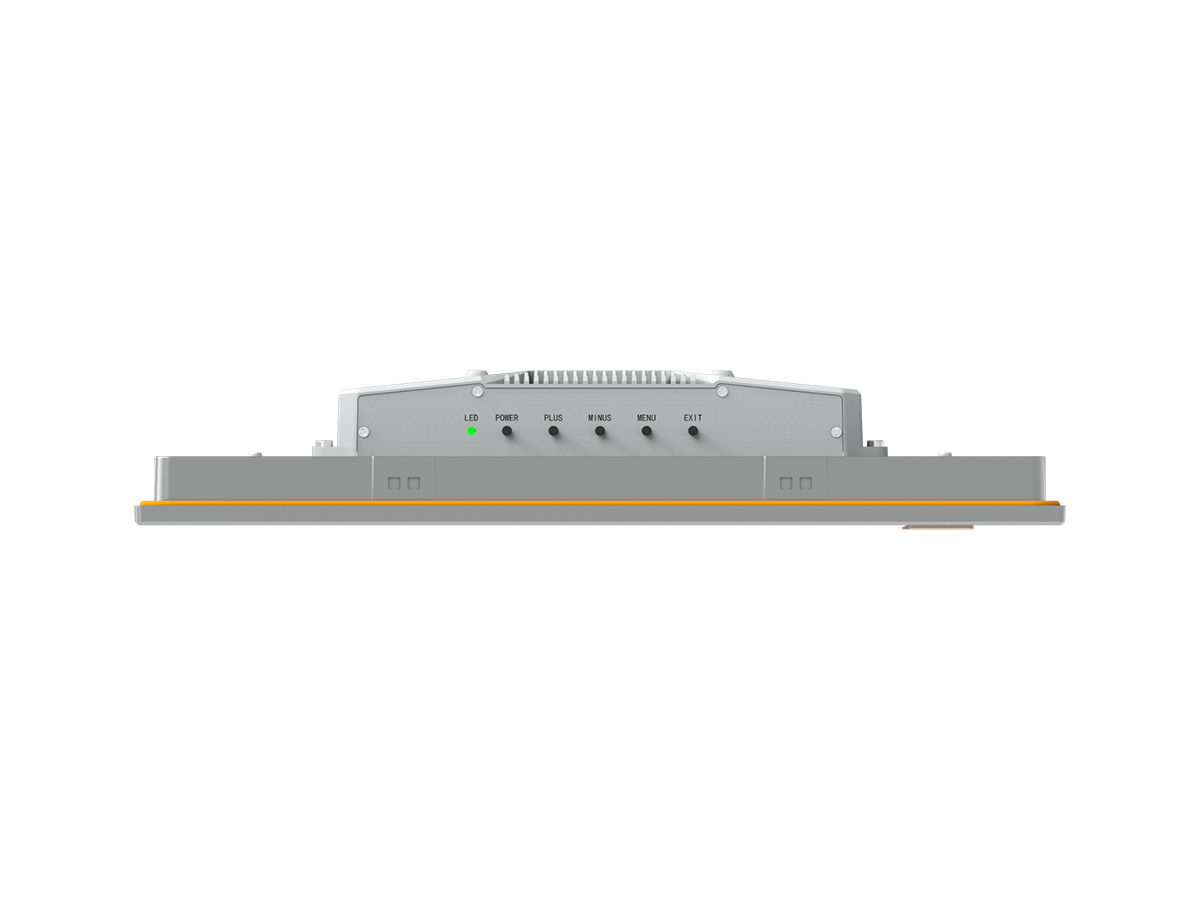

Moreover, the APQ L series industrial displays support both square and widescreen options, providing modular designs from 10.1 inches to 21.5 inches, allowing users to choose based on their actual needs. The front panel integrates a USB Type-A and signal indicator lights for convenient data transfer and status monitoring. Additionally, this series of displays supports embedded and VESA mounting methods, facilitating easy installation and use. The L series industrial displays are powered by 12~28V DC, boasting low power consumption, energy-saving, and environmentally friendly advantages. They also utilize high-quality LED backlight technology to deliver high brightness and vivid color performance, while offering a longer lifespan and lower maintenance costs.
| General | Touch | ||

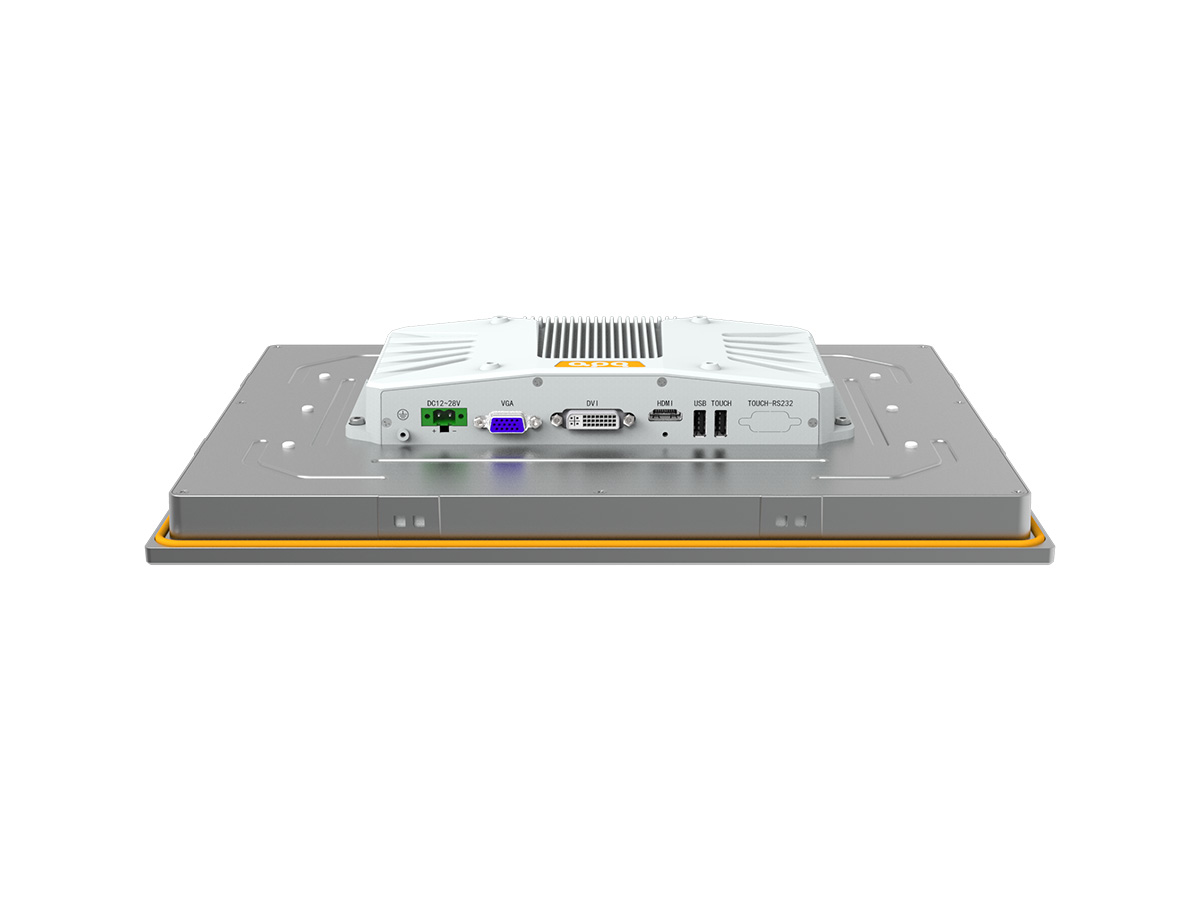

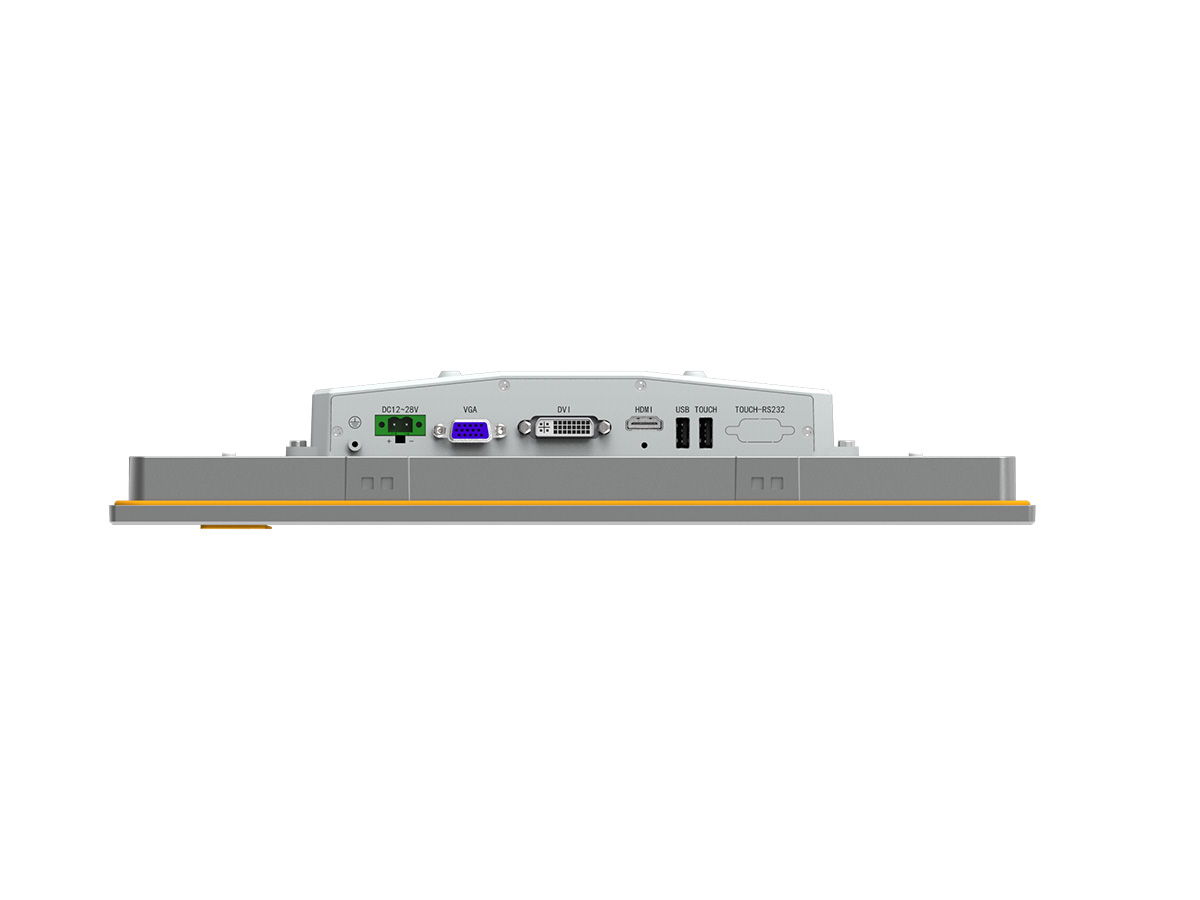

| ● I/0 Ports | HDMI, DVI-D, VGA, USB for touch, USB for front panel | ● Touch Type | Projected capacitive touch |
| ● Power Input | 2Pin 5.08 phoenix jack (12~28V) | ● Controller | USB signal |
| ● Enclosure | Panel: Die cast magnesium alloy, Cover: SGCC | ● Input | Finger/Capacitive touch pen |

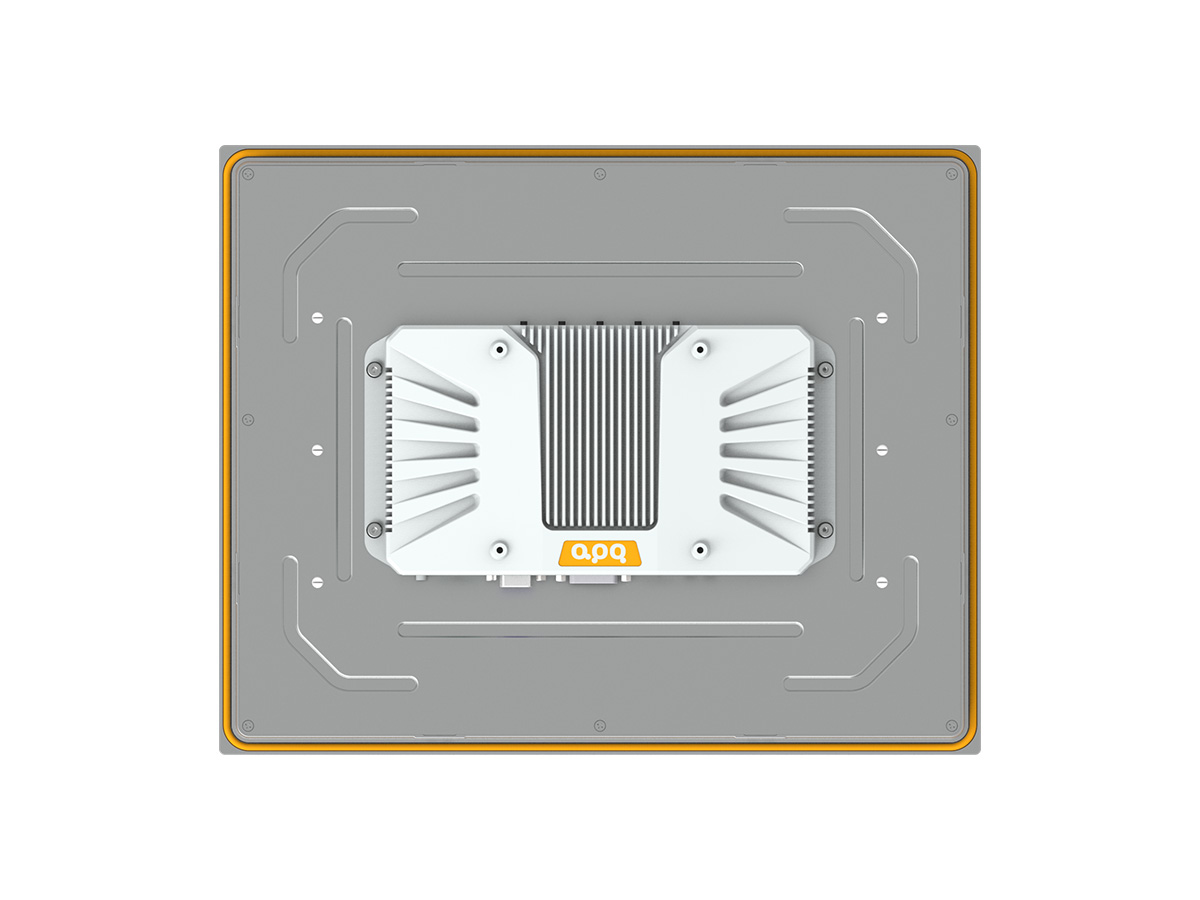

| ● Mount Option | VESA, embedded | ● Light Transmission | ≥85% |
| ● Relative Humidity | 10 to 95% RH (non-condensing) | ● Hardness | ≥6H |
| ● Vibration During Operation | IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| ● Shock During Operation | IEC 60068-2-27 (15G, half sine, 11ms) | ||
| ● Certification | CE/FCC, RoHS | ||
|
Model |
L101CQ |
L104CQ |
L121CQ |
L150CQ |
L156CQ |
L170CQ |
L185CQ |
L191CQ |
L215CQ |
|
Display Size |
10.1" |
10.4" |
12.1" |
15.0" |
15.6" |
17.0" |
18.5" |
19.0" |
21.5" |
|
Display Type |
WXGA TFT-LCD |
XGA TFT-LCD |
XGA TFT-LCD |
XGA TFT-LCD |
FHD TFT-LCD |
SXGA TFT-LCD |
WXGA TFT-LCD |
WXGA TFT-LCD |
FHD TFT-LCD |
|
Max. Resolution |
1280 x 800 |
1024 x 768 |
1024 x 768 |
1024 x 768 |
1920 x 1080 |
1280 x 1024 |
1366 x 768 |
1440 x 900 |
1920 x 1080 |
|
Luminance |
400 cd/m2 |
350 cd/m2 |
350 cd/m2 |
300 cd/m2 |
350 cd/m2 |
250 cd/m2 |
250 cd/m2 |
250 cd/m2 |
250 cd/m2 |
|
Aspect Ratio |
16:10 |
4:3 |
4:3 |
4:3 |
16:9 |
5:4 |
16:9 |
16:10 |
16:9 |
|
Viewing Angle |
89/89/89/89 |
88/88/88/88 |
80/80/80/80 |
88/88/88/88 |
89/89/89/89 |
85/85/80/80 |
89/89/89/89 |
85/85/80/80 |
89/89/89/89 |
|
Max. Color |
16.7M |
16.2M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
|
Backlight Lifetime |
20,000 hrs |
50,000 hrs |
30,000 hrs |
70,000 hrs |
50,000 hrs |
30,000 hrs |
30,000 hrs |
30,000 hrs |
50,000 hrs |
|
Contrast Ratio |
800:1 |
1000:1 |
800:1 |
2000:1 |
800:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
|
Operating Temperature |
-20~60℃ |
-20~70℃ |
-20~70℃ |
-20~70℃ |
-20~70℃ |
0~50℃ |
0~50℃ |
0~50℃ |
0~60℃ |
|
Storage Temperature |
-20~60℃ |
-20~70℃ |
-30~80℃ |
-30~70℃ |
-30~70℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
|
Weight |
Net:2.1 kg, Total:4.3 kg |
Net:2.5kg, Total:4.7 kg |
Net:2.9kg, Total:5.3 kg |
Net:4.3kg, Total:6.8 kg |
Net:4.5kg, Total:6.9kg |
Net:5kg, Total:7.6 kg |
Net:5.1kg, Total:8.2 kg |
Net:5.5kg, Total:8.3 kg |
Net:5.8kg, Total:8.8 kg |
|

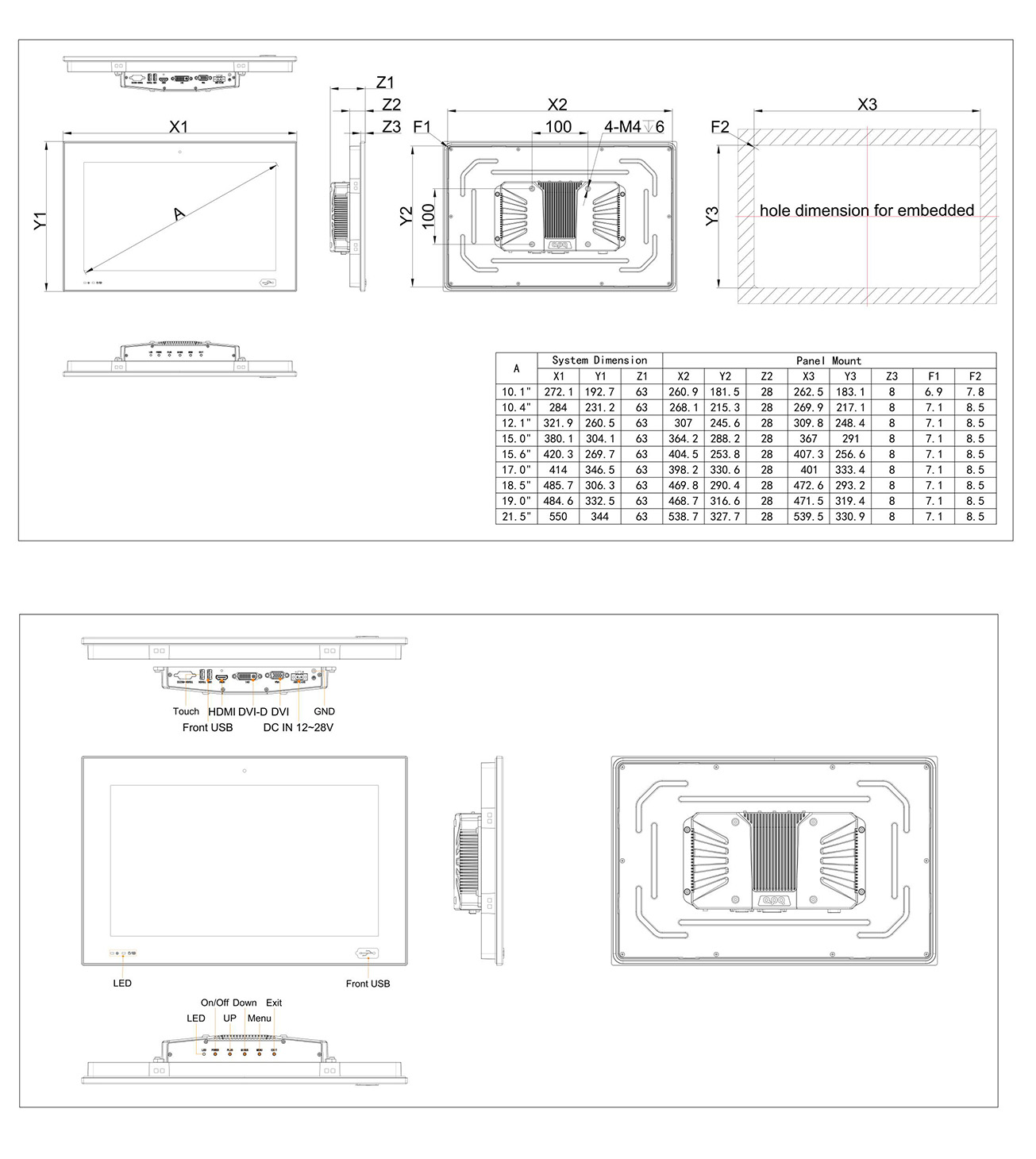

Dimensions (L*W*H,Unit:mm) |
272.1*192.7*63 |
284*231.2*63 |
321.9*260.5*63 |
380.1*304.1*63 |
420.3*269.7*63 |
414*346.5*63 |
485.7*306.3*63 |
484.6*332.5*63 |
550*344*63 |
