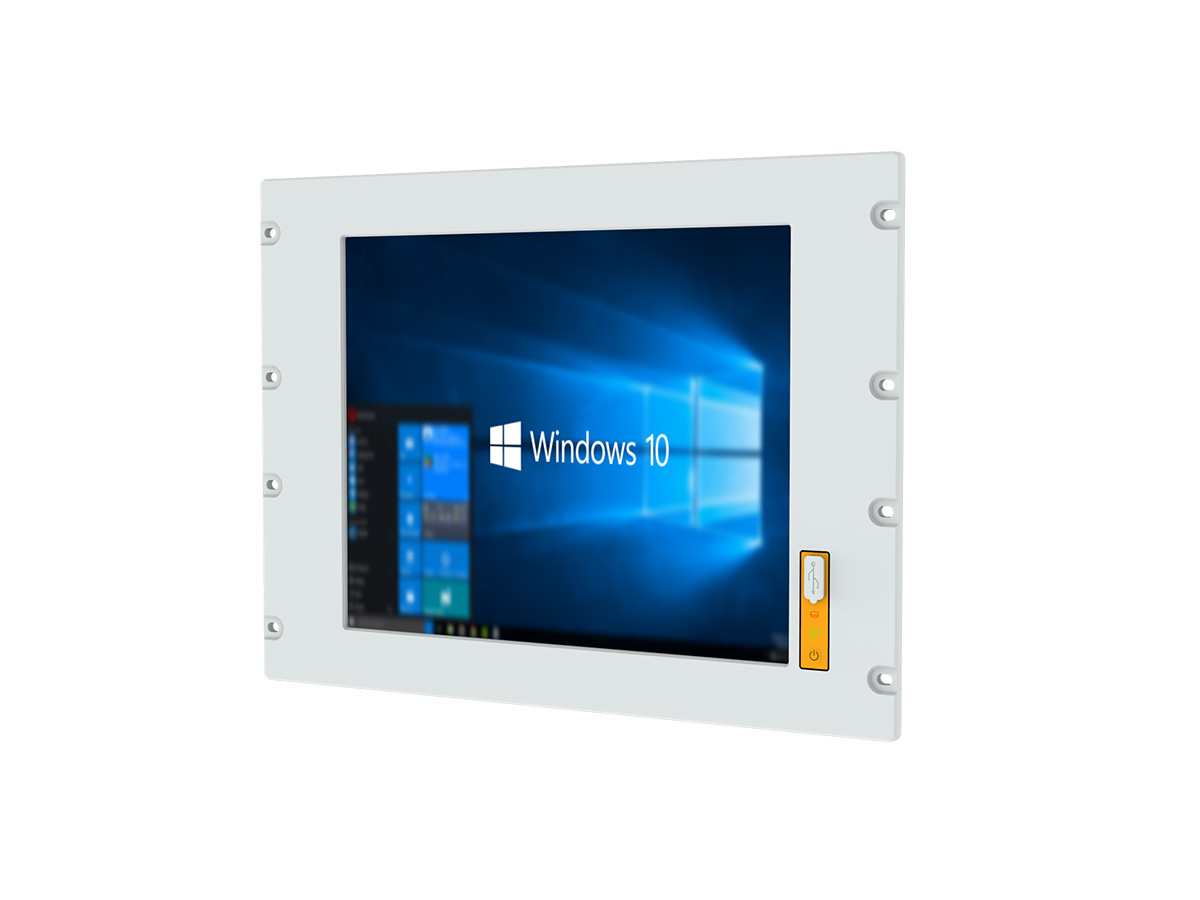

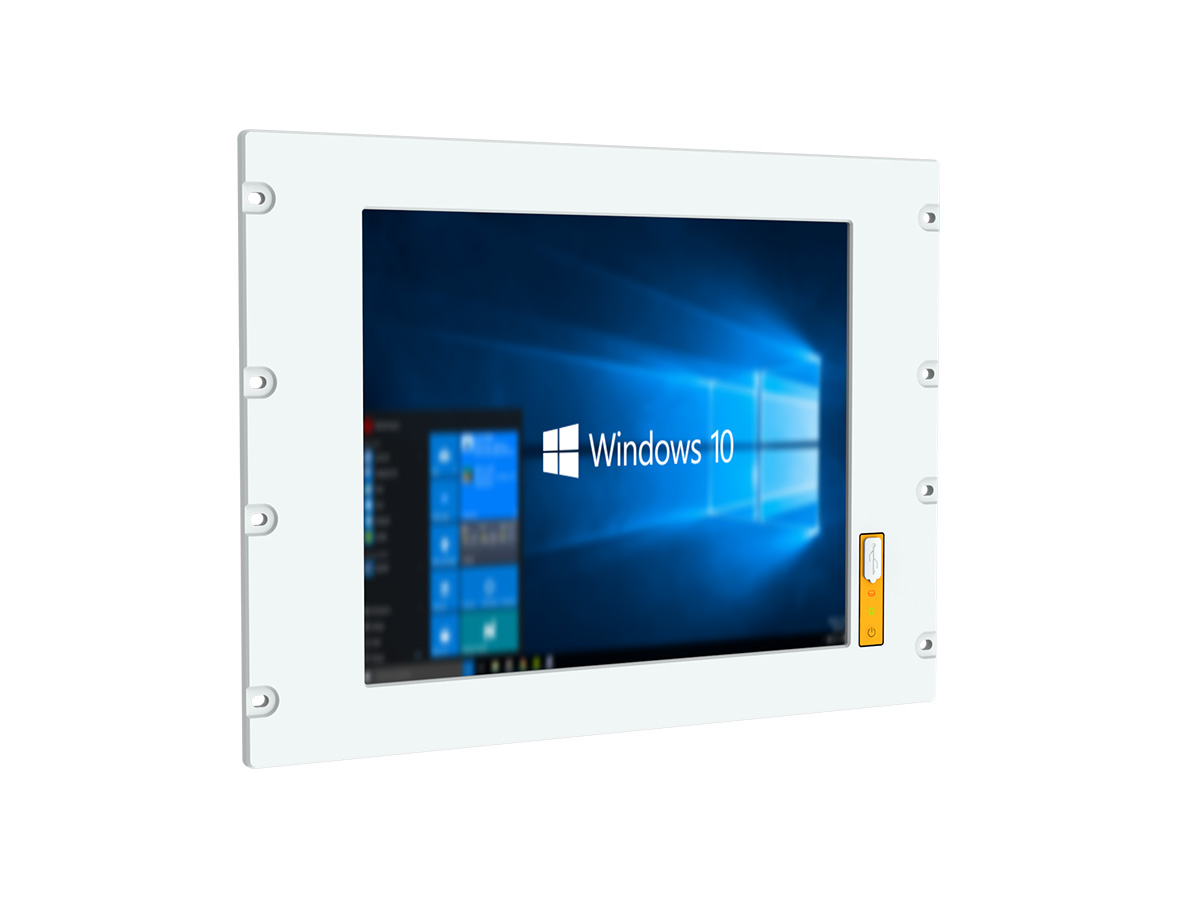

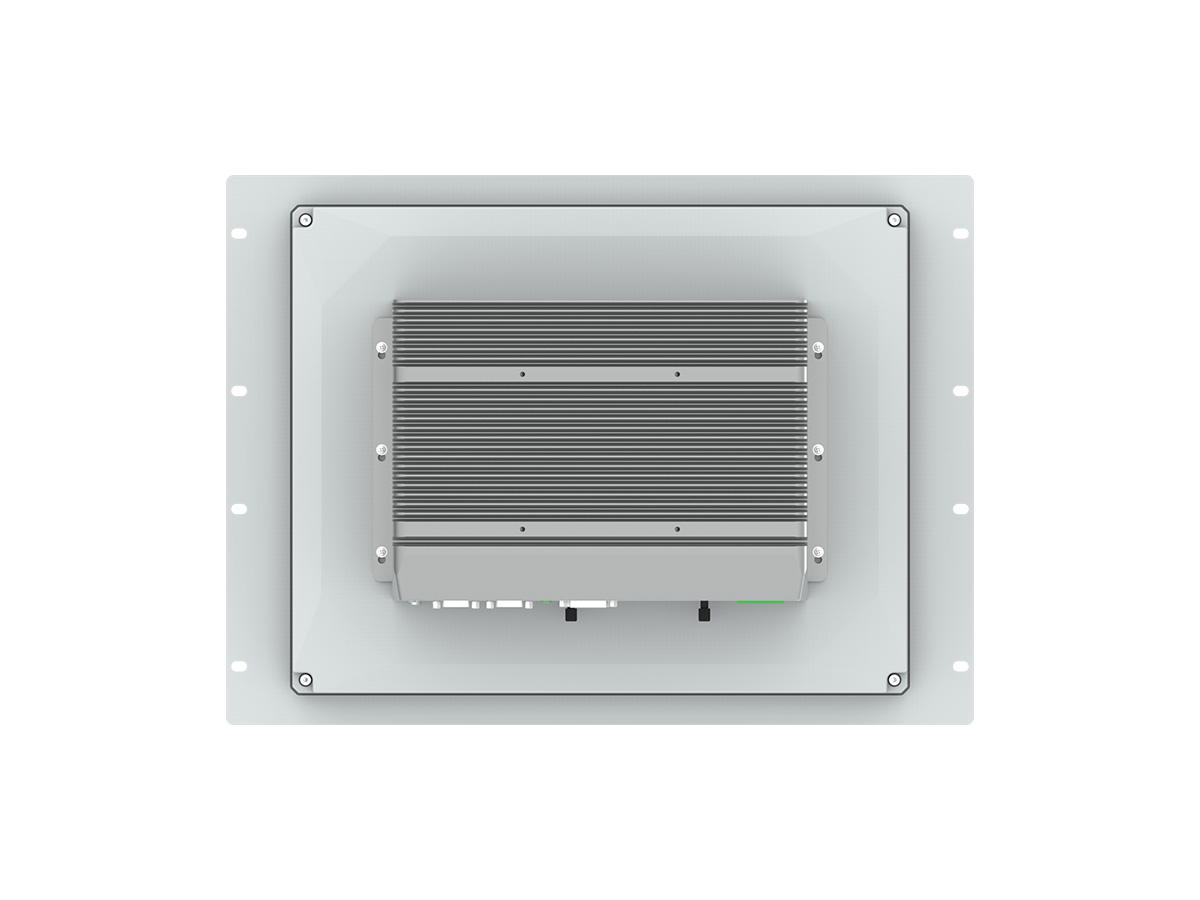

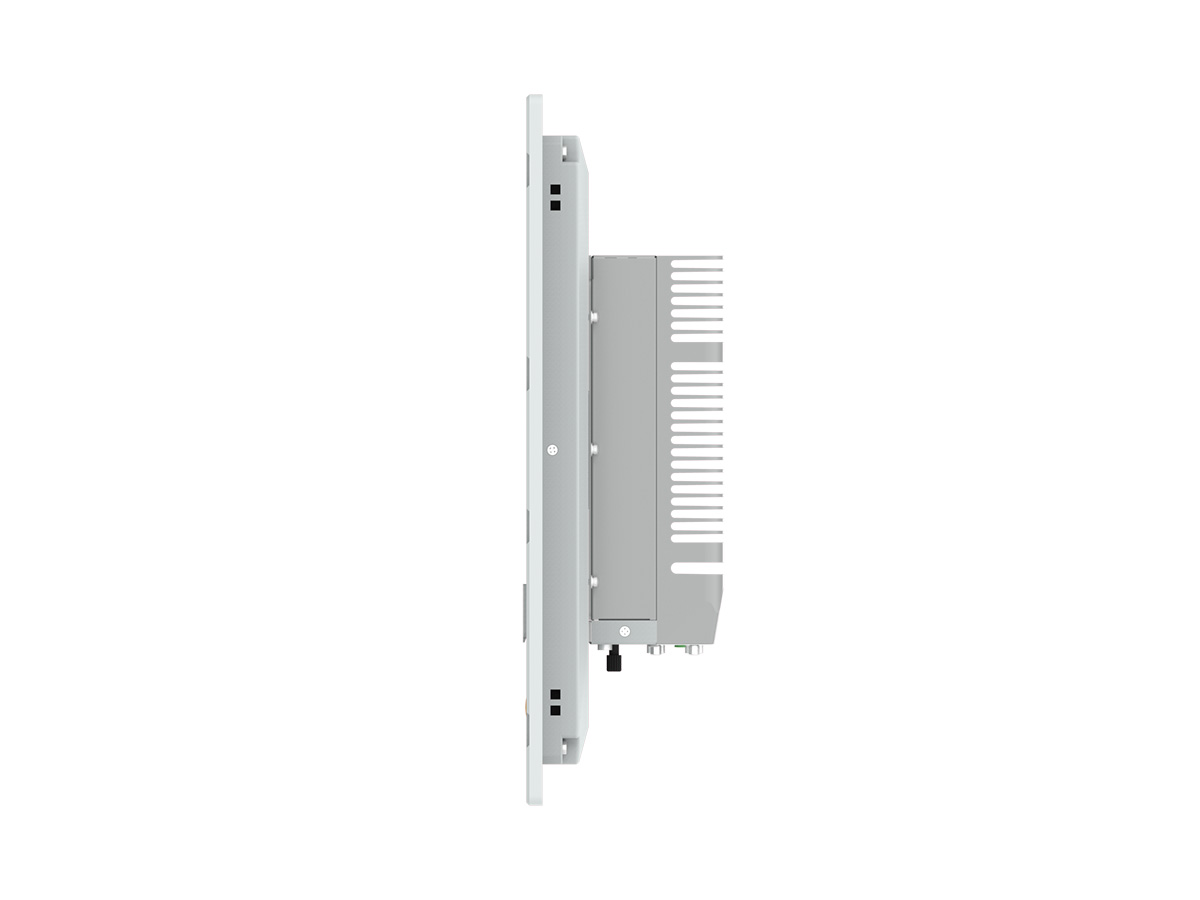

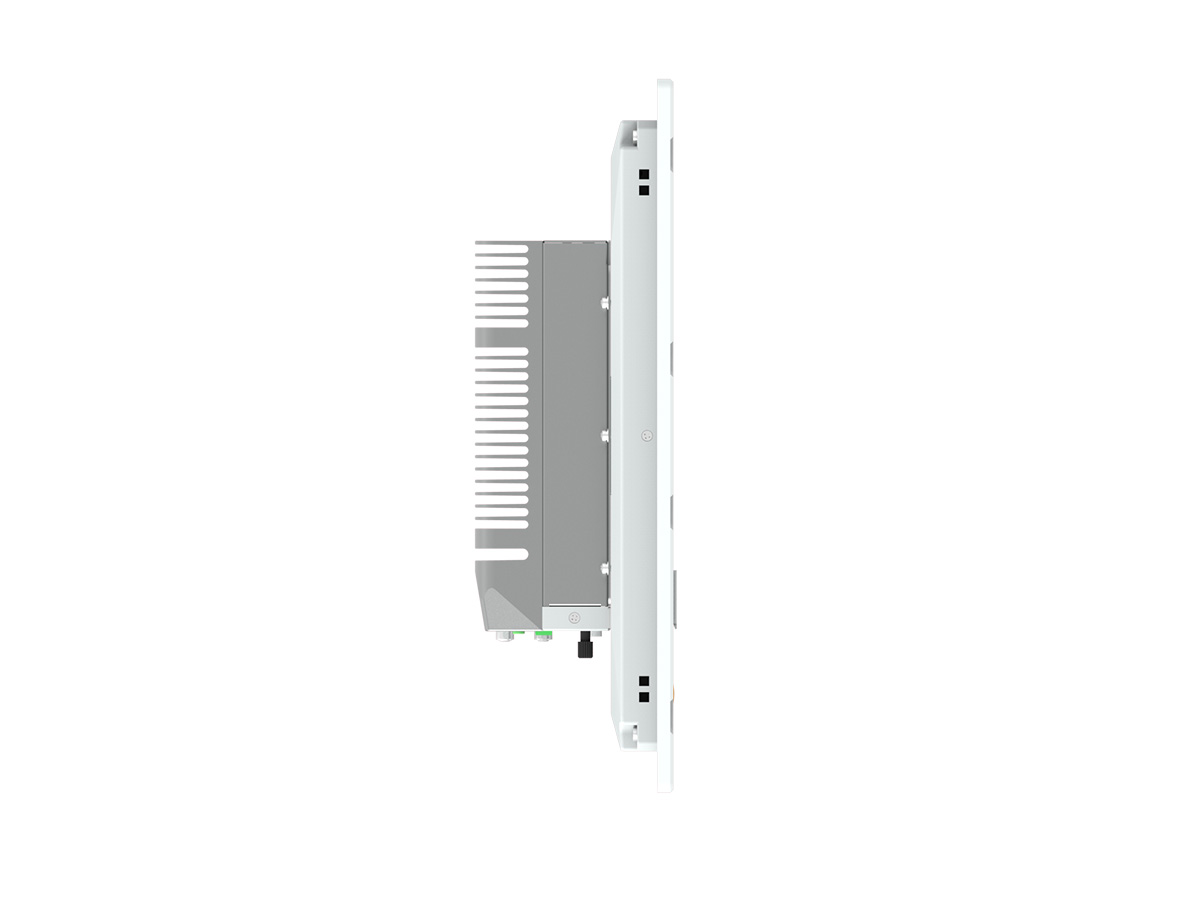

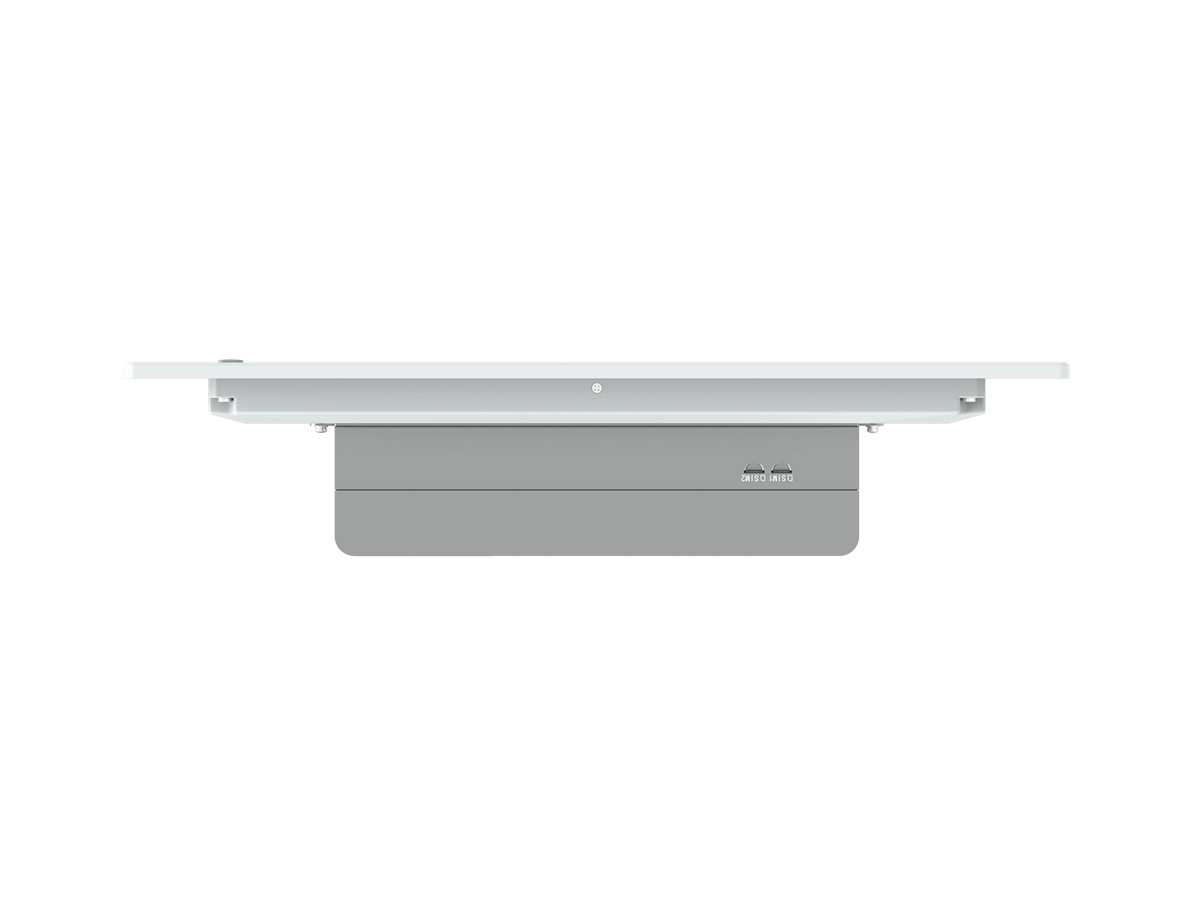

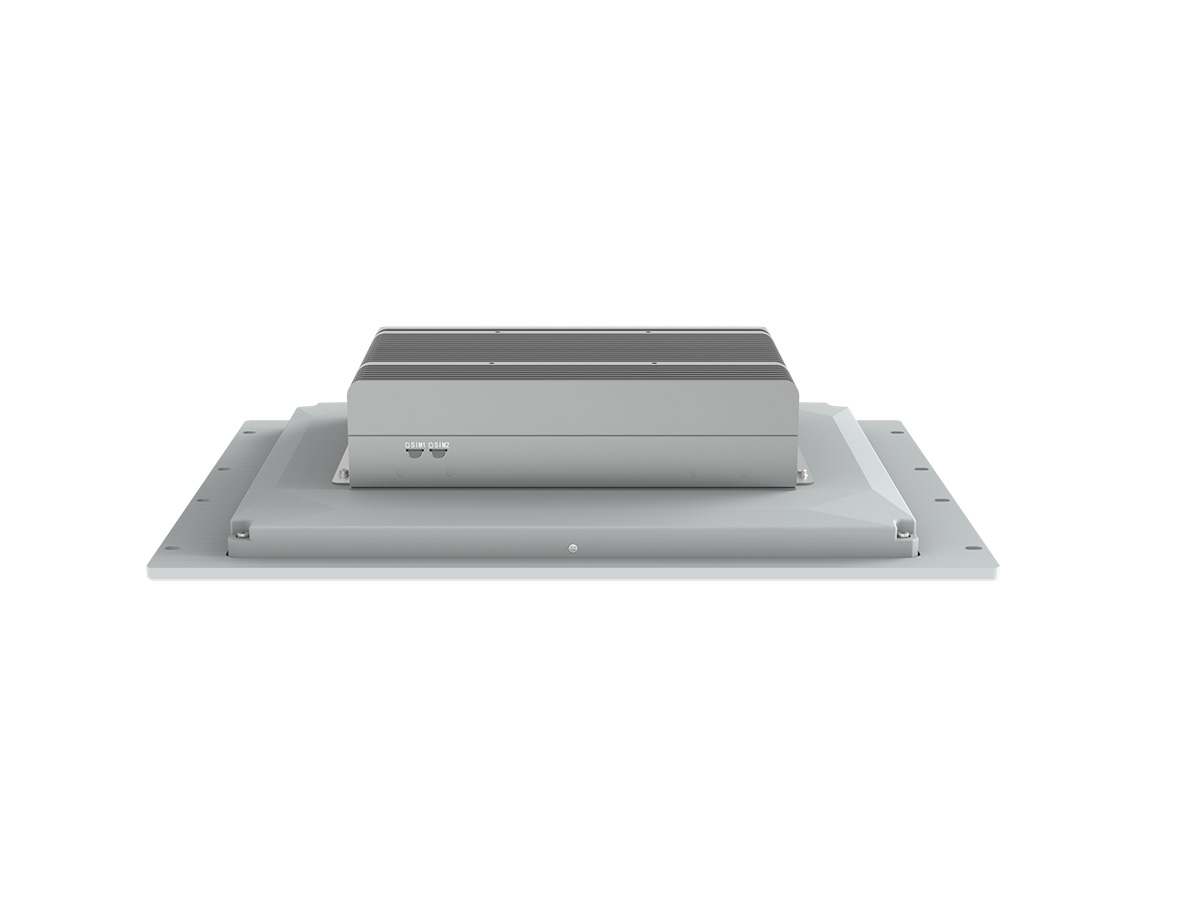

PGRF-E7L Industrial All-in-One PC
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT USProduct Description
The APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E7L series showcases a range of high-performance computing solutions designed for industrial applications across various platforms, including H81, H610, Q170, and Q670. These devices feature a resistive touchscreen interface, catering to precise and flexible user interactions in challenging industrial environments. Available in modular designs with 17/19 inch screens, they support both square and widescreen formats, ensuring versatility for different user needs.
Each model in the series adheres to IP65 standards for the front panel, guaranteeing excellent dust and water resistance suitable for harsh industrial settings. They are equipped with Intel® Core, Pentium, and Celeron desktop CPUs across several generations, offering robust performance and energy efficiency. The series boasts comprehensive connectivity options, including dual Intel Gigabit network interfaces, multiple DB9 serial ports, and a variety of display outputs (VGA, DVI-D, DP++, and internal LVDS) supporting up to 4K@60Hz resolutions, ensuring clear and vibrant displays.
Storage solutions are flexible, with support for M.2 and 2.5-inch dual hard drives, while expansion slots for PCIe, mini PCIe, and M.2 allow for extensive customization and functionality enhancements. The series features fanless passive cooling designs to maintain stability and reliability during prolonged operations. With options for rack-mount and VESA mounting, the PGxxxRF-E7L series provides adaptable installation solutions, making it a suitable choice for a wide range of industrial automation, control, and computing tasks.
| Model | PG170RF-E7L | PG190RF-E7L | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:04 | 5:04 | |
| Viewing Angle | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:01:00 | 1000:01:00 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Controller | USB signal | ||
| Input | Finger/Touch pen | ||
| Light Transmission | ≥78% | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 35W | ||
| Socket | LGA1150 | ||
| Chipset | Intel® H81 | ||
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | ||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz | |
| Max Capacity | 16GB, Single Max. 8GB | ||
| Graphics | Controller | Intel® HD Graphics | |
| Ethernet | Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
| Storage | SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)
1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional) |
|
| M.2 | 1 * M.2 Key-M (SATA3.0, 2280) | ||
| Expansion Slots | MXM/aDoor | 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
1 * aDoor Expansion Slot |
|
| Mini PCIe | 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card) | ||

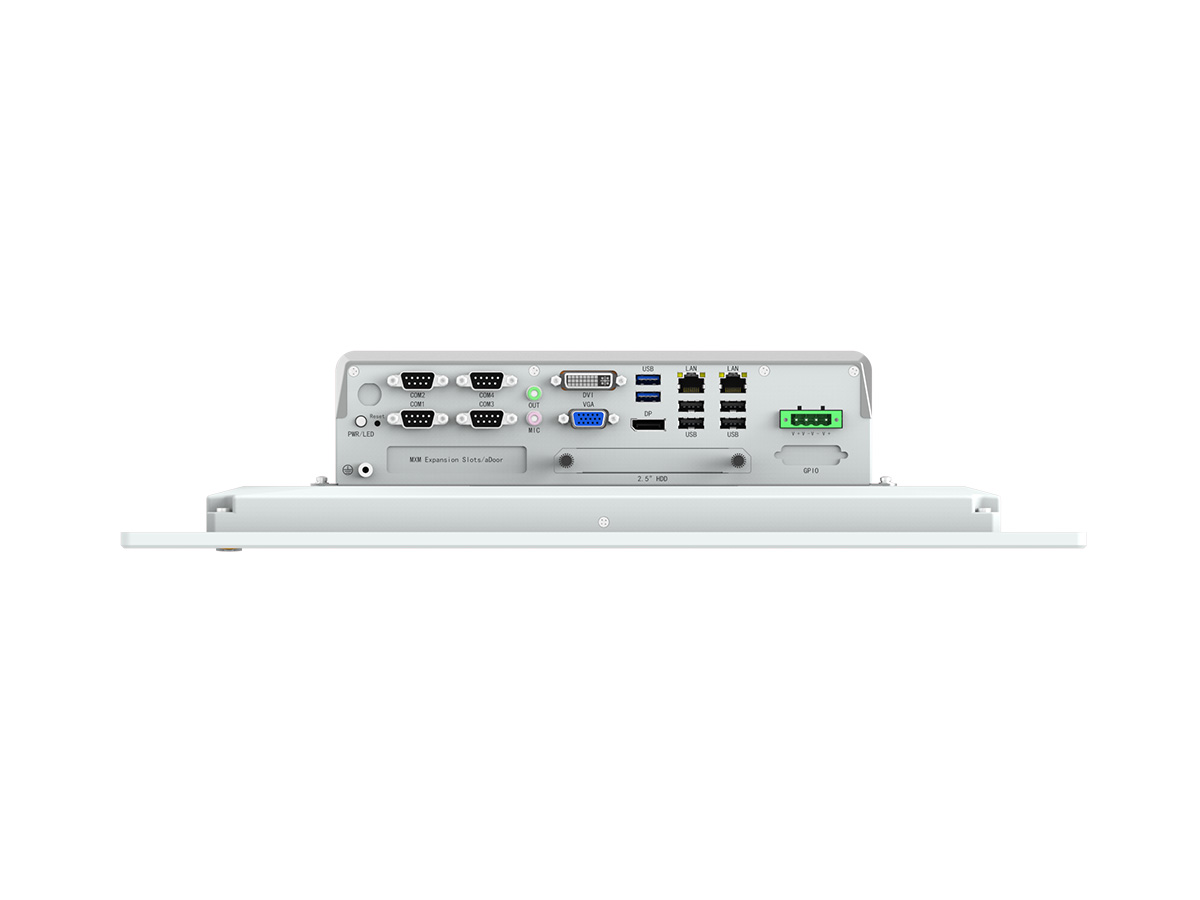

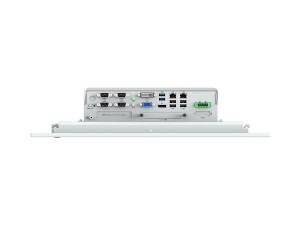

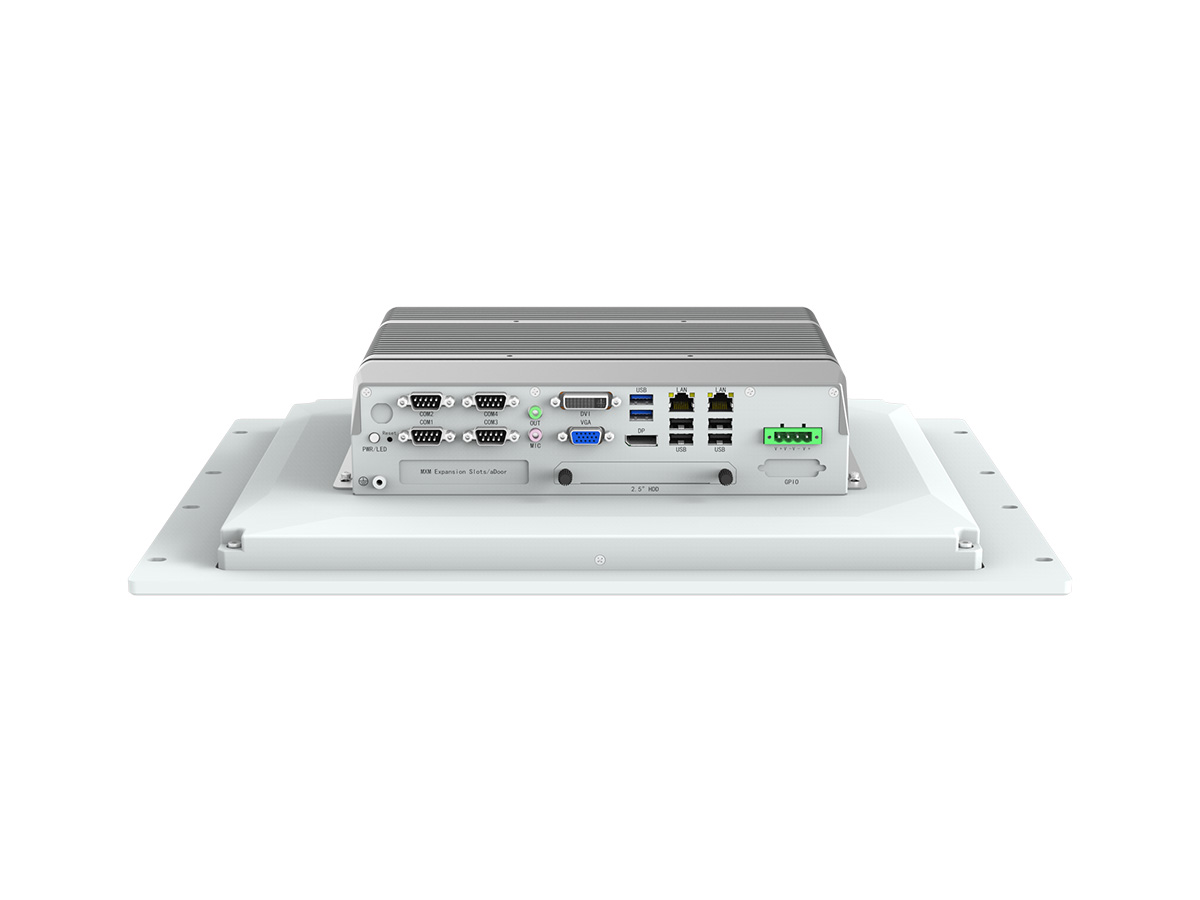

| Front I/O | Ethernet | 2 * RJ45 | |
| USB | 2 * USB3.0 (Type-A, 5Gbps)
4 * USB2.0 (Type-A) |
||
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M) |
||
| Button | 1 * Power Button + Power LED
1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) |
||
| Rear I/O | Antenna | 4 * Antenna hole | |
| SIM | 1 * Nano SIM card slot (SIM1) | ||
| Internal I/O | USB | 2 * USB2.0 (wafer) | |
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | ||
| TFront Panel | 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer) | ||
| Front Panel | 1 * Front Panel (PWR + RST + LED, wafer) | ||
| Speaker | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | ||
| Serial | 2 * RS232 (COM5/6, wafer) | ||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | ||
| LPC | 1 * LPC (wafer) | ||
| SATA | 2 * SATA 7P Connector | ||
| SATA Power | 2 * SATA Power (SATA_PWR1/2, wafer) | ||
| FAN | 1 * CPU FAN (wafer)
2 * SYS FAN (wafer) |
||
| Power Supply | Type | DC, AT/ATX | |
| Power Input Voltage | 9 ~ 36VDC, P≤240W | ||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | ||
| RTC Battery | CR2032 Coin Cell | ||
| OS Support | Windows | Windows 7/10/11 | |
| Linux | Linux | ||
| Watchdog | Output | System Reset | |
| Interval | Programmable via Software from 1 to 255 sec | ||
| Mechanical | Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | |
| Mounting | Rack-mount, VESA | ||
| Dimensions | 482.6mm(L) * 354.8mm(W) * 98.7mm(H) | 482.6mm(L) * 354.8mm(W) * 97.7mm(H) | |
| Weight | Net: 8.7kg, Total:11.7kg | Net: 9.kg, Total: 13.1kg | |
| Environment | Heat Dissipation System | Passive heat dissipation | |
| Operating Temperature | 0~50℃ | 0~50℃ | |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
| Model | PG170RF-E7L | PG190RF-E7L | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:04 | 5:04 | |
| Viewing Angle | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:01:00 | 1000:01:00 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Controller | USB signal | ||
| Input | Finger/Touch pen | ||
| Light Transmission | ≥78% | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 35W | ||
| Socket | LGA1700 | ||
| Chipset | H610 | ||
| BIOS | AMI 256 Mbit SPI | ||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz | |
| Max Capacity | 64GB, Single Max. 32GB | ||
| Graphics | Controller | Intel® UHD Graphics | |
| Ethernet | Controller | 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)
1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45) |
|
| Storage | SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)
1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) |
|
| M.2 | 1 * M.2 Key-M (SATA3.0, 2280) | ||
| Expansion Slots | aDoor | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | |
| Mini PCIe | 1 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card) | ||
| Front I/O | Ethernet | 2 * RJ45 | |
| USB | 2 * USB3.2 Gen2x1 (Type-A, 10Gbps)
2 * USB3.2 Gen 1x1 (Type-A, 5Gbps) 2 * USB2.0 (Type-A) |
||
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz
1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M, Full Lanes) |
||
| Button | 1 * Power Button + Power LED
1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button |
||
| Rear I/O | Antenna | 4 * Antenna hole | |
| SIM | 1 * Nano SIM card slots(SIM1) | ||
| Internal I/O | USB | 6 * USB2.0 (wafer) | |
| LCD | 1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz | ||
| Front Panel | 1 * FPanel (PWR+RST+LED, wafer) | ||
| Audio | 1 * Audio (Header)
1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) |
||
| Serial | 2 * RS232 (COM5/6, wafer) | ||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | ||
| LPC | 1 * LPC (wafer) | ||
| SATA | 3 * SATA 7P Connector, up to 600MB/s | ||
| SATA Power | 3 * SATA Power (wafer) | ||
| FAN | 1 * CPU FAN (wafer)
2 * SYS FAN (KF2510-4A) |
||
| Power Supply | Type | DC, AT/ATX | |
| Power Input Voltage | 9~36VDC, P≤240W
18~60VDC, P≤400W |
||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | ||
| RTC Battery | CR2032 Coin Cell | ||
| OS Support | Windows | Windows 10/11 | |
| Linux | Linux | ||
| Watchdog | Output | System Reset | |
| Interval | Programmable via Software from 1 to 255 sec | ||
| Mechanical | Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | |
| Mounting | Rack-mount, VESA | ||
| Dimensions | 482.6mm(L) * 354.8mm(W) * 98.7mm(H) | 482.6mm(L) * 354.8mm(W) * 97.7mm(H) | |
| Weight | Net: 8.7kg, Total:11.7kg | Net: 9.kg, Total: 13.1kg | |
| Environment | Heat Dissipation System | Passive heat dissipation | |
| Operating Temperature | 0~50℃ | 0~50℃ | |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
| Model | PG170RF-E7L | PG190RF-E7L | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:4 | 5:4 | |
| Viewing Angle | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:1 | 1000:1 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Controller | USB signal | ||
| Input | Finger/Touch pen | ||
| Light Transmission | ≥78% | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 35W | ||
| Socket | LGA1151 | ||
| Chipset | Q170 | ||
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | ||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2133MHz | |
| Max Capacity | 64GB, Single Max. 32GB | ||
| Graphics | Controller | Intel® HD Graphics | |
| Ethernet | Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
| Storage | SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)
1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) Support RAID 0, 1 |
|
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | ||
| Expansion Slots | MXM/aDoor | 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
1 * aDoor Expansion Slot |
|
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card) | ||
| Front I/O | Ethernet | 2 * RJ45 | |
| USB | 6 * USB3.0 (Type-A, 5Gbps) | ||
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M) |
||
| Button | 1 * Power Button + Power LED
1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) |
||
| Rear I/O | Antenna | 4 * Antenna hole | |
| SIM | 2 * Nano SIM card slots | ||
| Internal I/O | USB | 2 * USB2.0 (wafer) | |
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | ||
| TFront Panel | 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer) | ||
| Front Panel | 1 * Front Panel (PWR + RST + LED, wafer) | ||
| Speaker | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | ||
| Serial | 2 * RS232 (COM5/6, wafer) | ||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | ||
| LPC | 1 * LPC (wafer) | ||
| SATA | 2 * SATA 7P Connector | ||
| SATA Power | 2 * SATA Power (SATA_PWR1/2, wafer) | ||
| FAN | 1 * CPU FAN (wafer)
2 * SYS FAN (wafer) |
||
| Power Supply | Type | DC, AT/ATX | |
| Power Input Voltage | 9 ~ 36VDC, P≤240W | ||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | ||
| RTC Battery | CR2032 Coin Cell | ||
| OS Support | Windows | 6/7th Core™: Windows 7/10/11
8/9th Core™: Windows 10/11 |
|
| Linux | Linux | ||
| Watchdog | Output | System Reset | |
| Interval | Programmable via Software from 1 to 255 sec | ||
| Mechanical | Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | |
| Mounting | Rack-mount, VESA | ||
| Dimensions | 482.6mm(L) * 354.8mm(W) * 98.7mm(H) | 482.6mm(L) * 354.8mm(W) * 97.7mm(H) | |
| Weight | Net: 8.7kg, Total:11.7kg | Net: 9.kg, Total: 13.1kg | |
| Environment | Heat Dissipation System | Passive heat dissipation | |
| Operating Temperature | 0~50℃ | 0~50℃ | |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
| Model | PG170RF-E7L | PG190RF-E7L | |
| LCD Panel | Display Size | 17.0" (SXGA)a-Si TFT-LCD | 19.0" (SXGA)a-Si TFT-LCD |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:4 | 5:4 | |
| Viewing Angle | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:1 | 1000:1 | |
| Touchscreen | Touch Type | Five-wire Analog Resistive | |
| Controller | USB Signal | ||
| Input | Finger/Touch Pen | ||
| Light Transmission | ＞78% | ||
| Hardness | 3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 35W | ||
| Socket | LGA1700 | ||
| Chipset | Q670 | ||
| BIOS | AMI 256 Mbit SPI | ||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz | |
| Max Capacity | 64GB, Single Max. 32GB | ||
| Graphics | Controller | Intel® UHD Graphics | |
| Ethernet | Controller | 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)
1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45) |
|
| Storage | SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)
1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) Support RAID 0, 1 |
|
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | ||
| Expansion Slots | aDoor | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | |
| Mini PCIe | 2 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | ||
| M.2 | 1 * M.2 Key-E (PCIe x1 Gen 3 + USB 2.0, 2230) | ||
| Front I/O | Ethernet | 2 * RJ45 | |
| USB | 2 * USB3.2 Gen2x1 (Type-A, 10Gbps)
6 * USB3.2 Gen 1x1 (Type-A, 5Gbps) |
||
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz
1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M, Full Lanes) |
||
| Button | 1 * Power Button + Power LED
1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button |
||
| Rear I/O | Antenna | 4 * Antenna hole | |
| SIM | 2 * Nano SIM card slots | ||
| Internal I/O | USB | 6 * USB2.0 (wafer) | |
| LCD | 1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz | ||
| Front Panel | 1 * FPanel (PWR+RST+LED, wafer) | ||
| Audio | 1 * Audio (Header)
1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) |
||
| Serial | 2 * RS232 (COM5/6, wafer) | ||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | ||
| LPC | 1 * LPC (wafer) | ||
| SATA | 3 * SATA 7P Connector, up to 600MB/s | ||
| SATA Power | 3 * SATA Power (wafer) | ||
| FAN | 1 * CPU FAN (wafer)
2 * SYS FAN (KF2510-4A) |
||
| Power Supply | Type | DC, AT/ATX | |
| Power Input Voltage | 9~36VDC, P≤240W
18~60VDC, P≤400W |
||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | ||
| RTC Battery | CR2032 Coin Cell | ||
| OS Support | Windows | Windows 10/11 | |
| Linux | Linux | ||
| Watchdog | Output | System Reset | |
| Interval | Programmable 1 ~ 255 sec | ||
| Mechanical | Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | |
| Mounting | Rack-mount, VESA | ||
| Dimensions
(L * W * H, Unit: mm) |
482.6*354.8*98.7 | 482.6*354.8*97.7 | |
| Weight | Net: 8.7Kg
Total: 11.7Kg |
Net: 9.1Kg
Total: 13.1Kg |
|
| Environment | Heat Dissipation System | Passive heat dissipation | |
| Operating Temperature | 0~50°C | 0~50°C | |
| Storage Temperature | -20~60°C | -20~60°C | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
OBTAIN SAMPLES
Effective, safe and reliable. Our equipment guarantees the right solution for any requirement. Benefit from our industry expertise and generate added value - every day.
Click For Inquiry
