PGRF-E5 Industrial All-in-One PC
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT USProduct Description
The APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E5 series utilizes resistive touchscreen technology to provide users with a stable and precise touch control experience, meeting the operational requirements of industrial environments. Featuring a modular design, it supports screen sizes of 17/19 inches, catering to different industry standards and user needs. The front panel complies with IP65 standards, offering excellent dust and water resistance capable of withstanding harsh industrial conditions. Powered by the Intel® Celeron® J1900 ultra-low power CPU, it ensures efficient performance while minimizing energy consumption. Additionally, it integrates dual Intel Gigabit network cards for high-speed, stable network connections and data transfer capabilities. Support for dual hard drive storage meets the need for substantial data storage. Furthermore, it supports APQ aDoor module expansion and WiFi/4G wireless expansion, providing exceptional expandability. The fanless design allows for quieter operation, and the 12~28V DC power supply makes it adaptable to various power environments.

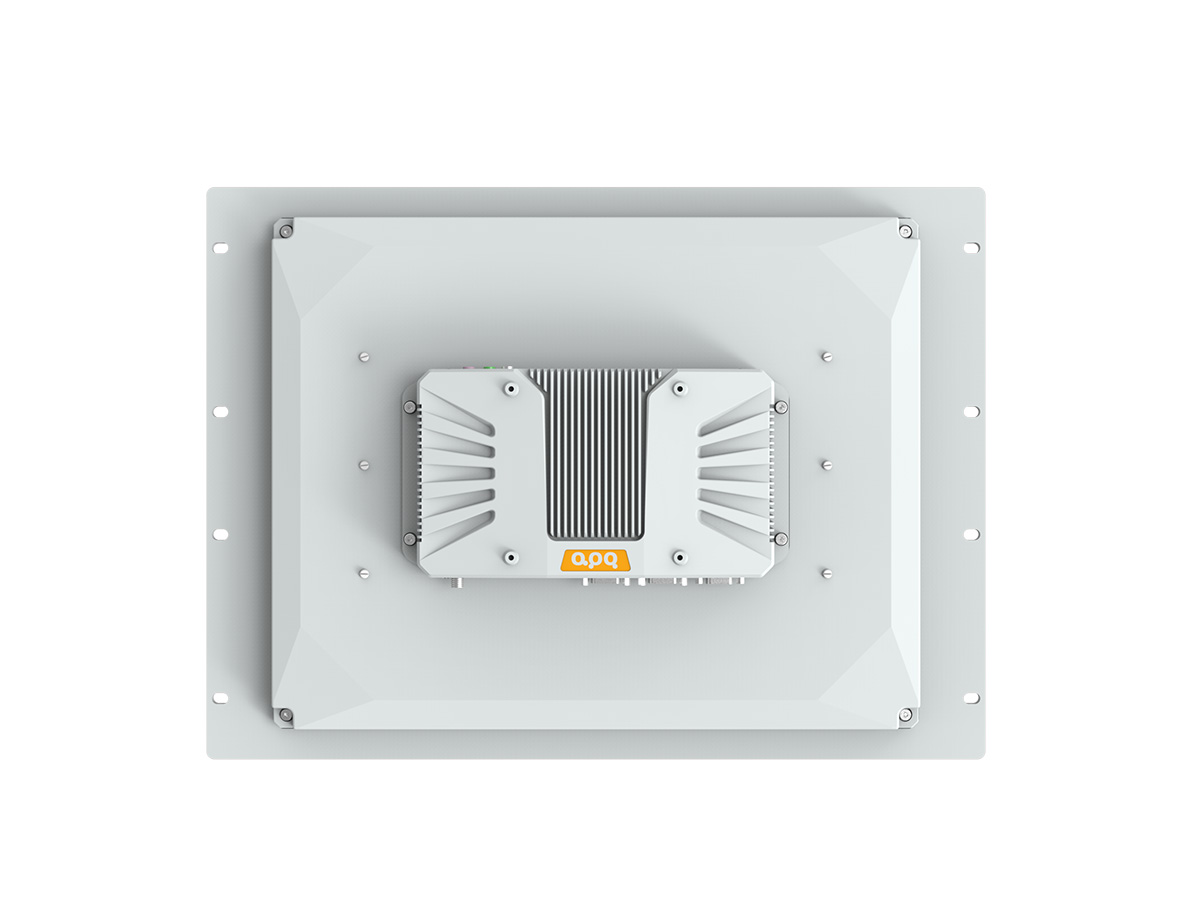

The APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E5 series also supports rack-mount and VESA mounting options, facilitating easy integration into various industrial settings. It is an ideal choice for industrial automation and edge computing fields.
| Model | PG170RF-E5 | PG190RF-E5 | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max.Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:4 | 5:4 | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:1 | 1000:1 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Input | Finger/Touch pen | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® Celeron® J1900 | |
| Base Frequency | 2.00 GHz | ||
| Max Turbo Frequency | 2.42 GHz | ||
| Cache | 2MB | ||
| Total Cores/Threads | 4/4 | ||
| TDP | 10W | ||
| Chipset | SOC | ||
| Memory | Socket | DDR3L-1333 MHz (Onboard) | |
| Max Capacity | 4GB | ||
| Ethernet | Controller | 2 * Intel® i210-AT (10/100/1000 Mbps, RJ45) | |
| Storage | SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin) | |
| mSATA | 1 * mSATA Slot | ||
| Expansion Slots | aDoor | 1 * aDoor Expansion Module | |
| Mini PCIe | 1 * Mini PCIe Slot (PCIe 2.0x1 + USB2.0) | ||

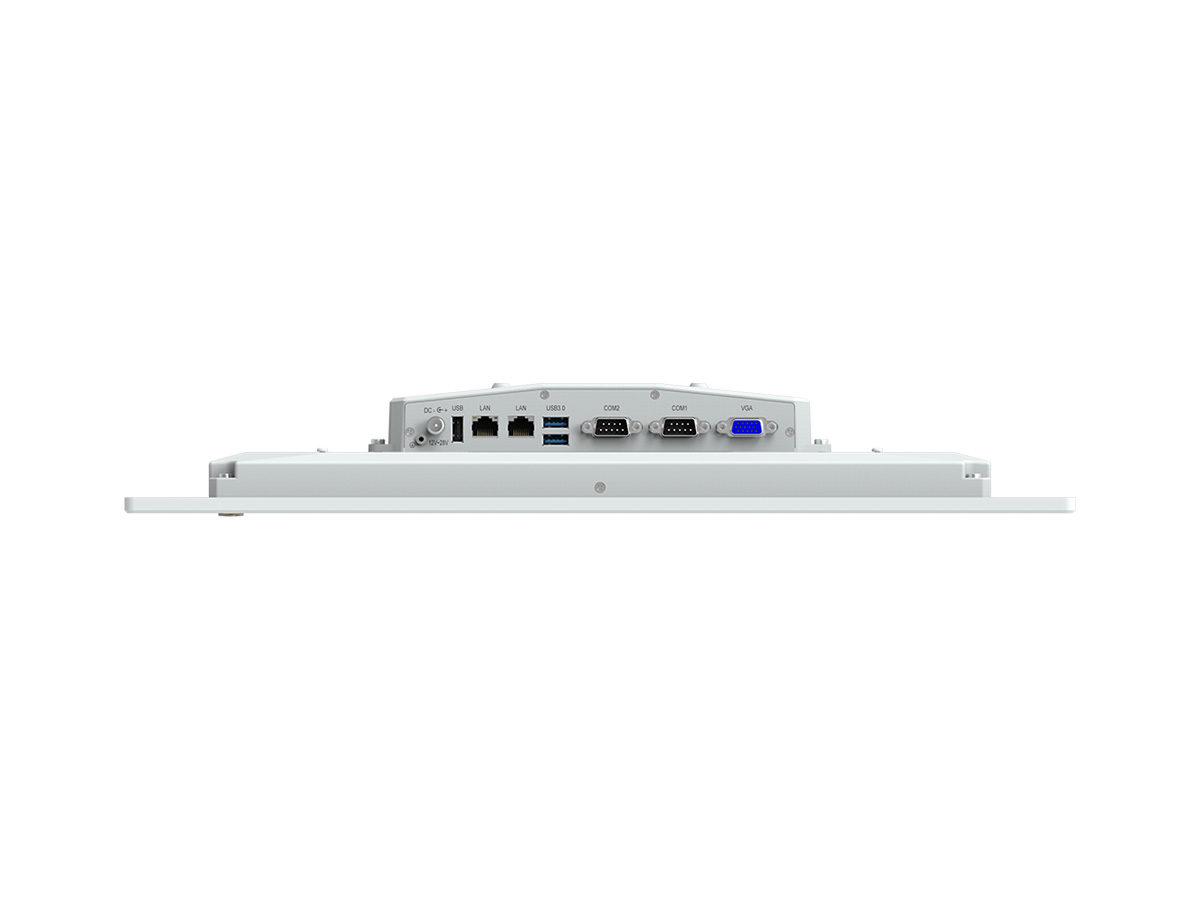

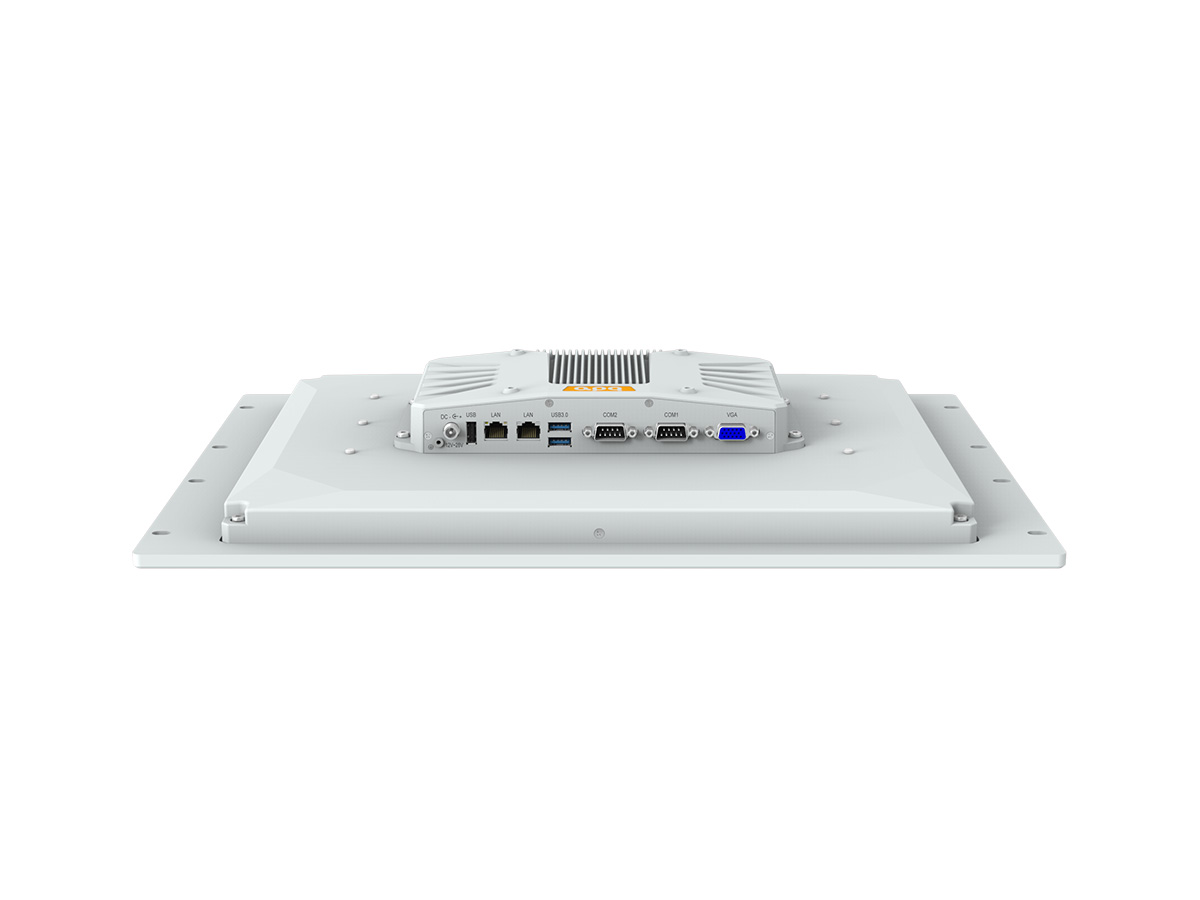

| Front I/O | USB | 2 * USB3.0 (Type-A) 1 * USB2.0 (Type-A) |
|
| Ethernet | 2 * RJ45 | ||
| Display | 1 * VGA: max resolution up to 1920*1200@60Hz | ||
| Serial | 2 * RS232/485 (COM1/2, DB9/M) | ||
| Power | 1 * Power Input Connector (12~28V) | ||
| Power Supply | Type | DC | |
| Power Input Voltage | 12~28VDC | ||
| Connector | 1 * DC5525 with lock | ||
| RTC Battery | CR2032 Coin Cell | ||
| OS Support | Windows | Windows 7/8.1/10 | |
| Linux | Linux | ||

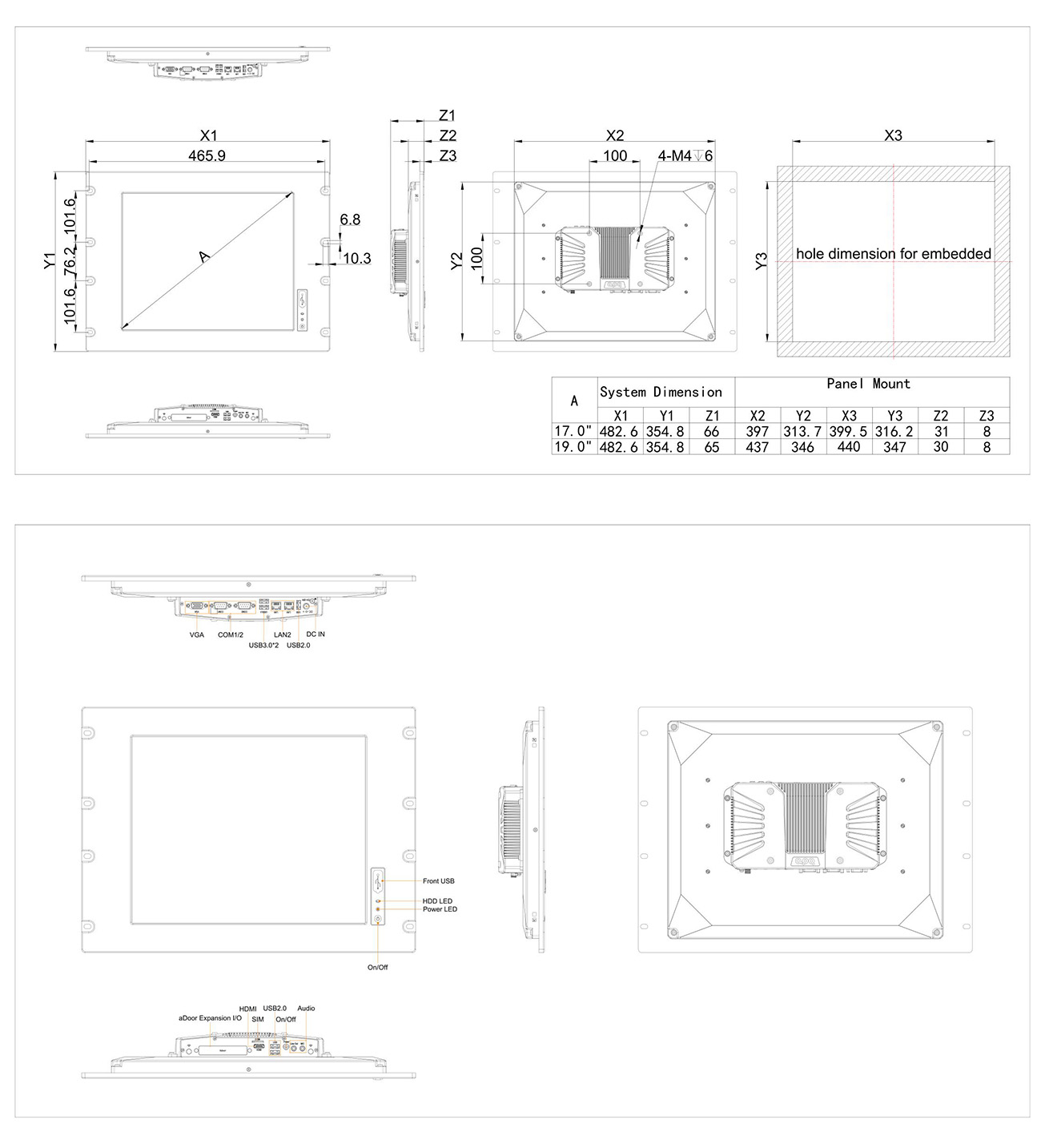

| Mechanical | Dimensions | 482.6mm(L) * 354.8mm(W) * 66mm(H) | 482.6mm(L) * 354.8mm(W) * 65mm(H) |
| Environment | Operating Temperature | 0~50℃ | 0~50℃ |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
