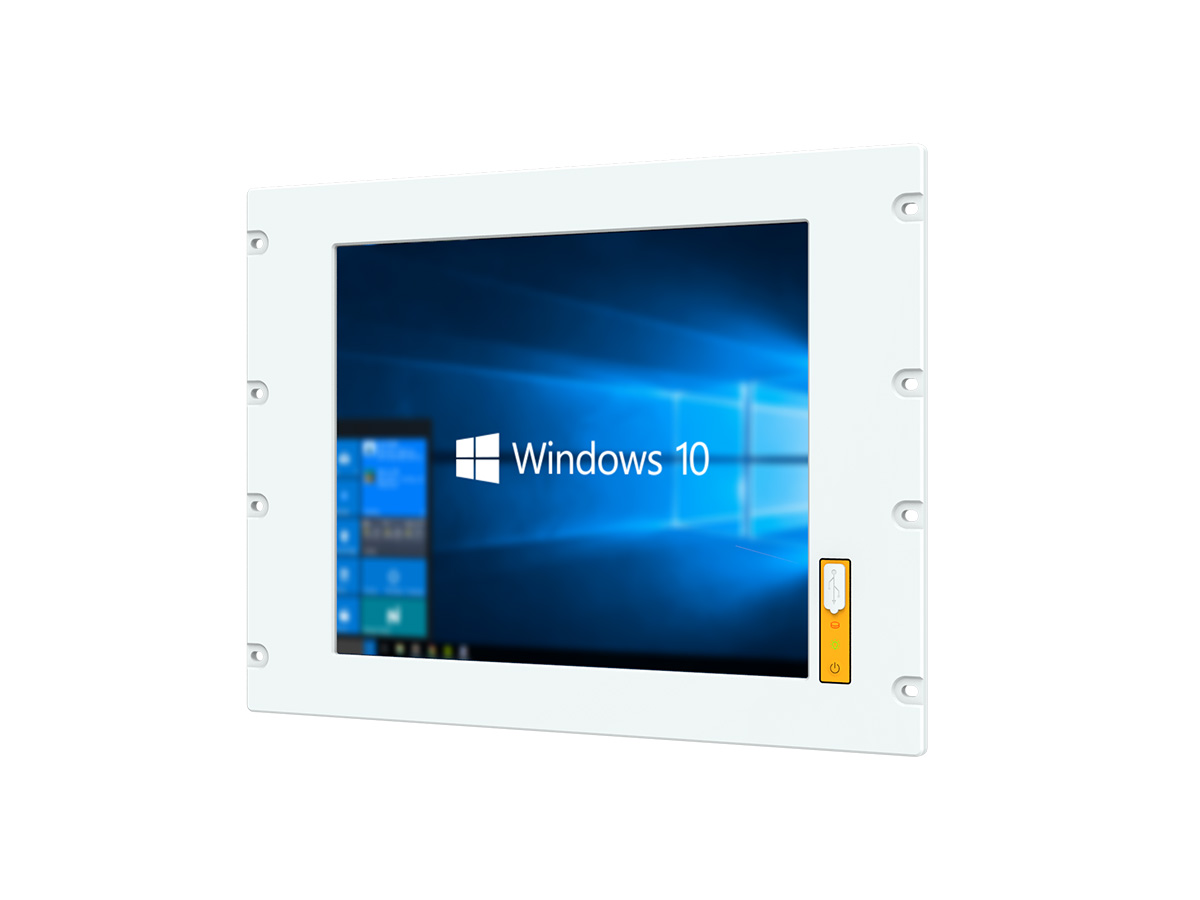

The APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E5M series is a versatile industrial device equipped with a resistive touchscreen design, allowing users to easily operate the device through touch. This device features a modular design, with options for 17/19-inch screens supporting both square and widescreen displays. Its front panel complies with the IP65 protection level, enabling it to operate in harsh industrial environments. The front panel also integrates a USB Type-A and signal indicator lights, facilitating easy connection to external devices and real-time monitoring of the device status. The PGxxxRF-E5M series is powered by the Intel® Celeron® J1900 ultra-low power CPU, ensuring stable and reliable performance. It includes 6 COM ports, supporting two isolated RS485 interfaces for convenient data communication with external devices. Moreover, it features dual Gigabit network cards and supports dual hard drive storage, meeting the needs for data storage and transfer. Additionally, it supports APQ MXM COM/GPIO module expansion, allowing for functional expansion based on user requirements and enhancing the device’s applicability. It also supports WiFi/4G wireless expansion, aiding in remote monitoring and operation. The device can be installed via rack-mounting or VESA mounting to meet different installation needs and supports a 12~28V DC power supply, suitable for various industrial scenarios.
In summary, the APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E5M series, with its rich functional features and broad applicability, is widely suitable for industrial automation control, intelligent transportation, smart buildings, and other fields, making it an ideal choice for your industrial equipment needs.
| Model | PG170RF-E5M | PG190RF-E5M | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max.Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:4 | 5:4 | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:1 | 1000:1 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Input | Finger/Touch pen | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® Celeron® J1900 | |
| Base Frequency | 2.00 GHz | ||
| Max Turbo Frequency | 2.42 GHz | ||
| Cache | 2MB | ||
| Total Cores/Threads | 4/4 | ||
| TDP | 10W | ||
| Chipset | SOC | ||
| Memory | Socket | 1 * DDR3L-1333MHz SO-DIMM Slot | |
| Max Capacity | 8GB | ||
| Ethernet | Controller | 2 * Intel® i210-AT (10/100/1000 Mbps, RJ45) | |
| Storage | SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin) | |
| M.2 | 1 * M.2 Key-M Slot (support SATA SSD, 2280) | ||
| Expansion Slots | MXM/aDoor | 1 * MXM slot (LPC+GPIO, support COM/GPIO MXM card) | |
| Mini PCIe | 1 * Mini PCIe Slot (PCIe2.0+USB2.0) | ||

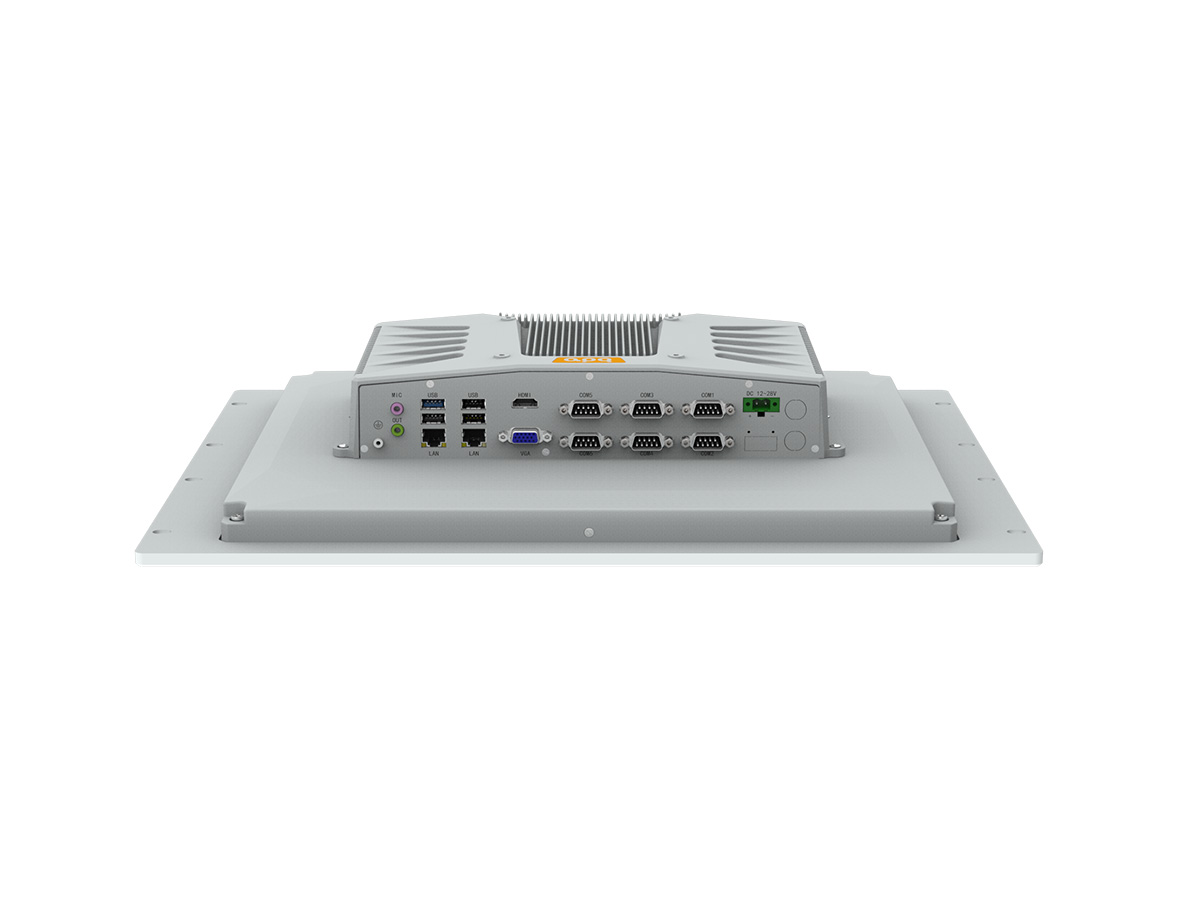

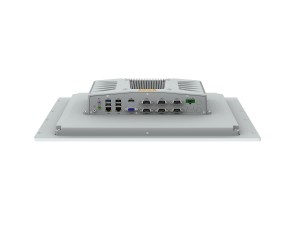

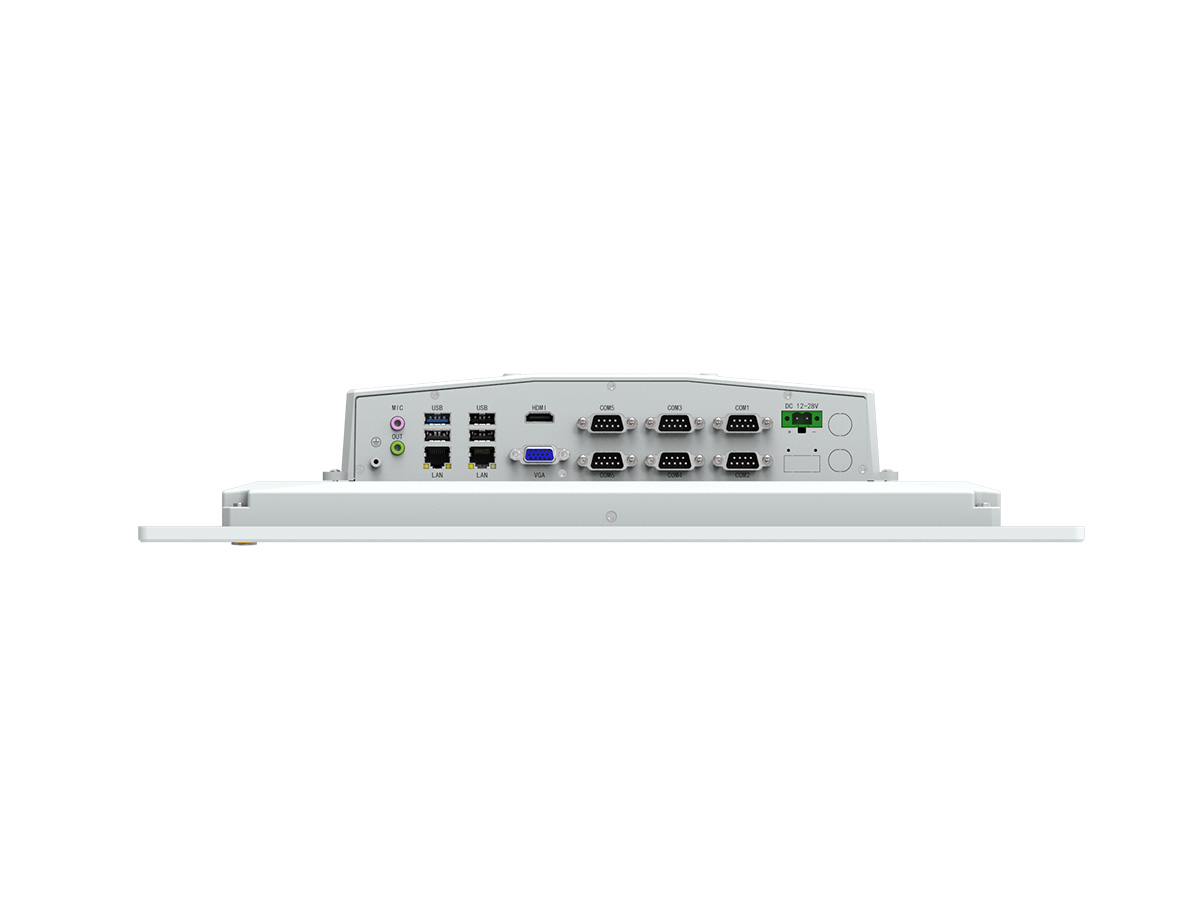

| Front I/O | USB | 1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A) |
|
| Ethernet | 2 * RJ45 | ||
| Display | 1 * VGA: max resolution up to 1920*1280@60Hz 1 * HDMI: max resolution up to 1920*1280@60Hz |
||
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
||
| Serial | 2 * RS232/485 (COM1/2, DB9/M) 4 * RS232 (COM3/4/5/6, DB9/M) |
||
| Power | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | ||
| Power Supply | Power Input Voltage | 12~28VDC | |
| OS Support | Windows | Windows 7/8.1/10 | |
| Linux | Linux | ||

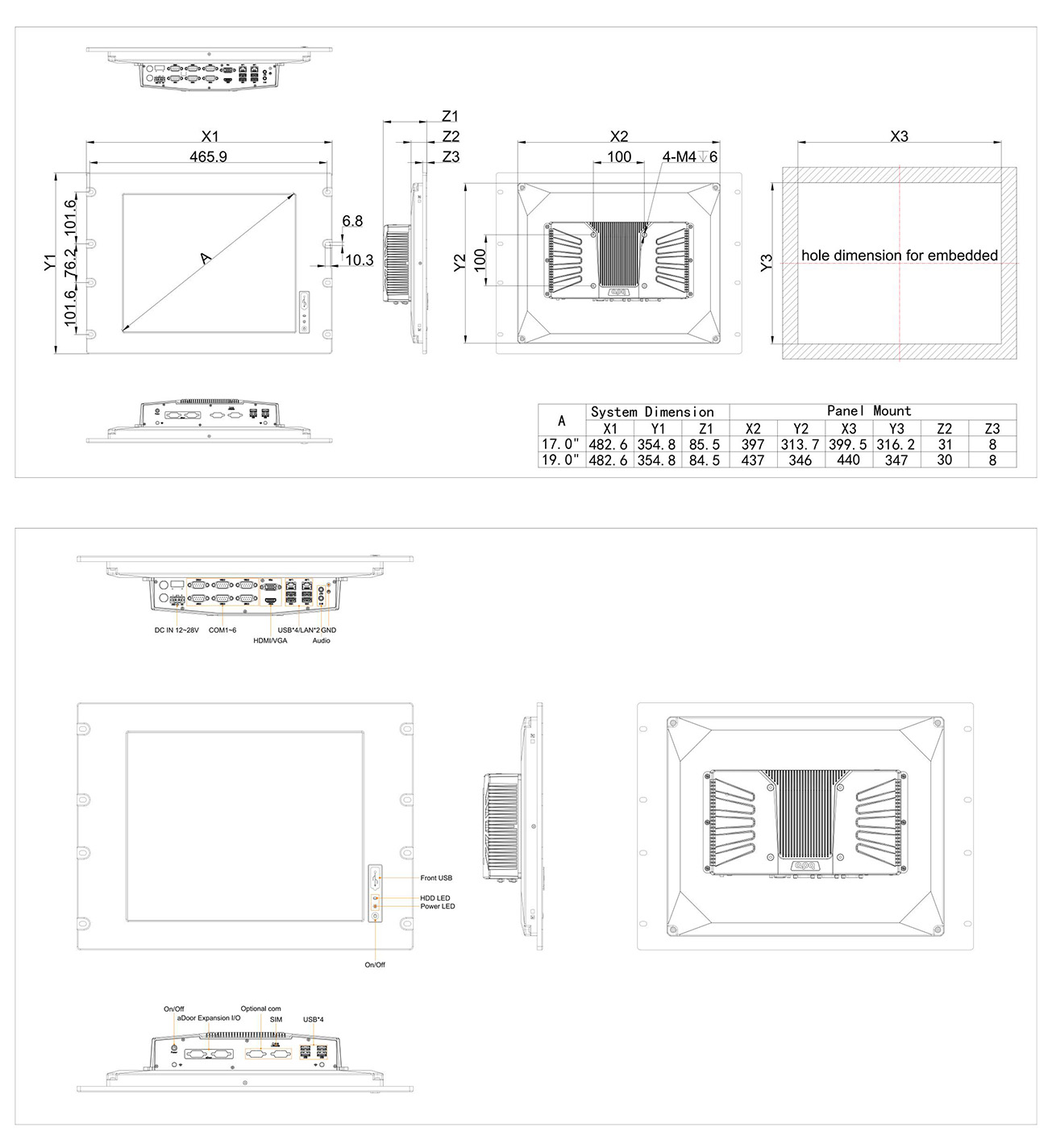

| Mechanical | Dimensions | 482.6mm(L) *354.8mm(W) * 85.5mm(H) | 482.6mm(L) *354.8mm(W) * 84.5mm(H) |
| Environment | Operating Temperature | 0~50℃ | 0~50℃ |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
