CONTACT USProduct Description

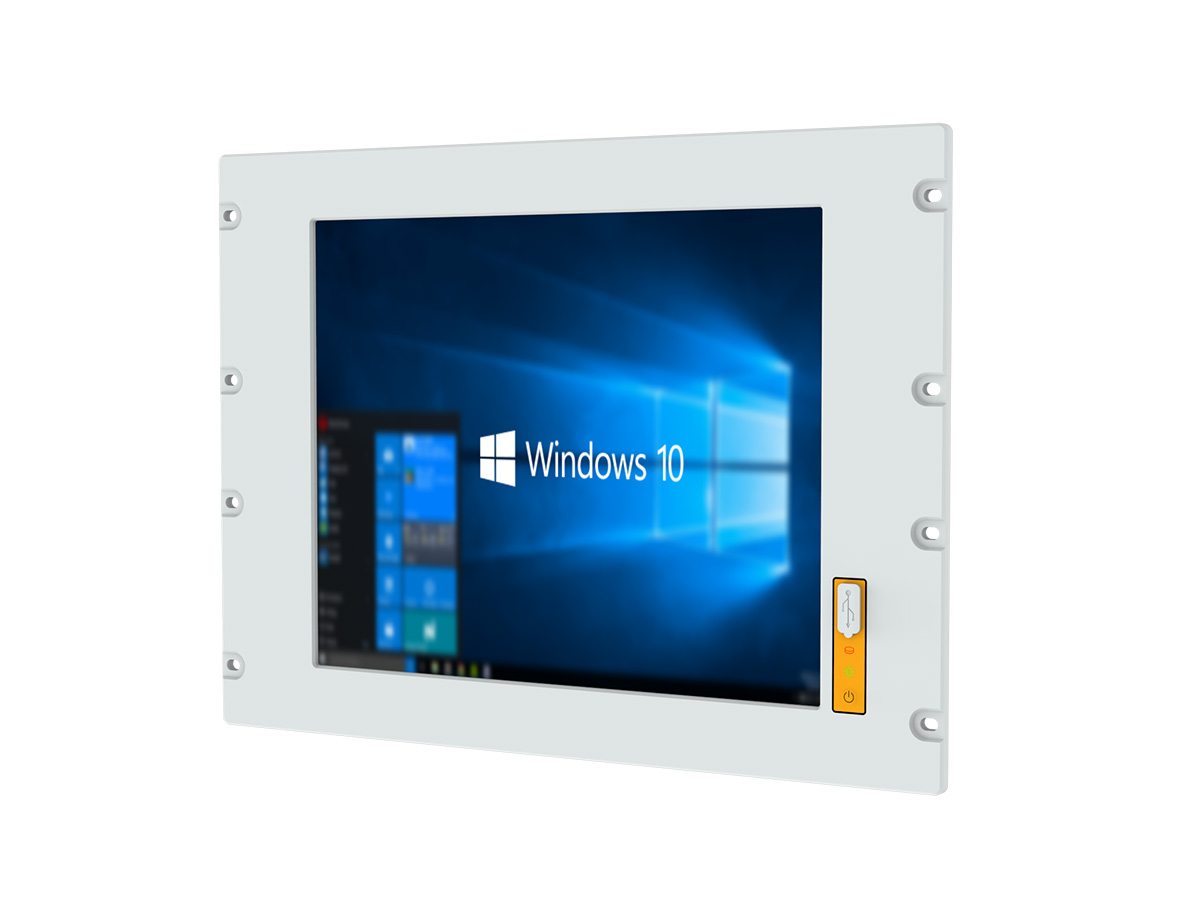

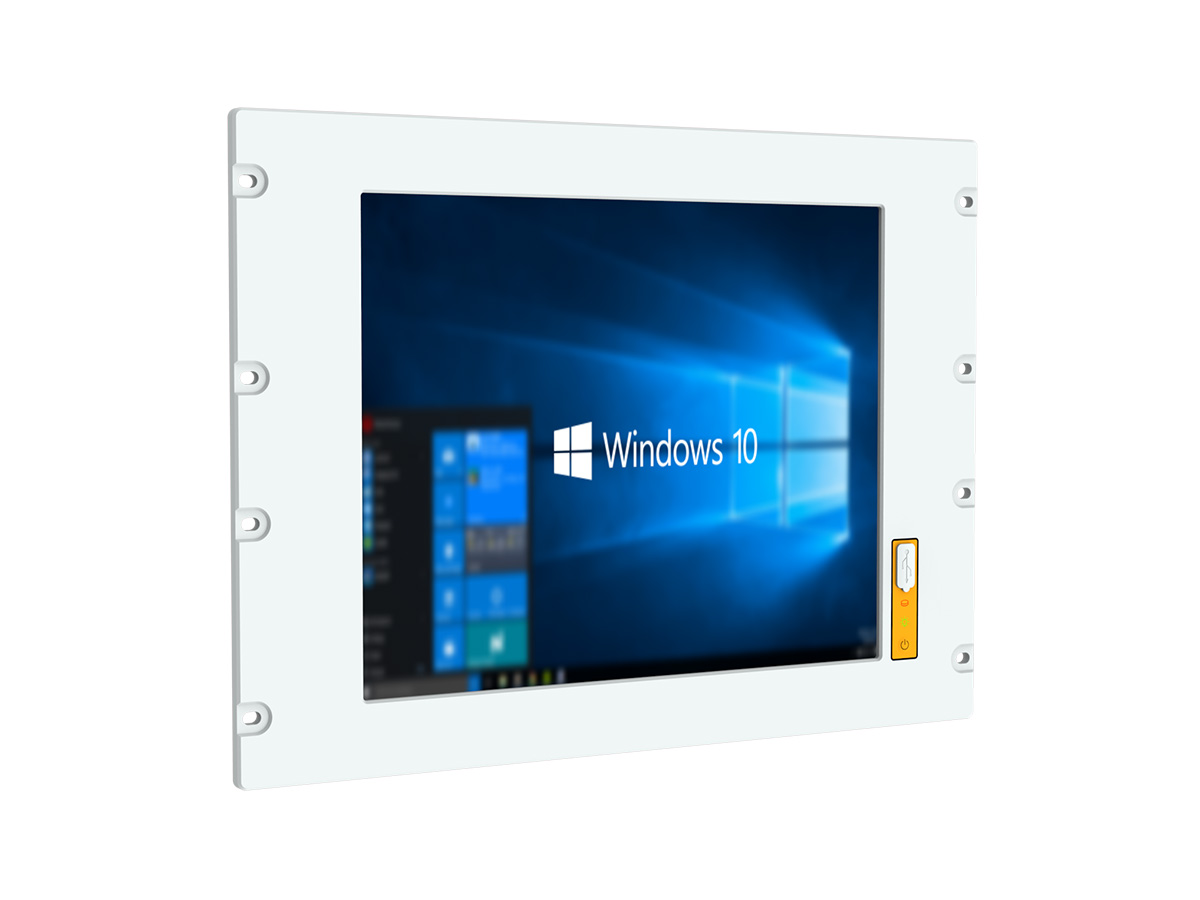

The APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E5S series on the J6412 platform is a high-performance industrial computer that features a resistive touchscreen design. It offers modular design choices with screen sizes of 17/19 inches, supporting both square and widescreen displays. The front panel meets the IP65 protection standard, ensuring stable operation in harsh environments. Integrated on the front panel are a USB Type-A port and signal indicators for easy operation and monitoring by users. Powered by the Intel® Celeron® J6412 low-power CPU and equipped with dual Intel® Gigabit network cards, it supports dual hard drive storage and can be expanded with APQ aDoor modules and WiFi/4G wireless capabilities. Its fanless design ensures silent operation and stable performance. The device offers options for rack-mount or VESA mounting to meet the installation needs of various situations. With a 12~28V DC power supply design, it is suitable for a range of industrial settings.
The APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E5S series on the J6412 platform is an ideal choice for the industrial sector.
|
Model |
PG170RF-E5S |
PG190RF-E5S |
|||
|
LCD |
Display Size |
17.0" |
19.0" |
||
|
Max.Resolution |
1280 x 1024 |
1280 x 1024 |
|||
|
Luminance |
250 cd/m2 |
250 cd/m2 |
|||
|
Aspect Ratio |
5:4 |
5:4 |
|||
|
Viewing Angle |
85/85/80/80° |
85/85/80/80° |
|||
|
Max. Color |
16.7M |
16.7M |
|||
|
Backlight Lifetime |
30,000 hr |
30,000 hr |
|||
|
Contrast Ratio |
1000:1 |
1000:1 |
|||
|
Touchscreen |
Touch Type |
5-wire resistive touch |
|||
|
Controller |
USB signal |
||||
|
Input |
Finger/Touch pen |
||||
|
Light Transmission |
≥78% |
||||
|
Hardness |
≥3H |
||||
|
Click lifetime |
100gf, 10 million times |
||||
|
Stroke lifetime |
100gf, 1 million times |
||||
|
Response time |
≤15ms |
||||
|
Processor System |
CPU |
Intel® Elkhart Lake J6412 |
Intel® Alder Lake N97 |
Intel® Alder Lake N305 |
|
|
Base Frequency |
2.00 GHz |
2.0 GHz |
1 GHz |
||
|
Max Turbo Frequency |
2.60 GHz |
3.60 GHz |
3.8GHz |
||
|
Cache |
1.5MB |
6MB |
6MB |
||
|
Total Cores/Threads |
4/4 |
4/4 |
8/8 |
||
|
Chipset |
SOC |
||||
|
BIOS |
AMI UEFI BIOS |
||||
|
Memory |
Socket |
LPDDR4 3200 MHz (Onboard) |
|||
|
Capacity |
8GB |
||||
|
Graphics |
Controller |
Intel® UHD Graphics |
|||
|
Ethernet |
Controller |
2 * Intel® i210-AT (10/100/1000 Mbps, RJ45) |
|||
|
Storage |
SATA |
1 * SATA3.0 Connector (2.5-inch hard disk with 15+7Pin) |
|||
|
M.2 |
1 * M.2 Key-M Slot (SATA SSD, 2280) |
||||
|
Expansion Slots |
aDoor |
1 * aDoor |
|||
|
Mini PCIe |
1 * Mini PCIe Slot (PCIe+USB2.0) |
||||
|

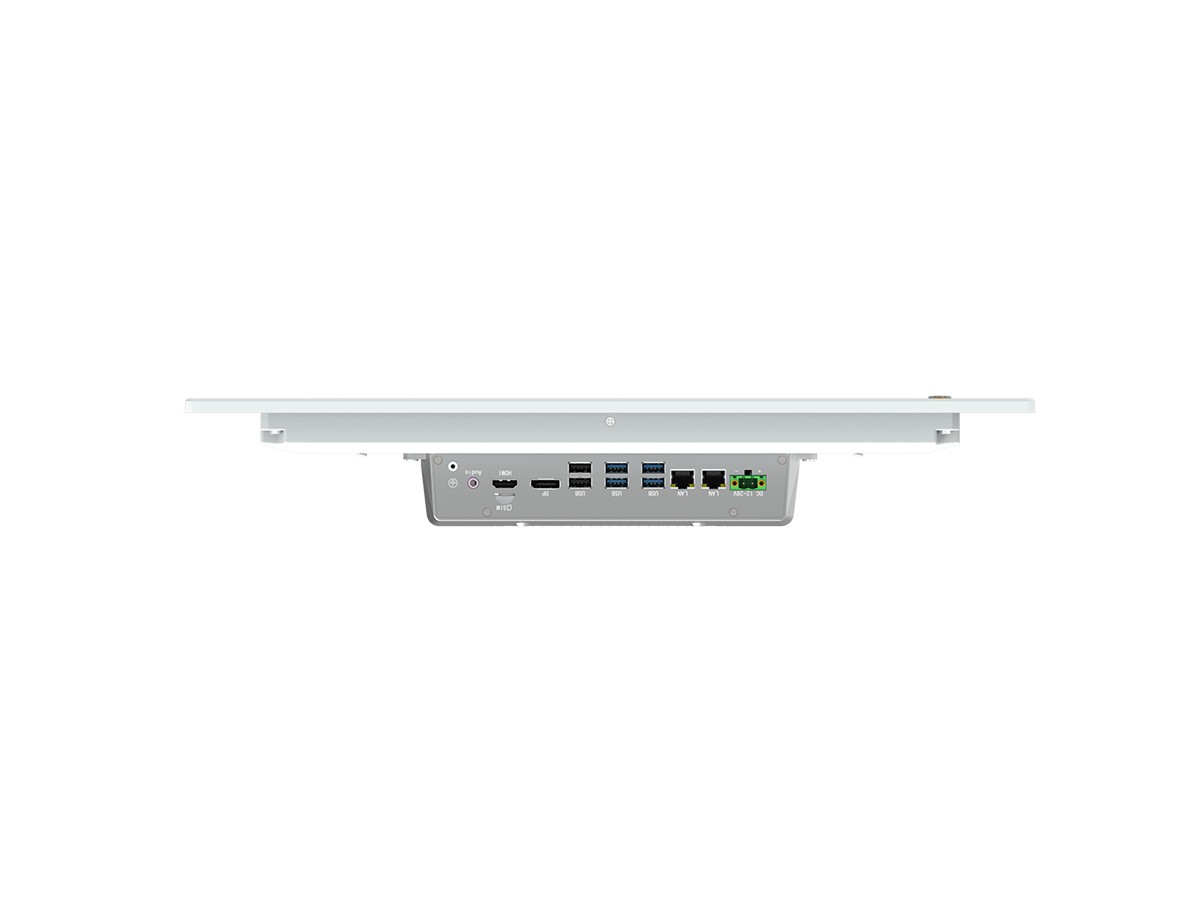

Front I/O |
USB |
4 * USB3.0 (Type-A) |
|||
|
Ethernet |
2 * RJ45 |
||||
|
Display |
1 * DP++: max resolution up to 4096x2160@60Hz |
||||
|
Audio |
1 * 3.5mm Jack (Line-Out + MIC, CTIA) |
||||
|
SIM |
1 * Nano-SIM Card slot (Mini PCIe module provides functional support) |
||||
|
Power |
1 * Power Input Connector (12~28V) |
||||
|

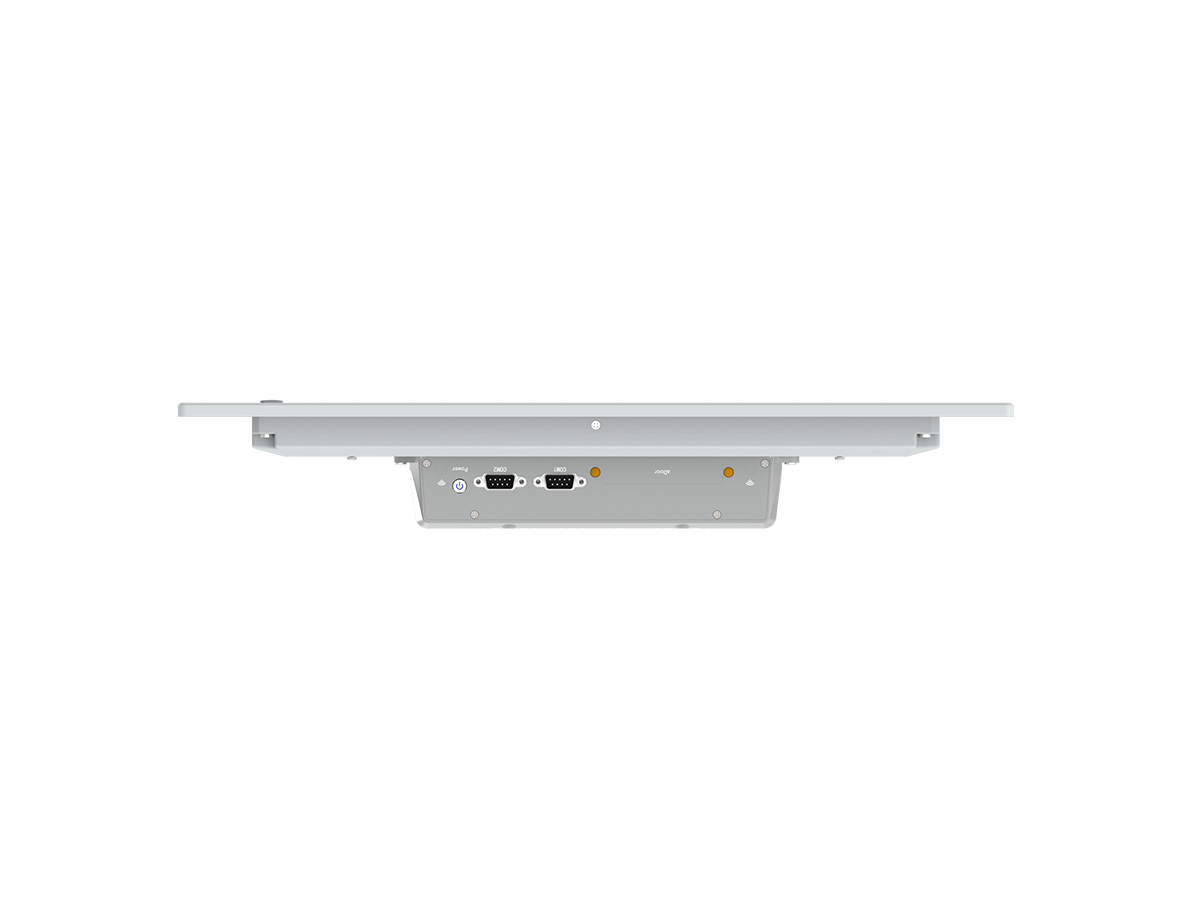

Rear I/O |
Button |
1 * Power Button with Power LED |
|||
|
Serial |
2 * RS232/485 (COM1/2, DB9/M, BIOS control) |
||||
|
Internal I/O |
Front Panel |
1 * Front Panel (3x2Pin, PHD2.0) |
|||
|
FAN |
1 * SYS FAN (4x1Pin, MX1.25) |
||||
|
Serial |
2 * COM (JCOM3/4, 5x2Pin, PHD2.0) |
||||
|
USB |
2 * USB2.0 (F_USB2_1, 5x2Pin, PHD2.0) |
||||
|
Display |
1 * LVDS/eDP (default LVDS, wafer, 25x2Pin 1.00mm) |
||||
|
Audio |
1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0) |
||||
|
GPIO |
1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0) |
||||
|
LPC |
1 * LPC (8x2Pin, PHD2.0) |
||||
|
Power Supply |
Type |
DC |
|||
|
Power Input Voltage |
12~28VDC |
||||
|
Connector |
1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) |
||||
|
RTC Battery |
CR2032 Coin Cell |
||||
|
OS Support |
Windows |
Windows 10/11 |
|||
|
Linux |
Linux |
||||
|
Watchdog |
Output |
System Reset |
|||
|
Interval |
Programmable 1 ~ 255 sec |
||||
|

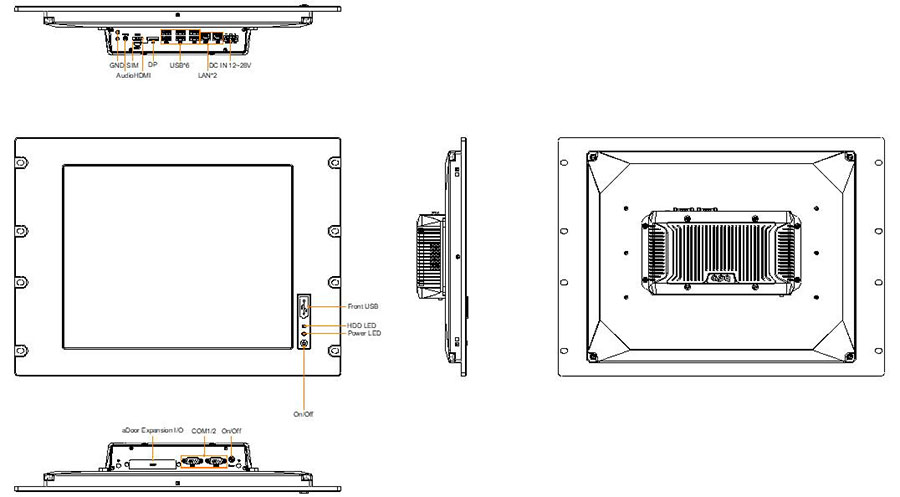

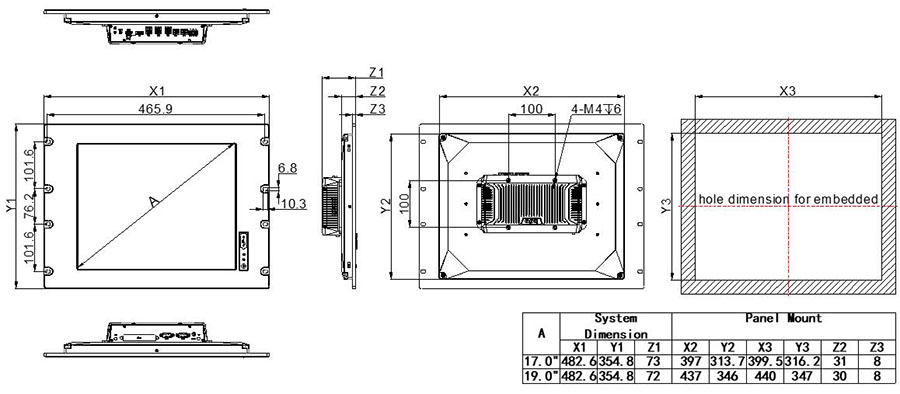

Mechanical |
Enclosure Material |
Radiator/Panel: Aluminum, Box/Cover: SGCC |
|||
|
Mounting |
Rack-mount, VESA, embedded |
||||
|
Dimensions |
482.6mm(L) * 354.8mm(W) *73mm(H) |
482.6mm(L) * 354.8mm(W) *72mm(H) |
|||
|
Weight |
Net: 5.7kg, Total: 8.7kg |
Net: 7.1kg, Total: 10.3kg |
|||
|
Environment |
Heat Dissipation System |
Passive heat dissipation |
|||
|
Operating Temperature |
0~50℃ |
||||
|
Storage Temperature |
-20~60℃ |
||||
|
Relative Humidity |
10 to 95% RH (non-condensing) |
||||
|
Vibration During Operation |
With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) |
||||
|
Shock During Operation |
With SSD: IEC 60068-2-27 (15G, half sine, 11ms) |
||||
