CONTACT USProduct Description
The APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E6 series on the 11th-U platform combines advanced technology and innovative design, making it an ideal choice for your industrial automation needs. This industrial PC features a resistive touchscreen design, supports modular 17/19 inch options that can accommodate both square and widescreen displays, meeting various customer requirements. Its front panel complies with the IP65 standard, offering excellent waterproof and dustproof performance suitable for harsh industrial environments. Powered by an Intel® 11th-U series mobile platform CPU, it delivers strong and reliable performance. With integrated dual Intel® Gigabit network cards, support for dual hard drive storage, and a 2.5-inch drive pull-out design, it facilitates easy maintenance and upgrades. Additionally, the device supports APQ aDoor module expansion and WiFi/4G wireless expansion, catering to the rapid development needs of the modern Industrial Internet. Furthermore, its fanless design and removable heat sink effectively reduce thermal pressure and noise, ensuring stable operation. The device’s rack-mount/VESA mounting options offer flexible installation according to actual needs, while its 12~28V DC power input is suitable for various industrial settings.
In summary, the APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E6 series on the 11th-U platform is a powerful, stable, and reliable piece of industrial automation equipment, making it an ideal choice in the field of industrial automation.
|
Model |
PG170RF-E6 |
PG190RF-E6 |
|
|
LCD |
Display Size |
17.0" |
19.0" |
|
Display Type |
SXGA TFT-LCD |
SXGA TFT-LCD |
|
|
Max.Resolution |
1280 x 1024 |
1280 x 1024 |
|
|
Luminance |
250 cd/m2 |
250 cd/m2 |
|
|
Aspect Ratio |
5:4 |
5:4 |
|
|
Viewing Angle |
85/85/80/80° |
89/89/89/89° |
|
|
Max. Color |
16.7M |
16.7M |
|
|
Backlight Lifetime |
30,000 hr |
30,000 hr |
|
|
Contrast Ratio |
1000:1 |
1000:1 |
|
|
Touchscreen |
Touch Type |
5-Wire Resistive Touch |
|
|
Controller |
USB signal |
||
|
Input |
Finger/Touch pen |
||
|
Light Transmission |
≥78% |
||
|
Hardness |
≥3H |
||
|
Click lifetime |
100gf, 10 million times |
||
|
Stroke lifetime |
100gf, 1 million times |
||
|
Response time |
≤15ms |
||
|
Processor System |
CPU |
Intel® 11th Generation Core™ i3/i5/i7 Mobile -U CPU |
|
|
Chipset |
SOC |
||
|
BIOS |
AMI EFI BIOS |
||
|
Memory |
Socket |
2 * DDR4-3200 MHz SO-DIMM Slot |
|
|
Max Capacity |
64GB |
||
|
Graphics |
Controller |
Intel® UHD Graphics/Intel® Iris® Xe Graphics (dependent on CPU type) |
|
|
Ethernet |
Controller |
1 * Intel® i210AT (10/100/1000/2500 Mbps, RJ45) |
|
|
Storage |
SATA |
1 * SATA3.0 Connector |
|
|
M.2 |
1 * M.2 Key-M (SSD, 2280, NVMe+SATA3.0) |
||
|
Expansion Slots |
aDoor |
2 * aDoor Expansion Slot |
|
|
aDoor Bus |
1 * aDoor Bus (16*GPIO + 4*PCIe + 1*I2C) |
||
|
Mini PCIe |
1 * Mini PCIe Slot (PCIe x1+USB 2.0, with Nano SIM Card) |
||
|
Front I/O |
USB |
2 * USB3.2 Gen2x1 (Type-A) |
|
|
Ethernet |
2 * RJ45 |
||
|
Display |
1 * DP: up to 4096x2304@60Hz |
||
|
Serial |
2 * RS232/485 (COM1/2, DB9/M, BIOS control) |
||
|
Switch |
1 * AT/ATX Mode Switch (Enable/Disable automatically power on) |
||
|
Button |
1 * Reset (hold down 0.2 to 1s to restart, 3s to clear CMOS) |
||
|
Power |
1 * Power Input Connector (12~28V) |
||
|

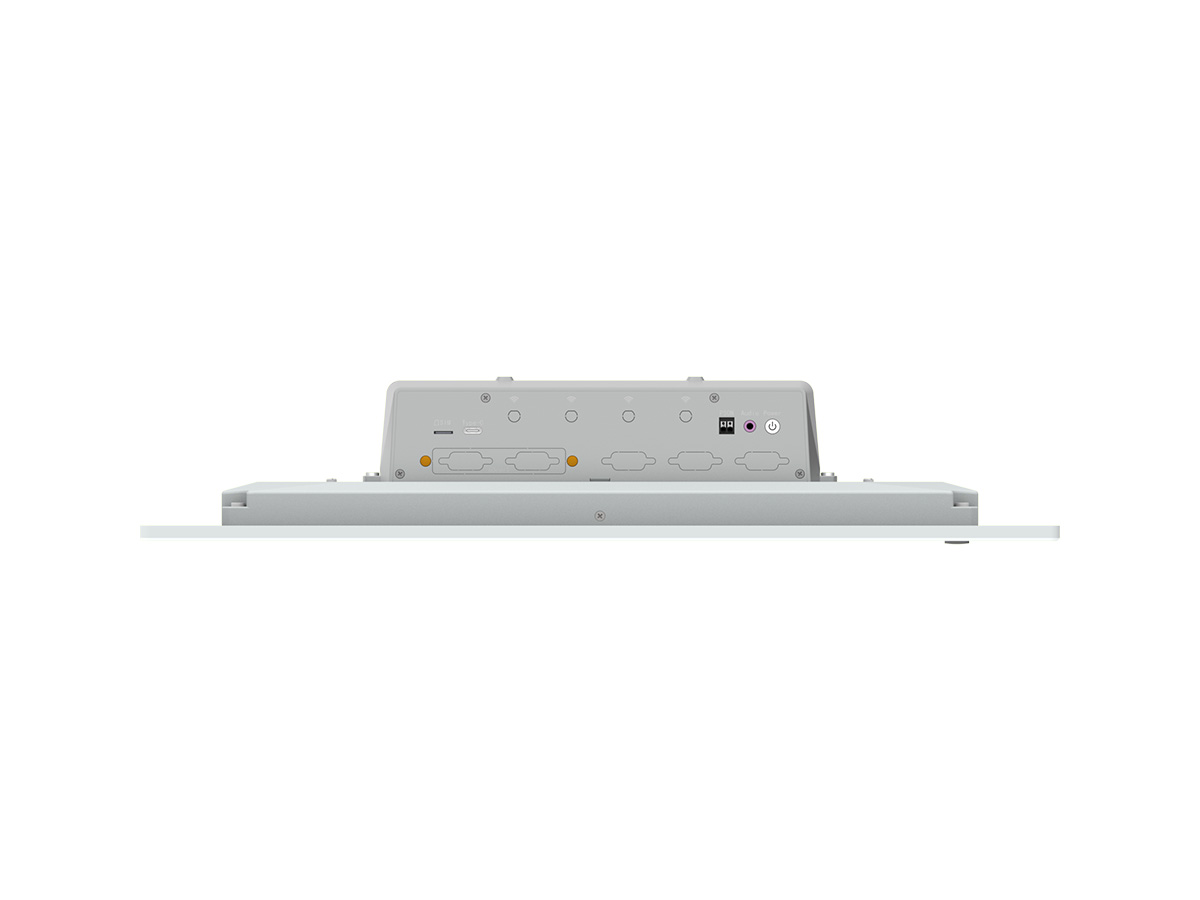

Rear I/O |
SIM |
1 * Nano SIM Card Slot (Mini PCIe module provide functional support) |
|
|
Button |
1 * Power Button+Power LED |
||
|
Audio |
1 * 3.5mm Audio Jack (LineOut+MIC, CTIA) |
||
|
Internal I/O |
Front Panel |
1 * Front Panel (wafer, 3x2Pin, PHD2.0) |
|
|
FAN |
1 * CPU FAN (4x1Pin, MX1.25) |
||
|
Serial |
1 * COM3/4 (5x2Pin, PHD2.0) |
||
|
USB |
4 * USB2.0 (2*5x2Pin, PHD2.0) |
||
|
LPC |
1 * LPC (8x2Pin, PHD2.0) |
||
|
Storage |
1 * SATA3.0 7Pin Connector |
||
|
Audio |
1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0) |
||
|
GPIO |
1 * 16bits DIO (8xDI and 8xDO, 10x2 Pin, PHD2.0) |
||
|
Power Supply |
Type |
DC |
|
|
Power Input Voltage |
12~28VDC |
||
|
Connector |
1 * 2Pin Power Input Connector (P=5.08mm) |
||
|
RTC Battery |
CR2032 Coin Cell |
||
|
OS Support |
Windows |
Windows 10 |
|
|
Linux |
Linux |
||
|
Watchdog |
Output |
System Reset |
|
|
Interval |
Programmable 1 ~ 255 sec |
||
|
Mechanical |
Enclosure Material |
Radiator/Panel: Aluminum, Box/Cover: SGCC |
|
|
Mounting |
Rack-mount, VESA, embedded |
||
|

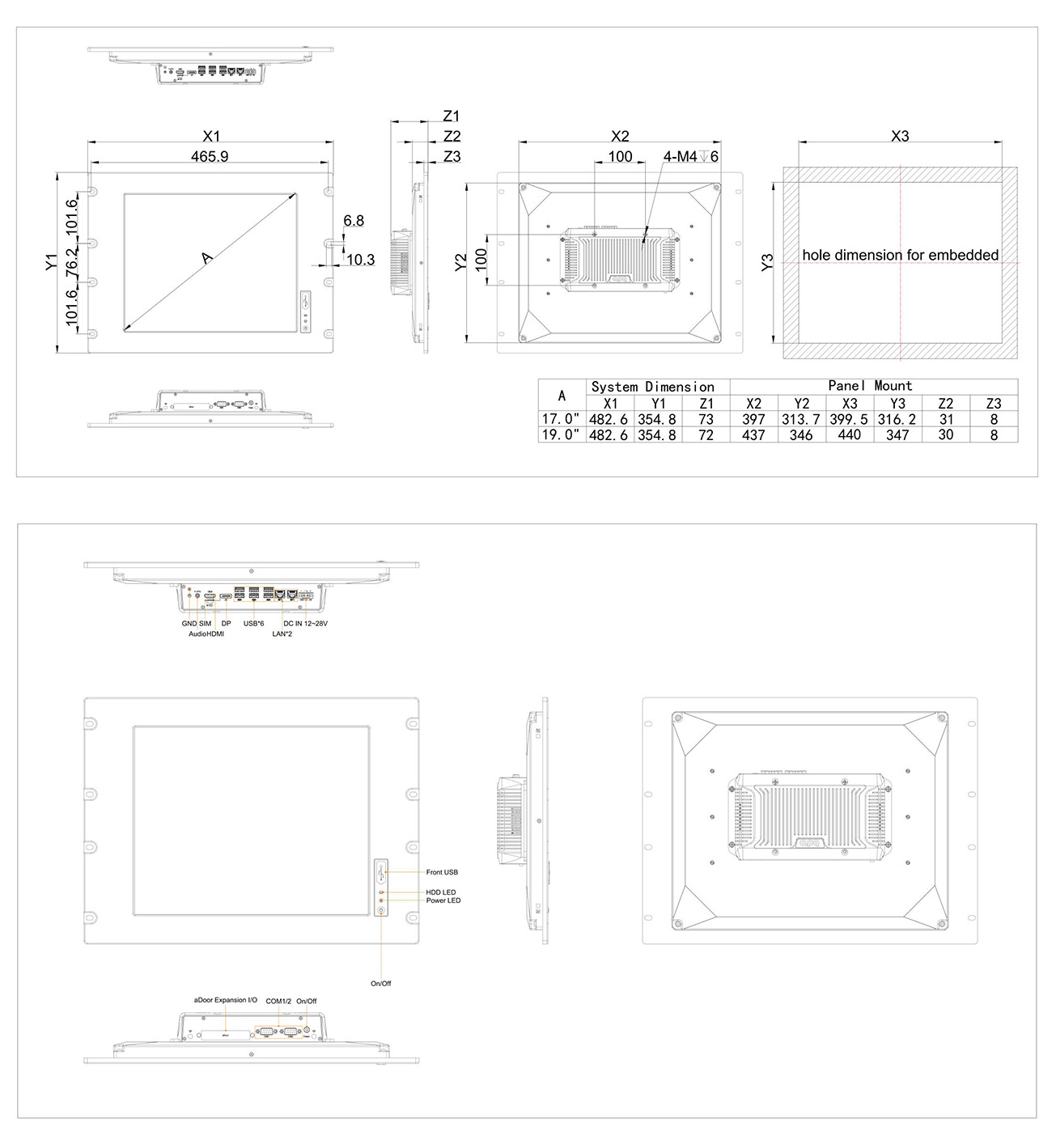

Dimensions |
482.6mm(L) * 354.8mm(W) * 87mm(H) |
482.6mm(L) * 354.8mm(W) * 86mm(H) |
|
|
Weight |
Net: 6.2kg, Total:9.2kg |
Net: 7.6kg, Total: 10.9kg |
|
|
Environment |
Heat Dissipation System |
Passive heat dissipation |
|
|
Operating Temperature |
0~50℃ |
0~50℃ |
|
|
Storage Temperature |
-20~60℃ |
-20~60℃ |
|
|
Relative Humidity |
10 to 95% RH (non-condensing) |
||
|
Vibration During Operation |
With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) |
||
|
Shock During Operation |
With SSD: IEC 60068-2-27 (15G, half sine, 11ms) |
||
