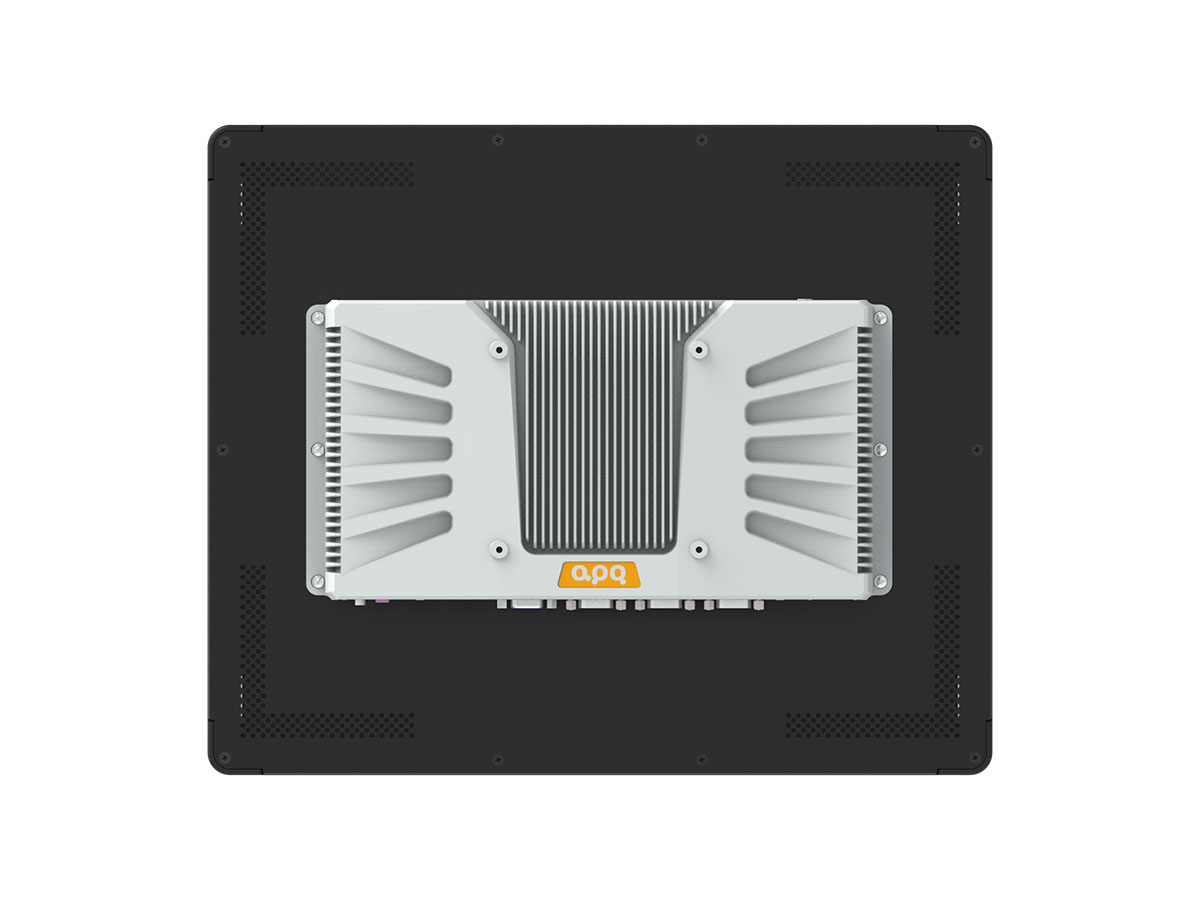

PHCL-E5M Industrial All-in-One PC
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT USProduct Description
The APQ capacitive touchscreen industrial all-in-one PC PHxxxCL-E5M series is specifically designed for industrial applications, featuring several key functionalities. Firstly, it utilizes ten-point capacitive touchscreen technology to provide a smooth touch experience, enhancing work efficiency. Secondly, this series is equipped with the low-power Intel® Celeron® J1900 CPU, ensuring efficient performance while reducing energy consumption. It also has 6 COM ports, supporting two isolated RS485 channels for smoother communication. Additionally, it offers a variety of size options, from 11.6 inches to 27 inches, to meet different display requirements. Moreover, it features an IP65-rated front panel, ensuring the product’s robustness and durability. Notably, the PHxxxCL-E5M series supports WiFi and 4G wireless expansion, offering flexible network connectivity options. It also supports various expansion modules, such as the APQ aDoor module, further extending its application scope. Most importantly, this all-in-one PC features a fanless design, operating quietly and dust-free, and supports both embedded and VESA mounting methods.
In summary, with its outstanding performance, diverse functionalities, and stable power supply system, the APQ capacitive touchscreen industrial all-in-one PC PHxxxCL-E5M series is an ideal choice for industrial control, automation equipment, self-service terminals, and other fields.
| Model | PH116CL-E5M | PH133CL-E5M | PH150CL-E5M | PH156CL-E5M | PH170CL-E5M | PH185CL-E5M | PH190CL-E5M | PH215CL-E5M | PH238CL-E5M | PH270CL-E5M | |
| LCD | Display Size | 11.6" | 13.3" | 15.0" | 15.6" | 17.0" | 18.5" | 19.0" | 21.5" | 23.8" | 27" |
| Display Type | FHD TFT-LCD | FHD TFT-LCD | XGA TFT-LCD | WXGA TFT-LCD | SXGA TFT-LCD | WXGA TFT-LCD | SXGA TFT-LCD | FHD TFT-LCD | FHD TFT-LCD | FHD TFT-LCD | |
| Max.Resolution | 1920 x 1080 | 1920 x 1080 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |
| Aspect Ratio | 16:9 | 16:9 | 4:3 | 16:9 | 5:4 | 16:9 | 5:4 | 16:9 | 16:9 | 16:9 | |
| Viewing Angle | 89/89/89/89 | 85/85/85/85 | 89/89/89/89 | 85/85/85/85 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | |
| Luminance | 220 cd/m2 | 300 cd/m2 | 350 cd/m2 | 220 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 300 cd/m2 | |
| Contrast Ratio | 800:1 | 800:1 | 1000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 3000:1 | |
| Backlight Lifetime | 15,000 Hrs | 15,000 Hrs | 50,000 Hrs | 50,000 Hrs | 50,000 Hrs | 30,000 Hrs | 30,000 Hrs | 30,000 Hrs | 30,000 Hrs | 30,000 Hrs | |
| Touchscreen | Touch Type | Projected Capacitive Touch | |||||||||
| Touch Controller | USB | ||||||||||
| Input | Finger/Capacitive Touch Pen | ||||||||||
| Light Transmission | ≥85% | ||||||||||
| Hardness | 6H | ||||||||||
| Response time | ＜10ms | ||||||||||
| Processor System | CPU | Intel® Celeron® J1900 | |||||||||
| Base Frequency | 2.00 GHz | ||||||||||
| Max Turbo Frequency | 2.42 GHz | ||||||||||
| Cache | 2MB | ||||||||||
| Total Cores/Threads | 4/4 | ||||||||||
| TDP | 10W | ||||||||||
| Chipset | SOC | ||||||||||
| BIOS | AMI UEFI BIOS | ||||||||||
| Memory | Socket | 1 * DDR3L-1333MHz SO-DIMM Slot | |||||||||
| Max Capacity | 8GB | ||||||||||
| Ethernet | Controller | 2 * Intel® i210-AT (10/100/1000 Mbps, RJ45) | |||||||||
| Storage | SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin) | |||||||||
| M.2 | 1 * M.2 Key-M Slot (support SATA SSD, 2280) | ||||||||||
| Expansion Slots | MXM/aDoor | 1 * MXM slot (LPC+GPIO, support COM/GPIO MXM card) | |||||||||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe2.0+USB2.0) | ||||||||||

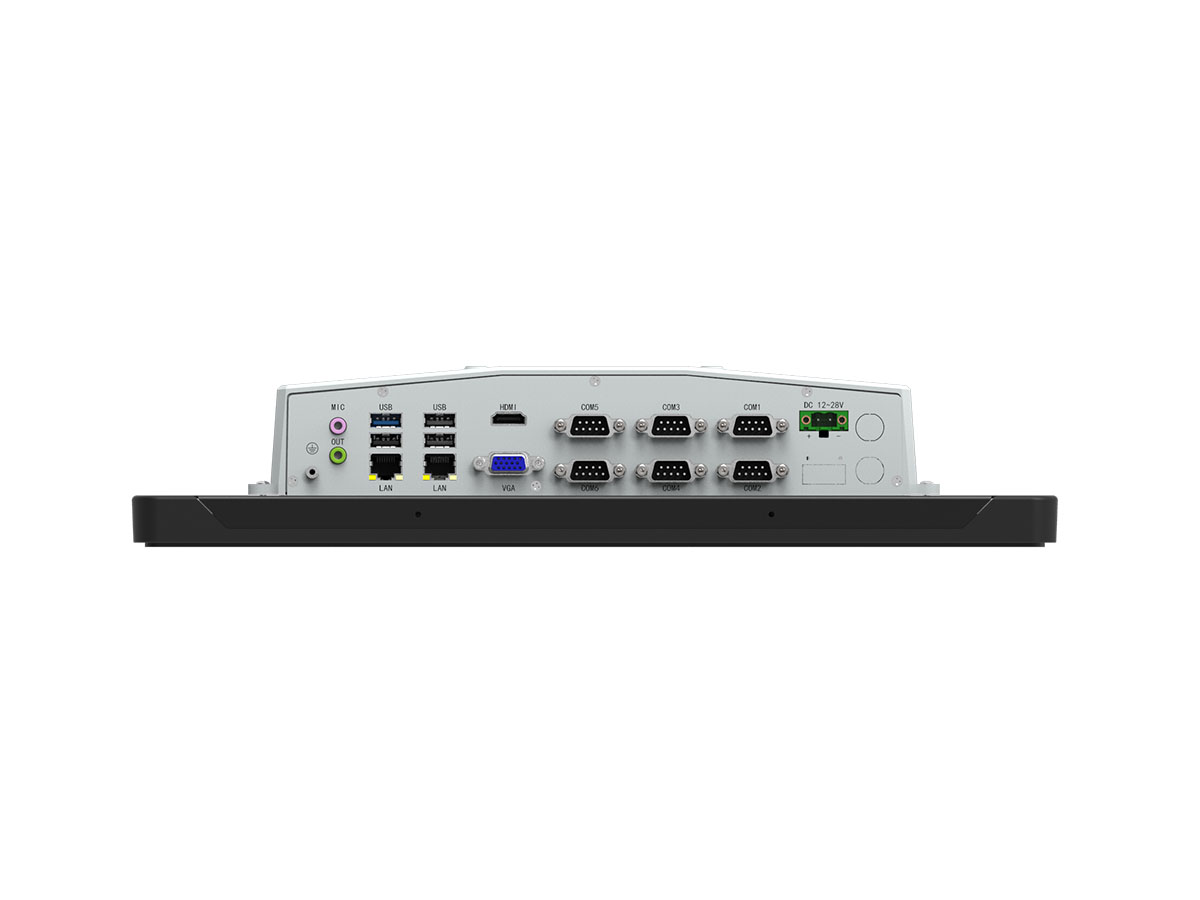

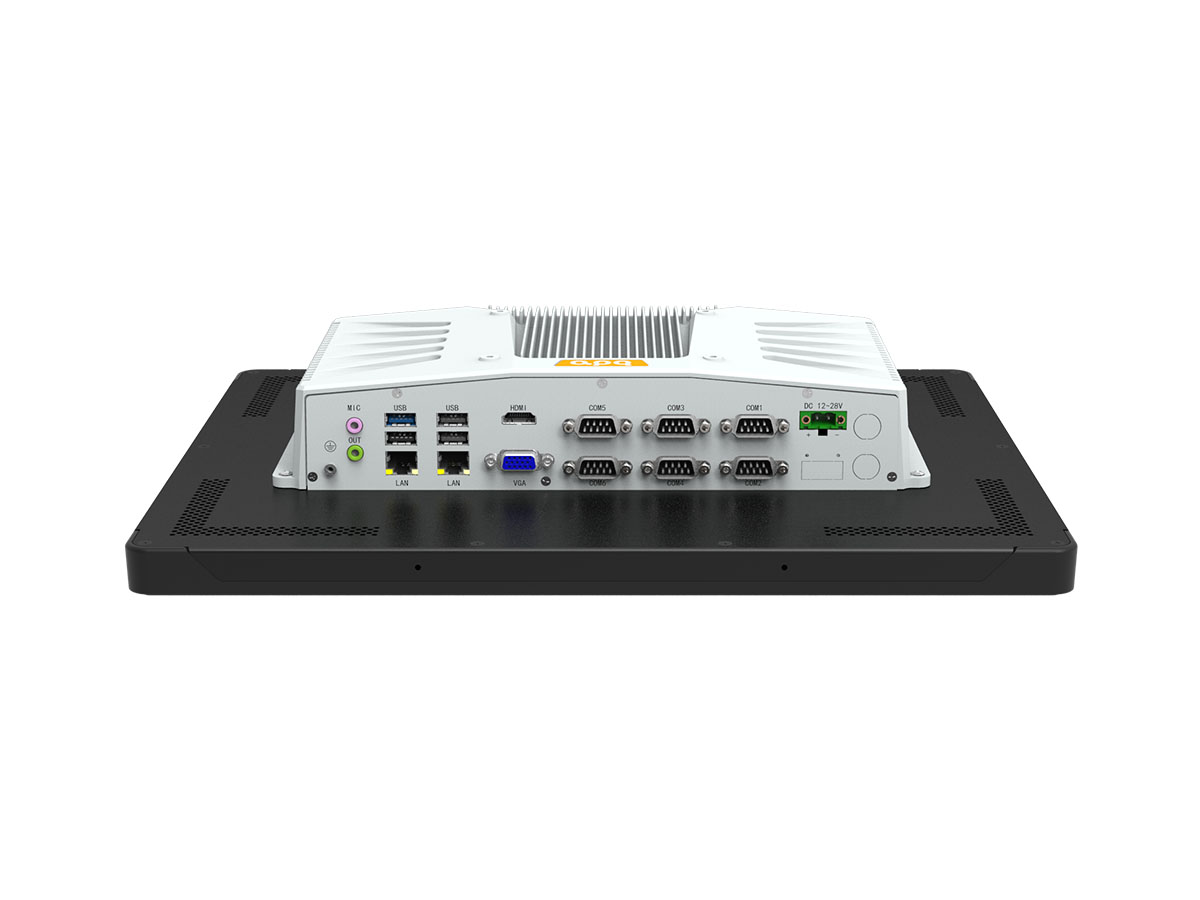

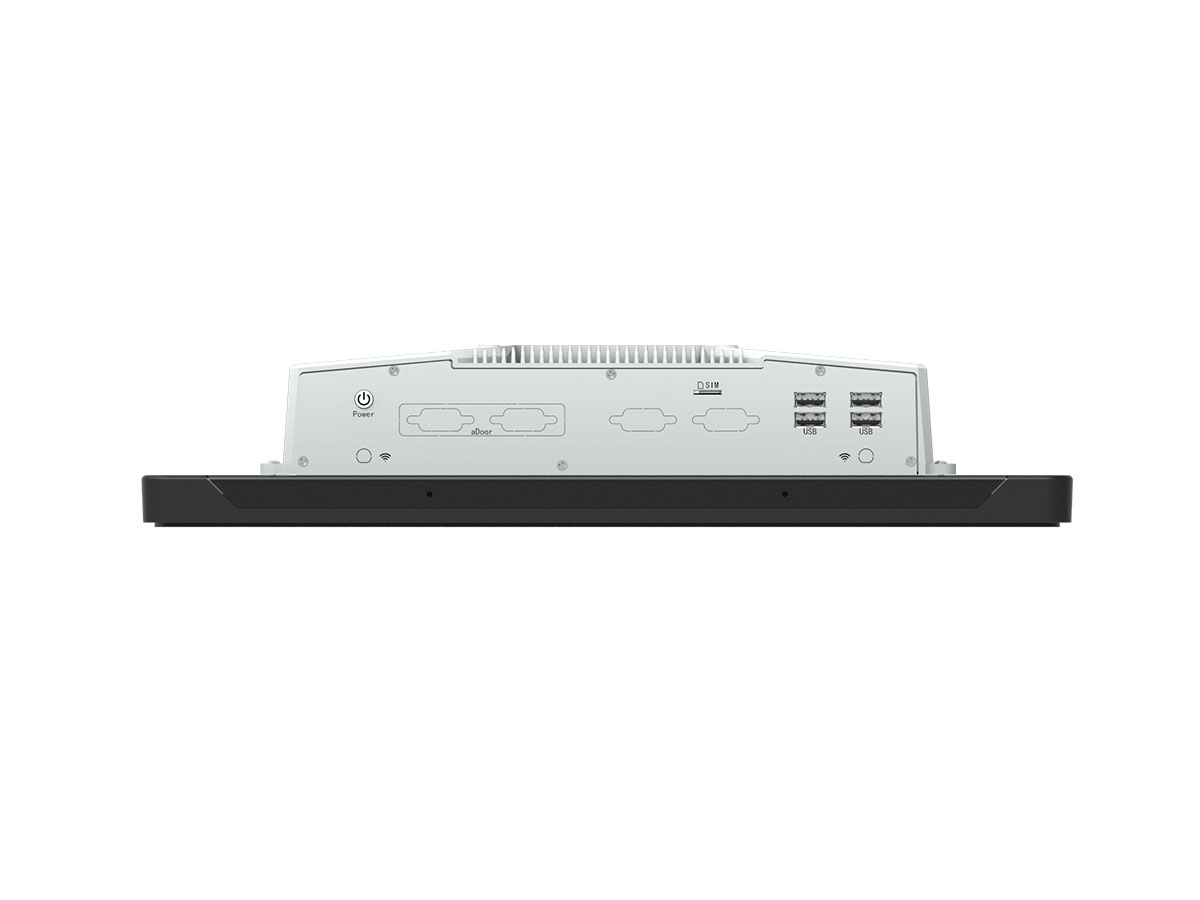

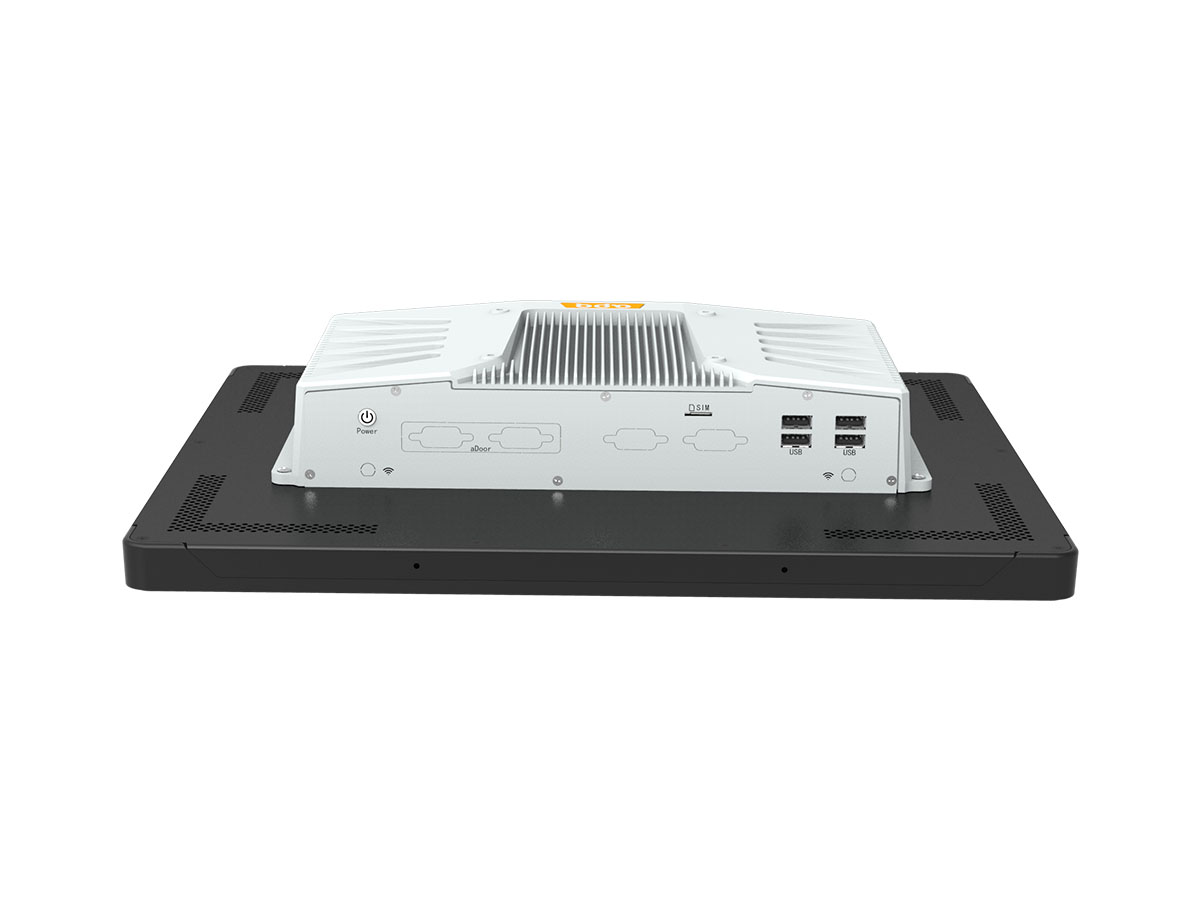

| Front I/O | USB | 1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A) |
|||||||||
| Ethernet | 2 * RJ45 | ||||||||||
| Display | 1 * VGA: max resolution up to 1920*1280@60Hz 1 * HDMI: max resolution up to 1920*1280@60Hz |
||||||||||
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
||||||||||
| Serial | 2 * RS232/485 (COM1/2, DB9/M) 4 * RS232 (COM3/4/5/6, DB9/M) |
||||||||||
| Power | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | ||||||||||
| Power Supply | Type | DC | |||||||||
| Power Input Voltage | 12~28VDC | ||||||||||
| OS Support | Windows | Windows 7/8.1/10 | |||||||||
| Linux | Linux | ||||||||||
| Watchdog | Output | System Reset | |||||||||
| Interval | Programmable 1 ~ 255 sec | ||||||||||
| Mechanical | Dimensions (L*W*H, Unit: mm) |
298.1*195.8*72.5 | 333.7*216*70.7 | 359*283*76.3 | 401.5*250.7*73.2 | 393*325.6*76.3 | 464.9*285.5*76.2 | 431*355.8*76.3 | 532.3*323.7*76.2 | 585.4*357.7*76.2 | 662.3*400.9*76.2 |
| Environment | Operating Temperature | 0~50°C | 0~50°C | 0~50°C | 0~50°C | 0~50°C | 0~50°C | 0~50°C | 0~50°C | 0~50°C | 0~50°C |
| Storage Temperature | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||||||||||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||||||||||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||||||||||
