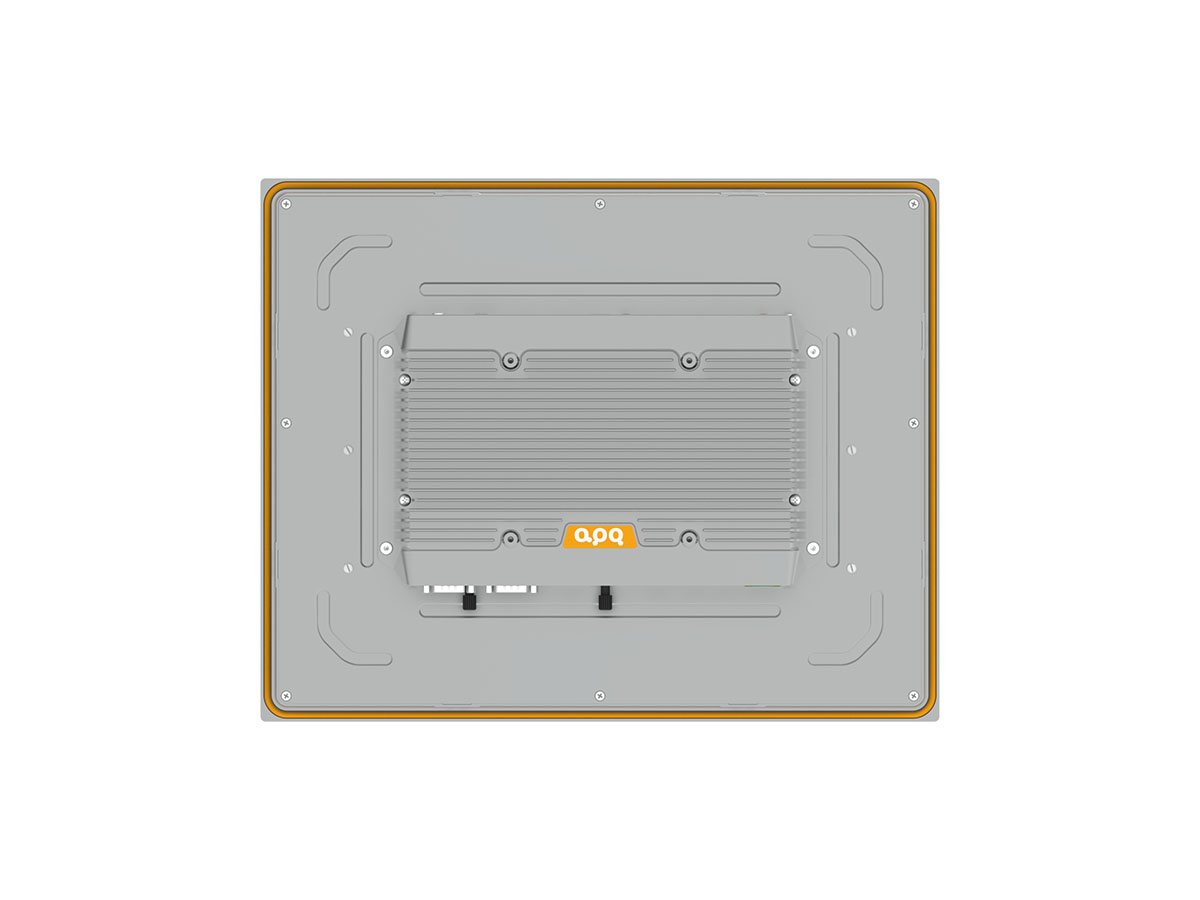

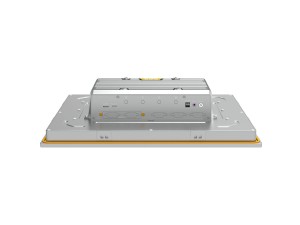

PLRQ-E6 Industrial All-in-One PC

Features:

Full-screen resistive touchscreen design
Modular design 10.1~21.5″ selectable, supports square/wide screen
Front panel meets IP65 requirements
Front panel integrates USB Type-A and signal indicator lights
Utilizes Intel® 11th-U mobile platform CPU
Integrates dual Intel® Gigabit network cards
Supports dual hard drive storage, with 2.5″ hard drives featuring a pull-out design
Supports APQ aDoor module expansion
Supports WiFi/4G wireless expansion

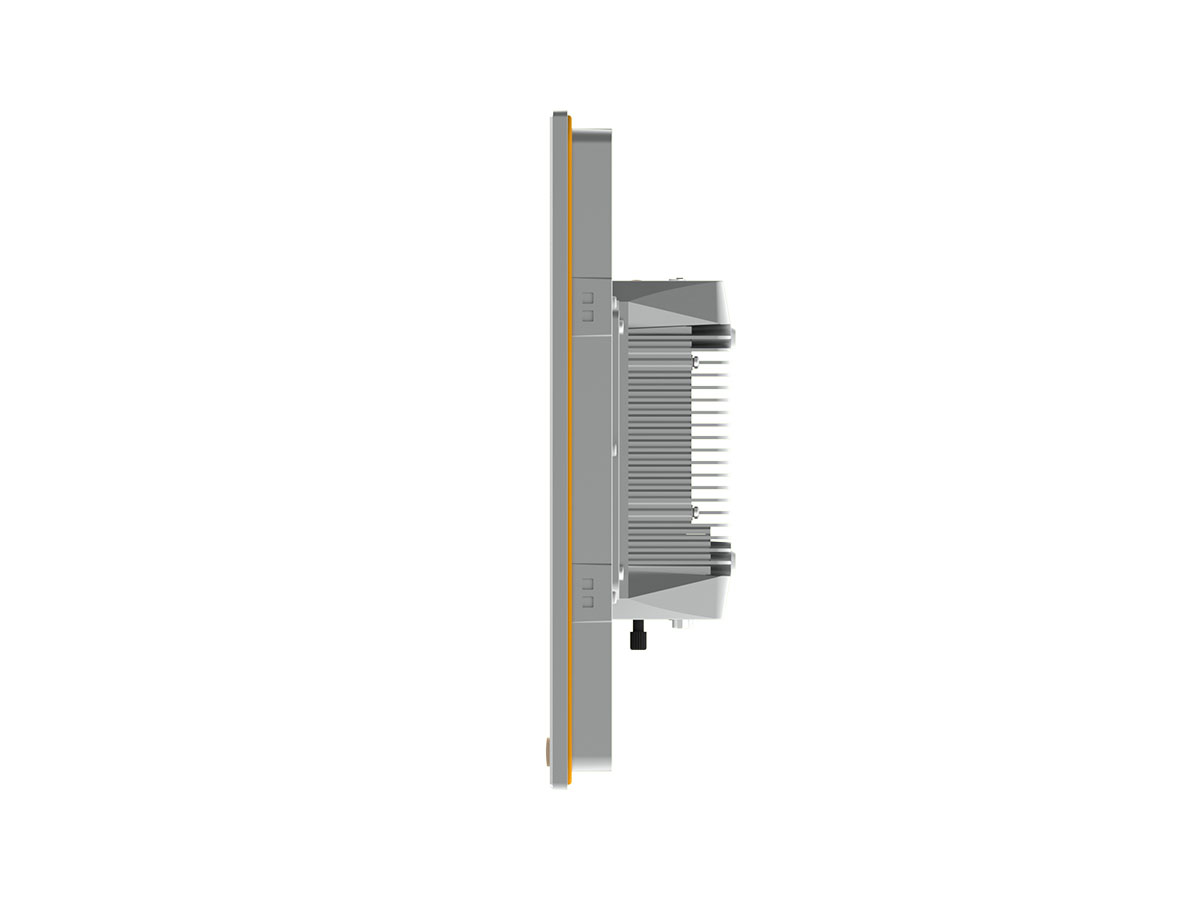

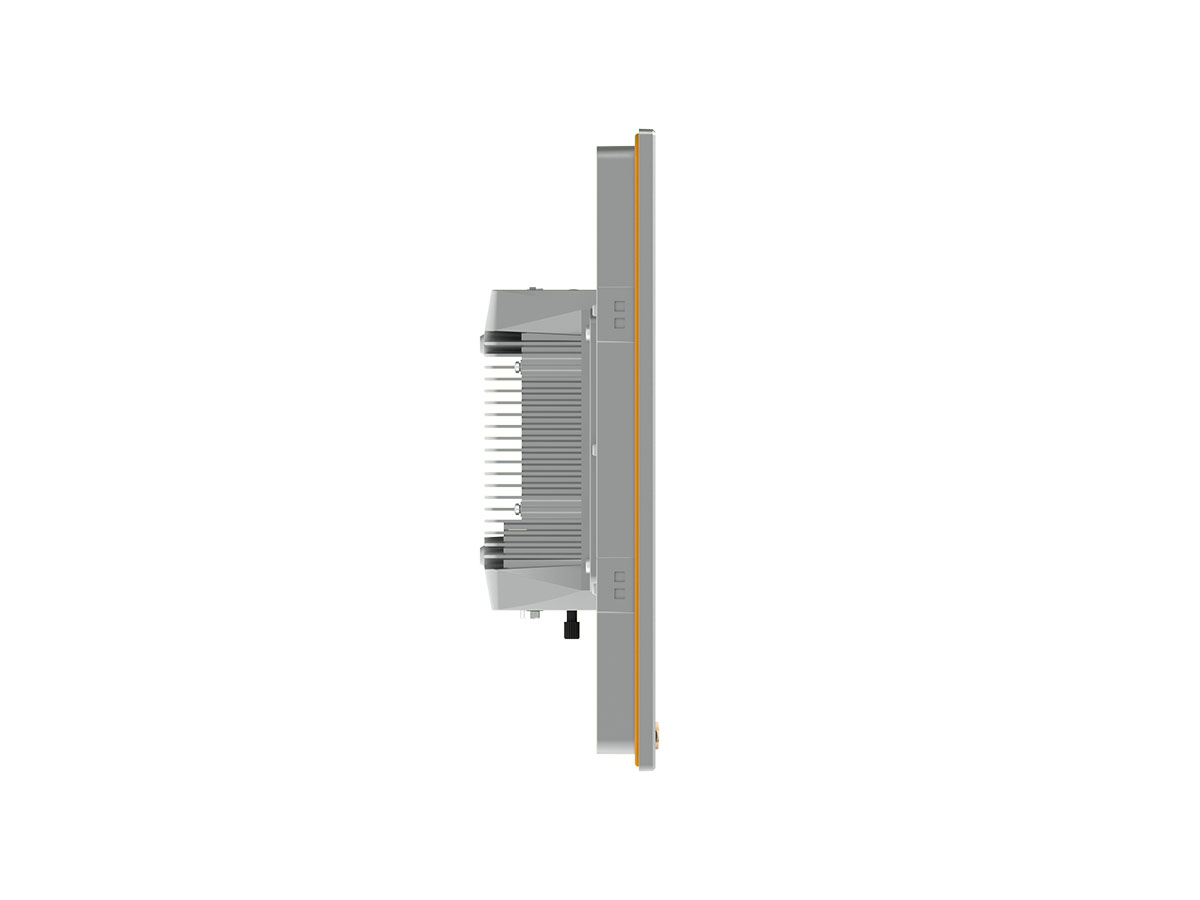

Fanless design with detachable heatsink
Embedded/VESA mounting
12~28V DC power supply

Remote management
Condition monitoring
Remote operation and maintenance
Safety Control

Product Description

The APQ Full-screen Resistive Touchscreen Industrial All-in-One PC PLxxxRQ-E6 Series 11th-U Platform is a high-performance integrated machine crafted specifically for industrial applications. Its key feature is the implementation of full-screen resistive touchscreen technology, catering to the diverse operational needs within industrial environments. The machine’s modular design supports screen sizes from 10.1 to 21.5 inches and accommodates both square and widescreen displays, meeting various industry standards and user requirements. The front panel boasts excellent dust and water resistance, fulfilling IP65 standards. Powered by the Intel® 11th-U mobile platform CPU, it ensures efficient performance while minimizing energy consumption. Integrated dual Intel® Gigabit network cards provide fast and stable network connections and data transmission capabilities. Furthermore, this all-in-one machine supports dual hard drive storage with a unique 2.5″ hard drive pull-out design for easy maintenance and upgrades. It also supports APQ aDoor module expansion and WiFi/4G wireless expansions for convenient remote management and data transmission. The adoption of a fanless design and detachable heatsink enhances system stability.

In terms of installation, it supports both embedded and VESA mounting methods, facilitating integration into various industrial settings. Powered by a 12~28V DC supply, it adapts to a wide range of power environments.

In summary, the APQ Full-screen Resistive Touchscreen Industrial All-in-One PC PLxxxRQ-E6 Series 11th-U Platform is an ideal choice for the fields of industrial automation and edge computing.

INTRODUCTION

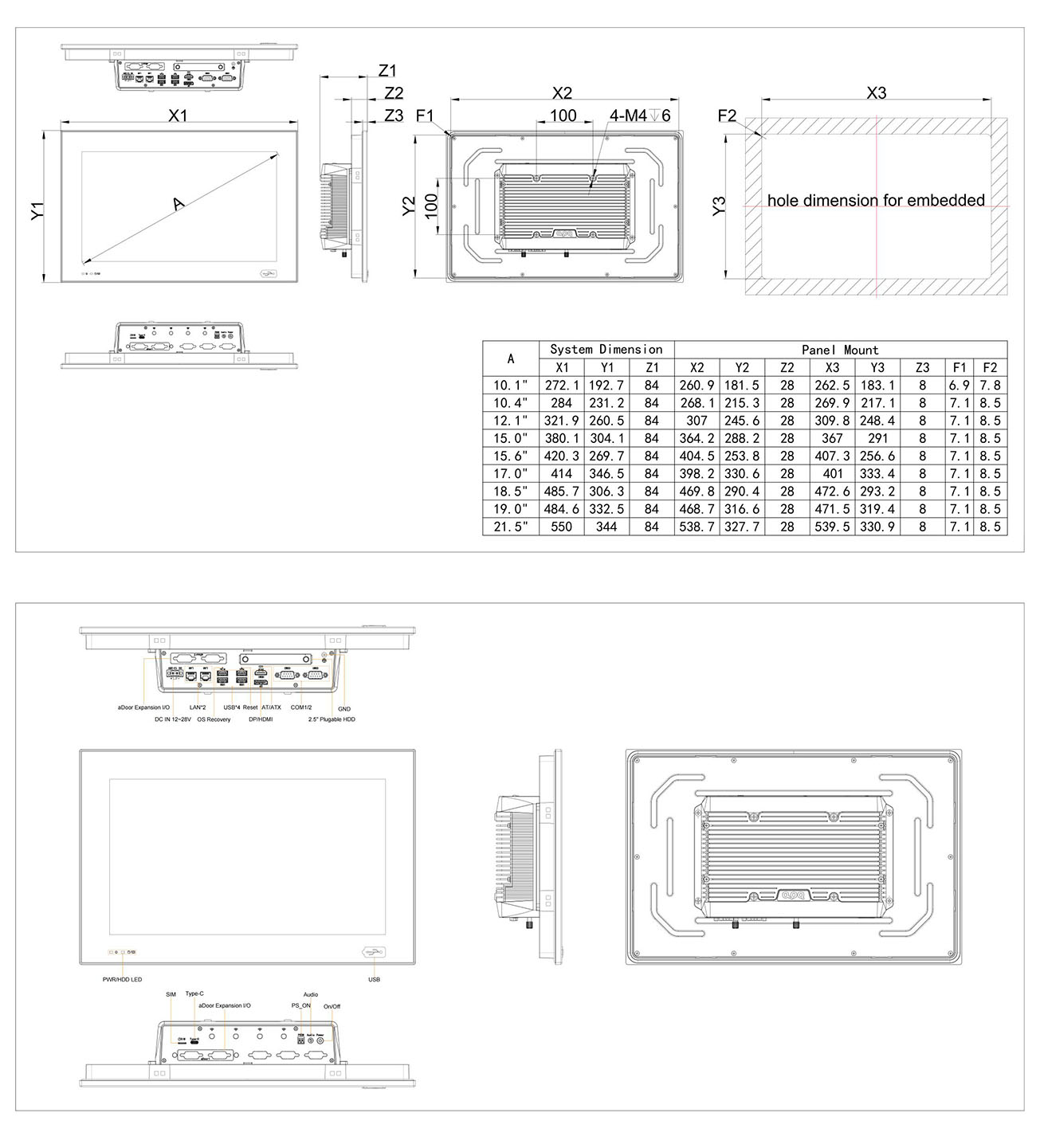

Engineering Drawing

File Download

Model		PL101RQ-E6	PL104RQ-E6	PL121RQ-E6	PL150RQ-E6	PL156RQ-E6	PL170RQ-E6	PL185RQ-E6	PL191RQ-E6	PL215RQ-E6
LCD	Display Size	10.1"	10.4"	12.1"	15.0"	15.6"	17.0"	18.5"	19.0"	21.5"
	Display Type	WXGA TFT-LCD	XGA TFT-LCD	XGA TFT-LCD	XGA TFT-LCD	FHD TFT-LCD	SXGA TFT-LCD	WXGA TFT-LCD	WXGA TFT-LCD	FHD TFT-LCD
	Max.Resolution	1280 x 800	1024 x 768	1024 x 768	1024 x 768	1920 x 1080	1280 x 1024	1366 x 768	1440 x 900	1920 x 1080
	Luminance	400 cd/m2	350 cd/m2	350 cd/m2	300 cd/m2	350 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2
	Aspect Ratio	16:10	4:3	4:3	4:3	16:9	5:4	16:9	16:10	16:9
	Viewing Angle	89/89/89/89°	88/88/88/88°	80/80/80/80°	88/88/88/88°	89/89/89/89°	85/85/80/80°	89/89/89/89°	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.2M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
	Backlight Lifetime	20,000 hr	50,000 hr	30,000 hr	70,000 hr	50,000 hr	30,000 hr	30,000 hr	30,000 hr	50,000 hr
	Contrast Ratio	800:1	1000:1	800:1	2000:1	800:1	1000:1	1000:1	1000:1	1000:1
Touchscreen	Touch Type	5-wire resistive touch
	Controller	USB signal
	Input	Finger/Touch pen
	Light Transmission	≥78%
	Hardness	≥3H
	Click lifetime	100gf, 10 million times
	Stroke lifetime	100gf, 1 million times
	Response time	≤15ms
Processor System	CPU	Intel^® 11^th Generation Core™ i3/i5/i7 Mobile -U CPU
	Chipset	SOC
	BIOS	AMI EFI BIOS
Memory	Socket	2 * DDR4-3200 MHz SO-DIMM Slot
Memory	Max Capacity	64GB
Graphics	Controller	Intel^®UHD Graphics/Intel^® Iris^® Xe Graphics (dependent on CPU type)
Ethernet	Controller	1 * Intel^® i210AT (10/100/1000/2500 Mbps, RJ45) 1 * Intel^® i219 (10/100/1000 Mbps, RJ45)
Storage	SATA	1 * SATA3.0 Connector
Storage	M.2	1 * M.2 Key-M (SSD, 2280, NVMe+SATA3.0)
Expansion Slots	aDoor	2 * aDoor Expansion Slot
	aDoor Bus	1 * aDoor Bus (16GPIO + 4PCIe + 1*I2C)
	Mini PCIe	1 * Mini PCIe Slot (PCIe x1+USB 2.0, with Nano SIM Card) 1 * Mini PCIe Slot (PCIe x1+USB 2.0)

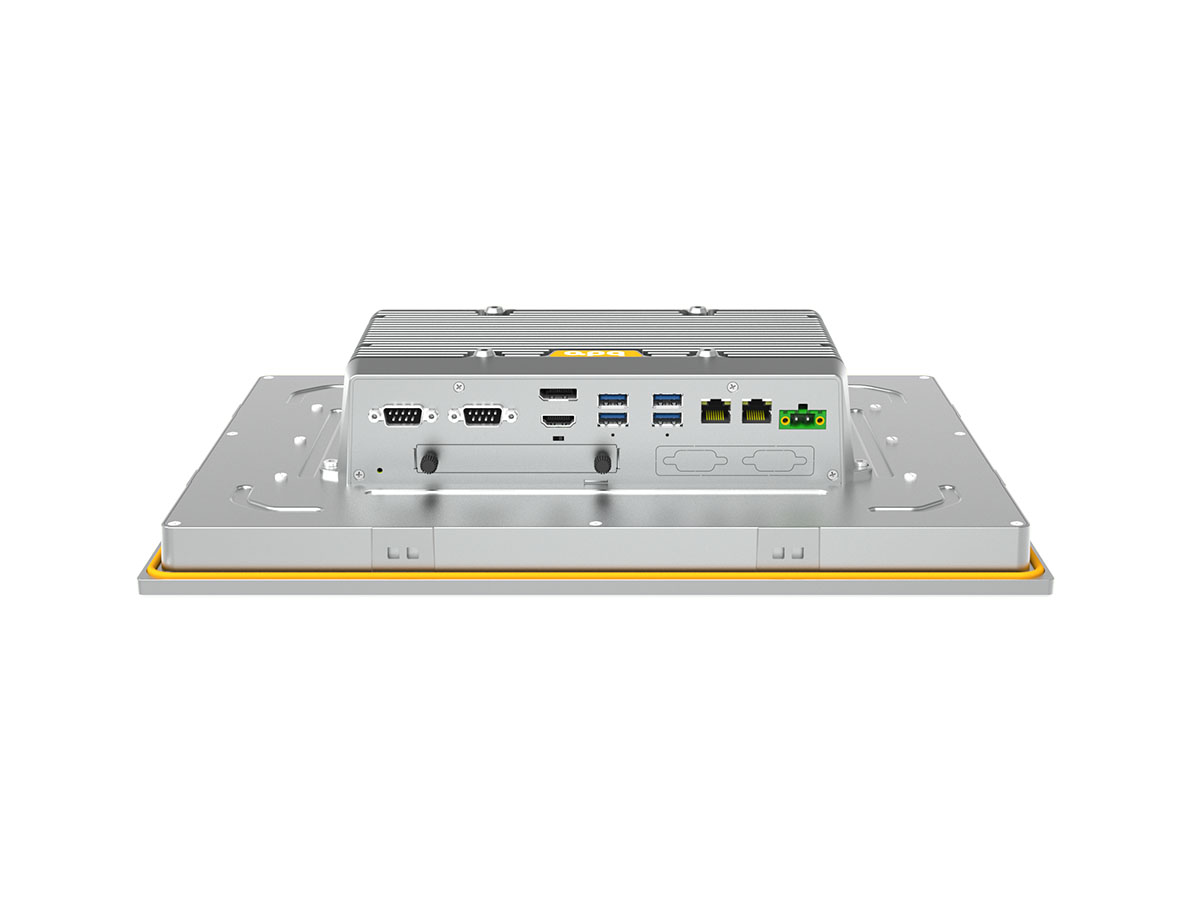

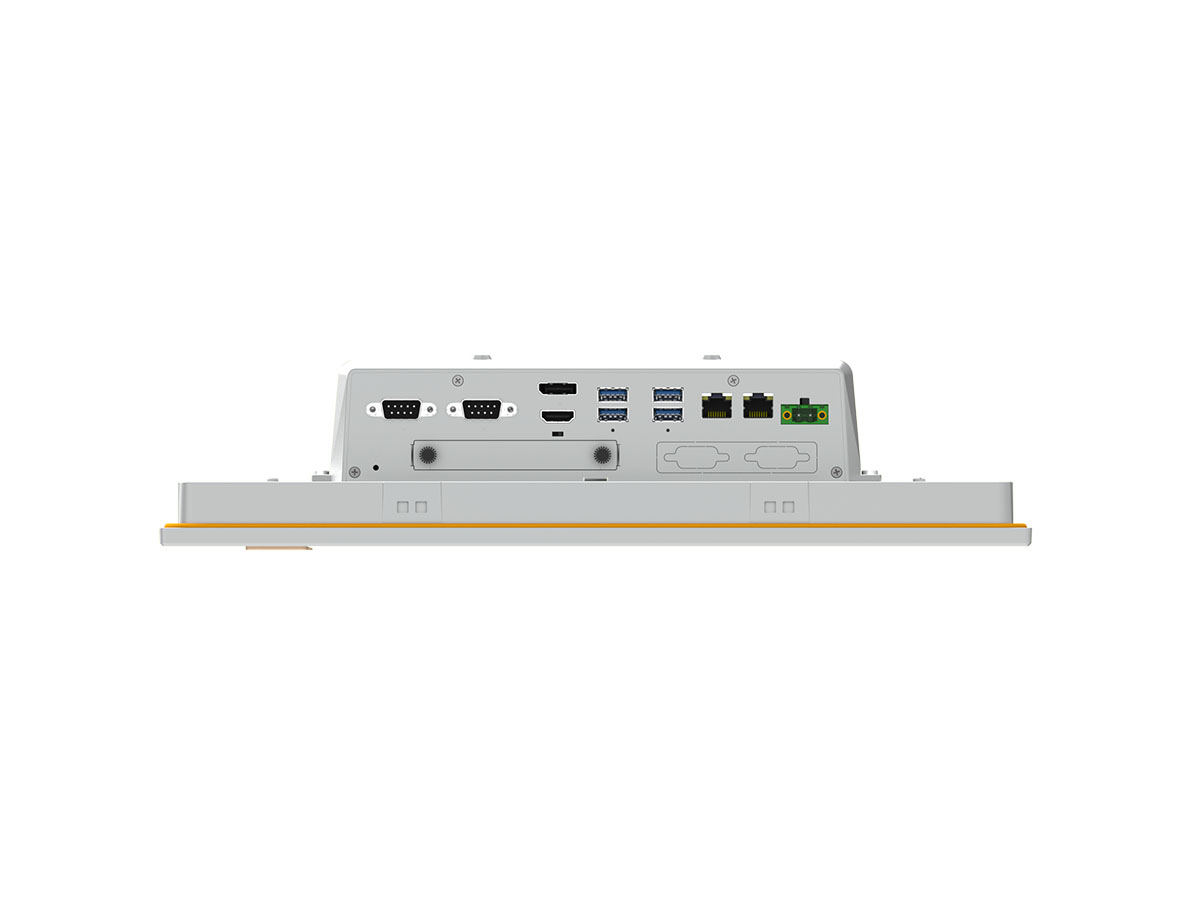

Front I/O	USB	2 * USB3.2 Gen2x1 (Type-A) 2 * USB3.2 Gen1x1 (Type-A)
	Ethernet	2 * RJ45
	Display	1 * DP: up to 4096x2304@60Hz 1 * HDMI (Type-A): up to 3840x2160@24Hz
	Serial	2 * RS232/485 (COM1/2, DB9/M, BIOS control)
	Switch	1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
	Button	1 * Reset (hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery)
	Power	1 * Power Input Connector (12~28V)

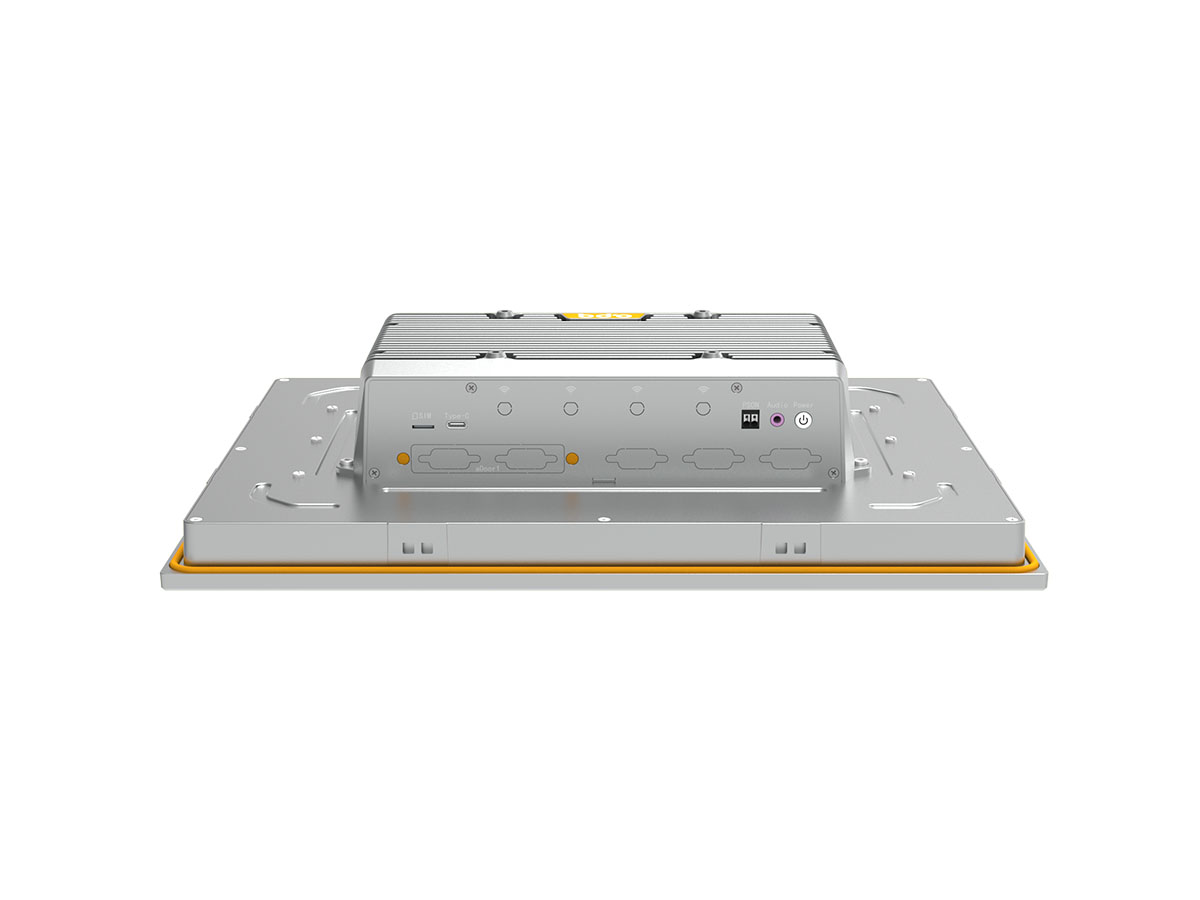

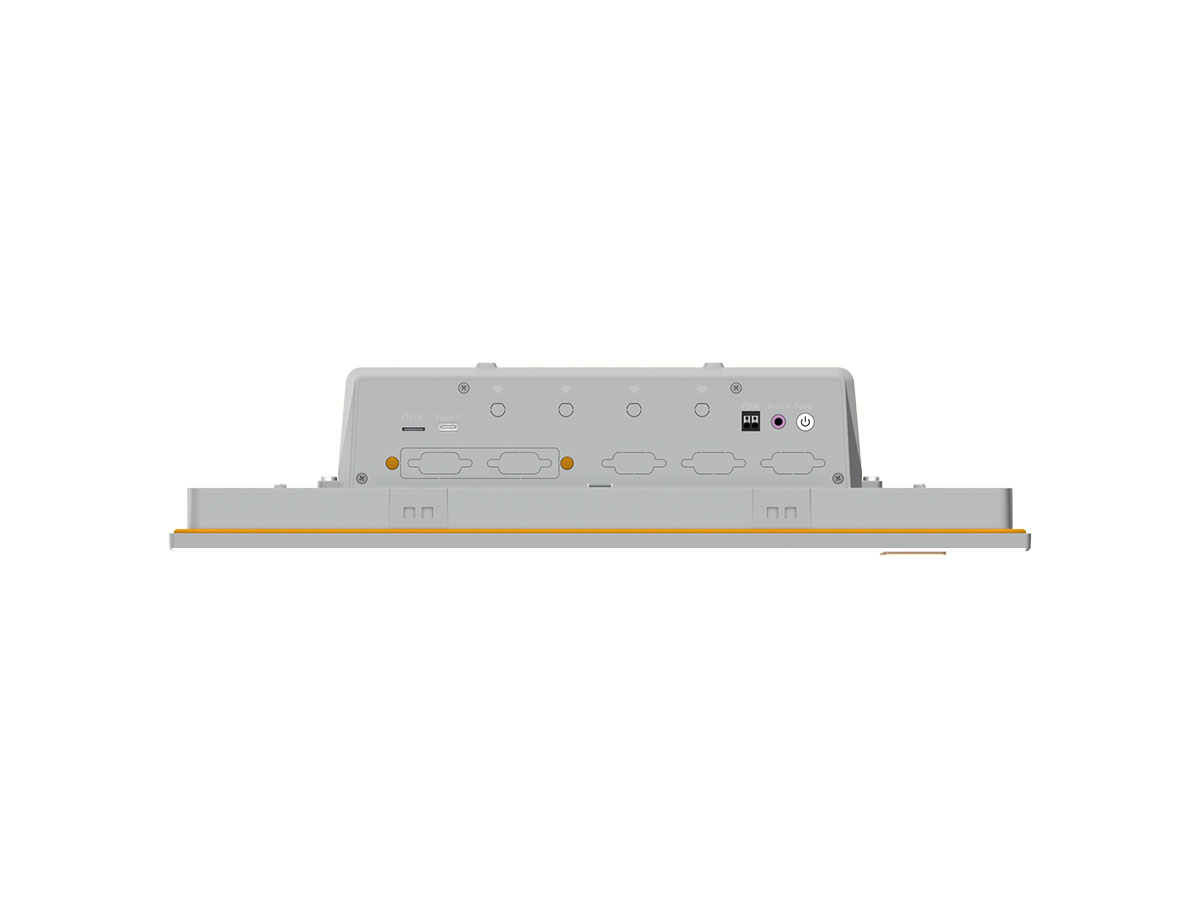

Rear I/O	SIM	1 * Nano SIM Card Slot (Mini PCIe module provide functional support)
	Button	1 * Power Button+Power LED 1 * PS_ON
	Audio	1 * 3.5mm Audio Jack (LineOut+MIC, CTIA)
Internal I/O	Front Panel	1 * Front Panel (wafer, 3x2Pin, PHD2.0)
	FAN	1 * CPU FAN (4x1Pin, MX1.25) 1 * SYS FAN (4x1Pin, MX1.25)
	Serial	1 * COM3/4 (5x2Pin, PHD2.0) 1 * COM5/6 (5x2Pin, PHD2.0)
	USB	4 * USB2.0 (2*5x2Pin, PHD2.0)
	LPC	1 * LPC (8x2Pin, PHD2.0)
	Storage	1 * SATA3.0 7Pin Connector 1 * SATA Power
	Audio	1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0)
	GPIO	1 * 16bits DIO (8xDI and 8xDO, 10x2 Pin, PHD2.0)
Power Supply	Type	DC
	Power Input Voltage	12~28VDC
	Connector	1 * 2Pin Power Input Connector (P=5.08mm)
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	Radiator/Panel: Aluminum, Box/Cover: SGCC
	Mounting	VESA, embedded
	Dimensions (L * W * H, Unit: mm)	272.1192.784	284231.284	321.9260.584	380.1304.185	420.3269.784	414346.584	485.7306.384	484.6332.584	55034484
	Weight	Net: 3.2Kg, Total:4.5Kg	Net: 3.4Kg, Total:4.7Kg	Net: 3.6Kg, Total:4.9Kg	Net: 5Kg, Total:6.6Kg	Net: 4.9Kg, Total:6.5Kg	Net: 5.7Kg, Total:7.3Kg	Net: 5.6Kg, Total:7.2Kg	Net: 6.5Kg, Total:8.1Kg	Net: 7Kg, Total:8.6Kg
Environment	Heat Dissipation System	Passive heat dissipation
	Operating Temperature	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	0~50℃	0~50℃	0~50℃	0~60℃
	Storage Temperature	-20~60℃	-20~70℃	-30~80℃	-30~70℃	-30~70℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
	Relative Humidity	10 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
