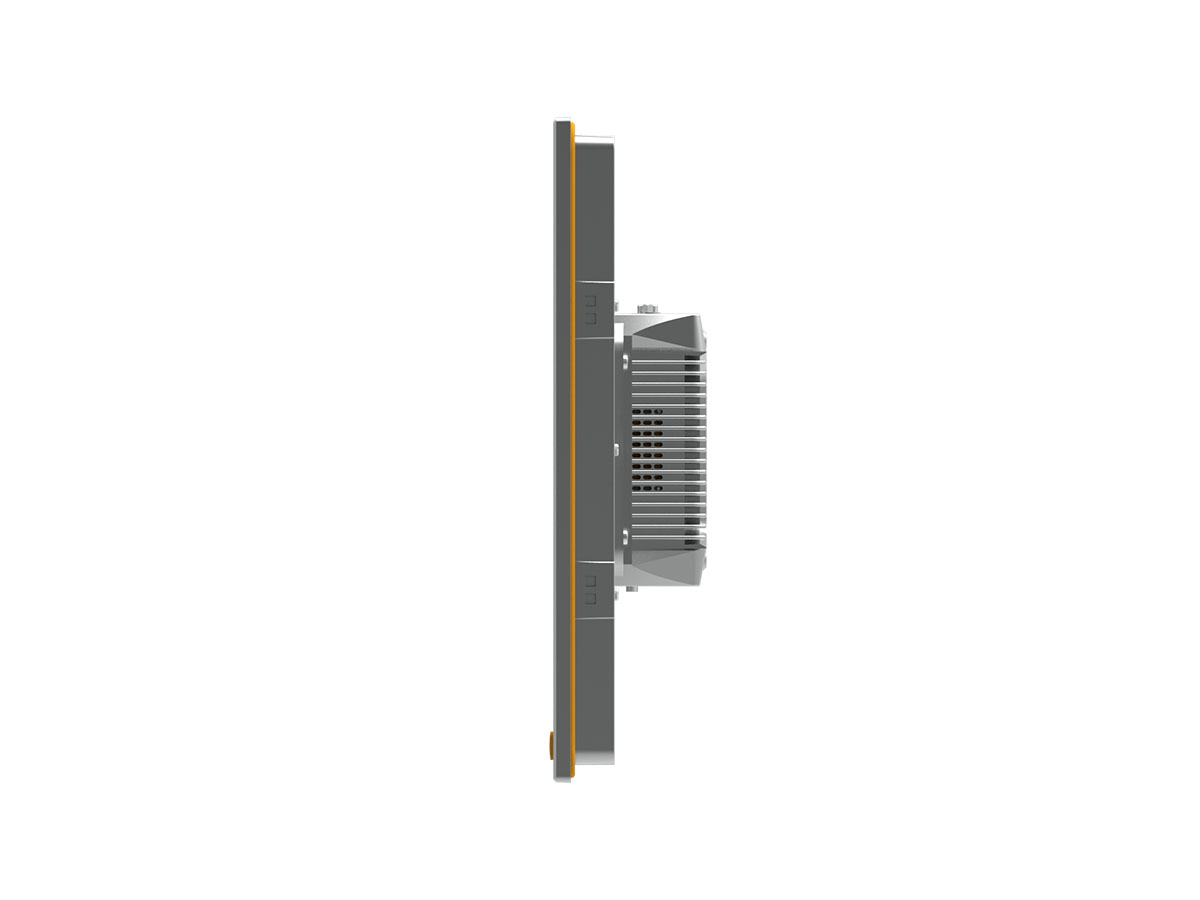

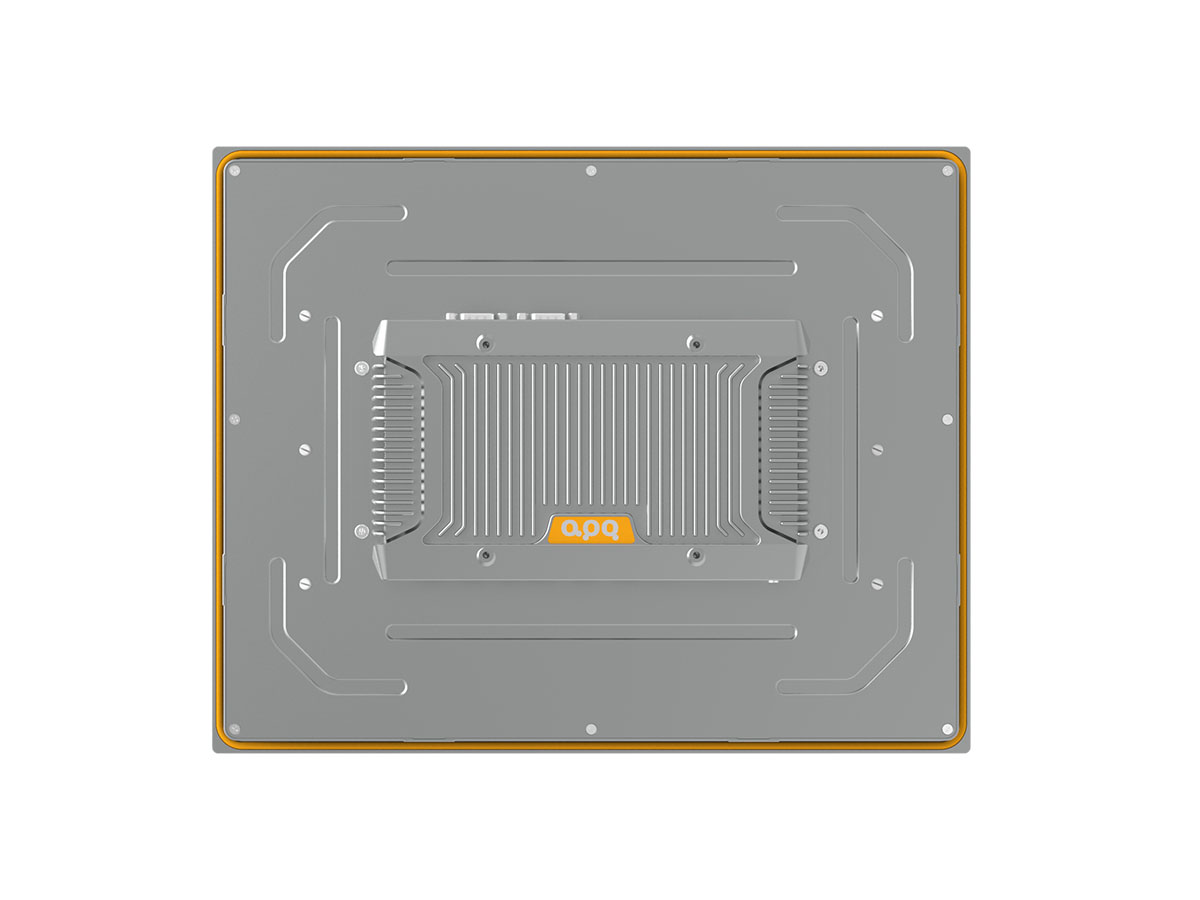

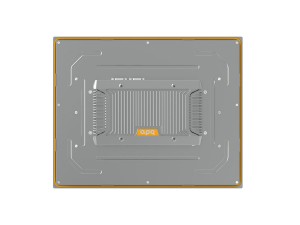

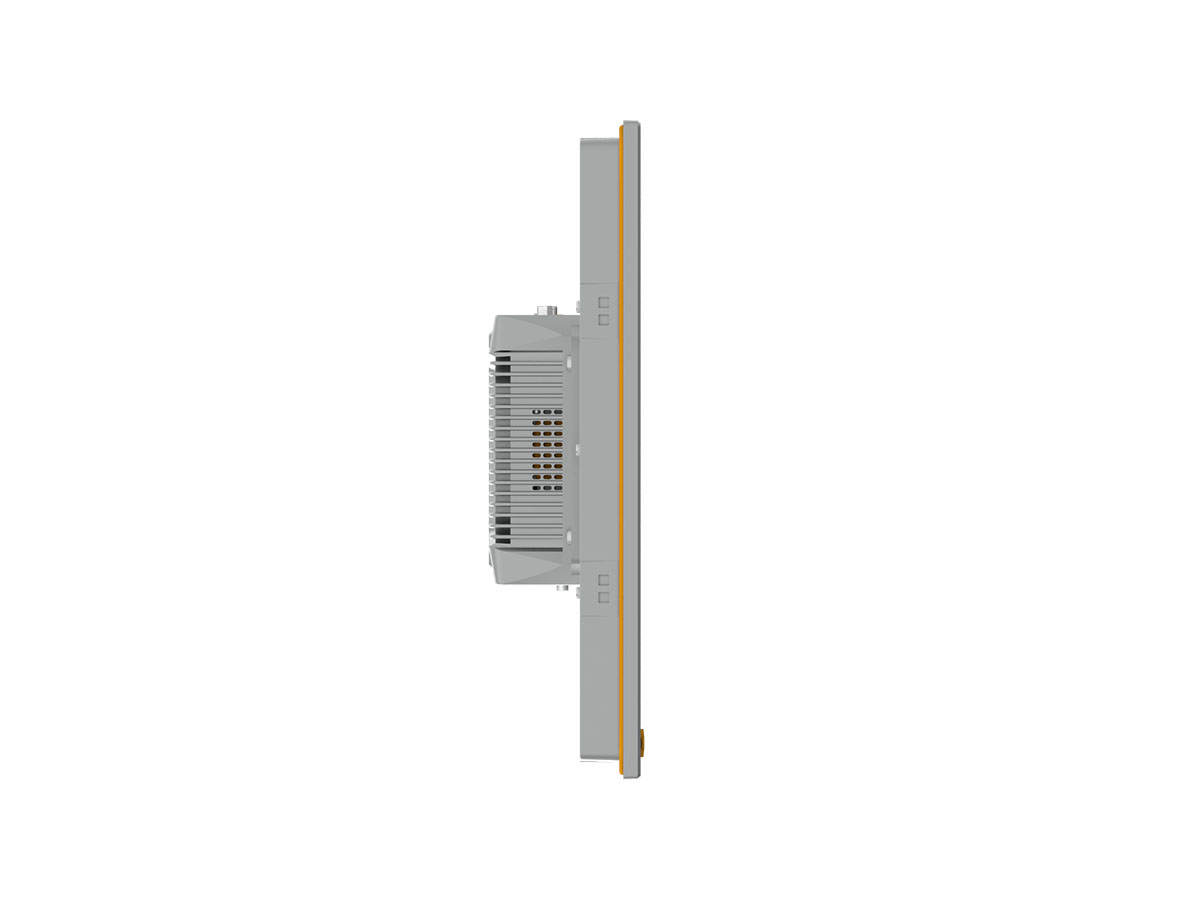

PLRQ-E5S Industrial All-in-One PC

Features:

Full-screen resistive touch design
Modular design with options ranging from 10.1″ to 21.5″, supporting both square and widescreen formats
Front panel compliant with IP65 standards
Front panel integrated with USB Type-A and signal indicator lights
Equipped with Intel® J6412/N97/N305 low-power CPUs
Integrated dual Intel® Gigabit network cards
Dual hard drive storage support
Supports APQ aDoor module expansion
Supports WiFi/4G wireless expansion
Fanless design
Embedded/VESA mounting
12~28V DC power supply

Remote management
Condition monitoring
Remote operation and maintenance
Safety Control

Product Description

The APQ Full-screen Resistive Touchscreen Industrial All-in-One PC PLxxxRQ-E5S Series J6412 Platform is crafted specifically for industrial applications, featuring outstanding performance and a wide range of functionalities. Equipped with full-screen resistive touchscreen technology, it provides a stable and accurate touch experience, meeting the operational demands of industrial environments. The modular design supports screen sizes from 10.1 to 21.5 inches, accommodating diverse requirements and supporting both square and widescreen displays. The front panel, complying with IP65 standards, offers dust and water resistance to withstand harsh conditions. Powered by the Intel® Celeron® J6412 low-power CPU, it ensures efficiency and energy savings, while integrated dual Intel® Gigabit network cards guarantee high-speed and stable network connections. Dual hard drive support meets extensive data storage needs. The APQ aDoor module expansion allows for custom configurations based on application requirements. WiFi/4G wireless expansion enables remote management and data transmission. The fanless design enhances system stability. With embedded/VESA mounting options, it is easily integrated. Powered by 12~28V DC, it adapts to various power environments.

In summary, the APQ Full-screen Resistive Touchscreen Industrial All-in-One PC PLxxxRQ-E5S Series J6412 Platform, with its exceptional performance and versatile functionalities, is an ideal choice for the industrial automation sector.

INTRODUCTION

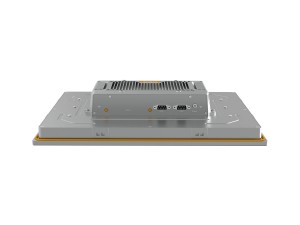

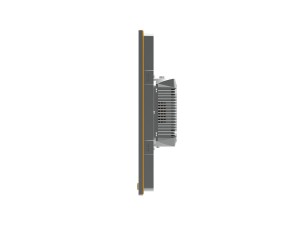

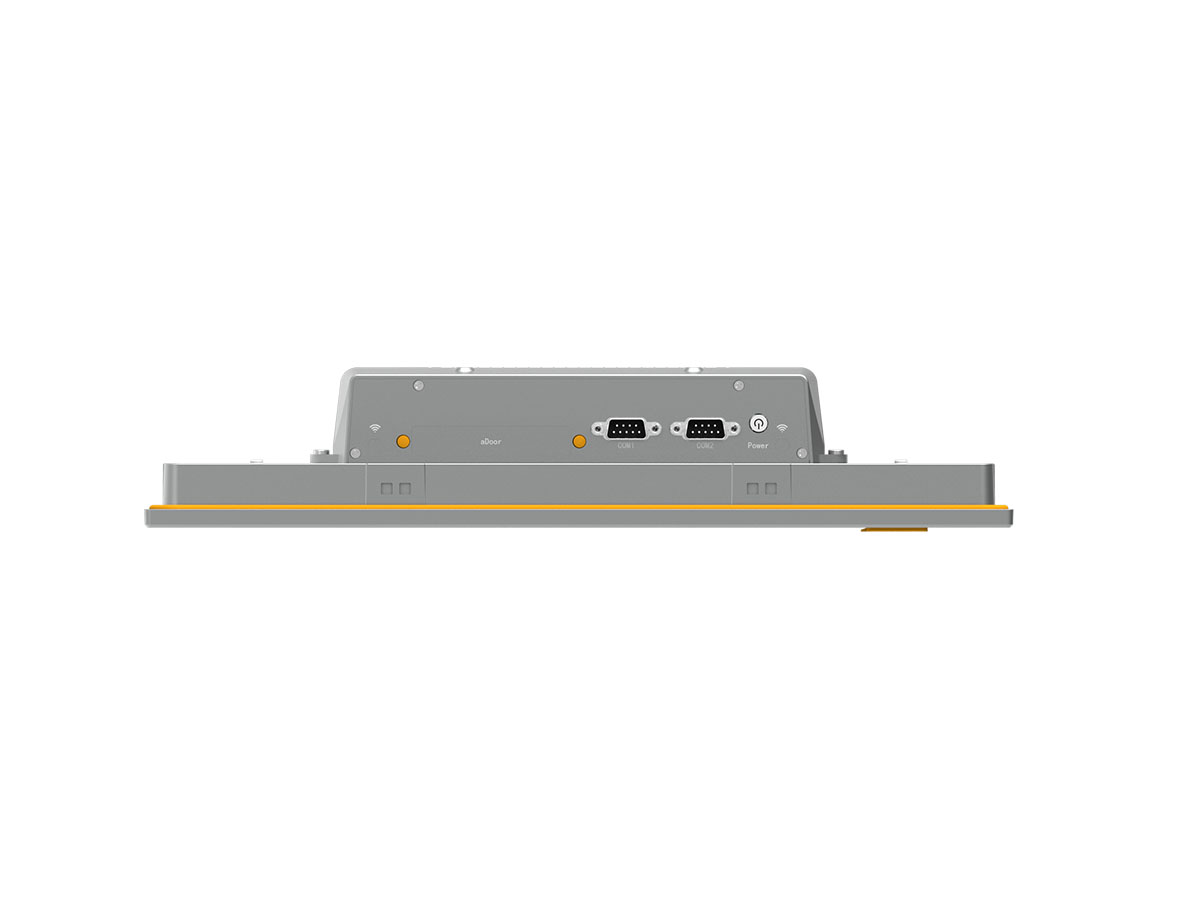

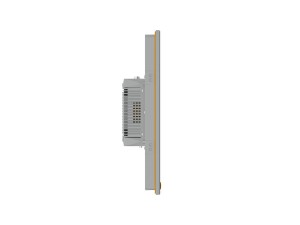

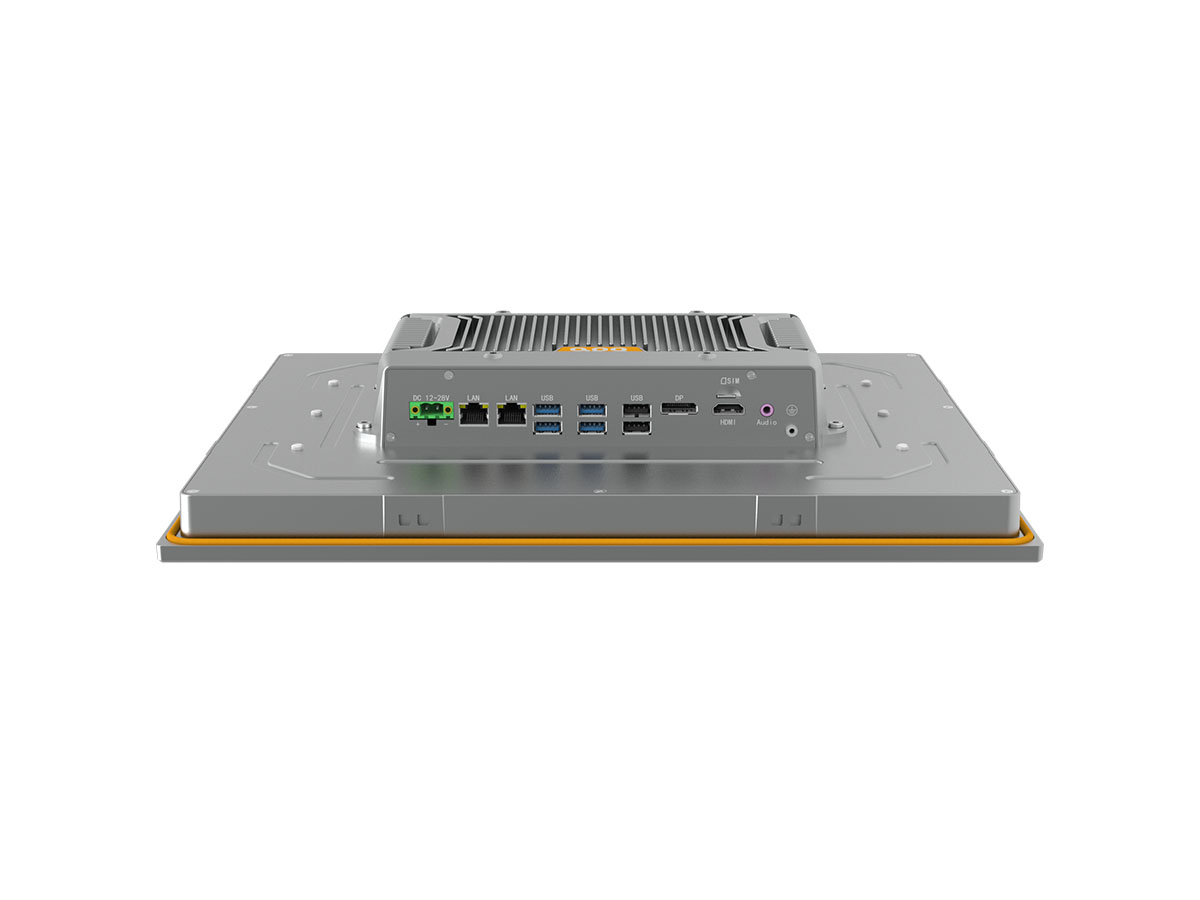

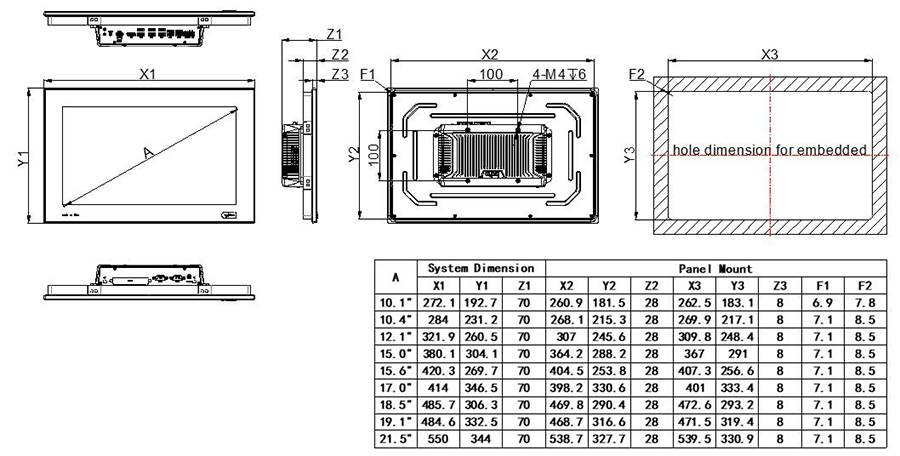

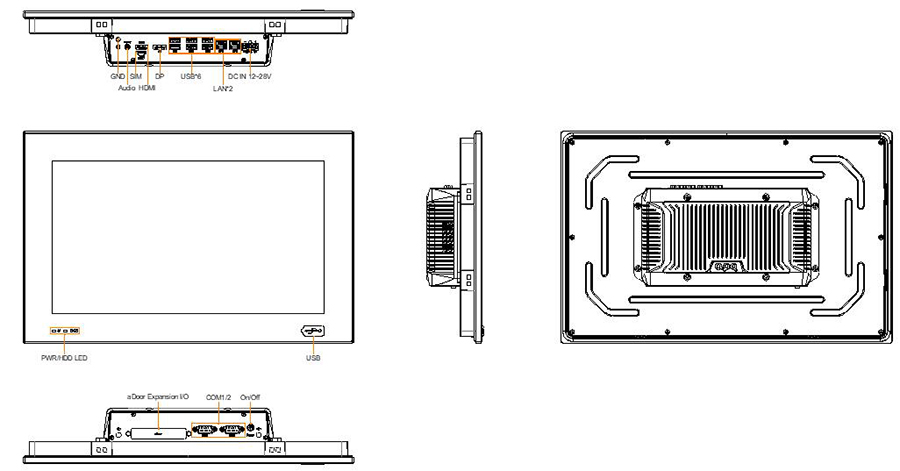

Engineering Drawing

File Download

Model		PL101RQ-E5S	PL104RQ-E5S	PL121RQ-E5S	PL150RQ-E5S	PL156RQ-E5S	PL170RQ-E5S	PL185RQ-E5S	PL191RQ-E5S	PL215RQ-E5S
LCD	Display Size	10.1"	10.4"	12.1"	15.0"	15.6"	17.0"	18.5"	19.0"	21.5"
	Max.Resolution	1280 x 800	1024 x 768	1024 x 768	1024 x 768	1920 x 1080	1280 x 1024	1366 x 768	1440 x 900	1920 x 1080
	Luminance	400 cd/m2	350 cd/m2	350 cd/m2	300 cd/m2	350 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2
	Aspect Ratio	16:10	4:3	4:3	4:3	16:9	5:4	16:9	16:10	16:9
	Viewing Angle	89/89/89/89°	88/88/88/88°	80/80/80/80°	88/88/88/88°	89/89/89/89°	85/85/80/80°	89/89/89/89°	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.2M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
	Backlight Lifetime	20,000 hr	50,000 hr	30,000 hr	70,000 hr	50,000 hr	30,000 hr	30,000 hr	30,000 hr	50,000 hr
	Contrast Ratio	800:1	1000:1	800:1	2000:1	800:1	1000:1	1000:1	1000:1	1000:1
Touchscreen	Touch Type	5-Wire Resistive Touch
	Controller	USB signal
	Input	Finger/Touch pen
	Light Transmission	≥78%
	Hardness	≥3H
	Click lifetime	100gf, 10 million times
	Stroke lifetime	100gf, 1 million times
	Response time	≤15ms
Processor System	CPU	Intel^® Elkhart Lake J6412			Intel^® Alder Lake N97			Intel^® Alder Lake N305
	Base Frequency	2.00 GHz			2.0 GHz			1 GHz
	Max Turbo Frequency	2.60 GHz			3.60 GHz			3.8GHz
	Cache	1.5MB			6MB			6MB
	Total Cores/Threads	4/4			4/4			8/8
	TDP	10W
	Chipset	SOC
	BIOS	AMI UEFI BIOS
Memory	Socket	LPDDR4 3200 MHz (Onboard)
Memory	Capacity	8GB
Graphics	Controller	Intel^® UHD Graphics
Ethernet	Controller	2 * Intel^® i210-AT (10/100/1000 Mbps, RJ45)
Storage	SATA	1 * SATA3.0 Connector (2.5-inch hard disk with 15+7Pin)
Storage	M.2	1 * M.2 Key-M Slot (SATA SSD, 2280)
Expansion Slots	aDoor	1 * aDoor
Expansion Slots	Mini PCIe	1 * Mini PCIe Slot (PCIe2.0x1+USB2.0)

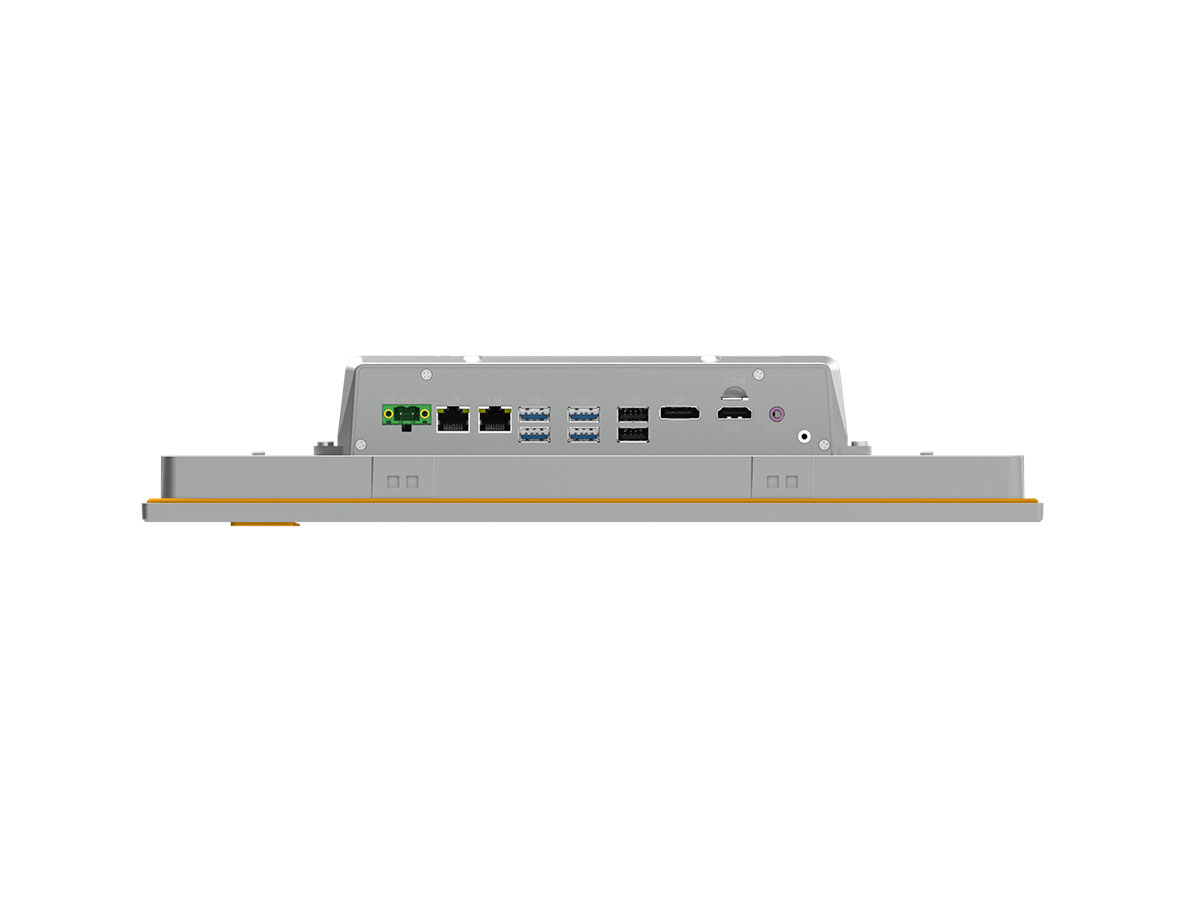

Front I/O	USB	4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A)
	Ethernet	2 * RJ45
	Display	1 * DP++: max resolution up to 4096x2160@60Hz 1 * HDMI (Type-A): max resolution up to 2048x1080@60Hz
	Audio	1 * 3.5mm Jack (Line-Out + MIC, CTIA)
	SIM	1 * Nano-SIM Card slot (Mini PCIe module provides functional support)
	Power	1 * Power Input Connector (12~28V)

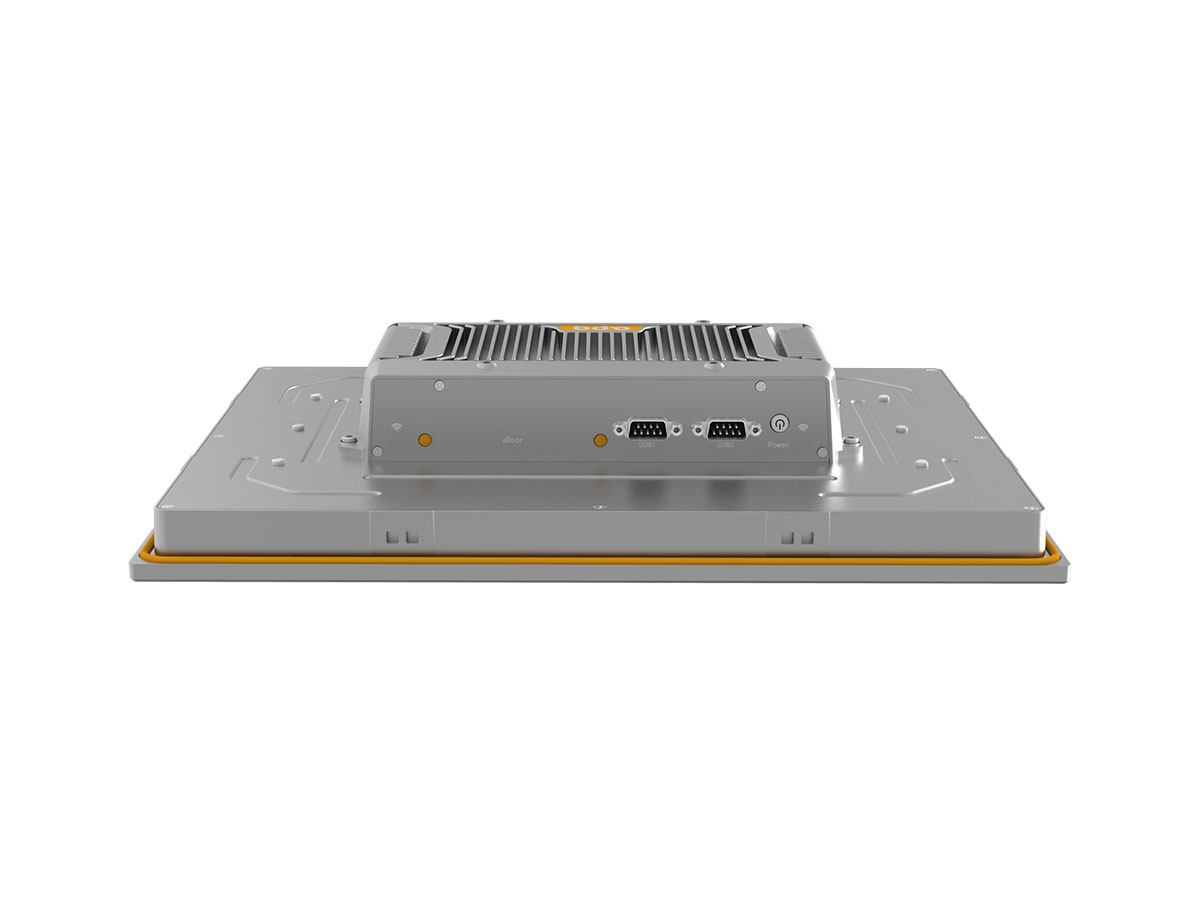

Rear I/O	Button	1 * Power Button with Power LED
Rear I/O	Serial	2 * RS232/485 (COM1/2, DB9/M, BIOS control)
Internal I/O	Front Panel	1 * Front Panel (3x2Pin, PHD2.0)
	FAN	1 * SYS FAN (4x1Pin, MX1.25)
	Serial	2 * COM (JCOM3/4, 5x2Pin, PHD2.0) 2 * COM (JCOM5/6, 5x2Pin, PHD2.0)
	USB	2 * USB2.0 (F_USB2_1, 5x2Pin, PHD2.0) 2 * USB2.0 (F_USB2_2, 5x2Pin, PHD2.0)
	Display	1 * LVDS/eDP (default LVDS, wafer, 25x2Pin 1.00mm)
	Audio	1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0)
	GPIO	1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0)
	LPC	1 * LPC (8x2Pin, PHD2.0)
Power Supply	Type	DC
	Power Input Voltage	12~28VDC
	Connector	1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	Radiator/Panel: Aluminum, Box/Cover: SGCC
	Mounting	VESA, embedded
	Dimensions (LWH, Unit: mm)	272.1192.7 70	284* 231.2 *70	321.9* 260.5*70	380.1* 304.1*70	420.3* 269.7*70	414* 346.5*70	485.7* 306.3*70	484.6* 332.5*70	550* 344*70
	Weight	Net: 2.9kg, Total: 5.1kg	Net: 3.0kg, Total: 5.2kg	Net: 3.2kg, Total: 5.5kg	Net: 4.6kg, Total: 7kg	Net: 4.5kg, Total: 6.9kg	Net: 5.2kg, Total: 7.7kg	Net: 5.2kg, Total: 7.8kg	Net: 5.9kg, Total: 8.5kg	Net: 6.2kg, Total: 8.9kg
Environment	Heat Dissipation System	Passive heat dissipation
	Operating Temperature	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	0~50℃	0~50℃	0~50℃	0~60℃
	Storage Temperature	-20~60℃	-20~70℃	-30~80℃	-30~70℃	-30~70℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
	Relative Humidity	10 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)

PLxxxRQ-E5S-J6412_SpecSheet(APQ)
