PLCQ-E5M Industrial All-in-One PC

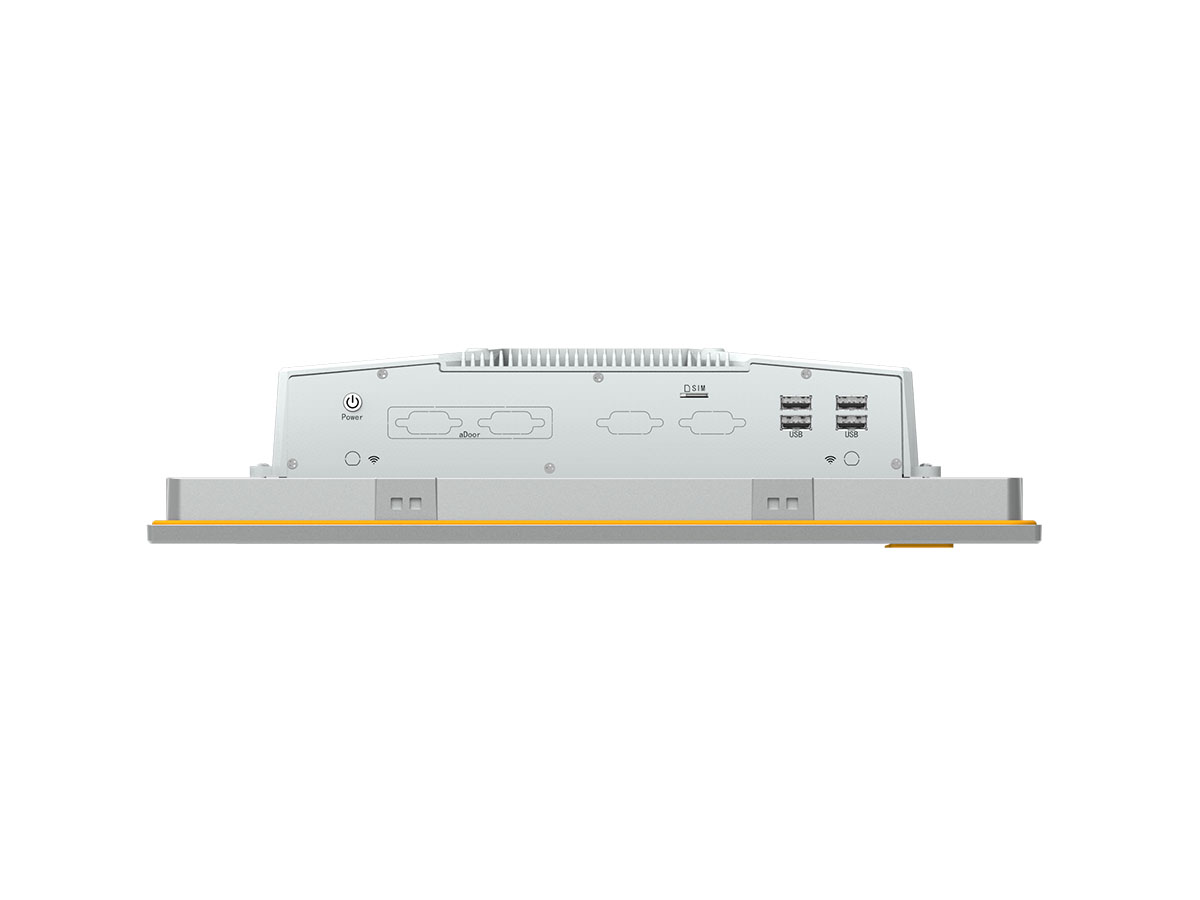

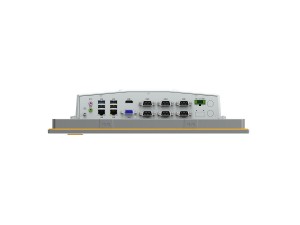

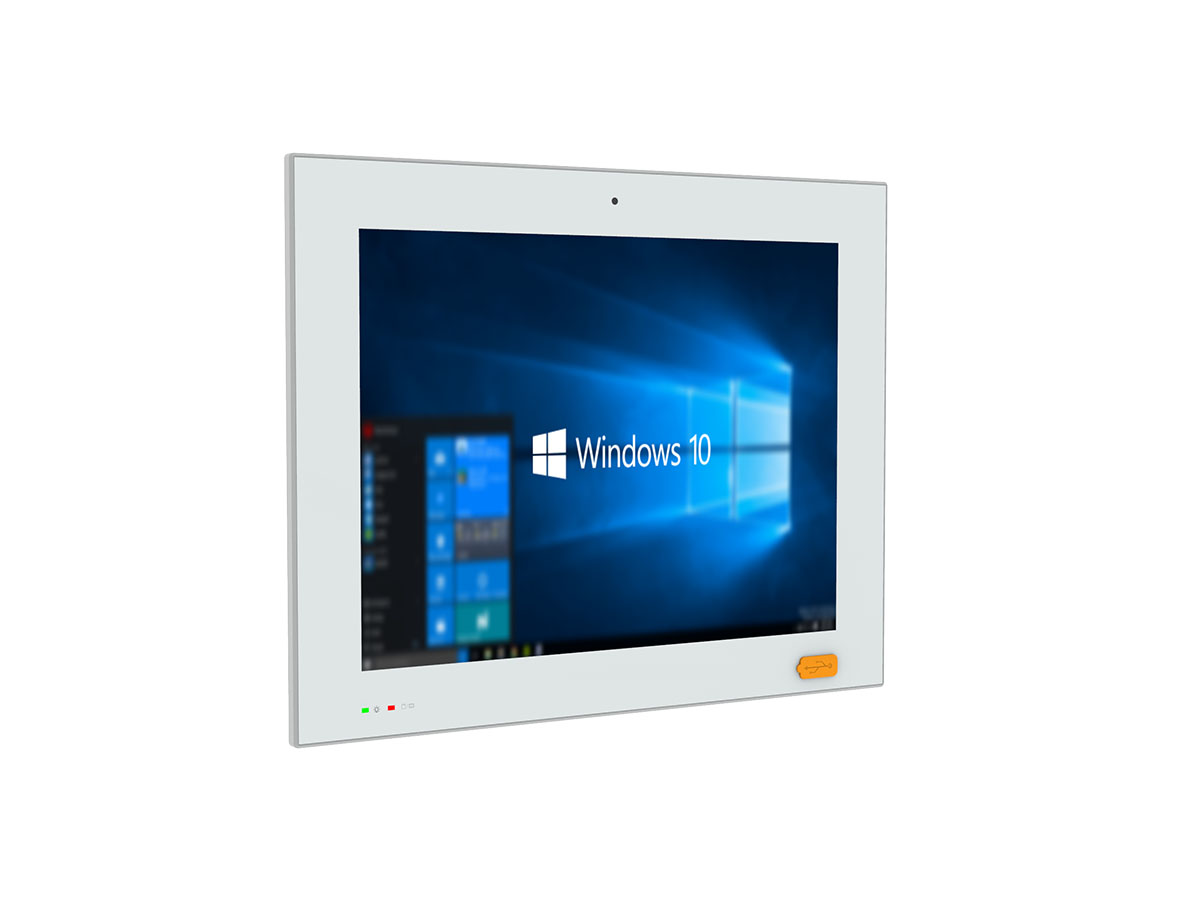

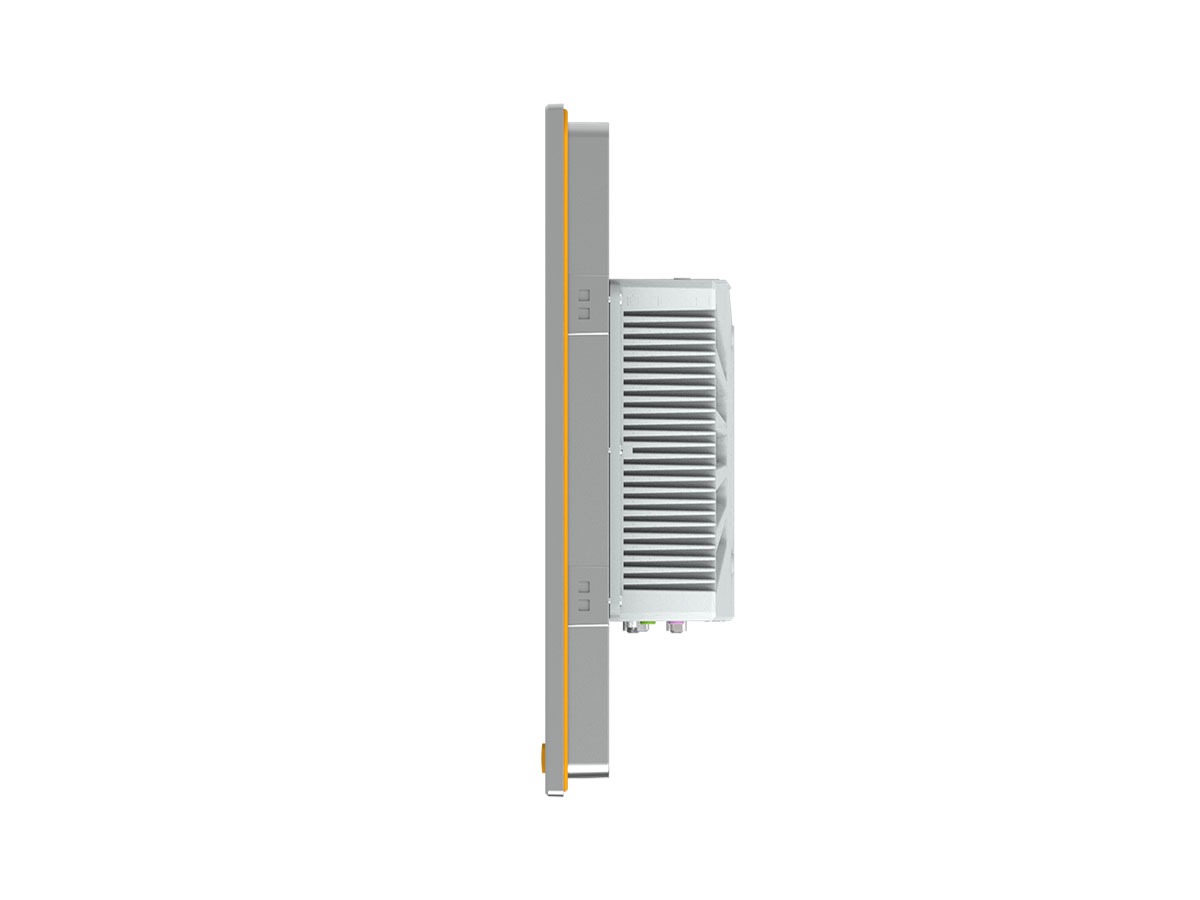

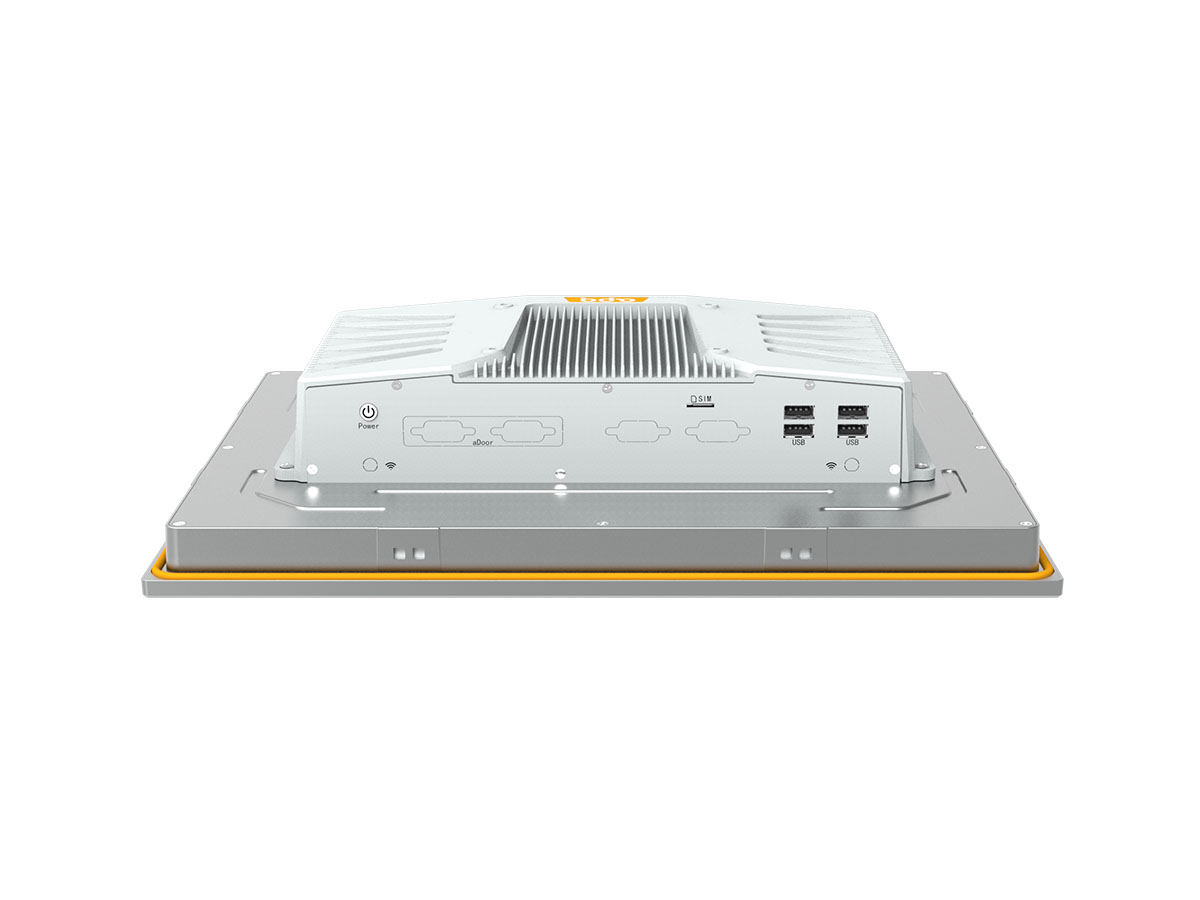

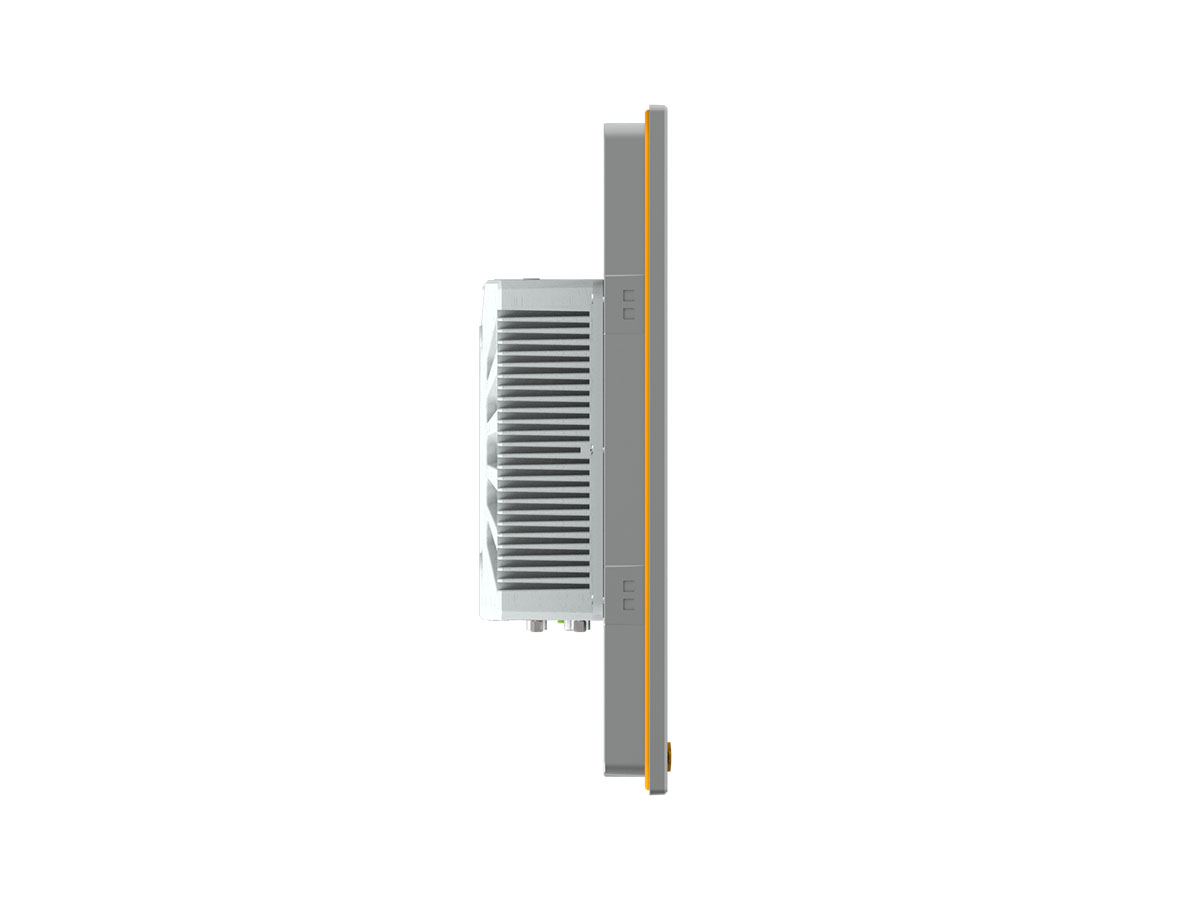

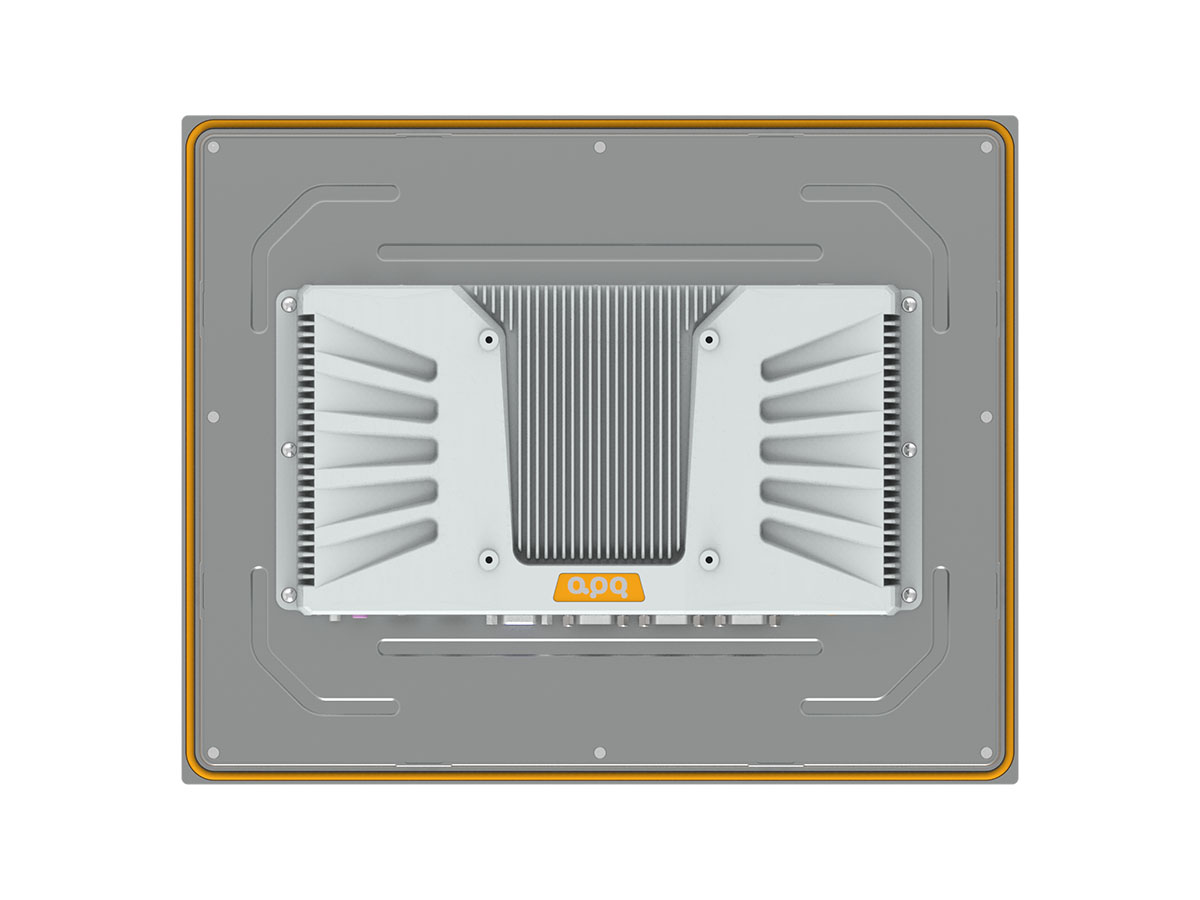

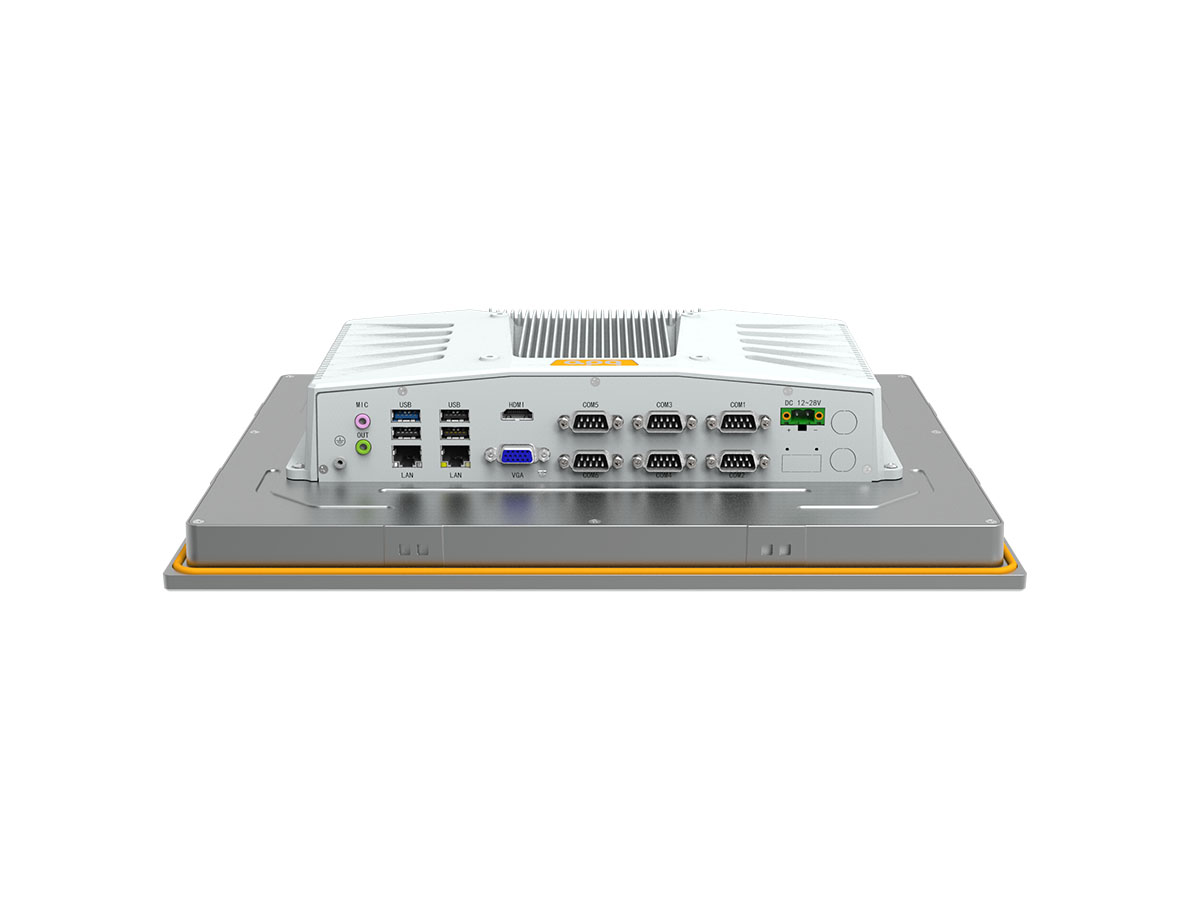

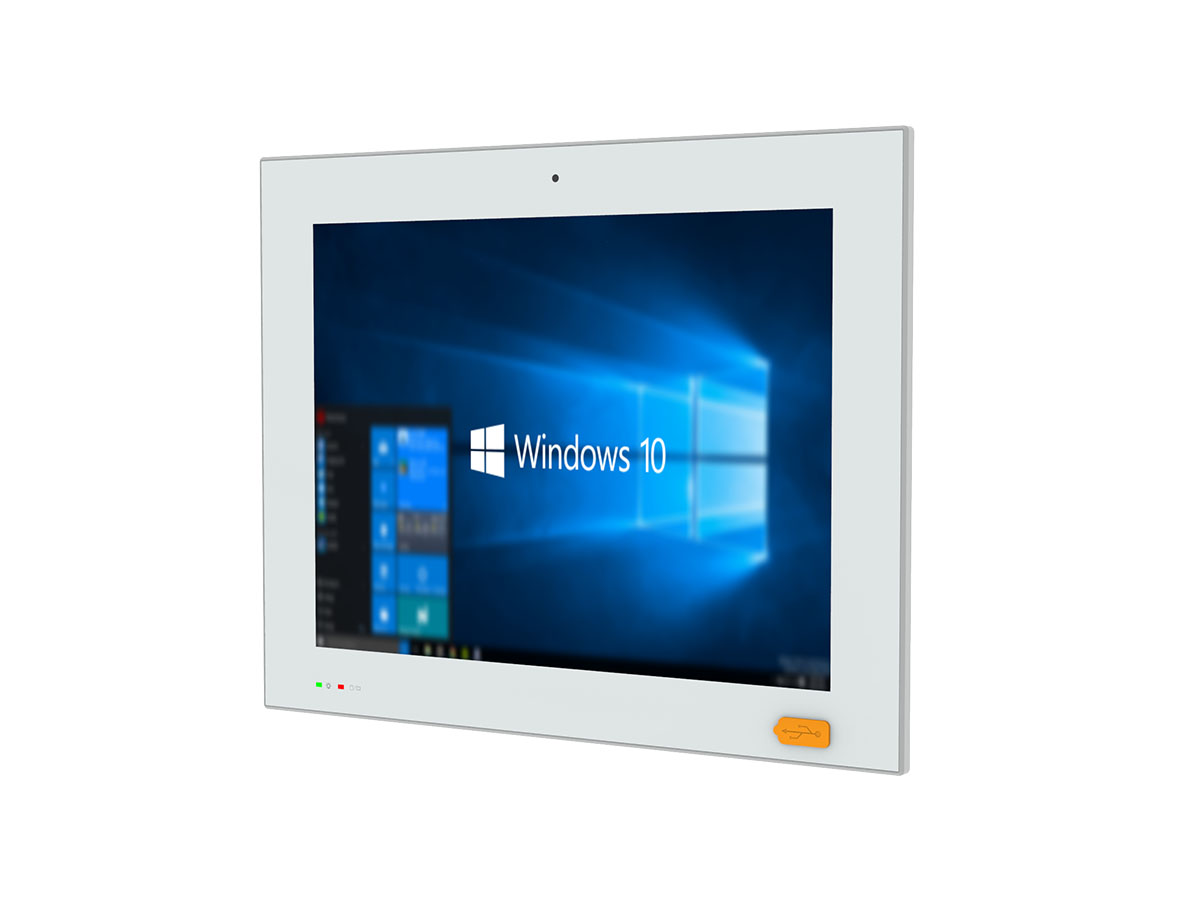

Note: The product image shown above is the PL150CQ-E5M model

PLCQ-E5M Industrial All-in-One PC

Features:

  • Full-screen capacitive touchscreen design

  • Modular design 12.1~21.5″ selectable, supports square/wide screen
  • Front panel meets IP65 requirements
  • Front panel integrates USB Type-A and signal indicator lights
  • Utilizes Intel® Celeron® J1900 ultra-low power CPU
  • Onboard 6 COM ports, supports two isolated RS485 channels
  • Integrates dual Intel® Gigabit network cards
  • Supports dual hard drive storage
  • Supports APQ MXM COM/GPIO module expansion
  • Supports WiFi/4G wireless expansion
  • Embedded/VESA mounting
  • 12~28V DC power supply

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control

Product Description

The APQ Full-screen Capacitive Touchscreen Industrial All-in-One PC PLxxxCQ-E5M Series is a powerful all-in-one machine designed specifically for industrial applications. It features outstanding full-screen capacitive touchscreen technology, providing a smooth and accurate touch experience. With its modular design, it supports screen sizes from 12.1 to 21.5 inches and accommodates both square and widescreen displays to meet various industry standards and user needs. The front panel boasts excellent dust and water resistance, meeting IP65 standards, making it capable of withstanding harsh industrial environments. Powered by the Intel® Celeron® J1900 ultra-low power CPU, it ensures efficient performance while reducing energy consumption. Integrated dual Intel® Gigabit network cards offer high-speed and stable network connectivity and data transmission capabilities. Dual hard drive support provides users with greater storage capacity, meeting diverse data storage requirements. Support for APQ MXM COM/GPIO module expansion allows for customized configurations based on specific application needs, further expanding the product’s functionality and application range. WiFi/4G wireless expansion support facilitates remote management and data transmission, achieving flexible network connections. The fanless design reduces maintenance needs and enhances system reliability. Support for embedded and VESA mounting methods makes it easy to integrate into various industrial environments.

In summary, the APQ Full-screen Capacitive Touchscreen Industrial All-in-One PC PLxxxCQ-E5M Series offers a wealth of features and outstanding performance, contributing to the development of industrial automation.

INTRODUCTION

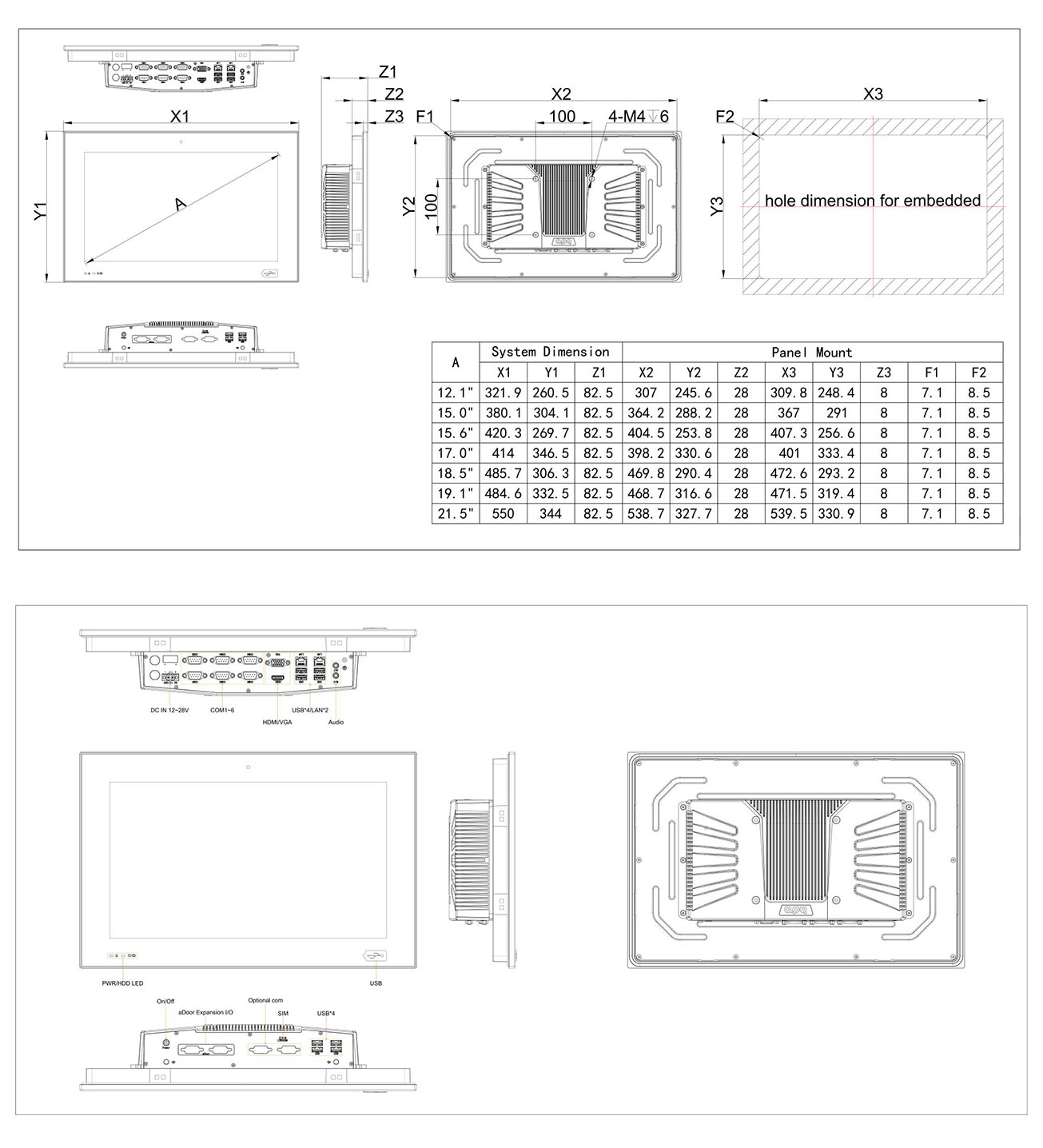

Engineering Drawing

File Download

Model PL121CQ-E5M PL150CQ-E5M PL156CQ-E5M PL170CQ-E5M PL185CQ-E5M PL191CQ-E5M PL215CQ-E5M
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.0" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type Projected Capacitive Touch
Input Finger/Capacitive Touch Pen
Hardness ≥6H
 Processor System CPU Intel® Celeron® J1900
Base Frequency 2.00 GHz
Max Turbo Frequency 2.42 GHz
Cache 2MB
Total Cores/Threads 4/4
TDP 10W
Chipset SOC
Memory Socket 1 * DDR3L-1333MHz SO-DIMM Slot
Max Capacity 8GB
Ethernet Controller 2 * Intel® i210-AT (10/100/1000 Mbps, RJ45)
Storage SATA 1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin)
M.2 1 * M.2 Key-M Slot (support SATA SSD, 2280)
Expansion Slots MXM/aDoor 1 * MXM slot (LPC+GPIO, support COM/GPIO MXM card)
Mini PCIe 1 * Mini PCIe Slot (PCIe2.0+USB2.0)
Front I/O USB 1 * USB3.0 (Type-A)
3 * USB2.0 (Type-A)
Ethernet 2 * RJ45
Display 1 * VGA: max resolution up to 1920*1280@60Hz
1 * HDMI: max resolution up to 1920*1280@60Hz
Audio 1 * 3.5mm Line-out Jack
1 * 3.5mm MIC Jack
Serial 2 * RS232/485 (COM1/2, DB9/M)
4 * RS232 (COM3/4/5/6, DB9/M)
Power 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
Power Supply Type DC
Power Input Voltage 12~28VDC
Connector 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 7/8.1/10
Linux Linux
Mechanical Dimensions
(L*W*H, Unit: mm)
321.9* 260.5*82.5 380.1* 304.1*82.5 420.3* 269.7*82.5 414* 346.5*82.5 485.7* 306.3*82.5 484.6* 332.5*82.5 550* 344*82.5
Environment Operating Temperature -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃ 0~50℃ 0~60℃
Storage Temperature -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃
Relative Humidity 10 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
