PLRQ-E7L Industrial All-in-One PC
PLRQ-E7L Industrial All-in-One PC Featured Image

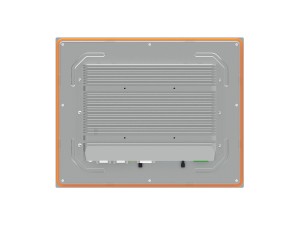

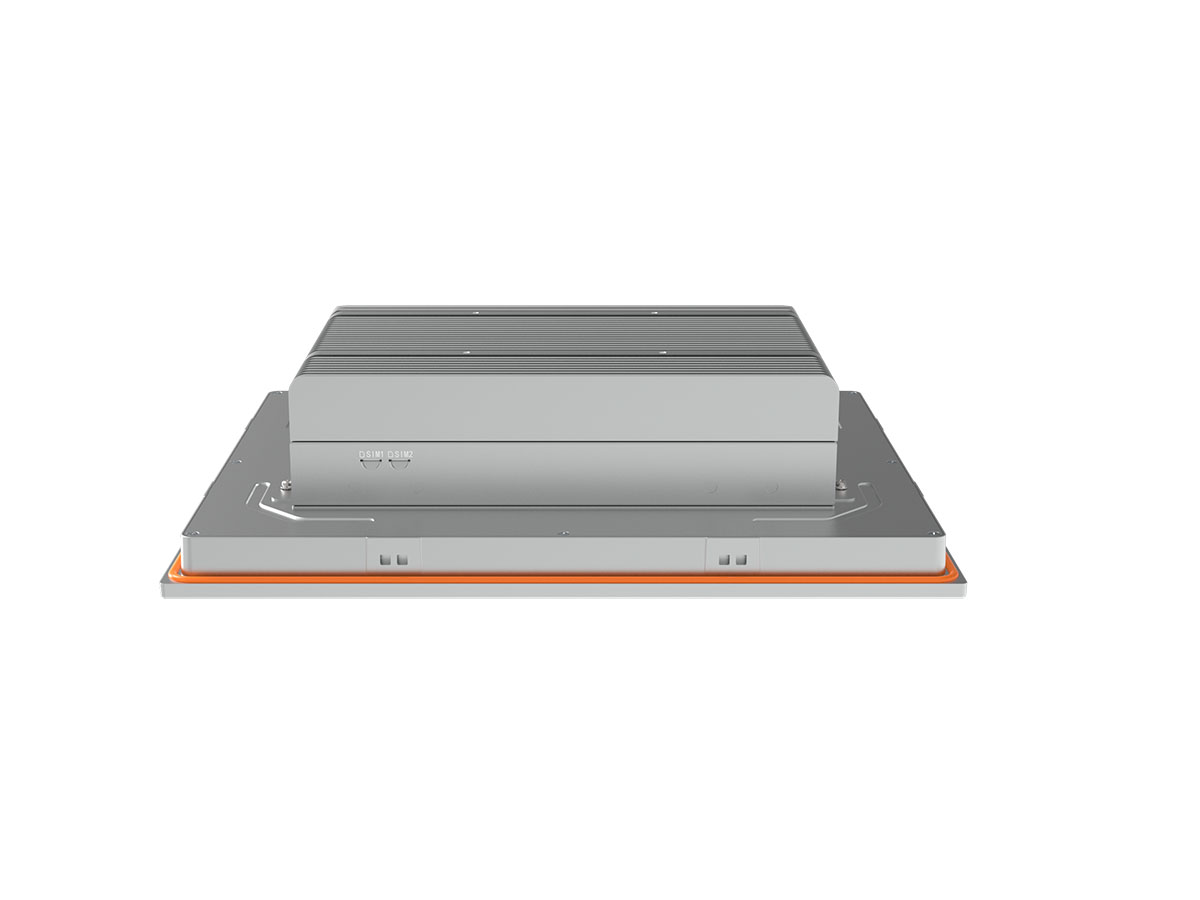

  • PLRQ-E7L Industrial All-in-One PC

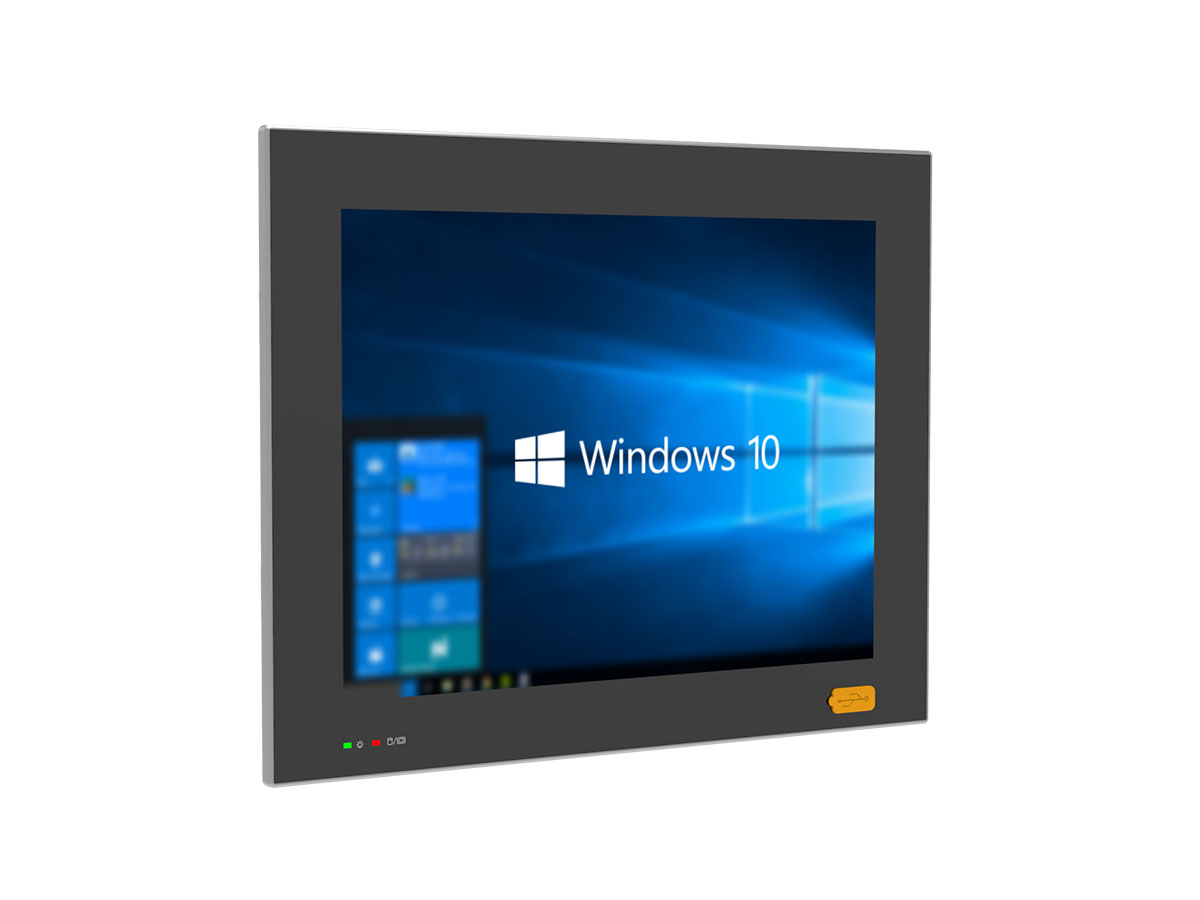

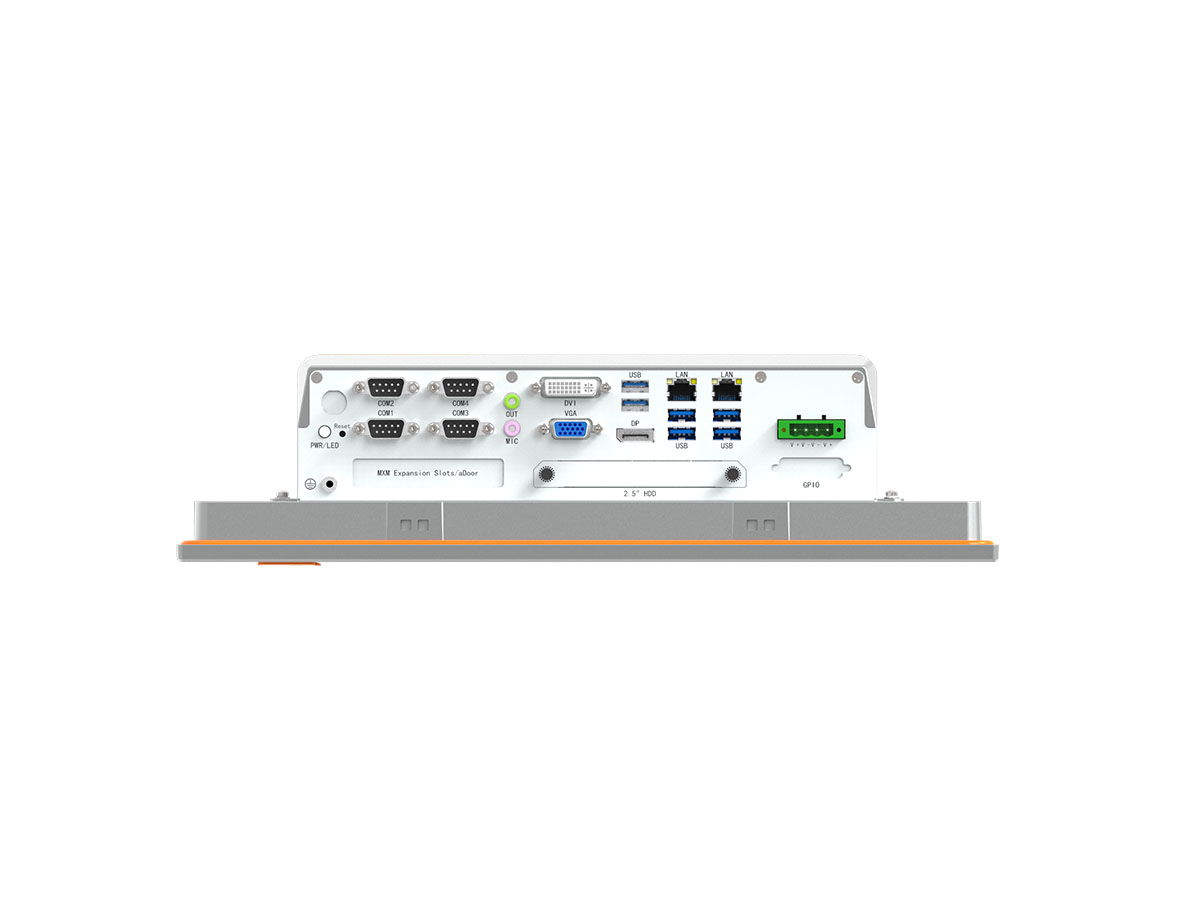

  • PLRQ-E7L Industrial All-in-One PC

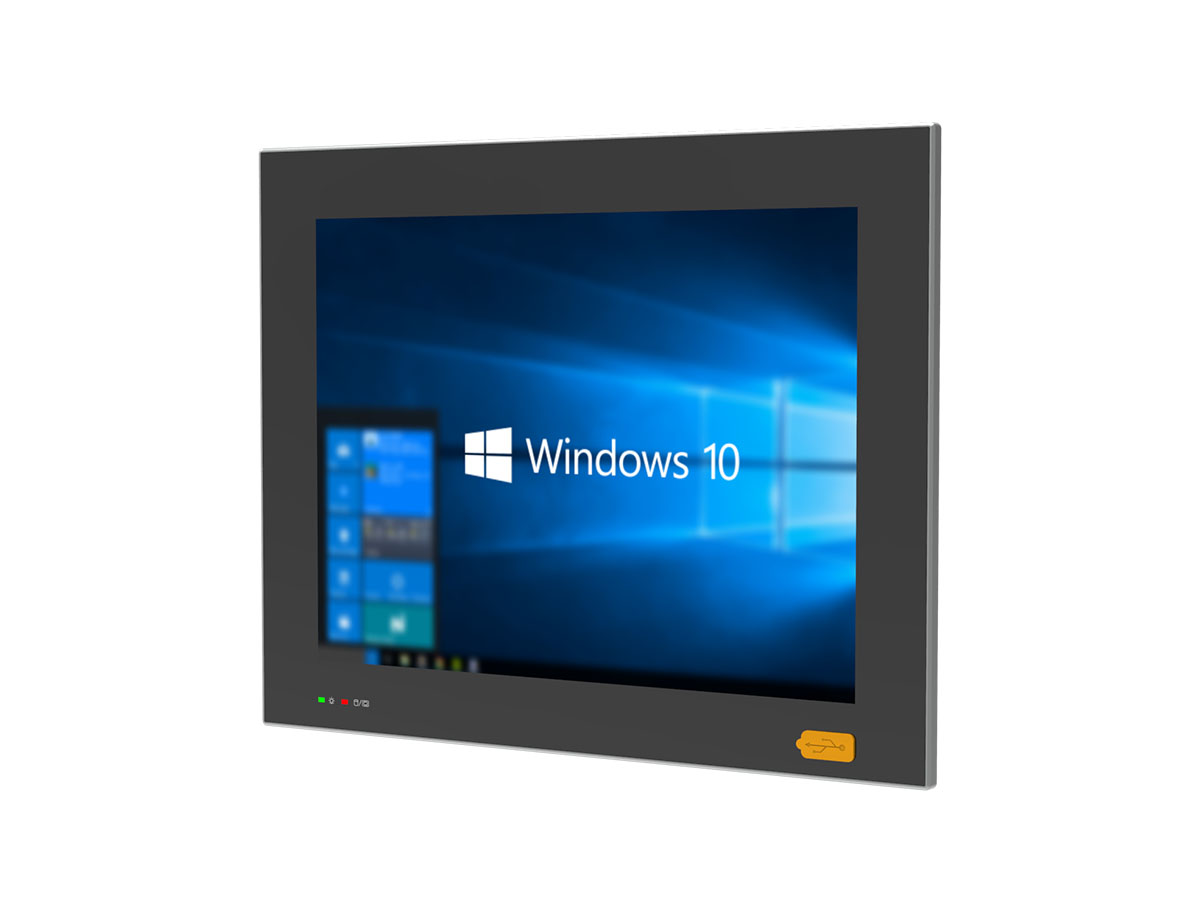

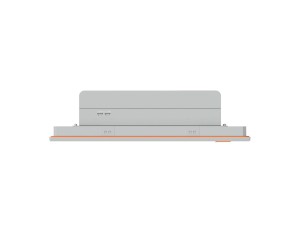

  • PLRQ-E7L Industrial All-in-One PC

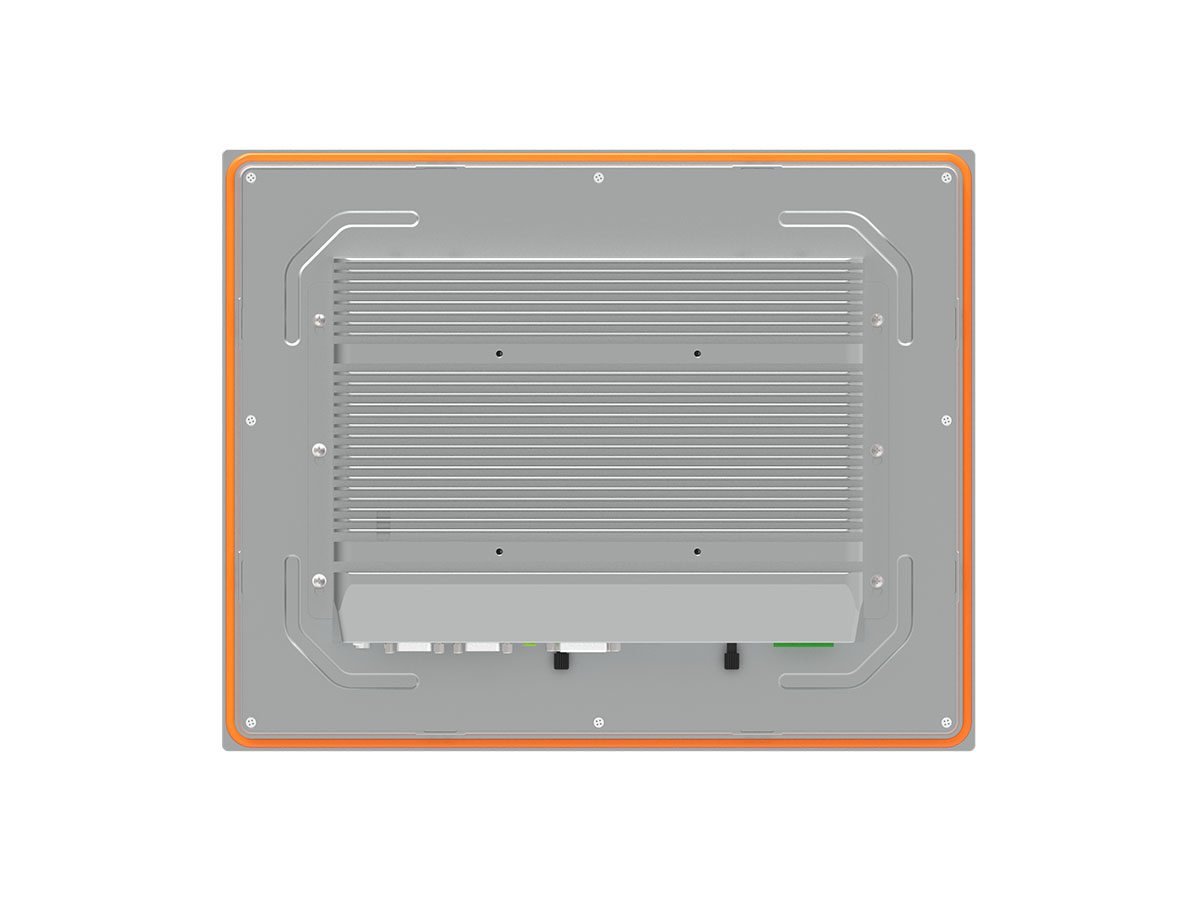

  • PLRQ-E7L Industrial All-in-One PC

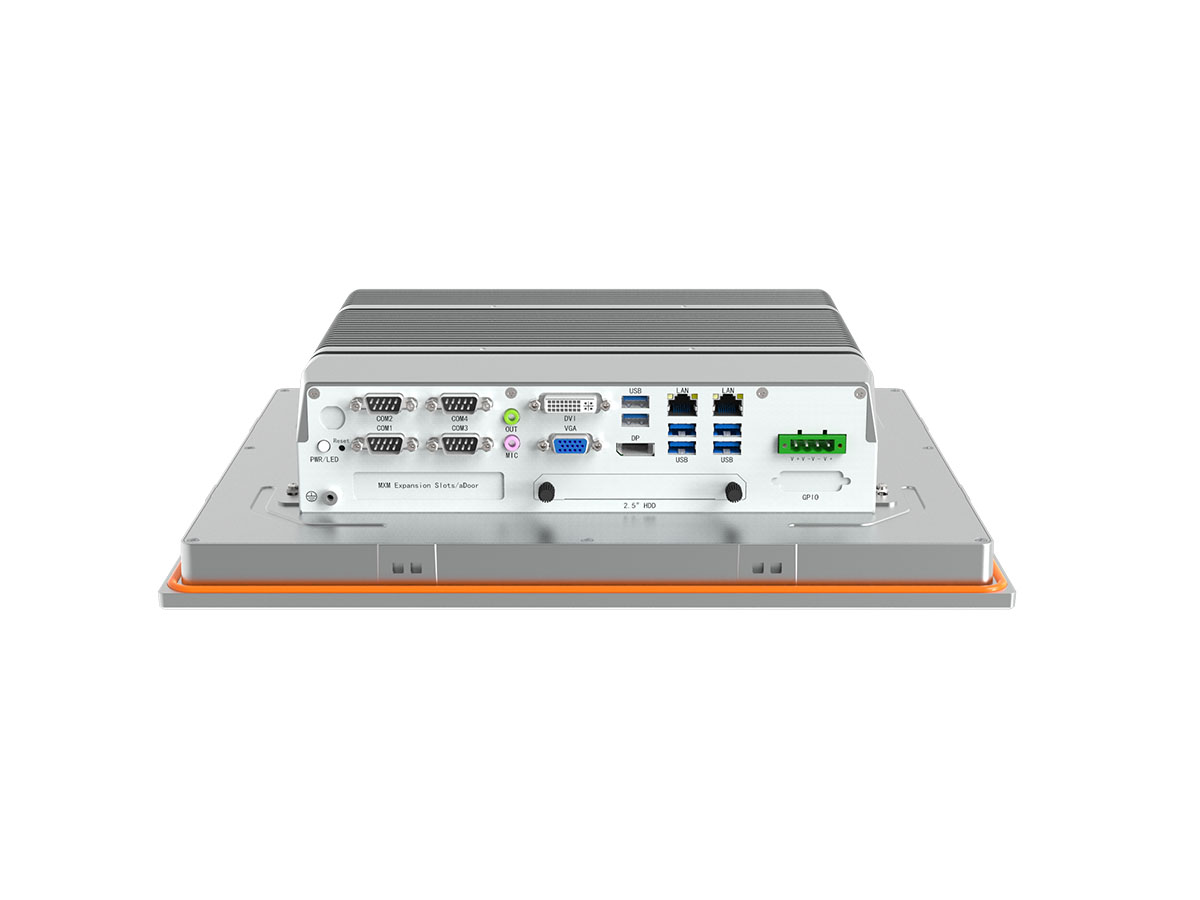

  • PLRQ-E7L Industrial All-in-One PC

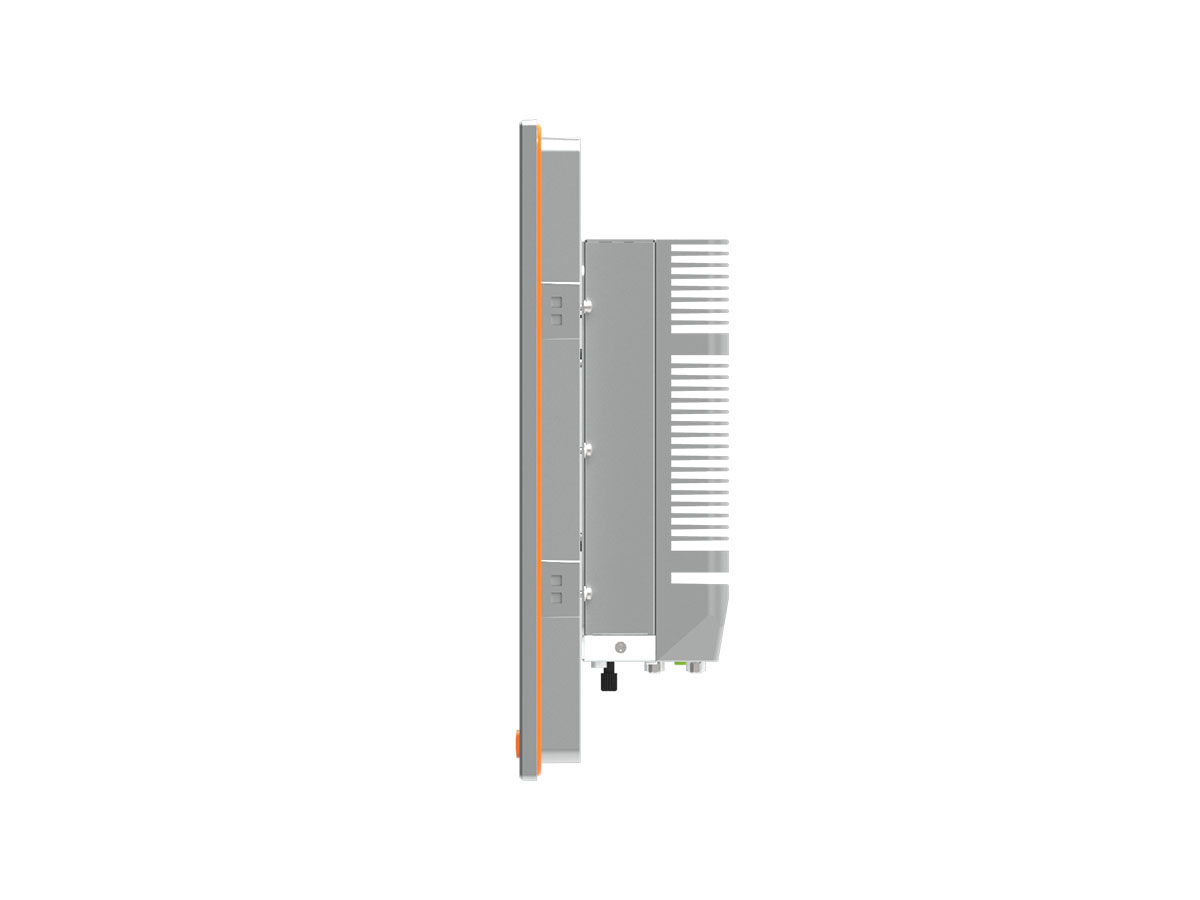

  • PLRQ-E7L Industrial All-in-One PC

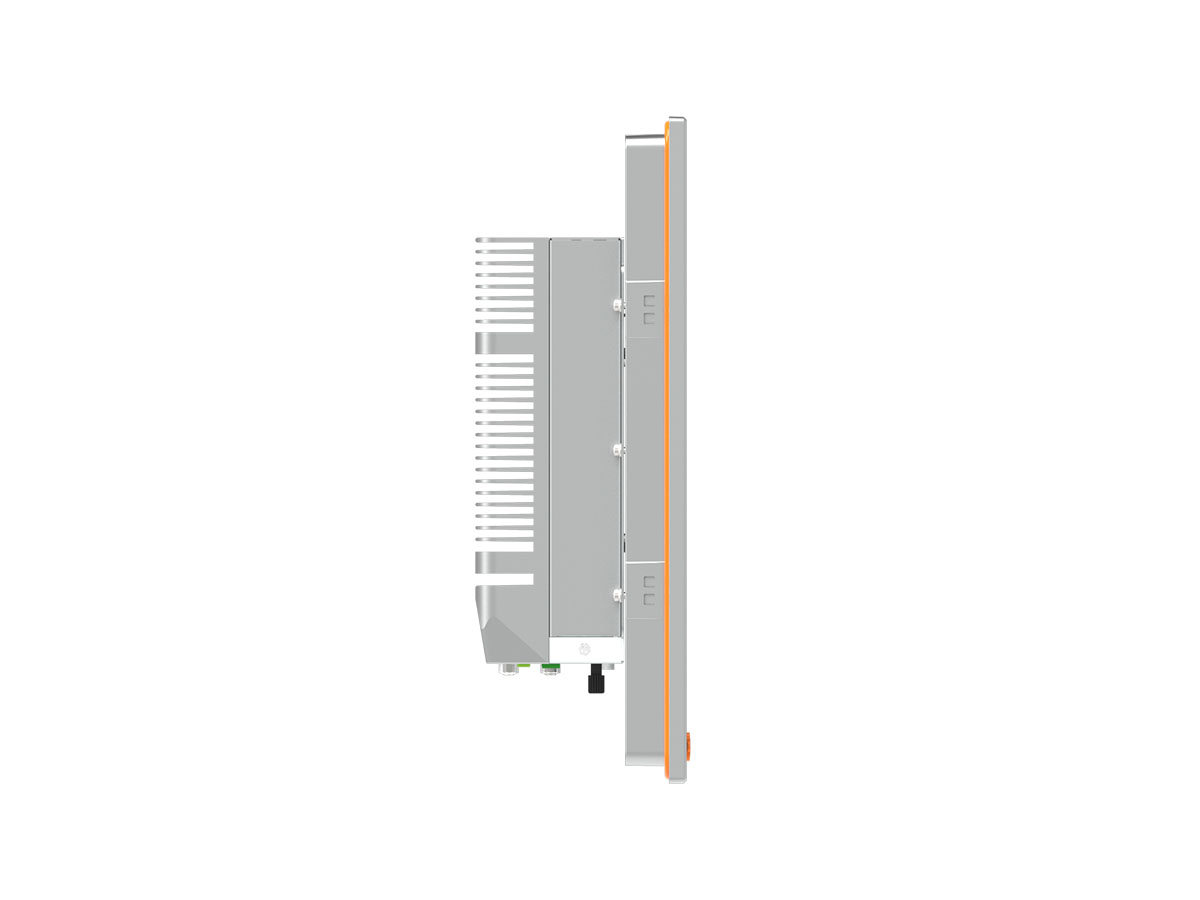

  • PLRQ-E7L Industrial All-in-One PC
  • PLRQ-E7L Industrial All-in-One PC
  • PLRQ-E7L Industrial All-in-One PC
  • PLRQ-E7L Industrial All-in-One PC
Note: The product image shown above is the PL150RQ-E7L-H81 model

PLRQ-E7L Industrial All-in-One PC

Features:

  • Full-screen resistive touchscreen design

  • Modular design 12.1~21.5″ selectable, supports square/wide screen
  • Front panel meets IP65 requirements
  • Front panel integrates USB Type-A and signal indicator lights
  • Embedded/VESA mounting

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control

Product Description

The APQ Full-Screen Resistive Touchscreen Industrial All-in-One PC PLxxxRQ-E7L Series exemplifies innovation in industrial computing across various platforms including H81, H610, Q170, and Q670. These devices are designed to meet the rigorous demands of industrial environments, offering a robust full-screen resistive touchscreen interface for precise and reliable operation. With modular design options ranging from 12.1 to 21.5 inches, these PCs support both square and widescreen formats, accommodating the diverse needs of industrial applications.

Key features across the series include IP65-rated front panels for superior dust and water resistance, ensuring durability in harsh conditions. These PCs are powered by Intel® Core, Pentium, and Celeron desktop CPUs across several generations, ensuring efficient performance with a lower thermal design power (TDP). Connectivity is a strong suit, with dual Intel Gigabit network interfaces and multiple DB9 serial ports for comprehensive external device support.

Storage solutions are flexible, offering M.2 and 2.5-inch dual hard drive options. Display capabilities are robust, with support for up to 4K@60Hz resolutions across various output channels including VGA, DVI-D, DP++, and internal LVDS. Power supply options range from 9~36V DC, with 12V optional, catering to different industrial power environments. Additionally, the series supports both embedded and VESA mounting, providing versatility in installation.

Utilized widely in industrial control, automation equipment, and smart manufacturing, the PLxxxRQ-E7L Series stands as a testament to APQ’s commitment to high-quality, reliable industrial computing solutions. These all-in-one PCs offer an optimal blend of performance, connectivity, and durability, making them suitable for a wide array of industrial applications.

INTRODUCTION

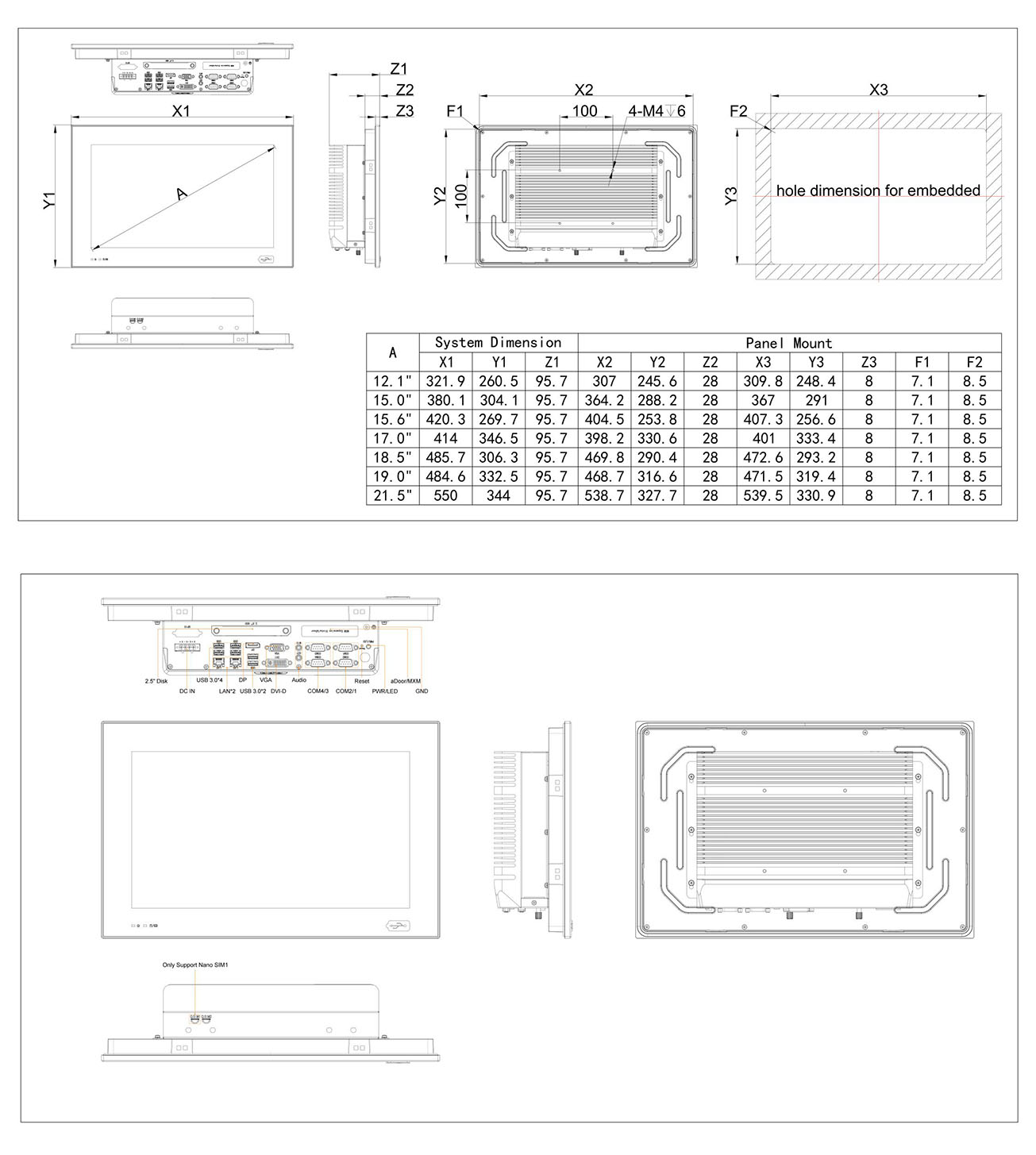

Engineering Drawing

File Download

H81
H610
Q170
Q670
H81
Model PL121RQ-E7L PL150RQ-E7L PL156RQ-E7L PL170RQ-E7L PL185RQ-E7L PL191RQ-E7L PL215RQ-E7L
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch
Input finger/touch pen
Hardness ≥3H
Processor System CPU Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU
TDP 35W
Chipset Intel® H81
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
Max Capacity 16GB, Single Max. 8GB
Ethernet Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
M.2 1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots MXM/aDoor 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)1 * aDoor Expansion Slot
Mini PCIe 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.0 (Type-A, 5Gbps)4 * USB2.0 (Type-A)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz1 * DP: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M)
Button 1 * Power Button + Power LED1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Power Supply Power Input Voltage 9 ~ 36VDC, P≤240W
OS Support Windows Windows 7/10/11
Linux Linux
Mechanical Dimensions(L * W * H, Unit: mm) 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Environment Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
H610
Model PL121RQ-E7L PL150RQ-E7L PL156RQ-E7L PL170RQ-E7L PL185RQ-E7L PL191RQ-E7L PL215RQ-E7L
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch
Input finger/touch pen
Hardness ≥3H
Processor System CPU Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
TDP 35W
Chipset H610
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Max Capacity 64GB, Single Max. 32GB
Ethernet Controller 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)
Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
M.2 1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots aDoor 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
Mini PCIe 1 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.2 Gen2x1 (Type-A, 10Gbps)2 * USB3.2 Gen 1x1 (Type-A, 5Gbps)2 * USB2.0 (Type-A)
Display 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M, Full Lanes)
Button 1 * Power Button + Power LED1 * AT/ATX Button1 * OS Recover Button1 * System Reset Button
Power Supply Power Input Voltage 9~36VDC, P≤240W18~60VDC, P≤400W
OS Support Windows Windows 10/11
Linux Linux
Mechanical Dimensions(L * W * H, Unit: mm) 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 560*344*95.7
Environment Operating Temperature -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃ 0~50℃ 0~60℃
Storage Temperature -30~80℃ -20~70℃ -30~70℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃
Relative Humidity 10 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Certification CE/FCC, RoHS
Q170
Model PL121RQ-E7L PL150RQ-E7L PL156RQ-E7L PL170RQ-E7L PL185RQ-E7L PL191RQ-E7L PL215RQ-E7L
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch
Input finger/touch pen
Hardness ≥3H
Processor System CPU Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
TDP 35W
Chipset Q170
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2133MHz
Max Capacity 64GB, Single Max. 32GB
Ethernet Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)Support RAID 0, 1
M.2 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots MXM/aDoor 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)1 * aDoor Expansion Slot
Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card)
M.2 1 * M.2 Key-B (PCIe x1 Gen 2 + USB3.0, with 1 * SIM Card, 3042/3052)
Front I/O Ethernet 2 * RJ45
USB 6 * USB3.0 (Type-A, 5Gbps)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz1 * DP: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M)
Button 1 * Power Button + Power LED1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Power Supply Power Input Voltage 9 ~ 36VDC, P≤240W
OS Support Windows 6/7th Core™: Windows 7/10/118/9th Core™: Windows 10/11
Linux Linux
Mechanical Dimensions(L * W * H, Unit: mm) 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Environment Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Q670
Model PL121RQ-E7L PL150RQ-E7L PL156RQ-E7L PL170RQ-E7L PL185RQ-E7L PL191RQ-E7L PL215RQ-E7L
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch
Input finger/touch pen
Hardness ≥3H
Processor System CPU Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
TDP 35W
Chipset Q670
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Max Capacity 64GB, Single Max. 32GB
Ethernet Controller 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)
Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)Support RAID 0, 1
M.2 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots aDoor 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
Mini PCIe 2 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)
M.2 1 * M.2 Key-E (PCIe x1 Gen 3 + USB 2.0, 2230)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.2 Gen2x1 (Type-A, 10Gbps)6 * USB3.2 Gen 1x1 (Type-A, 5Gbps)
Display 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M, Full Lanes)
Button 1 * Power Button + Power LED1 * AT/ATX Button1 * OS Recover Button1 * System Reset Button
Power Supply Power Input Voltage 9~36VDC, P≤240W18~60VDC, P≤400W
OS Support Windows Windows 10/11
Linux Linux
Mechanical Dimensions(L * W * H, Unit: mm) 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 560*344*95.7
Environment Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Certification CE/FCC, RoHS
