PLRQ-E7S Industrial All-in-One PC
PLRQ-E7S Industrial All-in-One PC Featured Image

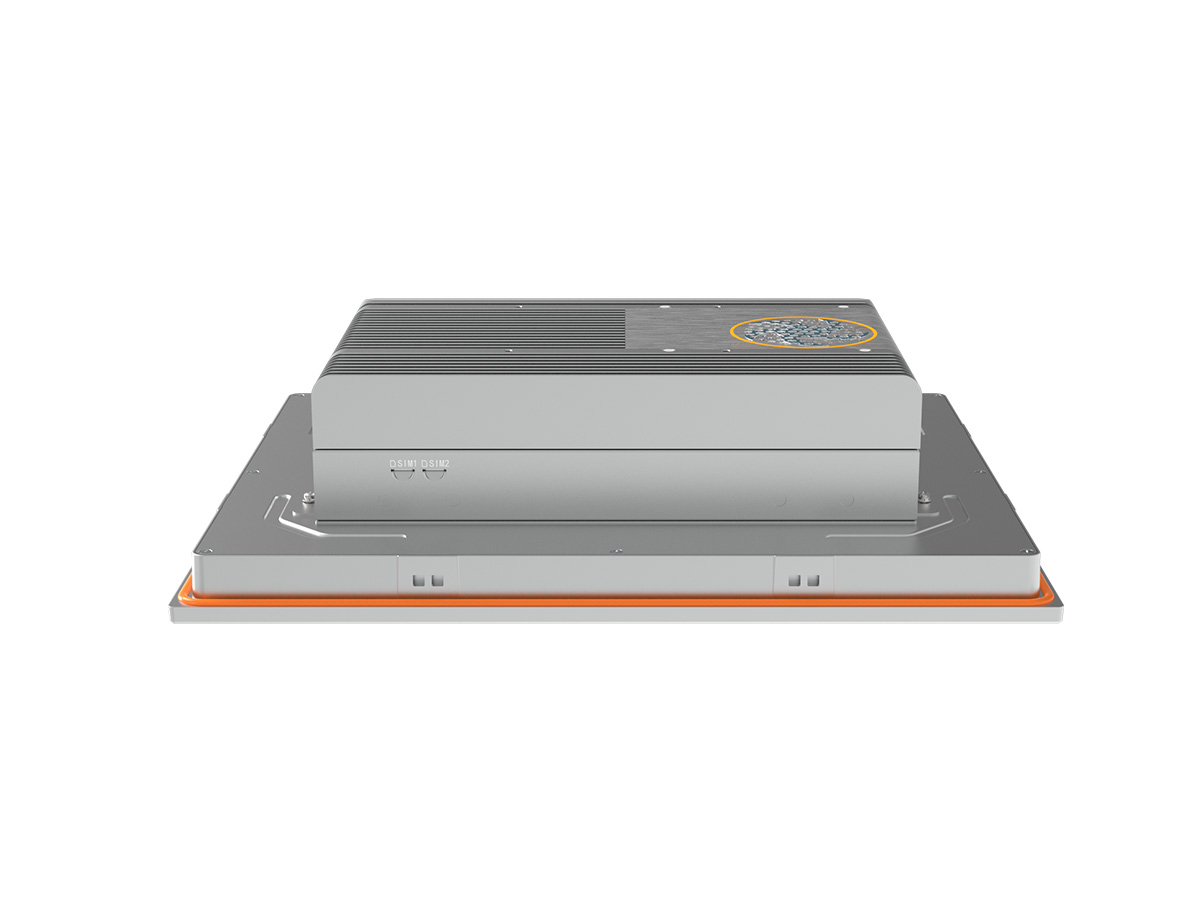

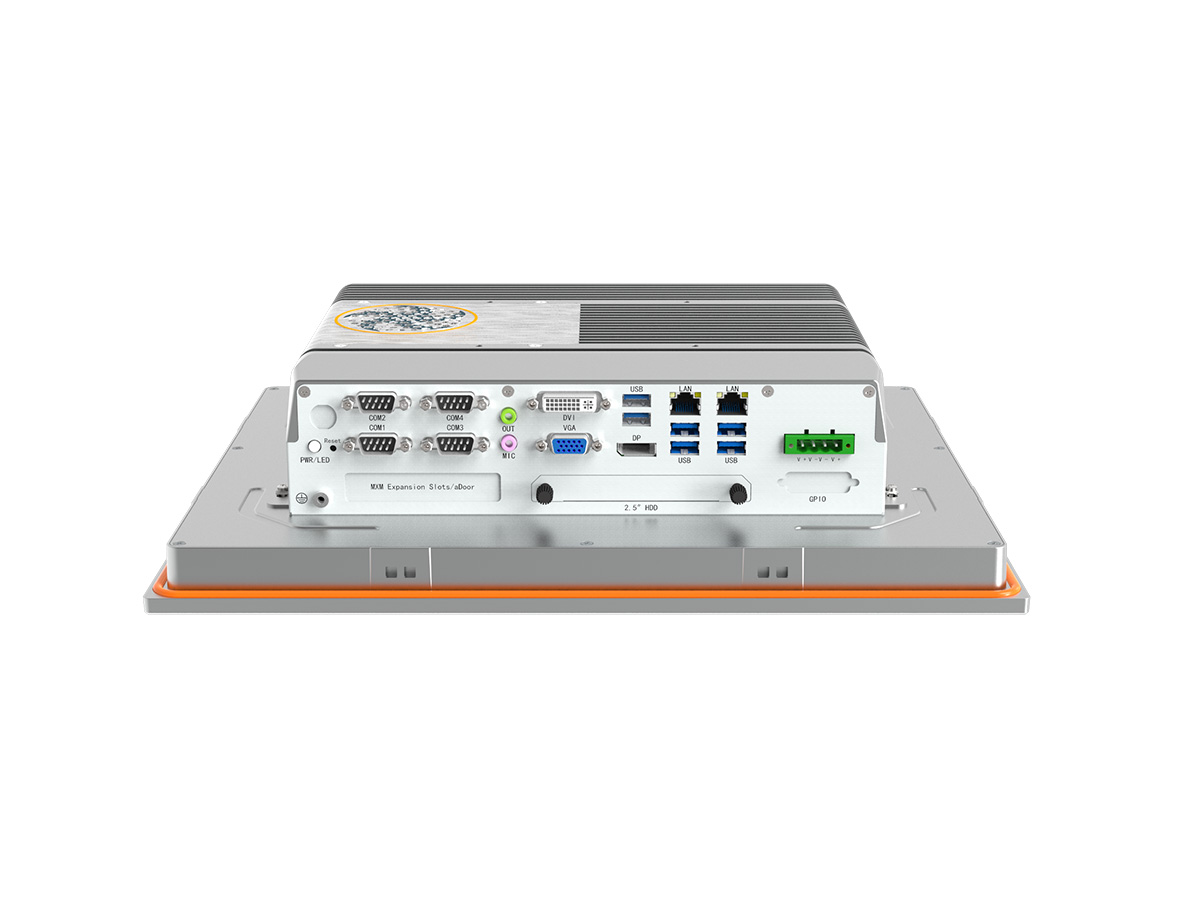

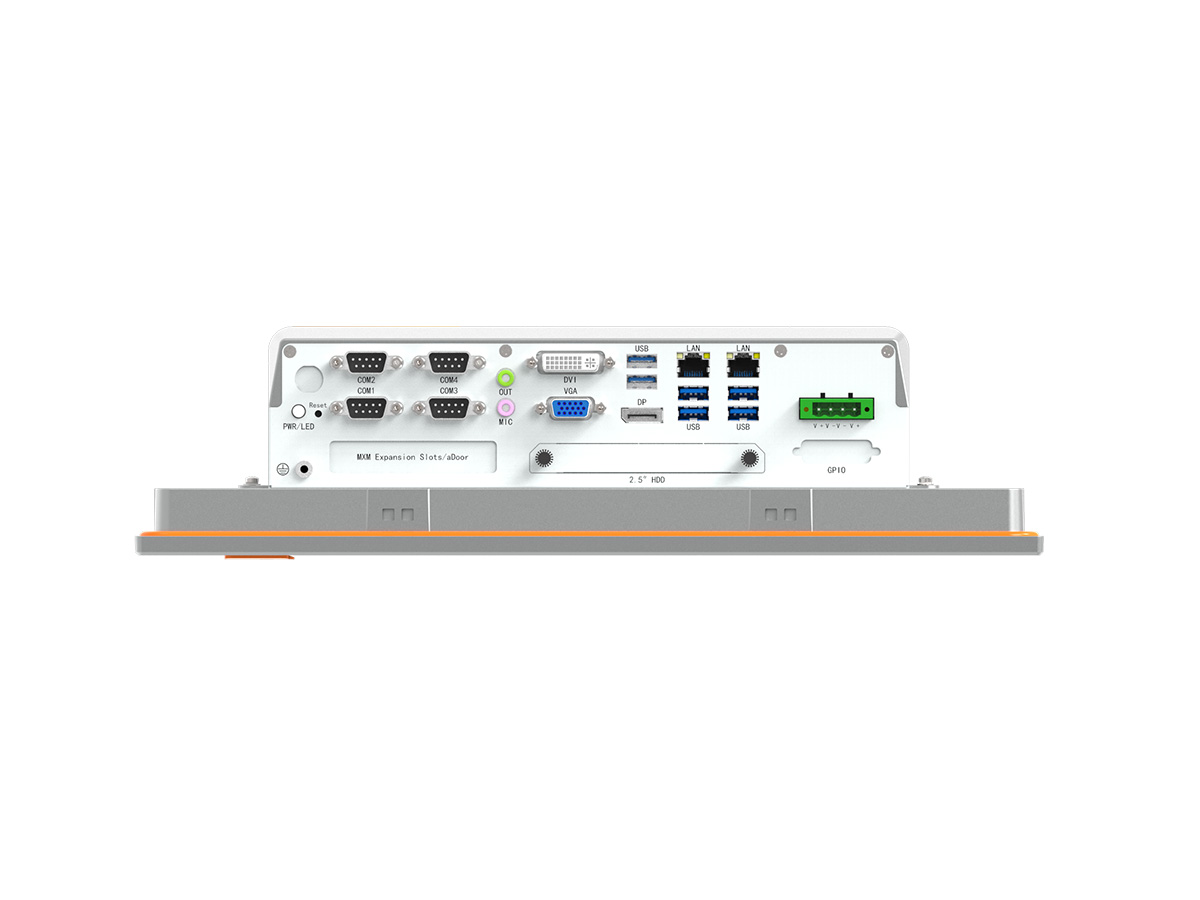

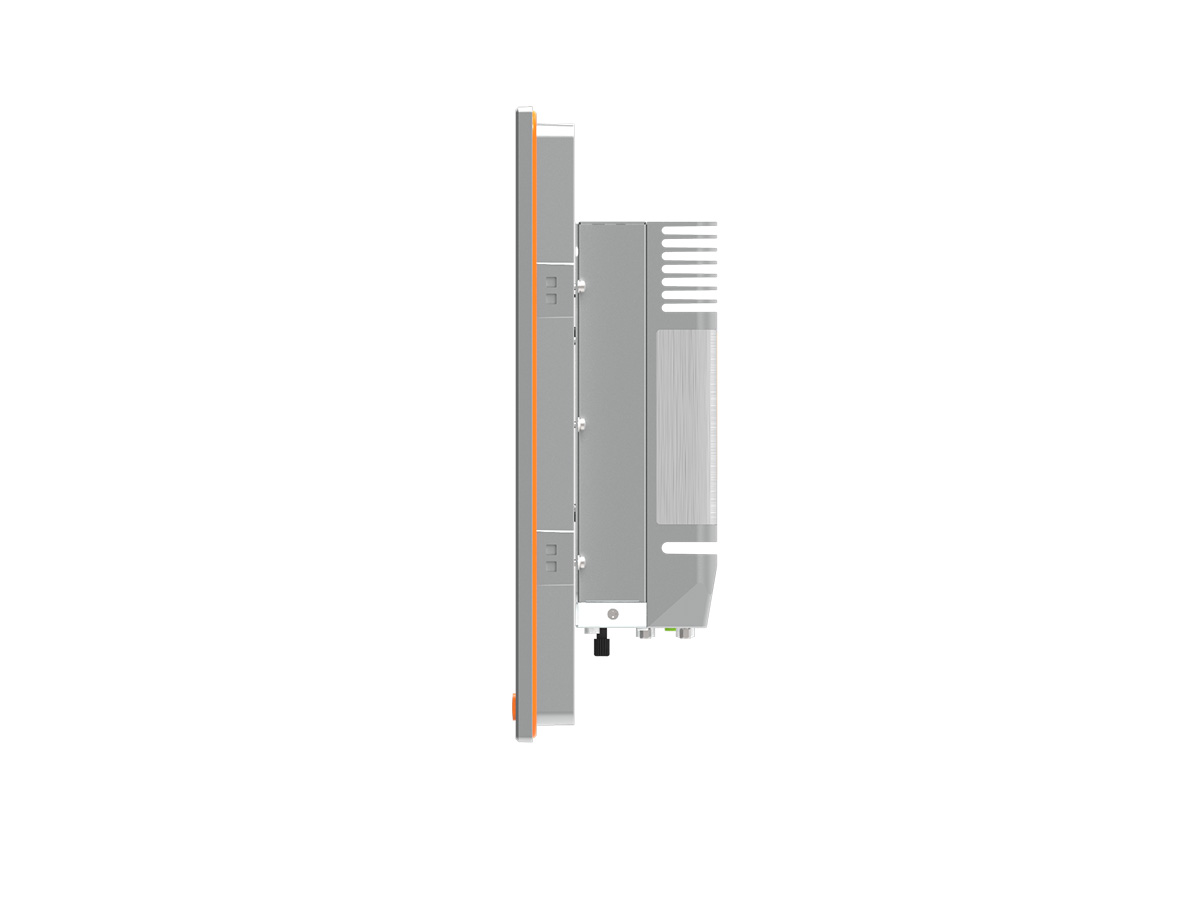

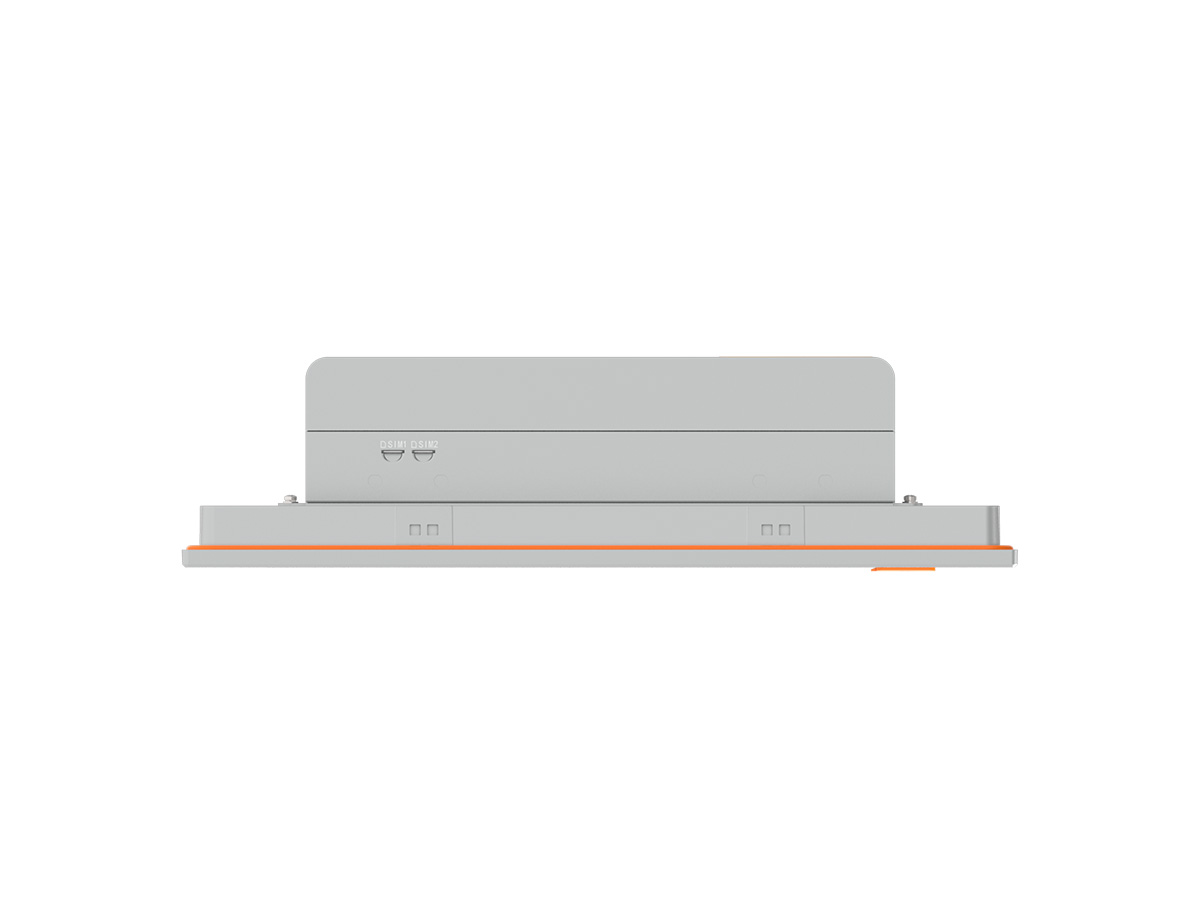

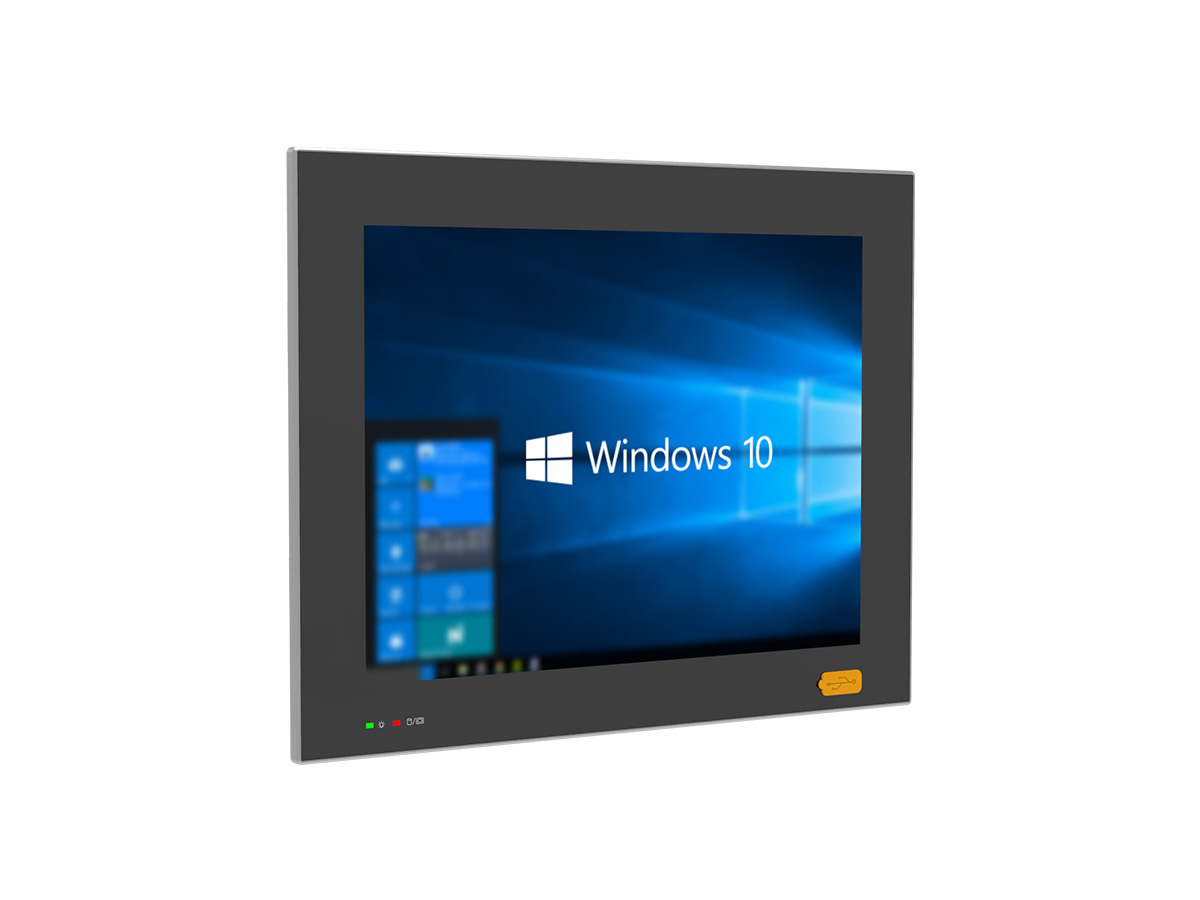

  • PLRQ-E7S Industrial All-in-One PC
  • PLRQ-E7S Industrial All-in-One PC

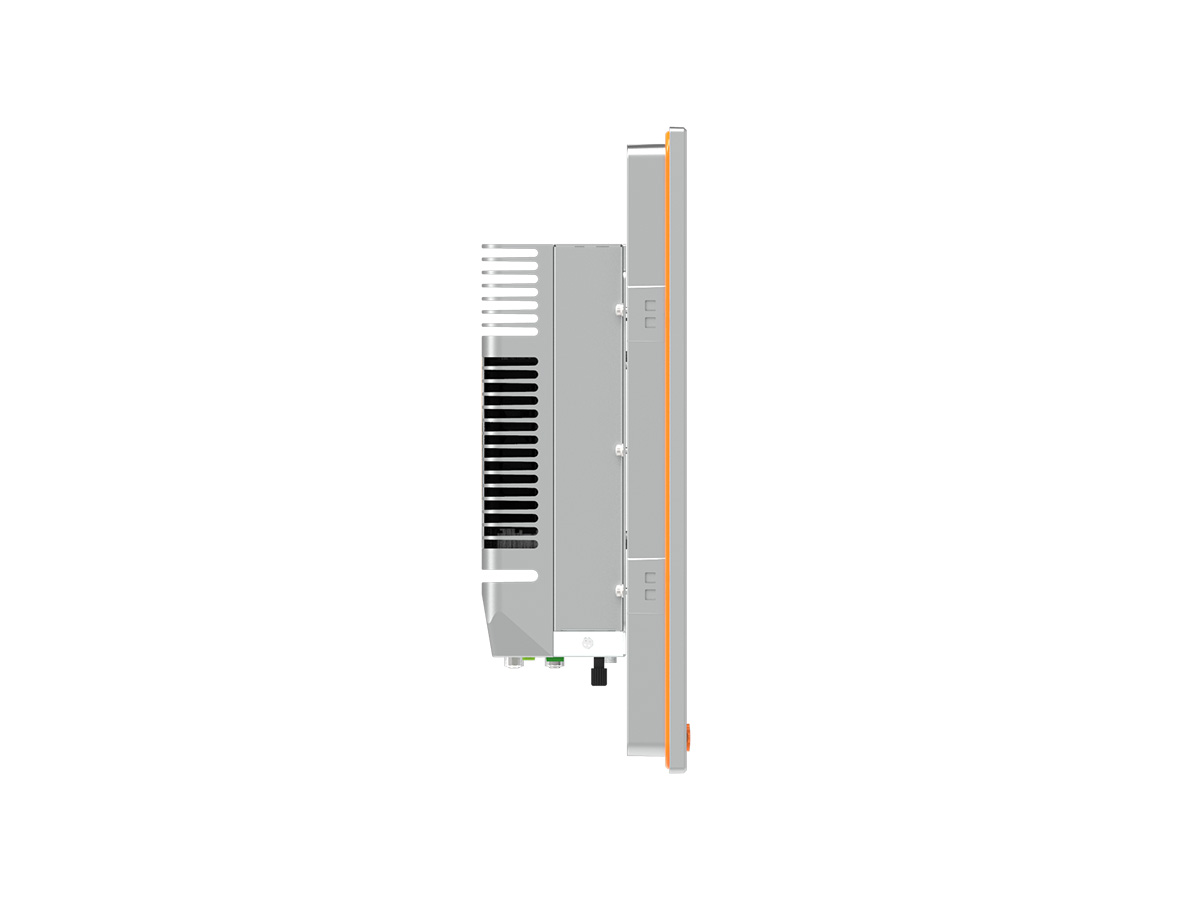

  • PLRQ-E7S Industrial All-in-One PC

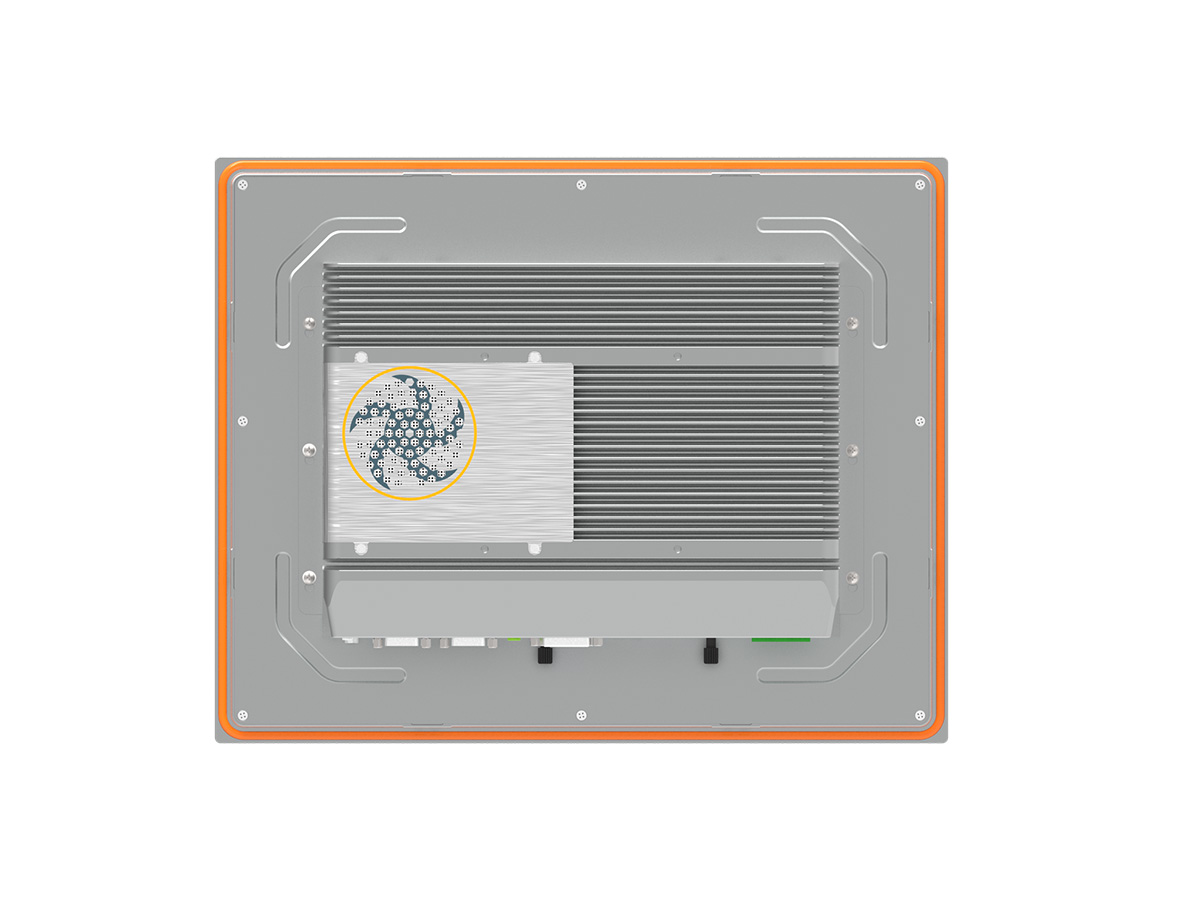

  • PLRQ-E7S Industrial All-in-One PC

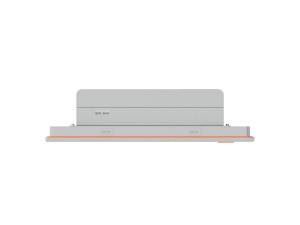

  • PLRQ-E7S Industrial All-in-One PC

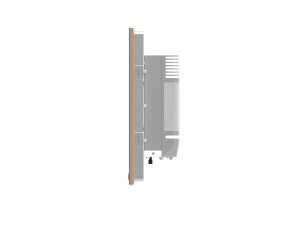

  • PLRQ-E7S Industrial All-in-One PC

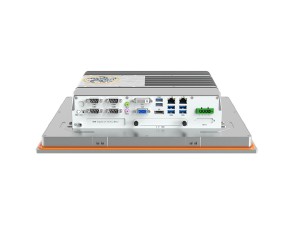

  • PLRQ-E7S Industrial All-in-One PC
  • PLRQ-E7S Industrial All-in-One PC
  • PLRQ-E7S Industrial All-in-One PC
  • PLRQ-E7S Industrial All-in-One PC

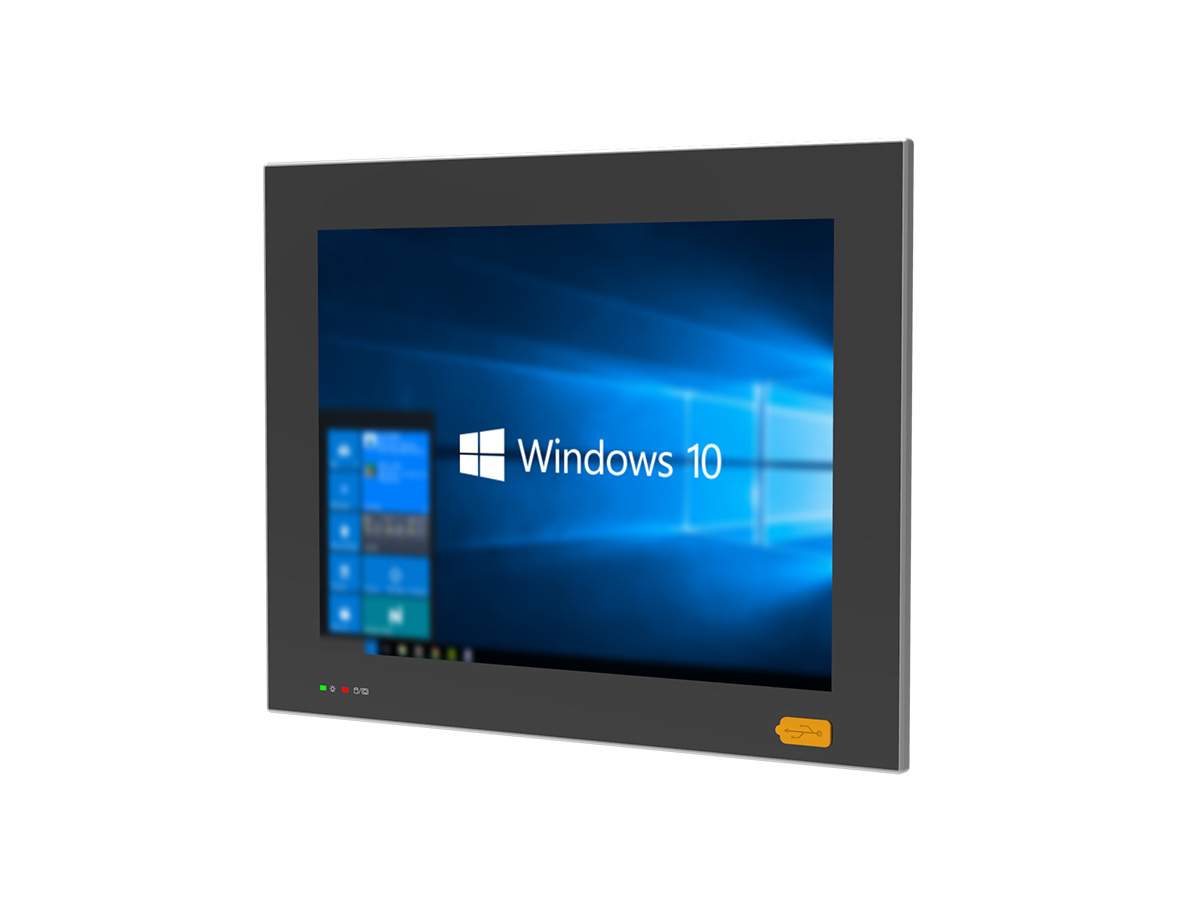

Note: The product image shown above is the PL150RQ-E7S-H81 model

PLRQ-E7S Industrial All-in-One PC

Features:

  • Design featuring a full-screen resistive touchscreen
  • Modular configuration with options ranging from 12.1 to 21.5 inches, compatible with both square and widescreen formats
  • Supports Intel® 4th~13th Gen Core / Pentium/ Celeron Desktop CPU, TDP 65W
  • Paired with Intel® H81/H610/Q170/Q670 chipset
  • The front panel is designed to comply with IP65 standards
  • Incorporation of USB Type-A and signal indicator lights into the front panel
  • Suitable for embedded or VESA mounting

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control

Product Description

The APQ Full-Screen Resistive Touchscreen Industrial All-in-One PC PLxxxRQ-E7S Series encapsulates cutting-edge solutions across various platforms like H81, H610, Q170, and Q670, tailored for rigorous industrial applications. These machines feature a full-screen resistive touchscreen, offering precise and stable touch control across a wide range of operational environments. The series is distinguished by its modular design, supporting screen sizes from 12.1 to 21.5 inches to meet diverse industrial standards and user preferences.

Each model in the PLxxxRQ-E7S Series is designed to withstand harsh industrial conditions, boasting an IP65-rated front panel for optimal dust and water resistance. They are powered by Intel® Core, Pentium, and Celeron Desktop CPUs across various generations, ensuring efficient performance and reduced energy consumption. The series offers robust connectivity options, including dual Intel Gigabit network interfaces and multiple DB9 serial ports, catering to the high-speed network and data transfer requirements of industrial applications. The entire series is equipped with Intel Core desktop processors from the 4th to the 13th generation, supporting innovative Adoor for flexible expansion to meet diverse application needs. With support for dual hard drive storage (M.2 and 2.5-inch), these all-in-one PCs address the need for substantial data storage capacity. They also feature multiple display outputs, including VGA, DVI-D, DP++, and internal LVDS, supporting resolutions up to 4K@60Hz, thus accommodating a wide array of display needs. Additionally, the series is equipped with an intelligent fan active cooling system to ensure system stability and reliability under prolonged operations.

The PLxxxRQ-E7S Series is versatile in installation, offering embedded and VESA mounting options, making it seamlessly integrate into various industrial settings. The option of fanless or fan-cooled designs along with reinforced structure ensures these systems meet the demands of harsh industrial environments. Meanwhile, comprehensive modular options and ease of configuration significantly reduce the delivery cycle for APQ’s customized services. Whether for industrial automation or edge computing, the APQ Full-Screen Resistive Touchscreen Industrial All-in-One PC series stands out as a reliable, high-performance solution designed to meet the complex demands of the industrial sector.

INTRODUCTION

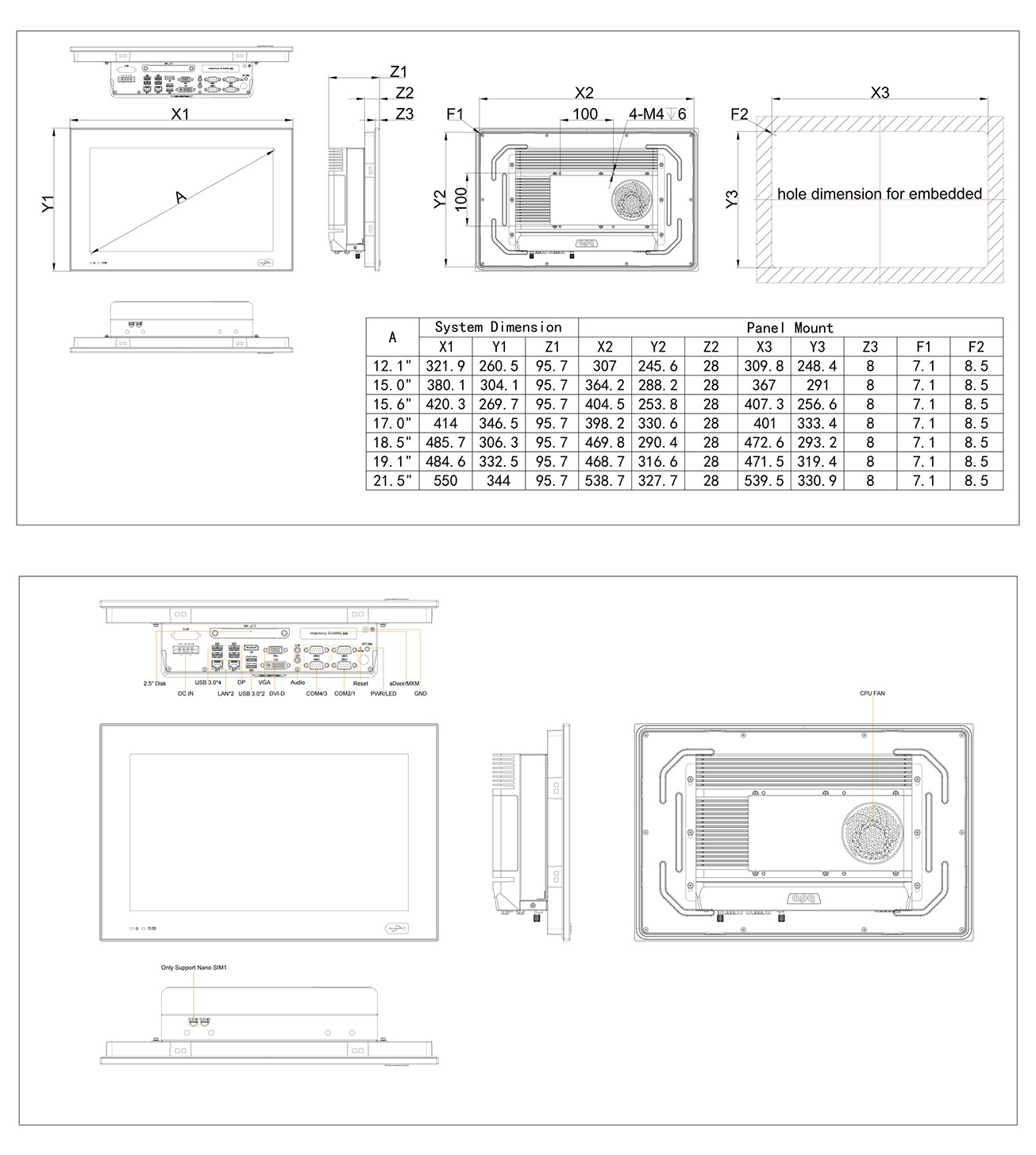

Engineering Drawing

File Download

H81
H610
Q170
Q670
H81
Model PL121RQ-E7S PL150RQ-E7S PL156RQ-E7S PL170RQ-E7S PL185RQ-E7S PL191RQ-E7S PL215RQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch
Input finger/touch pen
Hardness ≥3H
Processor System CPU Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Chipset Intel® H81
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
Max Capacity 16GB, Single Max. 8GB
Ethernet Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)
1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
M.2 1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots MXM/aDoor 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
1 * aDoor Expansion Slot
Mini PCIe 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.0 (Type-A, 5Gbps)
4 * USB2.0 (Type-A)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M)
Button 1 * Power Button + Power LED
1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Power Supply Power Input Voltage 9 ~ 36VDC, P≤240W
OS Support Windows Windows 7/10/11
Linux Linux
Mechanical Dimensions
(L * W * H, Unit: mm)		 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Environment Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
H610
Model PL121RQ-E7S PL150RQ-E7S PL156RQ-E7S P170RQ-E7S PL185RQ-E7S PL191RQ-E7S PL215RQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch
Input finger/touch pen finger/touch pen finger/touch pen finger/touch pen finger/touch pen finger/touch pen finger/touch pen
Hardness ≥3H ≥3H ≥3H ≥3H ≥3H ≥3H ≥3H
Processor System CPU Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Chipset H610
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Max Capacity 64GB, Single Max. 32GB
Ethernet Controller 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)
Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
M.2 1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots aDoor 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
Mini PCIe 1 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.2 Gen2x1(Type-A, 10Gbps)2 * USB3.2 Gen1x1(Type-A, 5Gbps)2 * USB2.0 (Type-A)
Display 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M, Full Lanes)
Button 1 * Power Button + Power LED1 * AT/ATX Button1 * OS Recover Button1 * System Reset Button
Power Supply Power Input Voltage 9~36VDC, P≤240W18~60VDC, P≤400W
OS Support Windows Windows 10/11
Linux Linux
Mechanical Dimensions(L * W * H, Unit: mm) 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Environment Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 10 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Certification CE/FCC, RoHS
Q170
Model PL121RQ-E7S PL150RQ-E7S PL156RQ-E7S PL170RQ-E7S PL185RQ-E7S PL191RQ-E7S PL215RQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch
Input finger/touch pen
Hardness ≥3H
Processor System CPU Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Chipset Q170
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2133MHz
Max Capacity 64GB, Single Max. 32GB
Ethernet Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)Support RAID 0, 1
M.2 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots MXM/aDoor 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)1 * aDoor Expansion Slot
Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card)
M.2 1 * M.2 Key-B (PCIe x1 Gen 2 + USB3.0, with 1 * SIM Card, 3042/3052)
Front I/O Ethernet 2 * RJ45
USB 6 * USB3.0 (Type-A, 5Gbps)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz1 * DP: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M)
Button 1 * Power Button + Power LED1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Power Supply Power Input Voltage 9 ~ 36VDC, P≤240W
OS Support Windows 6/7th Core™: Windows 7/10/118/9th Core™: Windows 10/11
Linux Linux
Mechanical Dimensions(L * W * H, Unit: mm) 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Environment Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Q670
Model PL121RQ-E7S PL150RQ-E7S PL156RQ-E7S P170RQ-E7S PL185RQ-E7S PL191RQ-E7S PL215RQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch
Input finger/touch pen finger/touch pen finger/touch pen finger/touch pen finger/touch pen finger/touch pen finger/touch pen
Hardness ≥3H ≥3H ≥3H ≥3H ≥3H ≥3H ≥3H
Processor System CPU Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Chipset Q670
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Max Capacity 64GB, Single Max. 32GB
Ethernet Controller 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)
Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)Support RAID 0, 1
M.2 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots aDoor 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
Mini PCIe 2 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)
M.2 1 * M.2 Key-E (PCIe x1 Gen 3 + USB 2.0, 2230)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.2 Gen2x1 (Type-A, 10Gbps)6 * USB3.2 Gen 1x1 (Type-A, 5Gbps)
Display 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M, Full Lanes)
Button 1 * Power Button + Power LED1 * AT/ATX Button1 * OS Recover Button1 * System Reset Button
Power Supply Power Input Voltage 9~36VDC, P≤240W18~60VDC, P≤400W
OS Support Windows Windows 10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable 1 ~ 255 sec
Mechanical Dimensions(L * W * H, Unit: mm) 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Environment Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 10 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Certification CE/FCC, RoHS
