ATT Series Industrial Motherboard
Features:
-
Supports Intel® 4th/5th Gen Core/ Pentium/ Celeron processors, TDP=95W
- Equipped with Intel® H81 chipset
- 2 (Non-ECC) DDR3-1600MHz memory slots, supporting up to 16GB
- Onboard 2 Intel Gigabit network cards
- Default 2 RS232/422/485 and 4 RS232 serial ports
- Onboard 2 USB3.0 and 7 USB2.0 ports
- HDMI, DVI, VGA, and eDP display interfaces, supporting up to 4K@24Hz resolution
- 1 PCIe x16, 1 PCIe x4, 1 PCIe x1, and 4 PCI slots
-
-
IPC330 Series Wall Mounted Chassis
Features:
-
Aluminum alloy mold forming
- Supports Intel® 4th to 9th Generation Desktop CPUs
- Installs standard ITX motherboard, supports standard 1U power supply
- Optional adapter card, supports 2PCI or 1PCIe X16 expansion
- Default design includes one 2.5-inch 7mm shock and impact-resistant hard drive bay
- Front panel power switch design, with power and storage status indicators for easier system maintenance
- Supports multi-directional wall-mounted and desktop installations
-
-

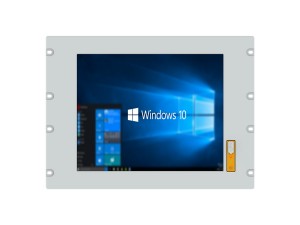

PGRF-E6 Industrial All-in-One PC
Features:
-
Resistive touchscreen design
- Modular design with 17/19″ options available, supports both square and widescreen displays
- Front panel meets IP65 requirements
- Front panel integrates USB Type-A and signal indicator lights
- Utilizes Intel® 11th Generation U-Series mobile platform CPU
- Integrated dual Intel® Gigabit network cards
- Supports dual hard drive storage, with 2.5″ drives featuring a pull-out design
- Compatible with APQ aDoor module expansion
- Supports WiFi/4G wireless expansion
- Fanless design with a removable heat sink
- Rack-mount/VESA mounting options
- 12~28V DC power supply
-
-
MIT-H31C Industrial Motherboard
Features:
-
Supports Intel® 6th to 9th Gen Core / Pentium / Celeron processors, TDP=65W
- Equipped with the Intel® H310C chipset
- 2 (Non-ECC) DDR4-2666MHz memory slots, supporting up to 64GB
- Onboard 5 Intel Gigabit network cards, with an option to support 4 PoE (IEEE 802.3AT)
- Default 2 RS232/422/485 and 4 RS232 serial ports
- Onboard 4 USB3.2 and 4 USB2.0 ports
- HDMI, DP, and eDP display interfaces, supporting up to 4K@60Hz resolution
- 1 PCIe x16 slot
-
-

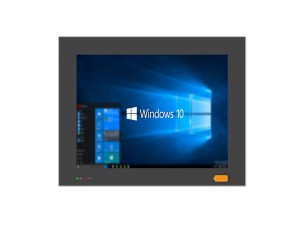

PLRQ-E5S Industrial All-in-One PC
Features:
- Full-screen resistive touch design
- Modular design with options ranging from 10.1″ to 21.5″, supporting both square and widescreen formats
- Front panel compliant with IP65 standards
- Front panel integrated with USB Type-A and signal indicator lights
- Equipped with Intel® J6412/N97/N305 low-power CPUs
- Integrated dual Intel® Gigabit network cards
- Dual hard drive storage support
- Supports APQ aDoor module expansion
- Supports WiFi/4G wireless expansion
- Fanless design
- Embedded/VESA mounting
- 12~28V DC power supply
-
E5M Embedded Industrial PC
Features:
-
Utilizes Intel® Celeron® J1900 ultra-low power processor
- Integrates dual Intel® Gigabit network cards
- Two onboard display interfaces
- Onboard with 6 COM ports, supports two isolated RS485 channels
- Supports WiFi/4G wireless expansion
- Supports APQ MXM COM/GPIO module expansion
- Supports 12~28V DC wide voltage power supply
-
-
E5 Embedded Industrial PC
Features:
-
Utilizes Intel® Celeron® J1900 ultra-low power processor
- Integrates dual Intel® Gigabit network cards
- Two onboard display interfaces
- Supports 12~28V DC wide voltage power supply
- Supports WiFi/4G wireless expansion
- Ultra-compact body suitable for more embedded scenarios
-
-
E5S Embedded Industrial PC
Features:
-
Utilizes the Intel® Celeron® J6412 low-power quad-core processor
- Integrates dual Intel® Gigabit network cards
- Onboard 8GB LPDDR4 high-speed memory
- Two onboard display interfaces
- Support for dual hard drive storage
- Supports 12~28V DC wide voltage power supply
- Supports WiFi/4G wireless expansion
- Ultra-compact body, fanless design, with optional aDoor module
-
